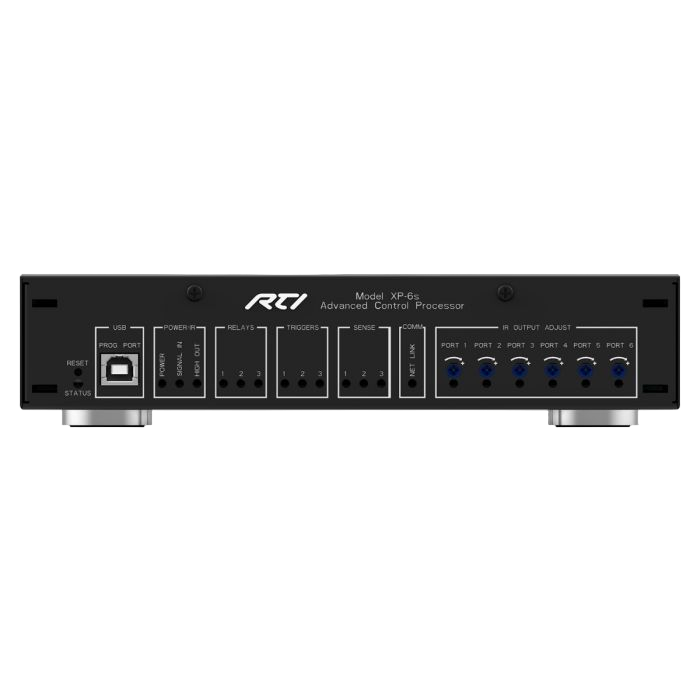

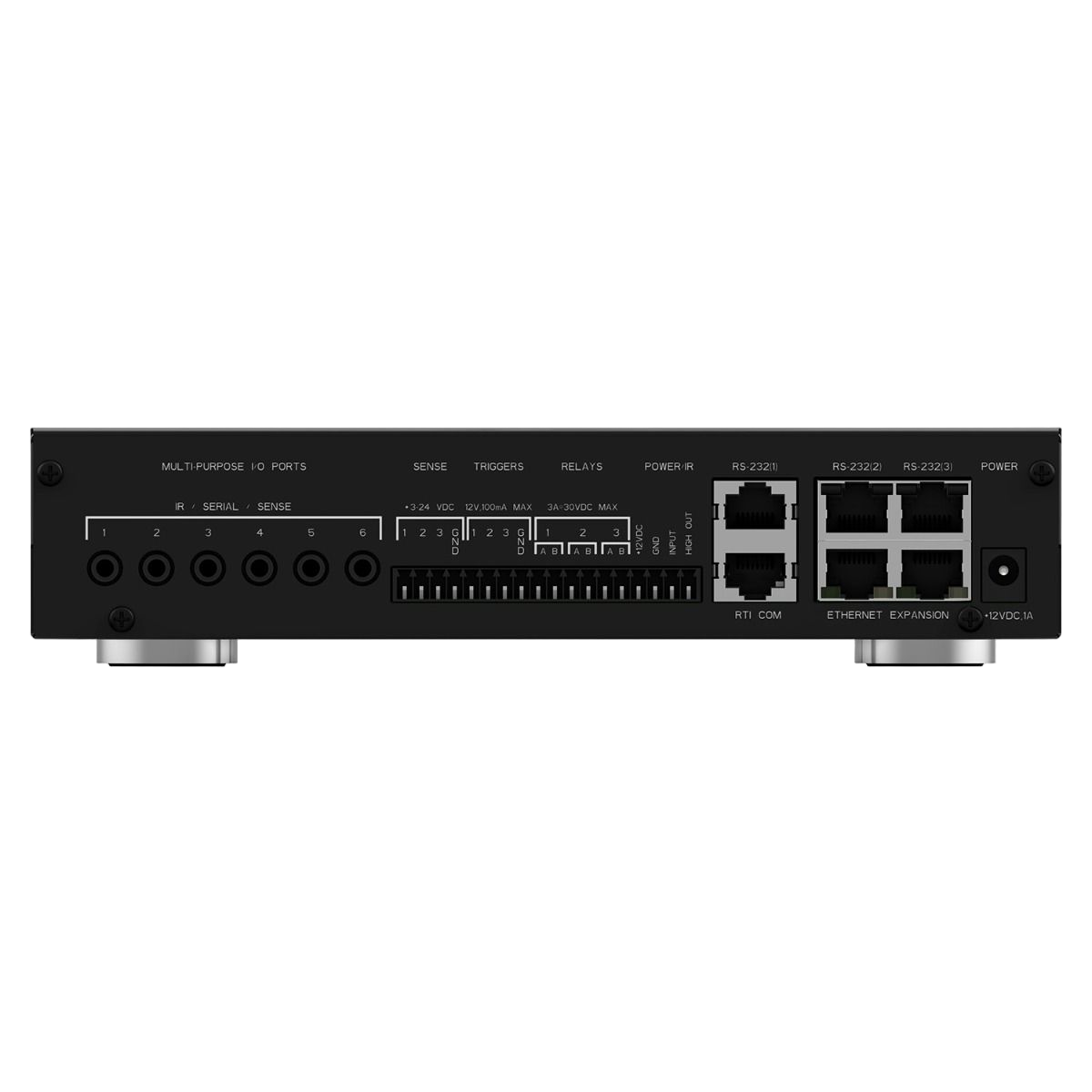

RTI XP6s XP Based Central Processor

• 2-Way - Convenient and reliable control with status feedback from controlled devices such as on/off or arm/disarm status, dimming value of lights, playlists, available stations.
• RS-232 - Three (3) control ports for 3-wire connection with the capability of polling status feedback from controlled devices or systems.
• Relay - Three (3) built-in low voltage dry contacts that provide contact closure or switching control for loads up to 3A/30VDC (external power supply required).
• MPIO / Infrared - Six (6) Multi-Purpose Input/Output control ports that allows for infrared control with infrared emitters, blasters and repeaters and connecting voltage sensors or RS-232 communication modules.
• Sense Input / Voltage Trigger - Three (3) programmable 100mA/2VDC outputs to control and high voltage external relay in amplifiers or other devices to turn them on or off when a sense input detects contact closure from switches, windows or doors. Sense inputs can also be used to trigger a programmed control command or macro.
• Expansion Port - Proprietary communication port that allows bidirectional control communication with RTI touchpanels and keypads.
• Ethernet - Standard 10/100 BaseT network connection for bidirectional control communication with RTI remotes, touch panels and devices that are controlled over IP network.
• Zigbee - Standard wireless Zigbee connection for bidirectional control communication with RTI remotes via ZM-24 Zigbee transceiver module.
• RF 433 MHz - Wireless RF communication on the 433 MHz band for unidirectional control communication with RTI remotes.
• Astronomical Clock - Built-in clock that syncs through an internet connection allows to schedule time-based events to automate all aspects of the installed environment, including climate, lighting, music, and much more.
• Rack-Mount - Allows for mounting the unit into a standard 19” wide rack or placing on any surface using the included feet.

• Dimensions:  8.5 x 1.72 x 6"
• Weight:  2 lbs
