Winegard  |  SKU: HDA-100 | Item No. 0229-0016

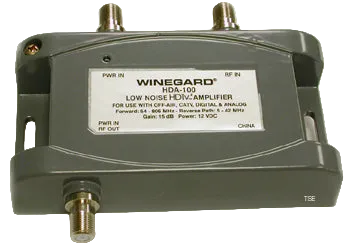

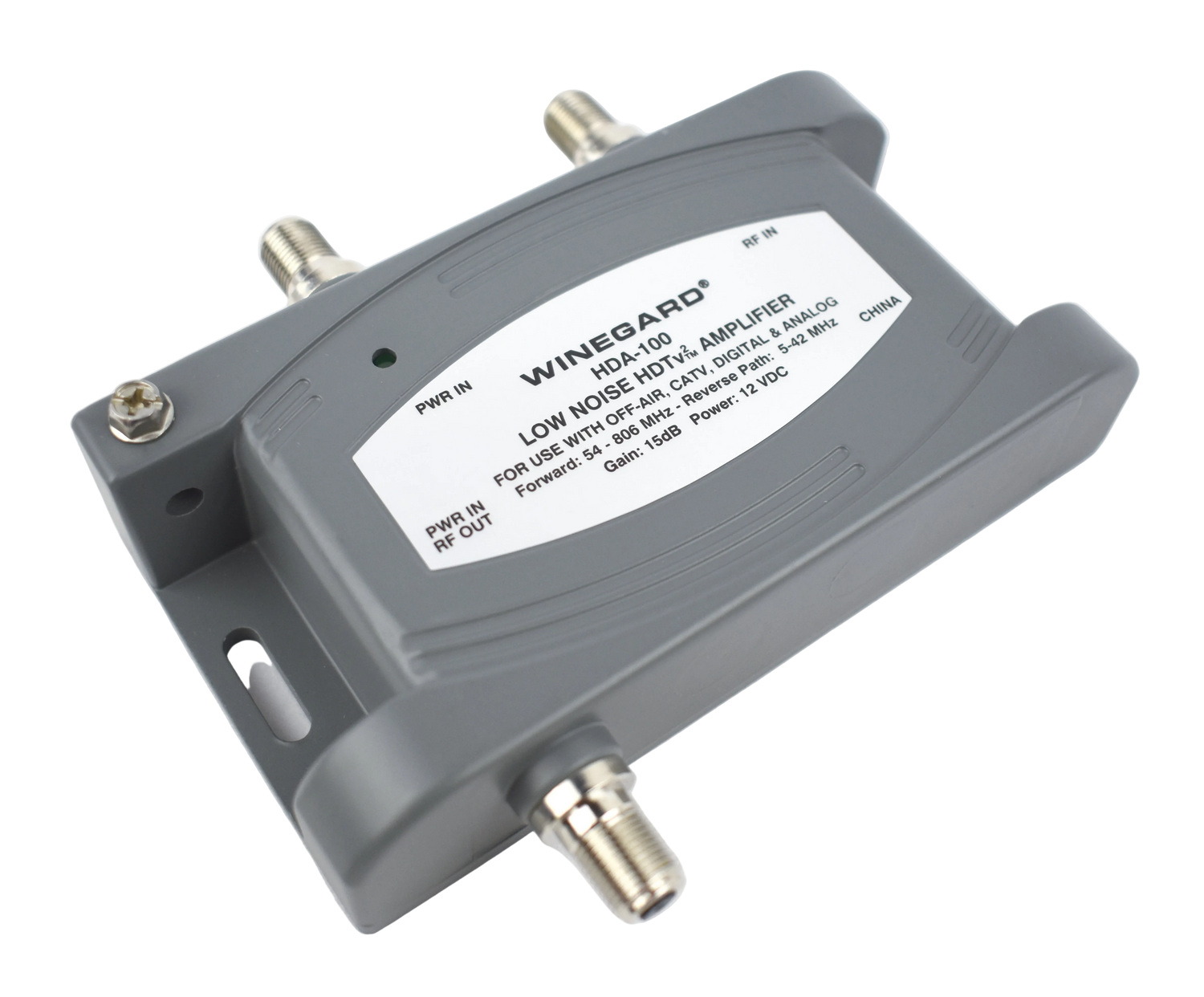

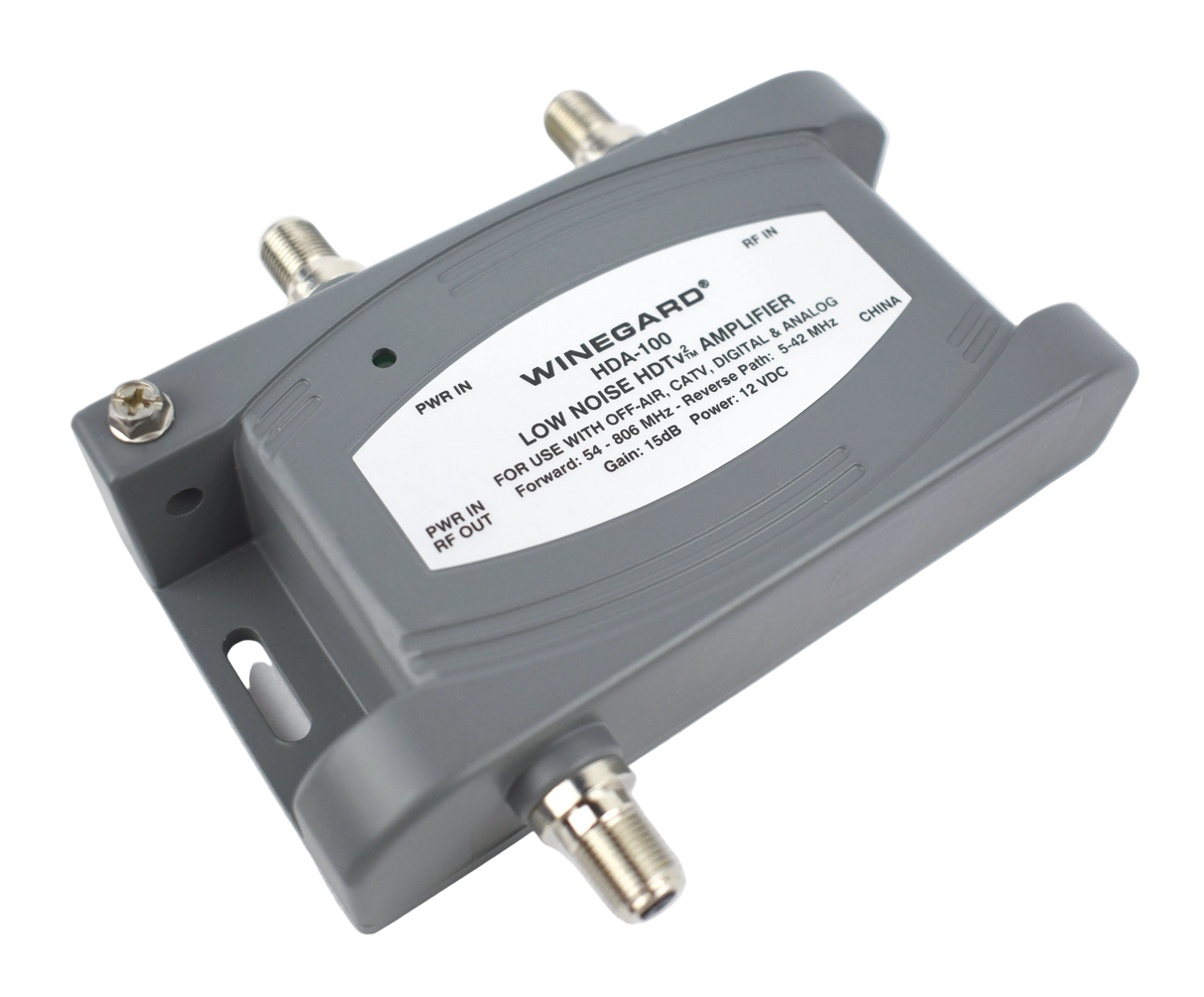

HDA-100 Distribution Amplifier 15dB 54-1000 MHz

Login for pricing

MSRP: $61.99

Description

Winegard’s HDA series of distribution amplifiers was designed to meet the market demand for a heavy duty, quality built, cost effective solution for the amplification and distribution of analog/digital broadcast signals from Off-Air and cable TV stations.

Compare to: Channel Master™ 3410, Macom™ TA-15

Product Features
  • Low-Noise Distribution Amplifier – Overcomes signal loss in coaxial cable running from antenna to TV.
  • Weather-Resistant – Housed in an industrial-grade enclosure to protect against the elements.
  • Maximum Gain: 15dB. Amplifies signals from 54-1000 MHz.
  • Single RF Output: Features 5-42 MHz two-way bi-pass at 2dB.
  • Noise Figure: 3dB (typical)
  • Power: 12 VDC

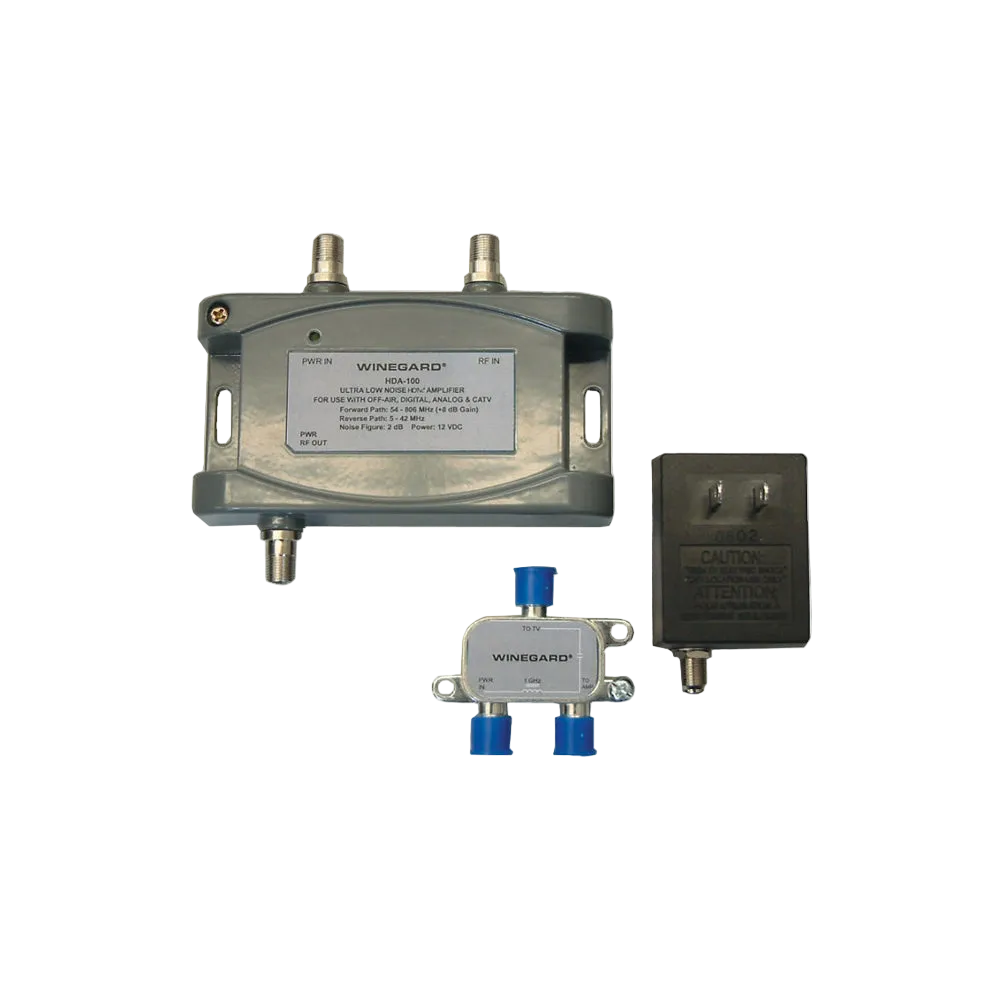

In the Box
  • HDA-100 Distribution Amplifier

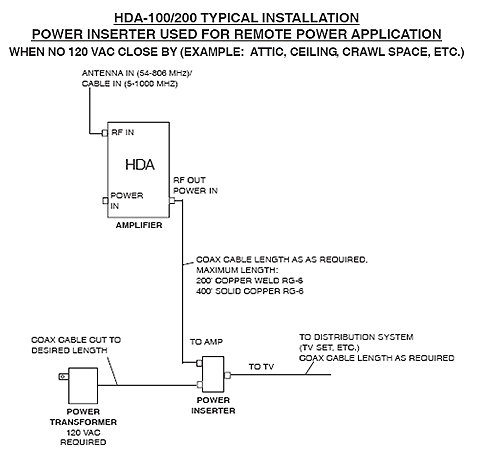

  • Power Inserter
  • Power Supply
  • Mounting Hardware
  • Instructions
Payment & Security
Your payment information is processed securely. We do not store credit card details nor have access to your credit card information.

WARNING: This product may expose you to chemicals which are known to the State of California to cause cancer, birth defects, or other reproductive harm. For more information, go to www.P65Warnings.ca.gov.
  • Height
    4.5 in
  • Width
    1.25 in
  • Weight
    0.6 lb
  • Depth
    5 in
