Wilson Electronics  |  SKU: 314411 | Item: 0083-0163

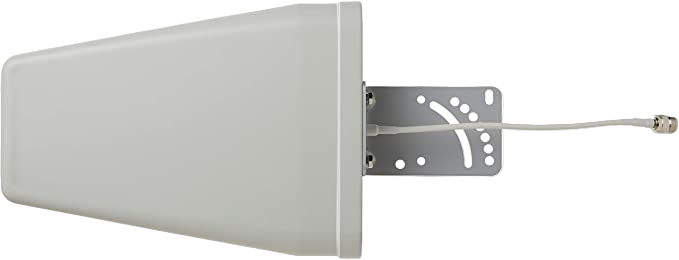

Wilson Electronics 314411 Wide Band Directional Antenna 700 - 2700 MHz w/ N Female Connector Antenna label art: 314411_Rev 3 S

Login for pricing
MSRP: $89.99
1 in stock

Product Features

  • Works on all worldwide cellular bands for voice and 4G data: LTE/CDMA/GSM/UMTS/AWS
  • High performance for Wilson Electronics cellular repeater-boosters: 8 to 10 dBi broadband
  • Designed for building exterior installation; direct at cell tower for best signal
  • High efficiency and compact design
  • UV stable white sealed radome
  • Rugged and waterproof for all weather operation
  • Simple install kit with tilt/swivel mast bracket for 1.25” to 2” diameter pipe/mast

Specifications

Mechanical

  • Connector: N-Female
  • Dimensions / Boxed (in): 11.75x8.25x2.50 / 13.50x8.25x3.25
  • Weight / Boxed (lb): 1.8 / 2.0
  • Wind loading area (sq ft): ≤ 2.13
  • Rated wind velocity (mph): 90
  • Mounting mast diam. (in): 1.5-2.0
  • Radiator material: aluminum
  • Radome material / color: ABS Anti UV / White
  • Water resistance: IPX Weather rated
  • Operating temperature (°C/F): -40 to +55 / -40 to +131

Electrical

  • Frequency range (MHz): 698-960 / 1710-2700
  • Polarization: Vertical / Horizontal
  • Gain (dBi): 8.5 Avg / 9.5 Peak
  • Half-power beam width (°): Low Band: 100-109 Horizontal, 65 Vertical
  • Half-power beam width (°): High Band: 70-85 Horizontal, 55 Vertical
  • Front-to-back ratio (dB): ≥ 10 AVG
  • Impedance (Ω): 50
  • VSWR: ≤ 1.6:1 / 1.4:1 avg
  • Maximum input power (W): 100
  • Lightning Resistance: DC Ground

  • Dimensions:  16.75 x 3.75 x 8.5"
  • Weight:  2.16 lbs
