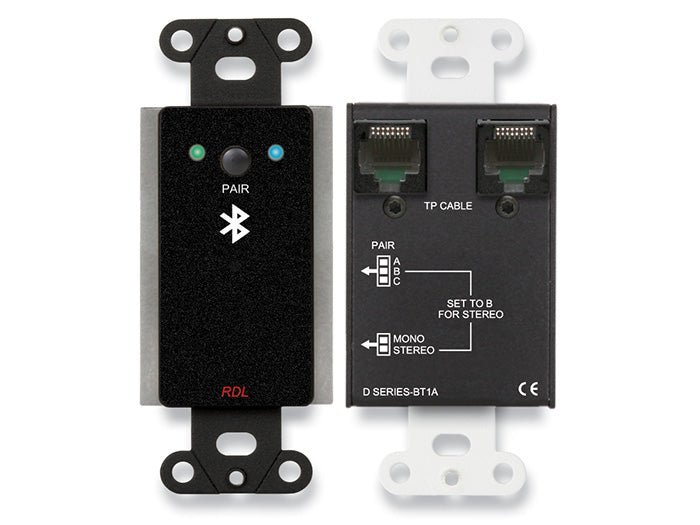

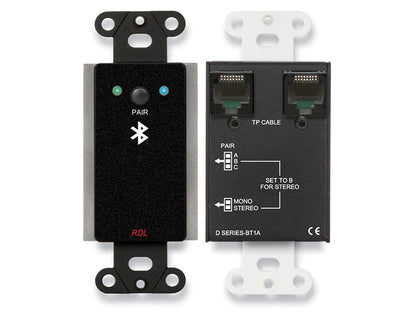

RDL DB-BT1A Wall-Mounted Bluetooth Audio Format-A Interface Black

• Bluetooth Audio Input for Installed Sound System
• Intuitive Single Button Pairing with LED Status Indication
• Special Software Not Required for Module Setup
• Customize the Module ID Name and Programming Password through the Bluetooth Connection

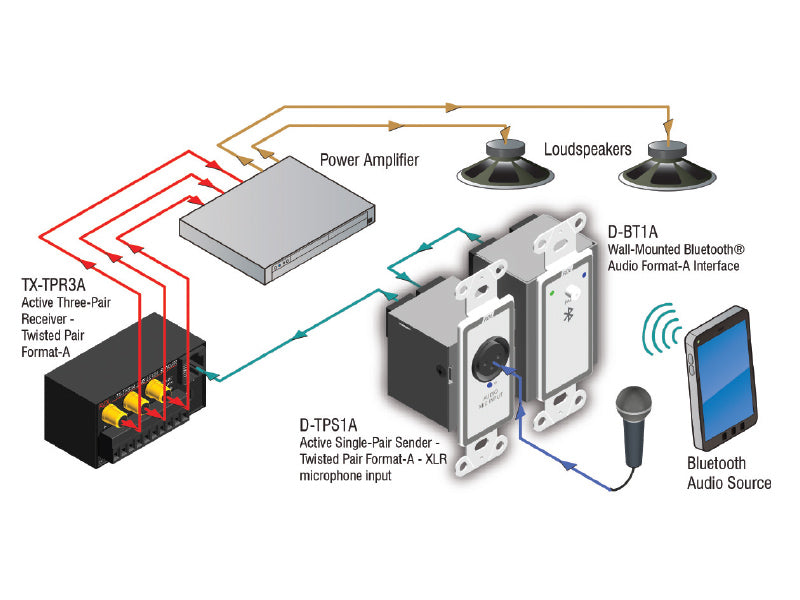

• Sends Received Bluetooth Audio to RDL Format-A Receivers
• Mono Summed or Stereo Audio Input Mode is Switch-Selectable on Rear Panel
• Rear-Panel Switch Selects which RJ45 Pair (A, B or C) is Fed in Mono Summed Mode

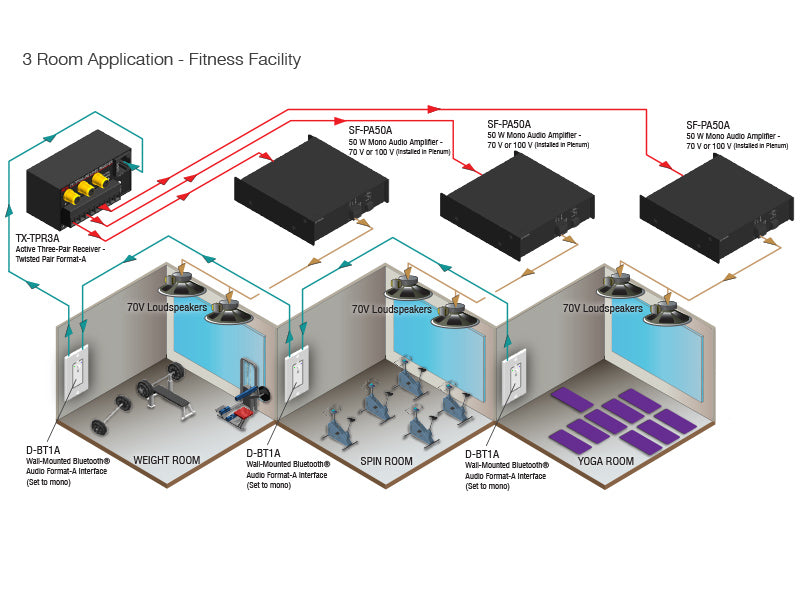

• Daisy-Chain up to Three D SERIES-BT1A modules to One Format-A Receiver in Mono Mode
• Remotely Powered through Twisted Pair Cable
• Signal and Power Pair Pass-Through on RJ45 Jacks

• Dimensions:  1.73 x 4.11 x 1.63"

Download Datasheet
