Blustream  |  SKU: UEX3C-KIT | Item No. 0210-0361

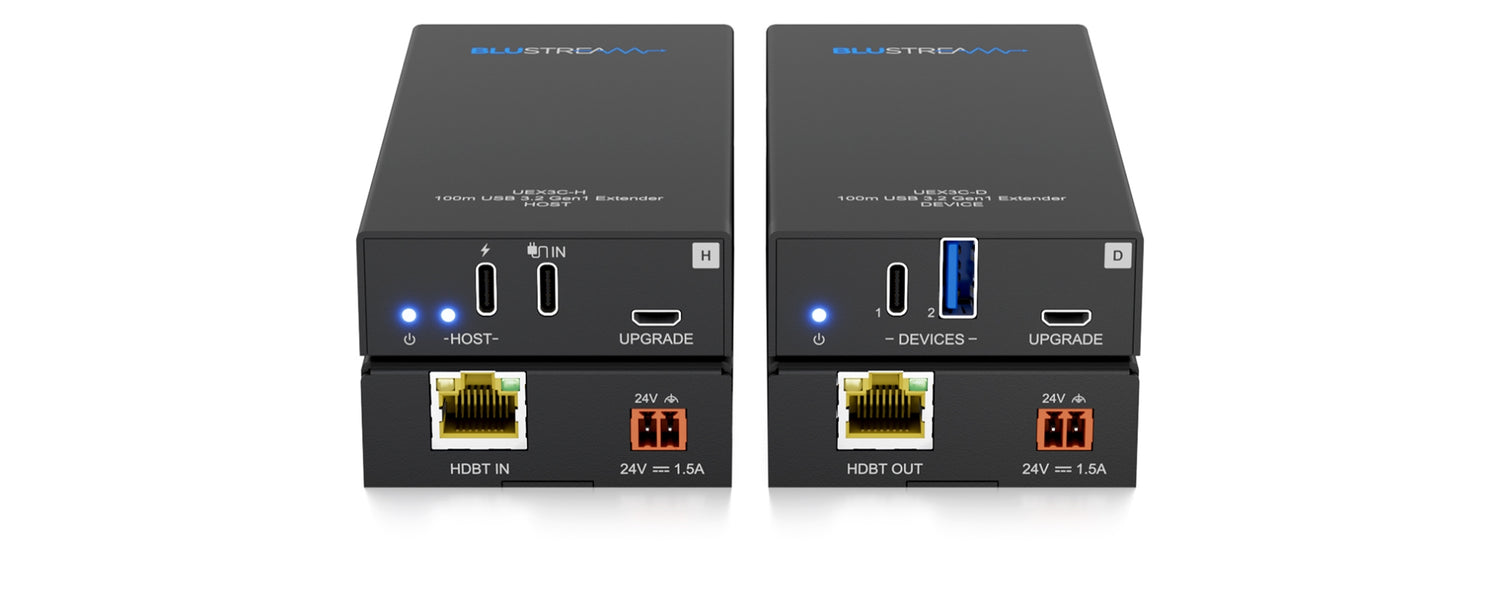

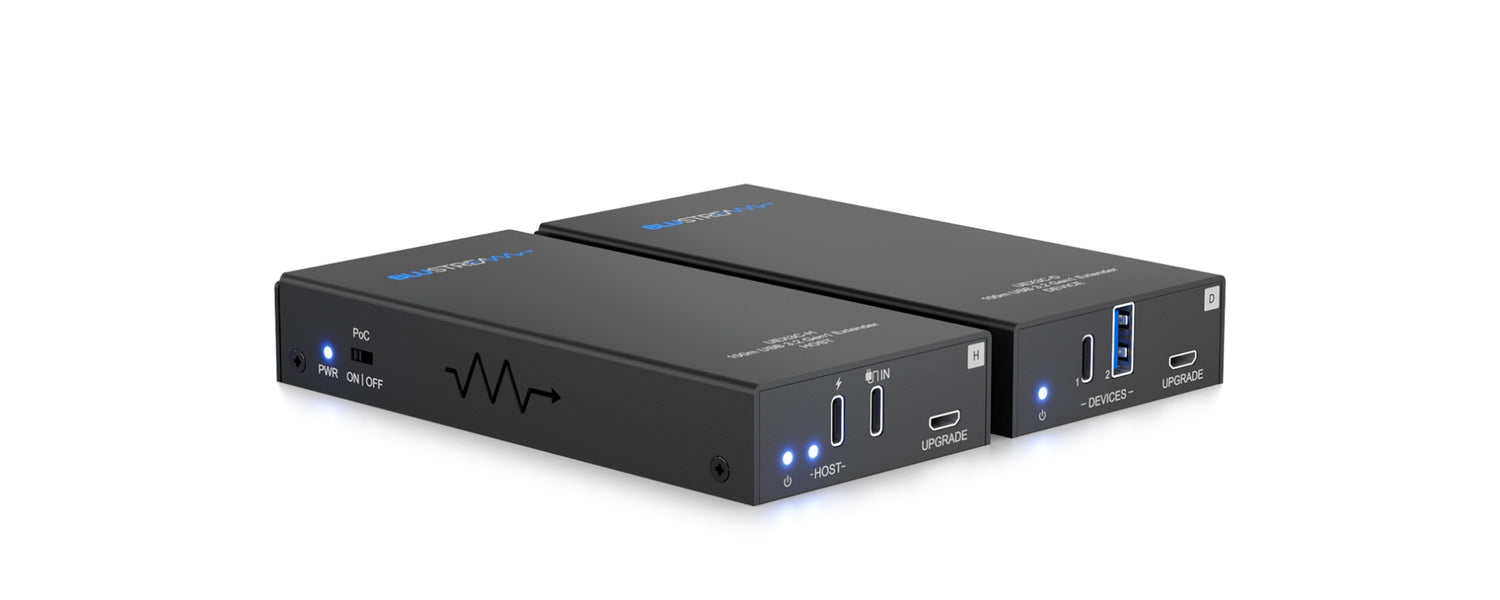

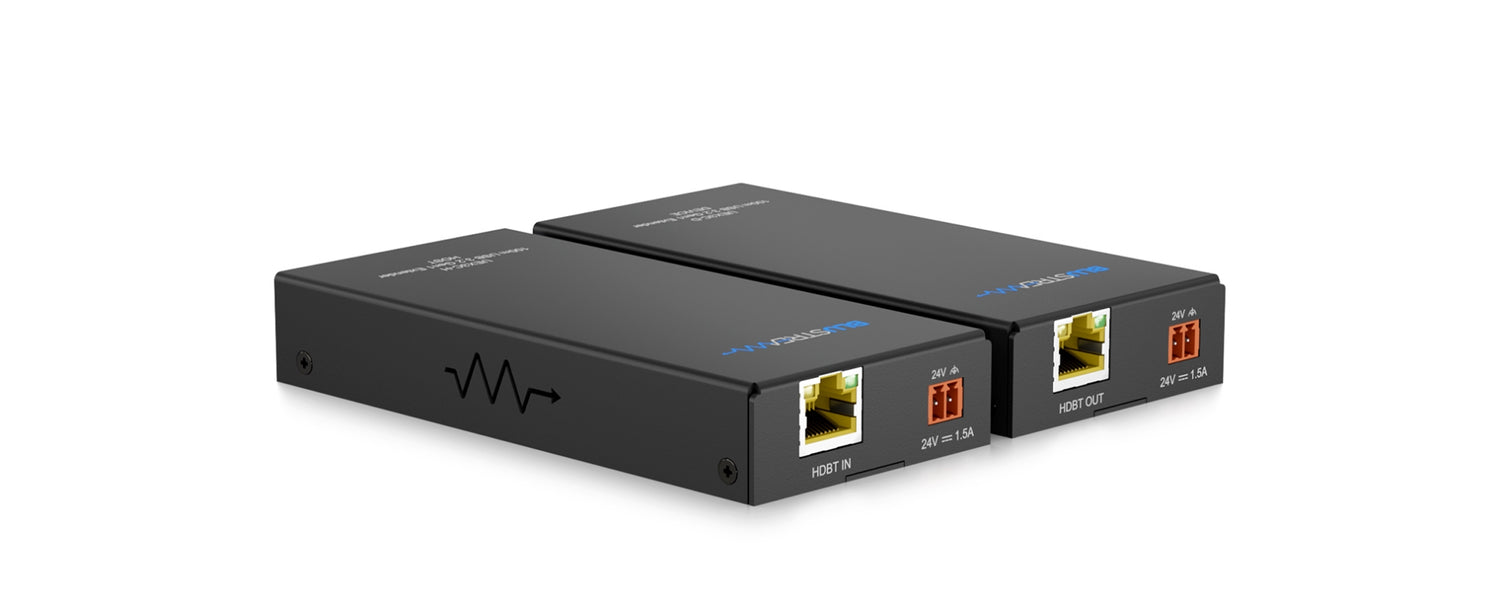

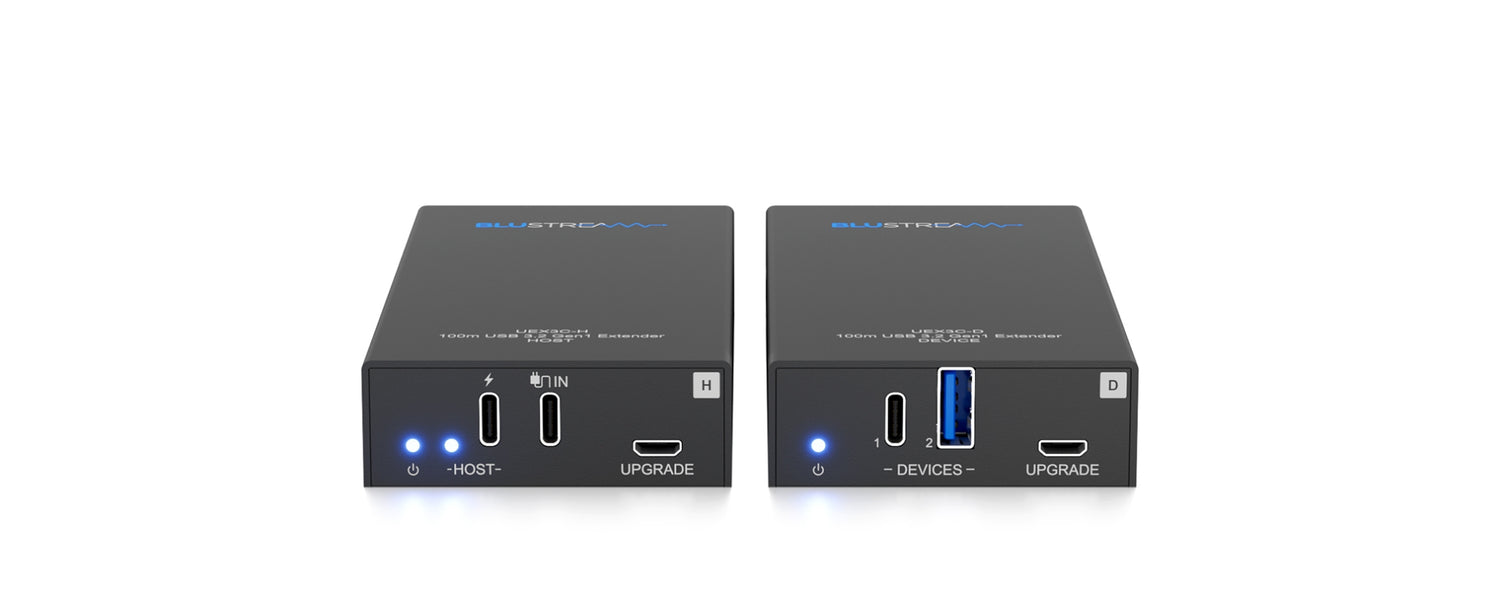

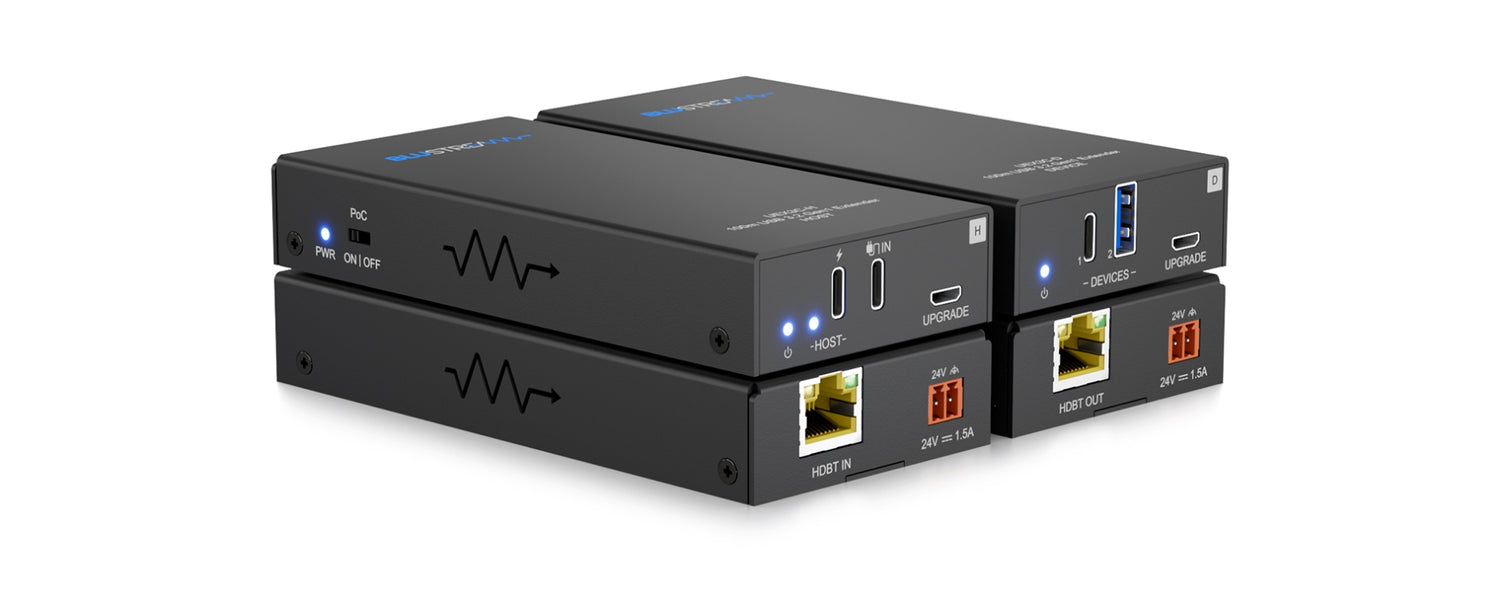

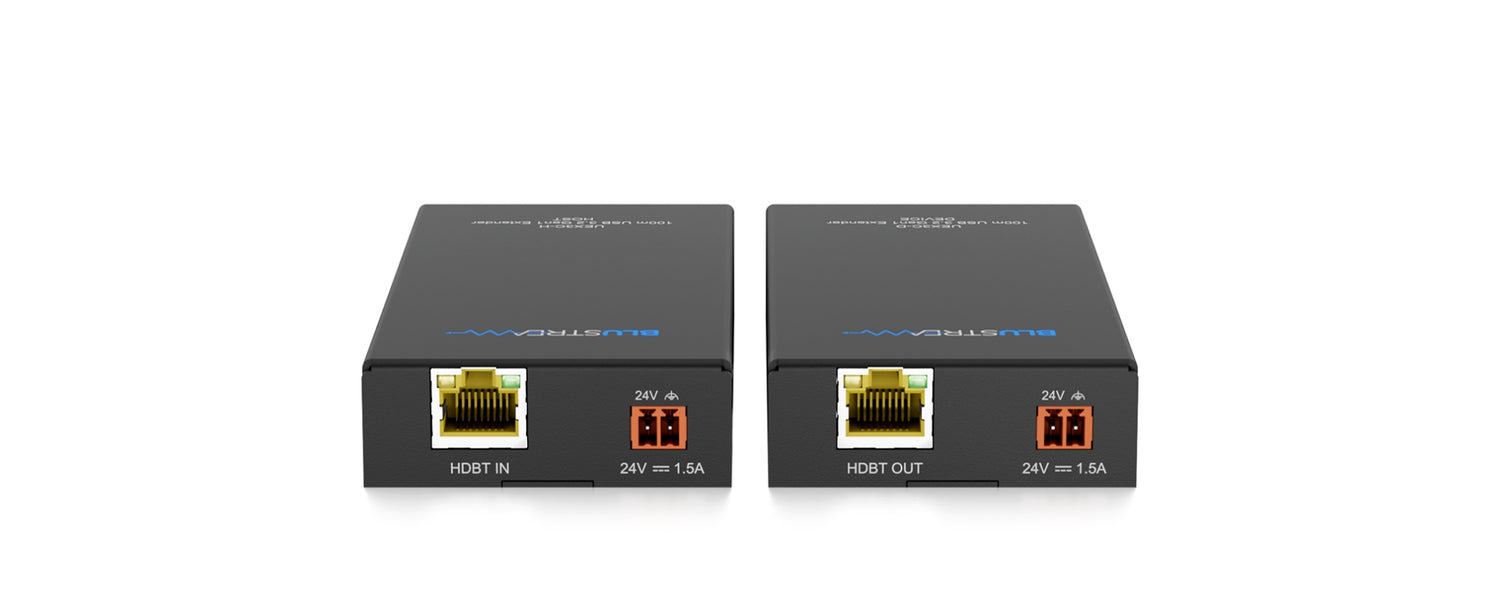

UEX3C-KIT USB 3.2 Gen 1 Extender 100M

Login for pricing

MSRP: $1289.95

Description

The UEX3C-KIT is a USB extender kit utilising HDBaseT™ technology to extend USB 3.2 Gen1 signals up to 100m over a single CAT cable. The UEX3C-KIT allows up to 2 USB devices to be connected to a single USB host with support for a transmission data bandwidth up to 5Gbps. The UEX3C-KIT is backwards compatible with USB 2.0 and 1.1 devices and provides bi-directional Power over Cable (PoC)

The UEX3C-KIT is ideal for applications requiring extension of USB 3.2 Gen1 conferencing cameras, video capture devices, Flash/hard drives, KVM devices, audio devices and other USB 3.2 Gen1 devices

Product Features

• Supports USB 3.2 signal extension up to 100m*
• Backwards compatible with USB 2.0 & 1.1 devices
• USB3.2 Gen1 data transfer rate up to 5Gbps*
• 1x USB-C port on the receiver for connection to host device
• 1x USB-C host charging port for connection of external power supply to power host device
• 1x USB-A & 1x USB-C port on transmitter for connection to devices
• Provides up to 2.5A combined power to USB devices (up to 1.7A per single USB port)
• Configurable USB device power management via API commands
• Bi-directional PoC (Power over Cable) to power extenders from either the host or device unit
• PoC function can be enabled/disabled via dipswitch
• Simple plug and play, no driver installation or setup required.

* Signal distribution bandwidth and length are subject to length of device and host USB cables and CAT cable type. CAT6A F/UTP is recommended for use wiht this product.

Please note: this product is for USB 3.2 data transfer only, and does not support DP Alt Mode video pass-through

In the Box

1 x UEX3C-H
1 x UEX3C-D
2 x Mounting kits
1 x 24V/1.5A power supply
1 x Quick Reference Guide
