TX-J2 Unbalanced Input Transformer

The TX-J2 is the ideal choice in installations requiring the passive mixing of two unbalanced line-level audio sources to feed a balanced (or unbalanced) audio output. The

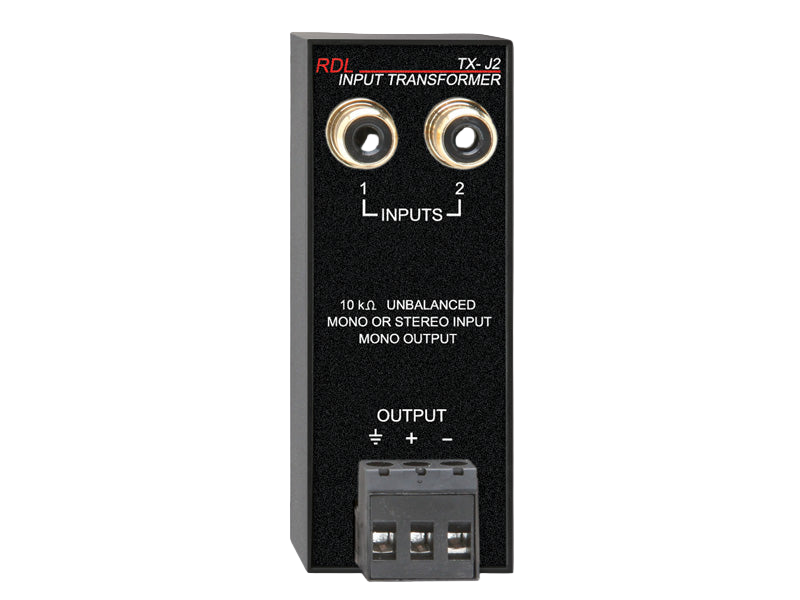

TX-J2 is a complete unbalanced line-level audio input module. The front panel features two gold plated phono jacks, intended for mono or stereo consumer level sources. Inputs 1 and 2 are combined and balanced through audio transformers configured to reject induced hum. The line-level output is provided on the front-panel detachable terminal block for connection to 10 kΩ or higher input impedance line-level module or equipment inputs.
