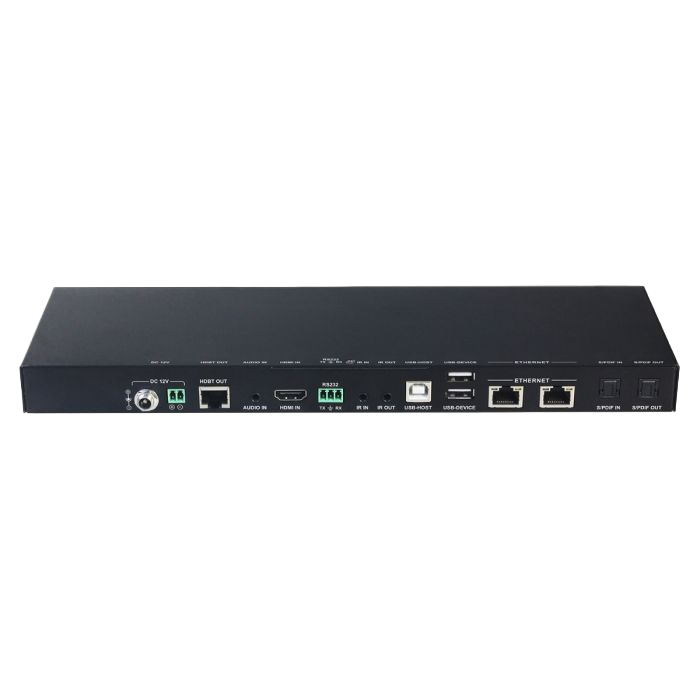

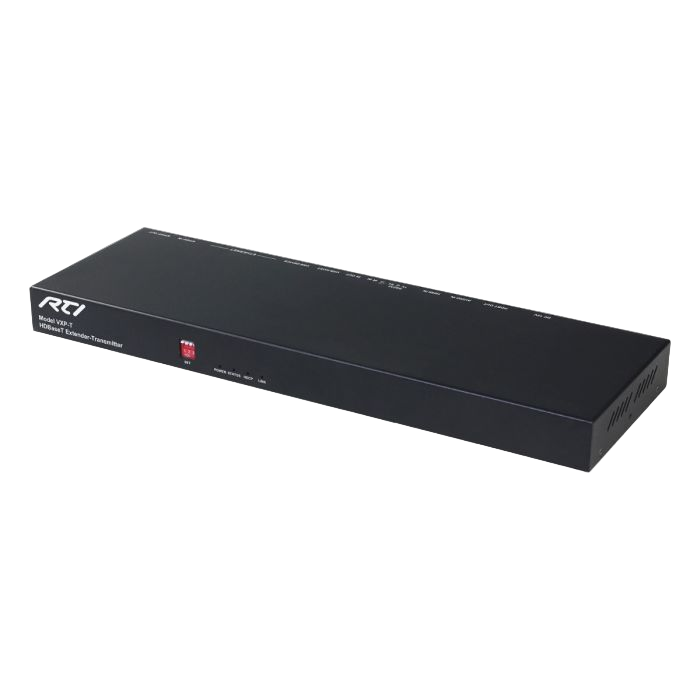

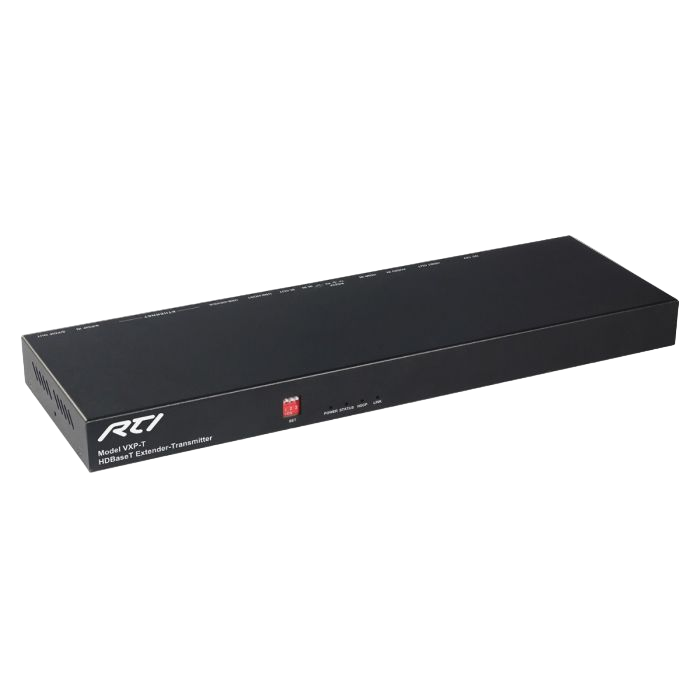

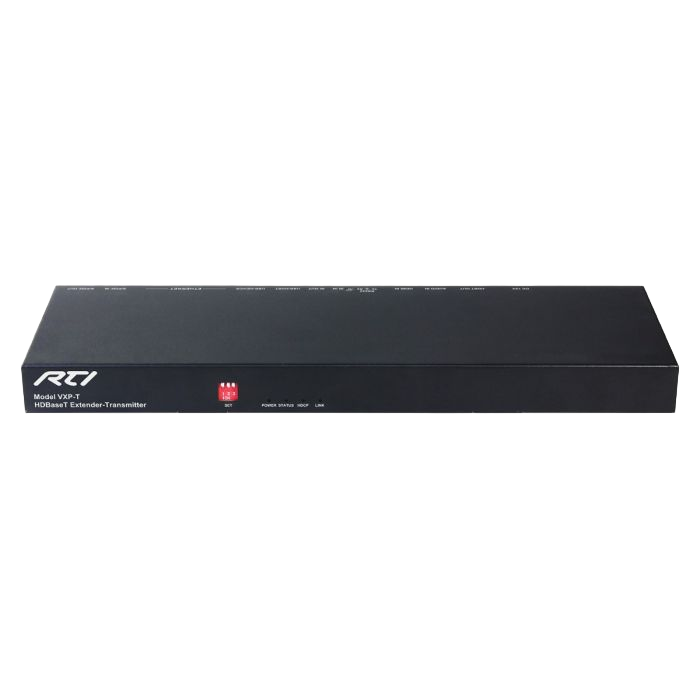

RTI  |  SKU: VXP-T | Item No. 0104-0126

VXP-T HDBaseT Long Range Transmitter Specifically For Use With VXP-82

MSRP: $543.95

Description

The VXP-T (transmitter) is designed for use with the VXP-82 Presentation Switcher & Control Processor to extend high-resolution video, audio, Ethernet, control and KVM signals over long distances up to 492ft (150m) via a single Cat5e/Cat6 cable. In combination with the VXP-82 multiple video sources can be distributed to up to up to two displays.

Easy wiring and the high bandwidth capability of these Class B HDBaseT extenders make them ideal for any commercial or residential setting where video sources are installed in a central AV rack and TVs or presentation displays are distributed throughout multiple areas such as conference rooms, huddle spaces, restaurant dining rooms, or home media rooms.

The VXP-T transmitter can also be used with the and VXP-R receiver as stand-alone signal extension for point-to-point transmission.



Product Features

  • Support for audio, video, power, Ethernet, RS-232 and IR pass-through over HDBaseT.
  • Signal transmission up to 90m/300ft for 4K and 100m/330ft for 1080p via a Cat-5e cable, and up to 100m/330ft for 4K and 1080p via a single Cat-6/6a/7 cable.
  • Supports resolution up to 4K@60Hz 4:2:0 8bit and HDCP 2.2 when installed with VXP-T Transmitter.*
  • Analog stereo audio pass-through over HDBT.
  • S/PDIF digital audio pass-through over HDBT.
  • USB Host and Device ports with bi-directional USB pass-through for shared KVM control.
  • Built-in 10/100Mb Ethernet Switch.
  • One-way PoH (Power over HDBaseT) powers the VXP-R Receiver.
  • Phoenix port for additional power connection.
  • Support for standard and locking DC power plugs.
  • VXP-T and VXP-T are sold separately

* Note: Maximum resolution is 4K@30Hz when VXP-T is installed with VXP-82 All-in-One Presentation Switch.

In the Box

Payment & Security
Your payment information is processed securely. We do not store credit card details nor have access to your credit card information.
  • Length
    12.08in
  • Height
    0.98 in
  • Width
    3.89 in
