TOA  |  SKU: F-1000BT | Item No. 0081-0132

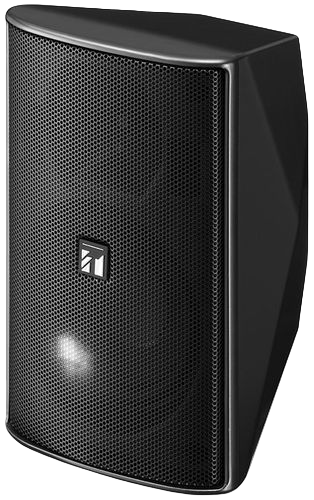

F-1000BT Speaker Two-Way 4” 8 Ohm/70.7/100 V Transformer (15 W)

Login for pricing

MSRP: $158.60

Product Features

Specifications

Related Files

Payment & Security
Your payment information is processed securely. We do not store credit card details nor have access to your credit card information.

The F-1000 Series Speaker are compact two-way speaker systems designed for high efficiency, wide range, and high power input handling capability. These speaker systems can be installed in a manner ideal for the location and intended application. Or in other locations not directly exposed to rain or snow.

Features:

  • Enclosure: Bass-reflex type
  • Rated Input: 15 W (high impedance)
  • Power Handling Capacity: Continuous pink noise: 30 W (low impedance)
  • Continuous program: 90 W (low impedance)
  • Rated Impedance
    • 8 Ω
    • 100 V line: 670 Ω (15 W), 2 kΩ (5 W), 3.3 kΩ (3 W), 10 kΩ (1 W)
    • 70 V line: 330 Ω (15 W), 670 Ω (7.5 W), 2 kΩ (2.5 W), 3.3 kΩ (1.5 W), 10 kΩ (0.5 W)
  • Sensitivity: 87 dB (1 W, 1 m) at installation in 1/2 free sound field
  • Frequency Response: 85 Hz - 20 kHz, -10 dB at installation in 1/2 free sound field
  • Crossover Frequency: 5 kHz
  • Directivity Angle: Horizontal: 90゜, Vertical: 90゜
  • Speaker Component: Low frequency: 10 cm (4") cone-type
  • High frequency: Balanced dome tweeter
  • Input Terminal: Push-in terminal
  • Finish
    • Enclosure: HIPS, black
    • Punched net: Surface-treated steel plate, black, paint
    • Joint bracket, wall bracket: Steel plate, t1.6, black, paint
    • Speaker bracket: Die-cast aluminum, black, paint
  • Accessory: Speaker bracket…1, Joint bracket…1, Wall bracket…1, Bracket fixing screw…1 set
  • Optio
    • Board hanger bracket: HY-BH10B,
    • Ceiling mount bracket: HY-CM10B (used for the horizontal speaker mounting),
    • Cluster bracket: HY-CL10B, Speaker stand: ST-16A

Dimensions:  5.12 x 7.95 x 5.16"

Weight:         4.41 lbs

Download Spec Sheet
