Key Digital  |  SKU: KD-XWPS | Item No. 0101-0144

KDXWPS HDMI USB-C Over 50M CAT6 Wall Plate Extender Set

Login for pricing

MSRP: $425.00

Product Features
  • Presentation Switching: 1 HDMI and 1 USB-C selected by push button or auto switching
  • Auto-Switching: Automatic selection of newly detected source and switching from newly disconnected source when enabled

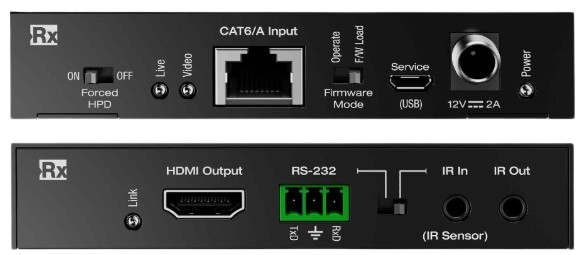

  • Complete Kit: Includes Tx (model KD-EXWPSTx) and Rx (model KD-X444SPRx) units
  • Ultra HD/4K: Supports up to 4096x2160 or 3840x2160 24/25/30/60hz at 4:4:4 (signals up to 18Gbps bandwidth)
  • Visually Lossless Compression: 18G enabling technology applied to all video formats exceeding 10.2Gbps to accommodate CAT6/6A transmission channel
  • Power over CAT: Wall plate Tx unit powered by Rx
  • HDCP Licensing: Fully licensed and compatible with HDCP 2.2
  • HDR10 (High Dynamic Range): More life-like images through a greater range of luminance levels
  • Signal Extension: 4K/UHD (up to 18G) & 1080p - up to 50m / 164ft
  • Deep Color Support: Up to 4K/UHD 30Hz 4:4:4/12 bits or 60Hz 4:2:2/12 bit
  • Full Buffer System™: Manages TMDS re-clocking / signal re-generation, HDCP authentication to source & display, EDID Control handshake, and Hot Plug Detection Voltage
  • EDID Management: Internal library with 15 internal EDID handshakes including 4K with HDR in addition to native EDID data copied from the Rx display/device
  • IR Sensor: Wall-plate collects line-of-sight IR from remote(s) without external IR wiring
  • Surround Audio Support: Dolby ®, DTS™ (formats up to 5.1 / 6.1)

Specifications
  • Dimensions:
  • Tx: 1.92 x 4.13 x 1.42"
  • Rx: 4.3” x 4.12” x 0.82”
  • Weight:
  • Tx: 0.6 lbs
    Rx: 0.595 lbs

Related Files

Manual

Payment & Security
Your payment information is processed securely. We do not store credit card details nor have access to your credit card information.

Key Digital® KD-XWPS is a single-gang wall-plate switcher transmitter + receiver kit with one HDMI and one USB-C input ideal for professional AV systems installations in conference rooms, huddle spaces, classrooms, and more. KD-XWPS supports 4K/UHD resolution with bandwidth up to 18Gbps and HDCP2.2 compliancy and extends video resolutions up to 4096x2160 at 60hz with 4:4:4 chroma sub-sampling over a single CAT6/6A cable up to 164ft (50m). In addition to HDMI video and audio signals, KD-XWPS features an IR sensor on the faceplate to control remotely located equipment. KD-XWPS features EDID handshake control and hot plug detection for overcoming common systems integration obstacles. The wall-plate unit fits in a standard US single-gang box and is powered by the Rx unit for convenient installation.
