Shure UA505 Antenna Mounting Bracket Kit

Shure UA505 Antenna Mounting Bracket Kit

Login for Pricing

MSRP: $58.00

Shure | SKU:Shure UA505

ITEM: 0116-1566

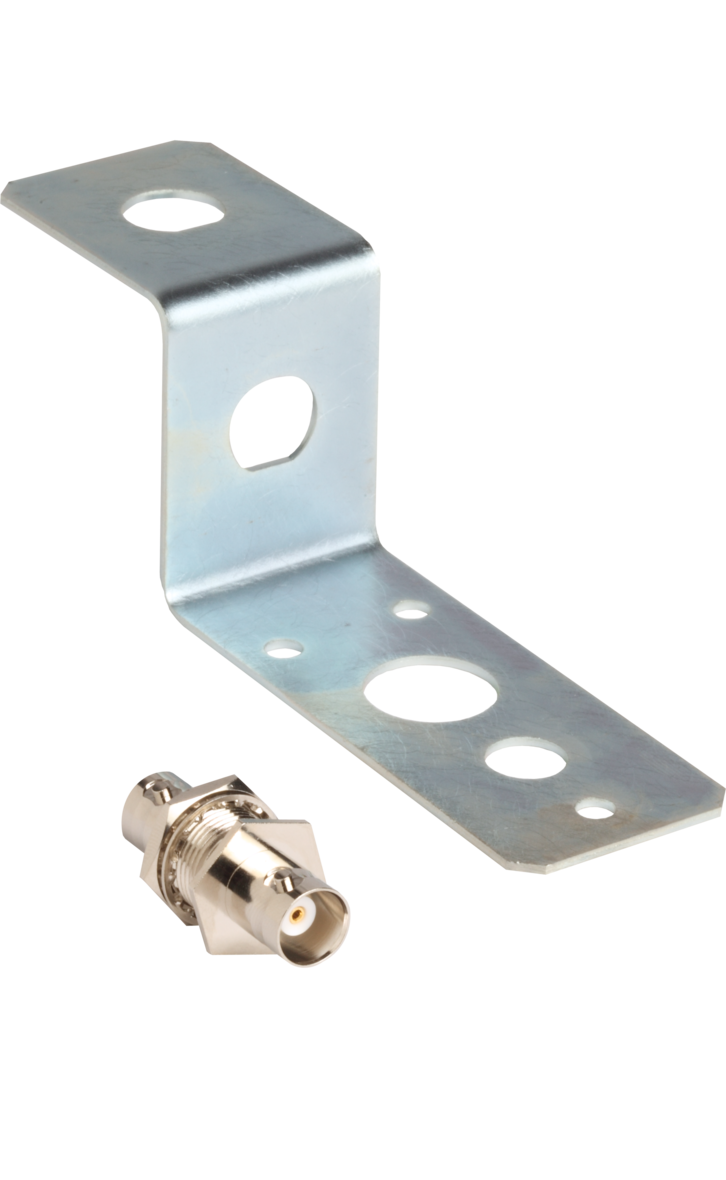

The length of the longer bracket section, that has five holes, is 3.0" (76 mm).  This longer section has three holes for mounting screws.  Each screw hole has a diameter of 0.18" (4.6 mm).  There are also two holes for mounting on a mic stand: one hole has a diameter of 0.64" (5/8" - 16 mm) and one hole has a diameter of 0.38" (3/8" - 9.5 mm).

There are two shorter bracket sections, each having one hole; these sections form a 90-degree angle.  The length of each section is 1.66" (42 mm).  Each shorter section has a hole to mount a BNC bulkhead connector.  The diameter of each hole is 0.51" (13 mm).

In the Box

(1) mounting bracket, bulkhead adapter and bulkhead adapter nut for remote antenna mounting

Specs

  • Uniform thickness: 0.62" (16 mm)
  • Width: 1.66" (42 mm)
  • Length: 4.66" (118 mm).
