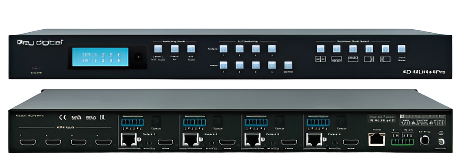

KD-MLV4x4Pro Multi-View Tiling Processor Matrix with 4 HDMI Inputs and 4 Outputs

› Multi-view Tiling Processor: Simultaneously watch multiple sources on a single screen
» Full-Screen Mode: View full-screen content on any display
» Multi-View Mode: Choose from 5 default layouts or create custom presets.
The active multi-view layout is distributed to any display currently in multi-view mode
› Seamless Switching: Un-interrupted screen transitions during source selection while
in full-screen mode

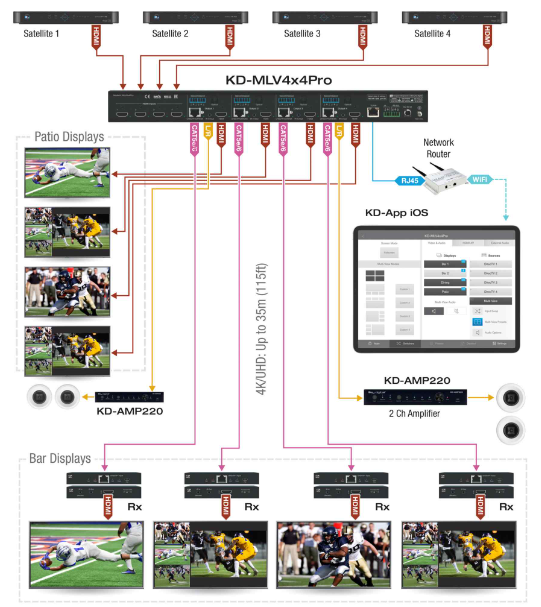

› Built-In UHDoTP Tx with PoC: 4 included KD-EXMLVRx units are powered by KD-MLV4x4Pro
› Mirrored Outputs: Simultaneously active HDMI + UHDoTP connections per output show
same AV signal at same time for a total of 8 possible displays connected
› Independent Audio Matrix: Audio output ports may be routed separately from HDMI &
UHDoTP ports. Audio from any source may be selected while in multi-view mode.
› Video Resolution: Up to 3840 x 2160p 4:2:0 at 60fps supported on inputs &
3840 x 2160p 4:4:4 at 30fps on outputs
› Signal Extension: For resolution and cable quality
» 4K/UHD: Up to 35m (115ft) using CAT5e/6, up to 40m (131ft) using CAT6A STP
» 1080p: Up to 50m (164ft) maximum, up to 60m (197ft) using CAT6A STP
» Minimum: 5m (17ft) CAT5e/6 cable length required for all resolutions
› Text Overlay: Assigned name of each source may be displayed in each window.
16 Characters maximum with variable sizing and location settings.
› 4K Down-Convert: Integrate 4K sources with legacy 1080p & 720p displays
› Image Layering: Stack images with customizable priority settings per output
› Custom Layouts and Borders: Create custom window layouts and choose window bezel
width and coloring
› HDCP 2.2 Licensing: Fully licensed and compatible with HDCP 2.2

› Built-In Test Patterns: 9 selectable test screens help expedite installation
› IR Two-Way: Extend IR via Rx units to control displays or collect IR from remote
to control a source at matrix
› Web UI: Control AV routing and other basic functions from any web browser
› Audio De-Embed: 6 pin balanced / un-balanced and digital optical outputs
› Dolby Digital® & DTS™ Audio: Supports 2-channel and multi-channel surround formats
up to 5.1 Dolby® / DTS™
› Full Buffer System™: Manages TMDS re-clocking / signal re-generation, HDCP
authentication to source & display, and EDID handshake to source
› EDID Management: Internal library with 8 EDID AV handshakes per input, in addition to
ability to copy from any connected display / output
› TMDS Re-clocking: Supports long HDMI connectivity using Key Digital® HDMI cables
› Deep Color Support: Up to 8 bits/color
› Control: Front panel buttons, IR, RS-232, TCP-IP and Web Control
› Key Digital® App Ready: Can be controlled over TCP/IP via Key Digital® App
› Control System Support: Key Digital Management Software™ Pro (KDMS™ Pro) ready,
Compass Control® Pro ready. Fully controllable by all IR, RS-232, and TCP/IP supported
control systems via open API.
› Regulation: CE, RoHS, WEEE, EAC

• (1) Power Supply: 12V 5A screw-type, model KPS60W12VC
• (1) KDRMLV4x4 Remote Control
• (4) UHDoTP Rx units, model KD-EXMLVRx
• (4) IR Emitters with 3.5mm mono end. 6ft
• (4) IR Sensors with 3.5mm 4 conductor end. 6ft
• (4) 6-Pin Phoenix connector for audio, blue
• (1) 6-Pin Phoenix connector for unit control
• (1) USB data cable, Micro to A, 6ft, USB 2.0
• (2) Rack ears
