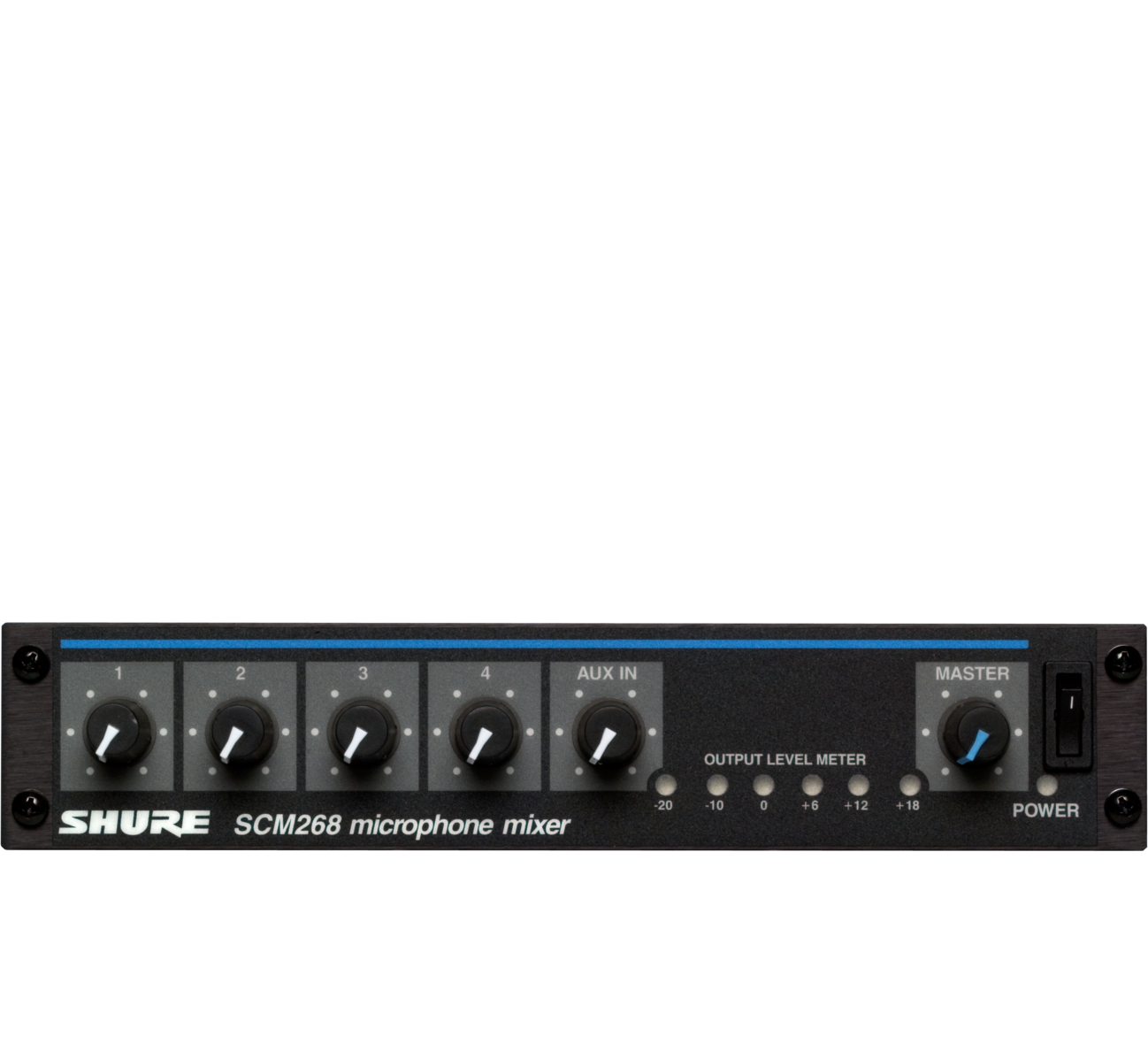

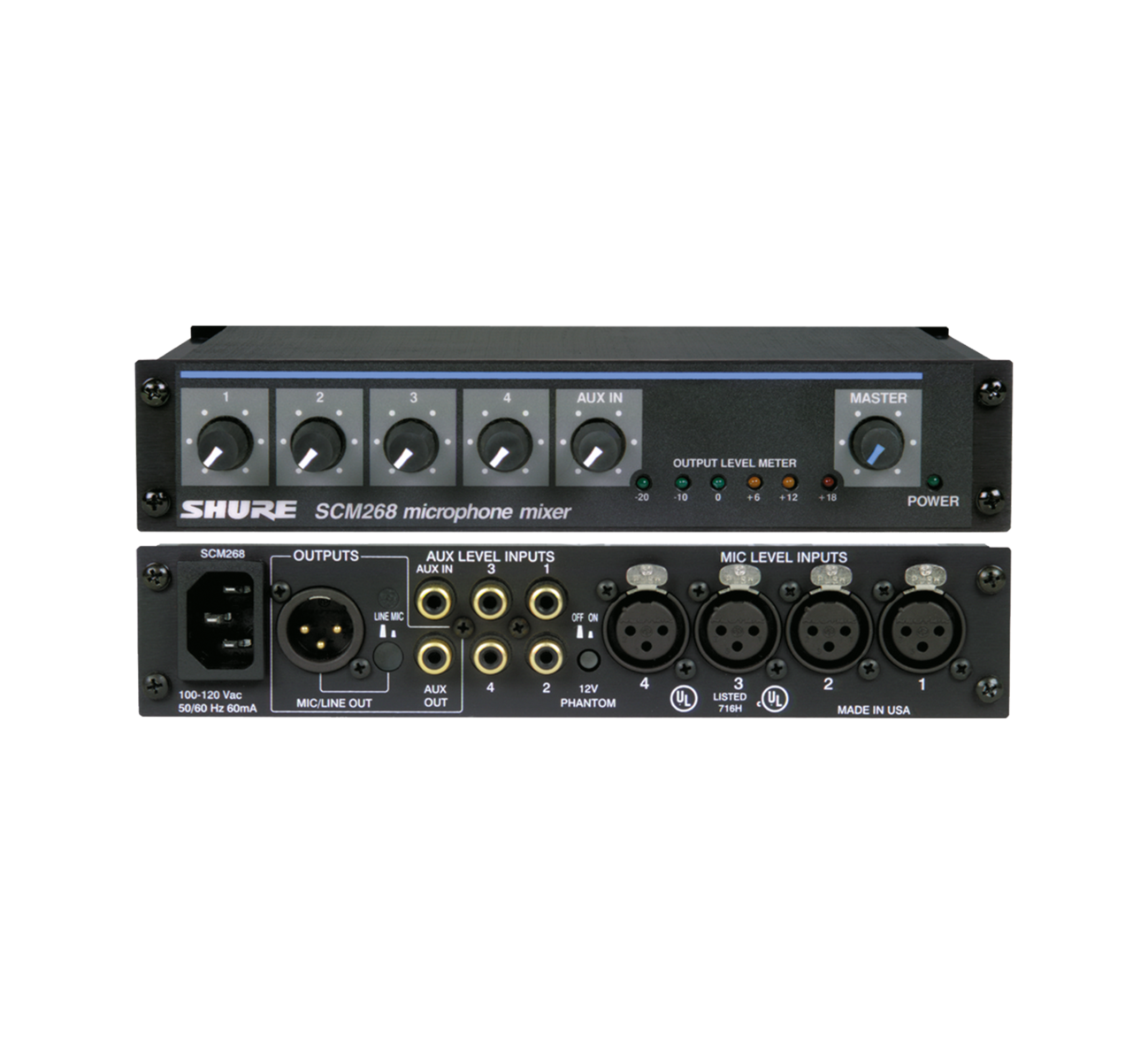

Shure SCM268 4-Channel Microphone Mixer

Shure SCM268 4-Channel Microphone Mixer

Login for Pricing

MSRP: $478.00

Shure | SKU:Shure SCM268

ITEM: 0116-1356

For over a generation, Shure mixers, as well as a host of other Shure products, have been chosen for installed sound applications with unparalleled peace-of-mind. The SCM268 continues this tradition of quality performance at a great value. If you want half a dozen transformers in a half-rack space, choose the SCM268.

4-channel microphone mixer delivers superior performance and excellent sound quality with low noise and a flat frequency response. Includes 4 transformer-balanced inputs, 5 -10 dB line-level inputs, 12-volt phantom power, and built-in low-cut filter.

    Great Value

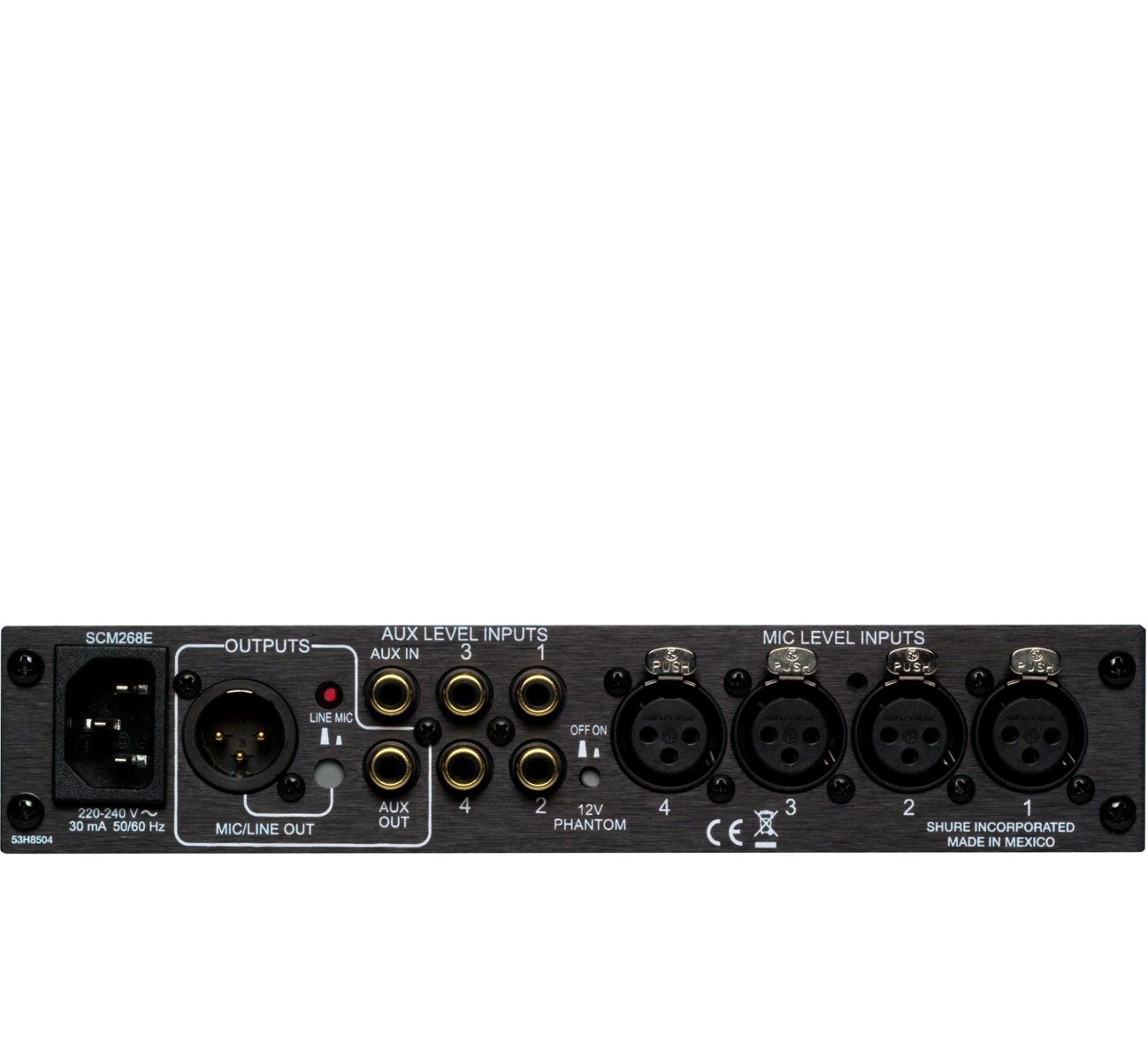

    The competitively priced SCM268 microphone mixer features six transformers inside: four transformer balanced XLR microphone-level inputs, one transformer balanced XLR mic/line output, and one internal low stray field, toroidal power transformer.

    Many Benefits, Little Space

    All those audio transformers provide protection from RF interference, prevent ground loops, and make the SCM268 exceptionally quiet. The internal toroidal power transformer means you no longer have to deal with that annoying "wall wart."

    Add to this a rugged half-rack chassis -- with exceptionally solid rack mounting hardware -- and the SCM268 will easily fit into the widest range of smaller applications, such as:

    • Meeting rooms
    • Houses of worship
    • Broadcast
    • Educational paging and public address
    • Sound system rental


    • Five unbalanced aux level inputs (Phono connectors)
    • LED peak output meter
    • One unbalanced aux level output (Phono connector)
    • IEC power cord connector
    • 12V phantom power for condenser microphones
    • Built-in low cut filters on mic inputs
    • Unit fits into a half-rack space and includes all the necessary rack mounting hardware.

    In the Box

    (1) Rack Mount kit


    • Dimensions:  1.72 x 8.60 x 6.37"
    • Weight:          2.625 lbs
