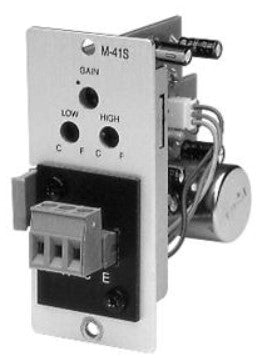

TOA M41S Microphone Input with Mute-Send

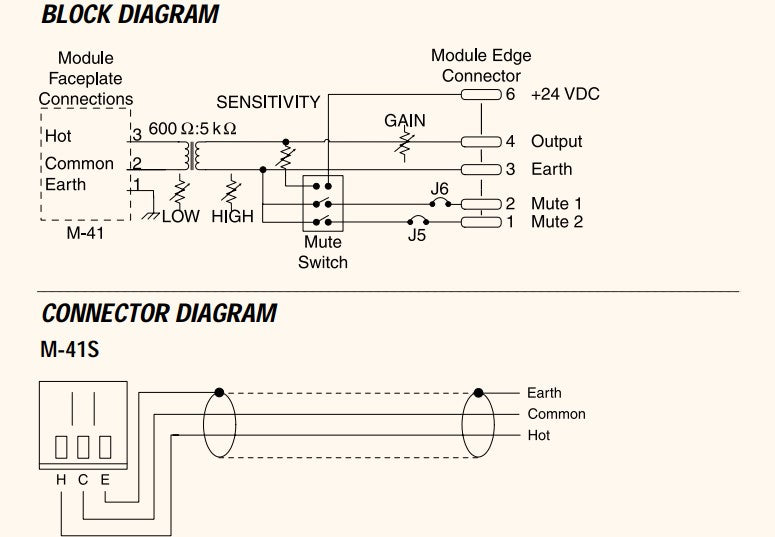

The TOA M-41S is a microphone module to be used in conjunction with the 900 series or AX-1000 amplifier. The M-41S has a phantom power supply and a 600 Ω balanced input. The module also has a voice-activated muting control output.

Features:

• For Balanced, Low Impedance Microphones.
• High and Low Cut Filters for tone control, 4.2 kHz and 330 Hz, 6 dB/octave.
• Phantom Power, +22 VDC for condenser-type microphones. Active by default, cut Jumper J1 to disable.
• Signal At Input Terminals Activates Both Mute Bus # 1 and Mute Bus # 2 by Default (cut jumper(s) to disconnect individual mute bus).
• Connector: removable terminal block (M-41S)

Dimensions:  1.37 x 3.07 x 3.46"

Weight:         .17 lbs
