Audix  |  SKU: ADX18 | Item No. 0073-0017

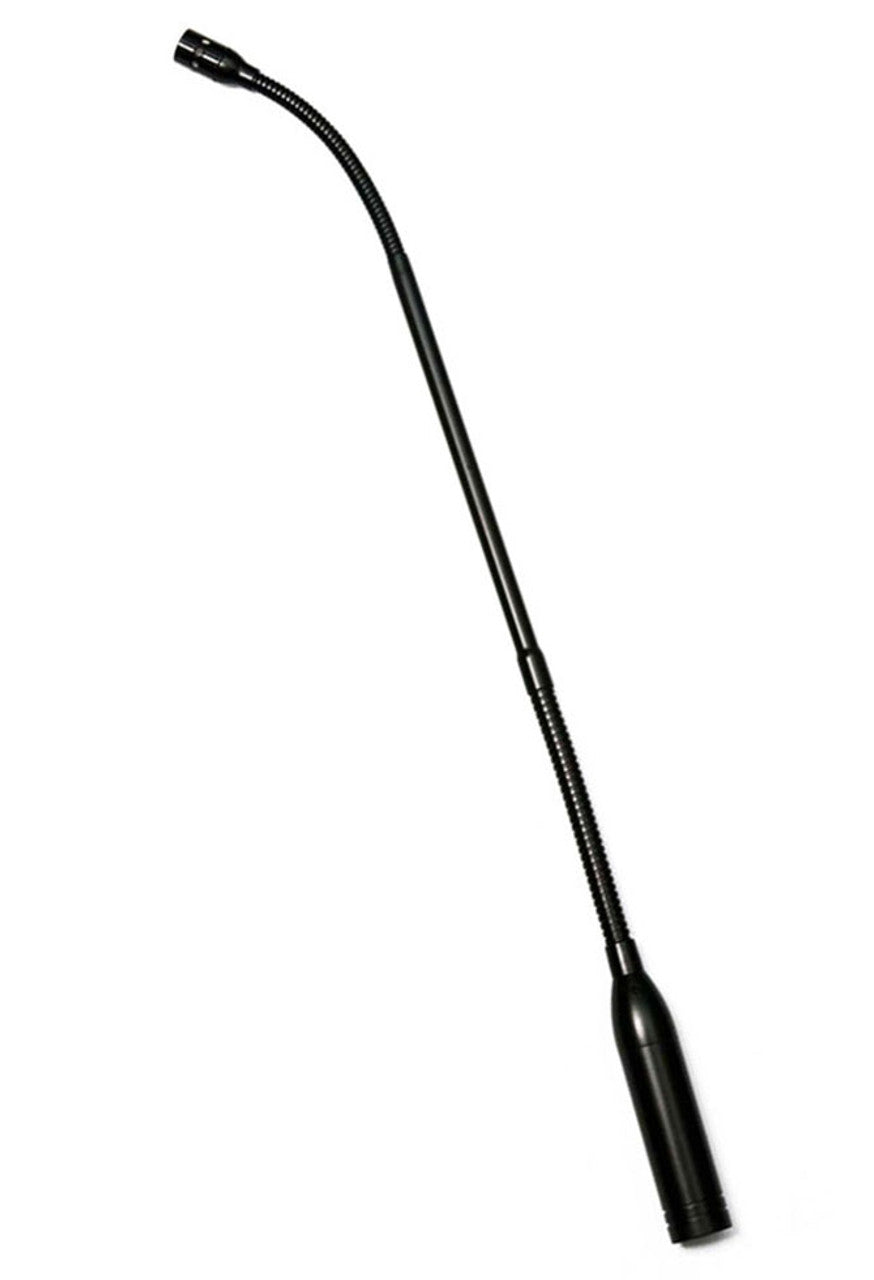

ADX18 Microphone Gooseneck 18" Cardioid Black

MSRP: $259.00

Product Features

  • Transducer Type: Pre-Polarized Condenser
  • Frequency Response: 40 Hz - 18 kHz
  • Polar Pattern: Cardioid / Hyper cardioid
  • Output Impedance: 15 ohms
  • Sensitivity: 24 mV (C) / Pa @ 1k 30 mV (HC) / Pa @ 1k
  • Equivalent Noise Level: 28 dB (A weighted)
  • Signal to Noise Ratio: 66 dB
  • Maximum SPL: 120 dB
  • Power Requirements: 18-52 Volts phantom
  • Connector: 3-pin XLRm
  • Polarity: Positive pressure on diaphragm produces positive voltage on pin 2 relative to pin 3 output XLR connector
  • Materials/Finish: Machined aluminum/ black finish

In the Box

Related Files

Payment & Security
Your payment information is processed securely. We do not store credit card details nor have access to your credit card information.

The ADX12 & ADX18 are professional miniature gooseneck condenser microphones designed for applications such as podium, presentation, meetings, and teleconferencing.

With a uniformly controlled cardioid polar pattern, the ADX12 & ADX18 help isolate the speaker from ambient noise. The ADX series is available in a hyper cardioid polar pattern for tighter pick-up control.

The ADX12 and ADX18 are designed with integrated preamp circuitry built into the base of the XLR. They can be mounted permanently via the supplied flange mount or with an optional base with an internal shock mount (see model ATS10, ATS1, ATS1L(opens a new window)). The microphone may also be used on a standard microphone stand using the DCLIP(opens a new window) snap to fit the microphone holder.

Designed, manufactured, assembled, and tested by Audix in the USA.
