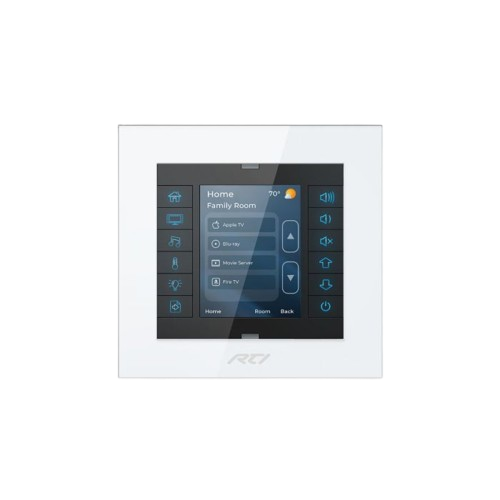

RTI KX2 2.8" Color In-wall Universal System Controller White Faceplate with Black Bezel

Install Cut Out: 3.789 x 3.789"

Front Plate: 4.4 x 4.6"

Total Depth in Wall: 1.2" plus cables

• Fully programmable 2.8" touchscreen display and twelve hard buttons.
• QVGA resolution (240w x 320h) TFT LCD to display custom buttons, text and graphics.
• Integrated 10/100Base-T Ethernet port with Power-over-Ethernet.
• IR output drives up to 1000 feet of wire.
• Proximity sensor automatically wakes the unit up when approached by the user and an ambient light sensor adjusts the brightness.
• Integrated mounting wings for easy installation in retrofit installs.
• Fits in a 4"x4" square electrical junction box (See installation guide for important information).**
• Ships with stylish, low-profile white bezel - bezels also available in black and light almond.
• Faceplate and buttons are black with a glossy finish.
• Twelve hard buttons may be interchanged and custom laser engraved using Laser Shark.
• Optional modules/processors for voltage sensing, relays and advanced two-way control.
• USB and Ethernet programming.
