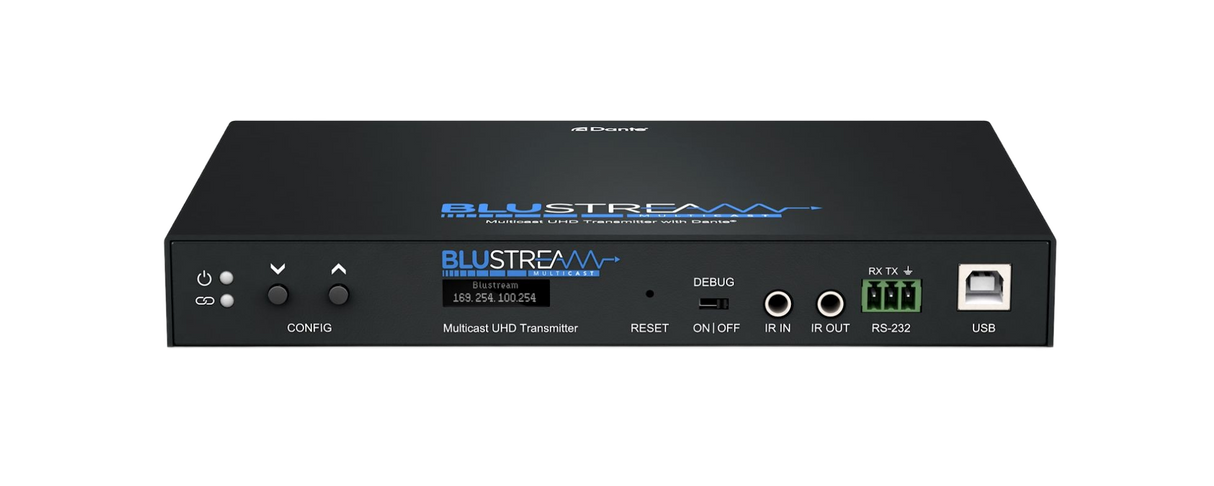

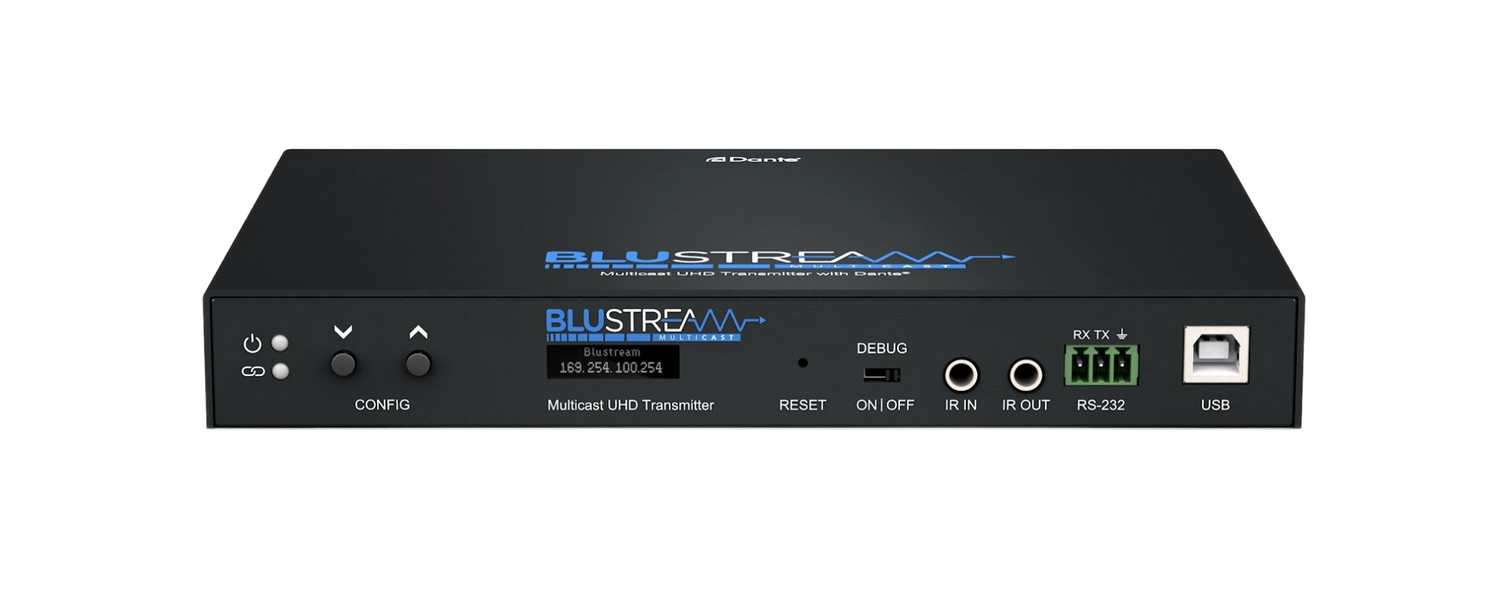

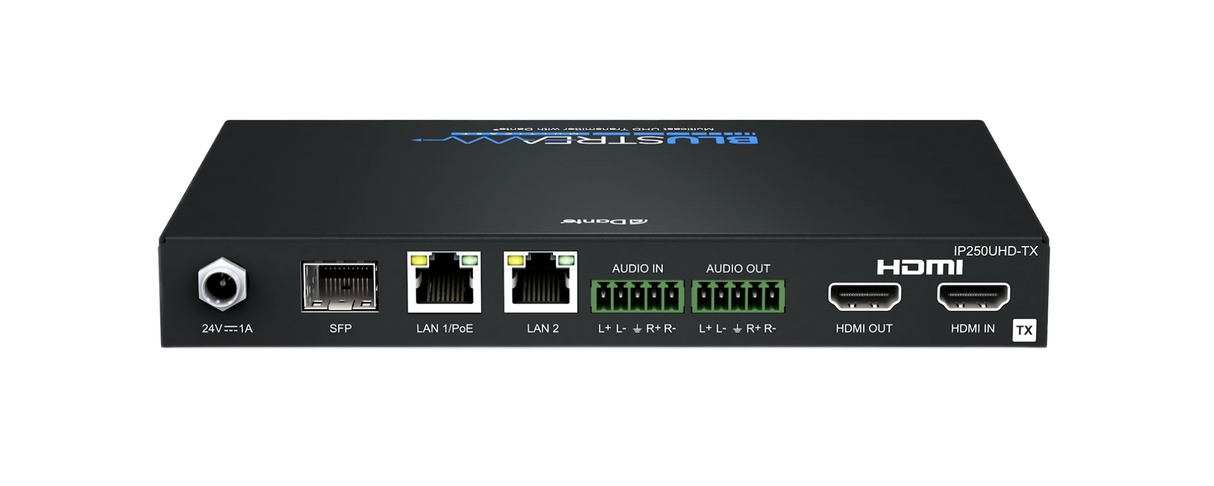

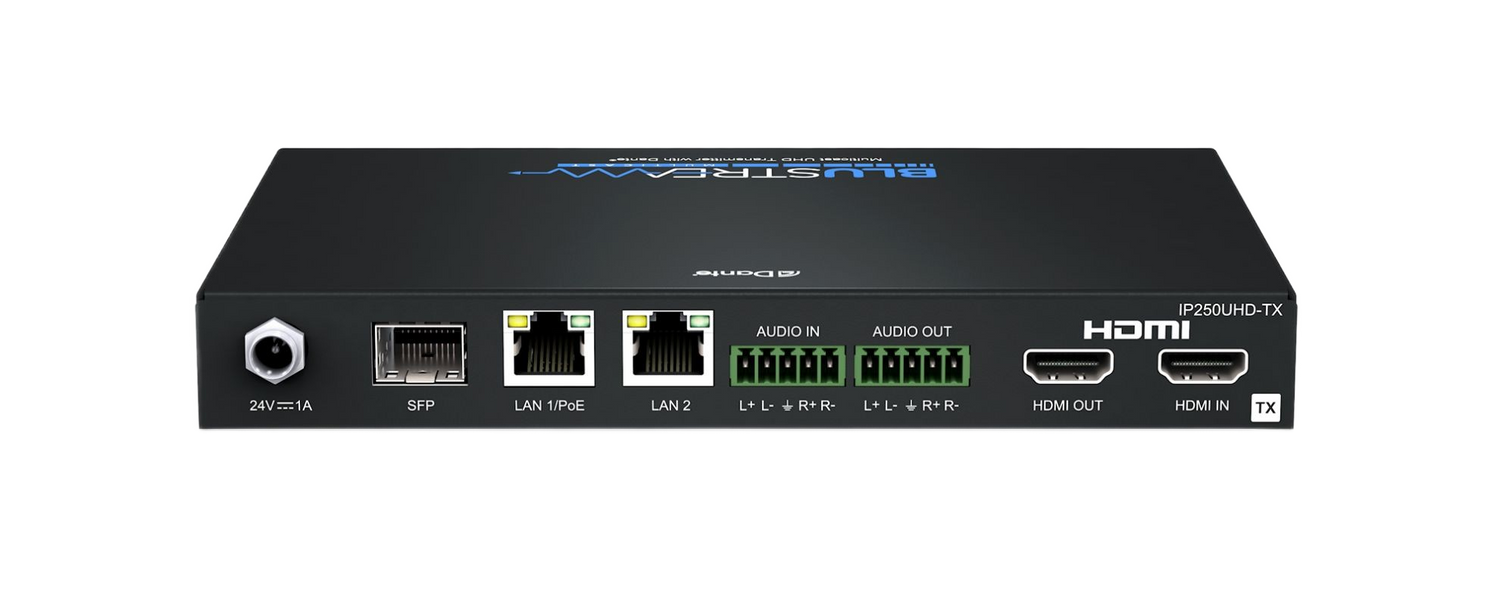

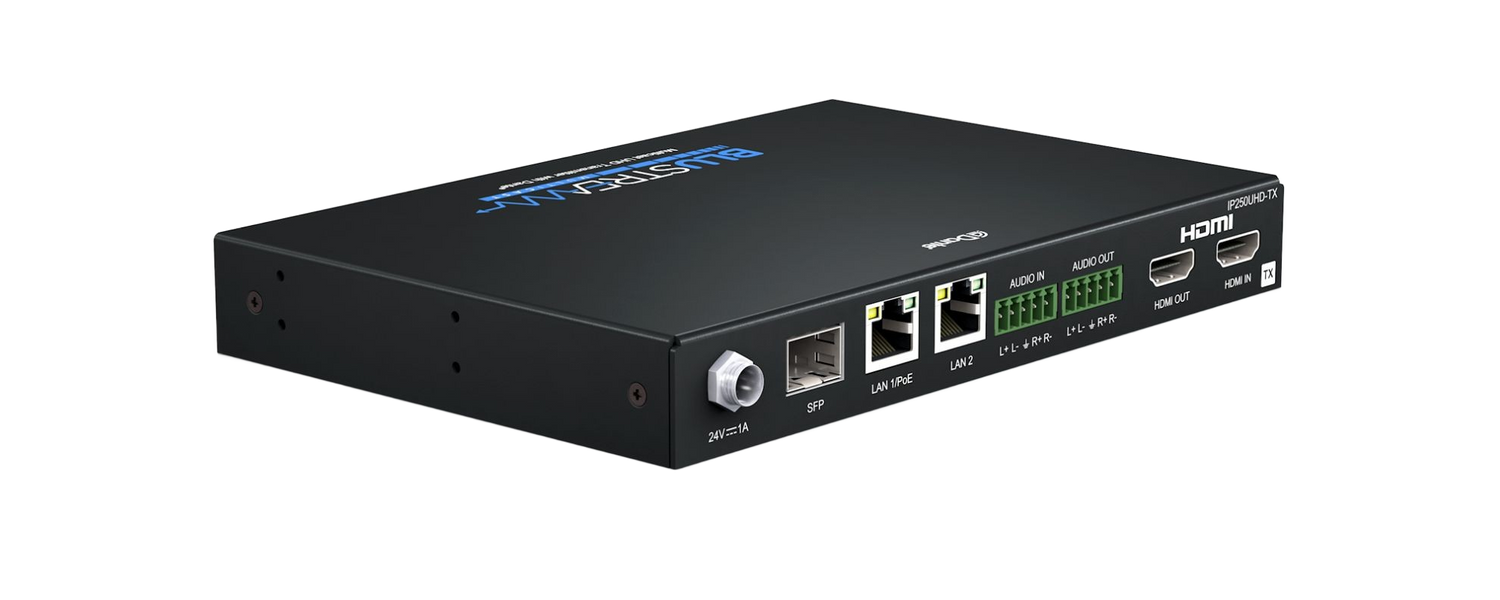

IP250UHD-TX IP Multicast UHD Video Transmitter Over 1gb Network Featuring Dante Integration

• Advanced UHD video over 1Gb Network
• Operates as a stand-alone system, or together with existing IP200UHD products
• Virtually unlimited system size
• Extends HDMI and Dante up to a distance of 100m over a single CAT cable
• Dual RJ45 network ports configurable for independent or combined HDMI and Dante signal distribution
• SFP port for independent or combined HDMI and Dante signal distribution over a single fiber cable
• Supports up to 4K HDR UHD video sources (3840 x 2160 @ 30Hz 4:4:4, 4096 x 2160 @ 24Hz 4:4:4, and 4K @ 60Hz 4:2:0)
• Supports HDR input @ 4K 30/25/24Hz
• Features 1 x HDMI loop-out for integrating local displays or cascading to multiple devices
• In-built 2ch Dante transmitter for breakout of audio from HDMI source or local analog audio input
• In-built 2ch Dante receiver for embedding of audio onto the HDMI signal or breakout to local analog audio output
• Analog L/R audio embedding
• Analog L/R audio outputs support both balanced and unbalanced audio signals
• Supports all known HDMI audio formats including Dolby TrueHD, Dolby Digital Plus and DTS-HD Master Audio transmission
• Advanced signal management for independent routing of IR, RS-232, USB/KVM*, audio and video
• OLED front panel display for advanced system information and manual configuration
• PoE (Power over Ethernet) to power Blustream products from PoE switch
• HDCP 2.2 compliant with advanced EDID management
• Local 24V 1A power supply should Ethernet switch not support PoE (not included)
• Features 4 operational modes:
     - Matrix distribution (requires 1Gb network switch)
     - Video wall (requires 1Gb network switch)
     - One-to-one HDMI extender (no network switch required)
     - One-to-many HDMI extender (no network switch required)

  *USB connectivity for IP200 series products only supports bulk mode cameras, and will not support isochronous USB data transfer for VC equipment / cameras.
  *Compatible IP Controllers: ACM200, ACM210



1 x IP250UHD-TX
1 x IRR IR Receiver
1 x IR1 IR Emitter
1 x Serial 3-pin Phoenix Connector
1 x Mounting Kit
1 x Quick Reference Guide
