Chauvet DJ  |  SKU: INTIMSPOT360 | Item No. 0074-0167

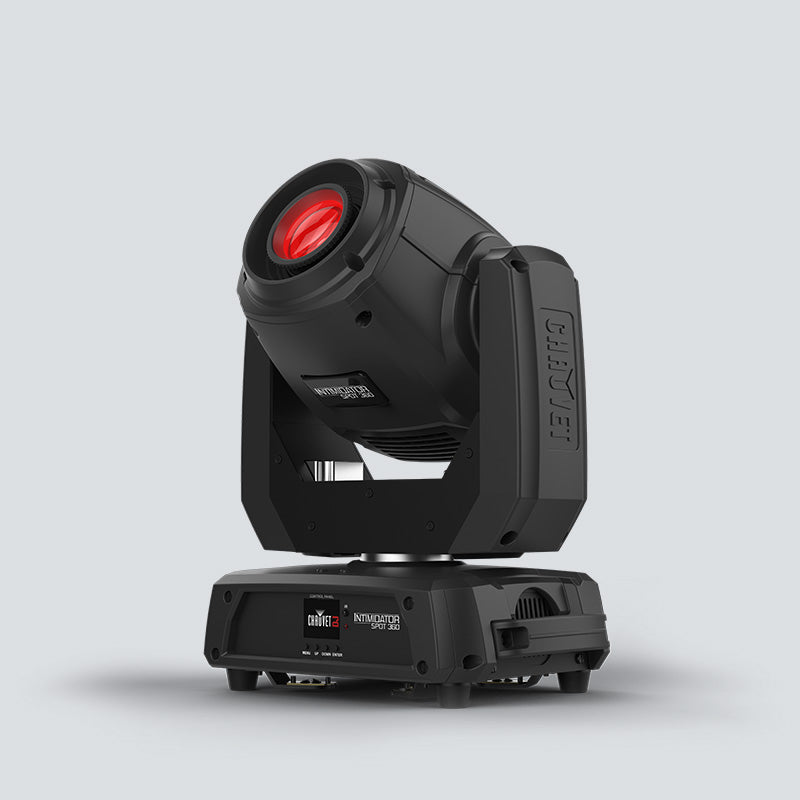

INTIMSPOT360 Intimidator Spot 360

Login for pricing

MSRP: $1346.65

Product Features

DMX Channels: 8 or 14

DMX Connectors: 3-pin XLR

Pan and Tilt: 540°/270°

Pan and Tilt Ranges: 540°, 360°, 180° pan/270°, 180°, 90° tilt

Colors: 8 + white, split colors, continuous scroll at variable speeds

Gobos: 7 + open (6 metal + 1 glass), rotating, interchangeable, indexing, slot-n-lock, continuous scroll at variable speeds

Light Source: 1 LED (white) 100 W, (3.2 A), 50,000 hours life expectancy

Strobe Rate: 0 to 20 Hz

Zoom Angle: (manual): 12° to 17°

Illuminance: (12°): 35,010 lux @ 2 m
(17°): 19,710 lux @ 2 m
(12°): 5,470 lux @ 5 m
3,097 lux @ 5 m

Lumens: 3,889

Power Linking: 5 units @ 120 V; 9 units @ 230 V

Input Voltage: 100 to 240 VAC, 50/60 Hz (auto-ranging)

Power and Current: 330 W, 2.8 A @ 120 V, 60 Hz
345 W, 1.5 A @ 230 V, 50 Hz

Gobo Size: 24 mm outside, 20 mm image, 1.1 mm max thickness
Prism (1): 3-facet round, bidirectional rotation at variable speeds
Prism (2): 5-facet linear, bidirectional rotation at variable speeds

Specifications
  • Dimensions:  16.65 x 12.68 x 11.69"
  • Weight:  25 lbs

Related Files

Download Quick Reference Guide

Payment & Security
Your payment information is processed securely. We do not store credit card details nor have access to your credit card information.

Intimidator Spot 360 is a 100 W LED packed with mobile event lighting power. Dual rotating prisms are on board to split the beam and cover a larger area with Intimidator Spot 360’s impressive visuals. Throw light even farther by decreasing the beam angle 5° using the manual zoom. Motorized focus gives you the ability to create sharp gobo patterns from almost any distance and Totem mode lets you keep the beams forward. Intimidator Spot 360 lets you set, save, and recall 1 scene manually, directly from the full-color LCD display. Creating amazing light shows is easy with wireless non-DMX control using the optional IRC-6 remote. Intimidator Spot 360 uses powerCON®-compatible power input/output connections for power linking. A handy ¼-turn hanging bracket allows for single or dual clamp mounting options and Intimidator Spot 360 fits best in the CHS-360 VIP carry bag or the Intimidator Road Case S35X flight case.
