RTI  |  SKU: RTI-IEX-IR | Item No. 0212-0403

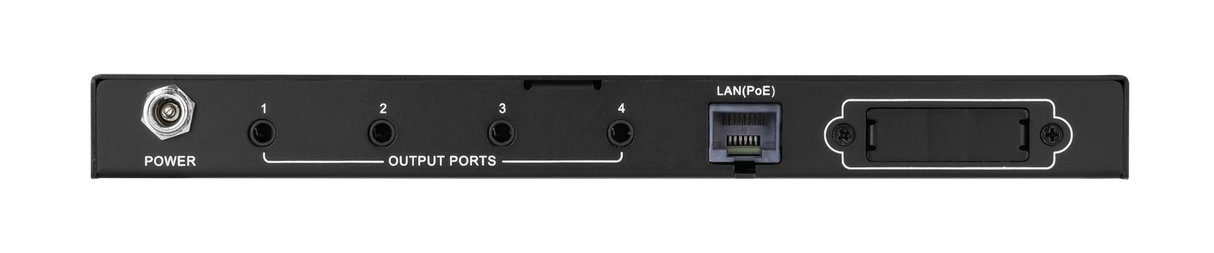

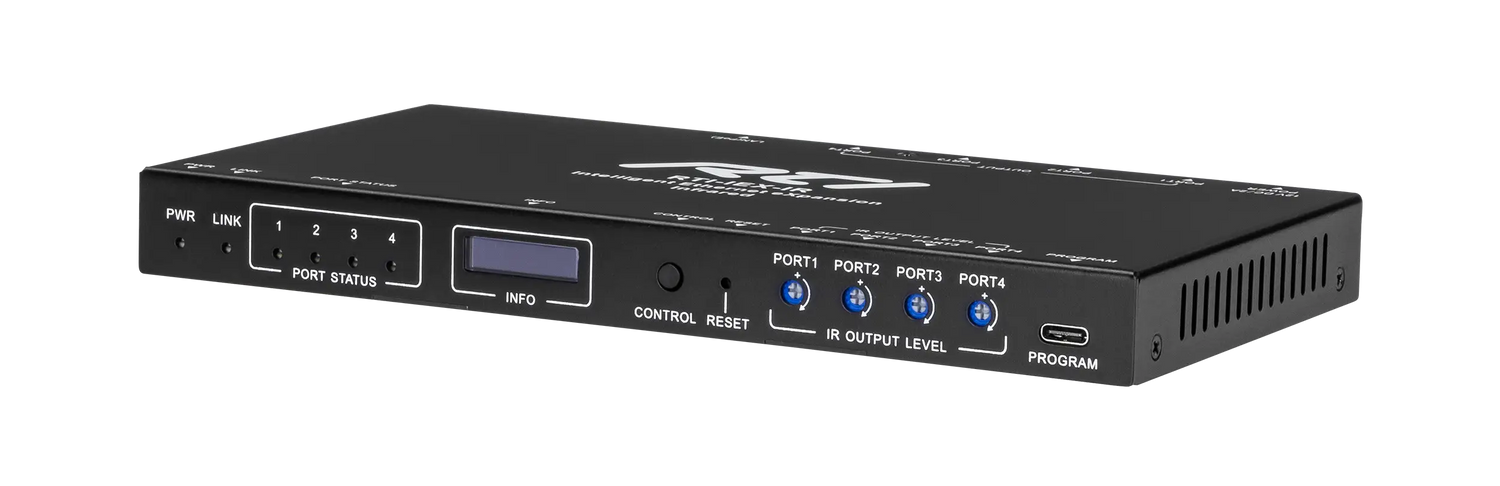

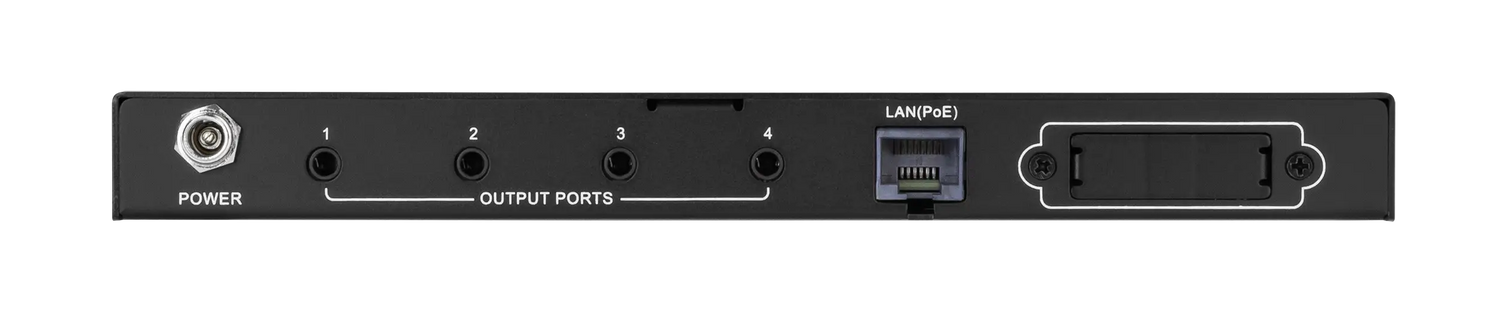

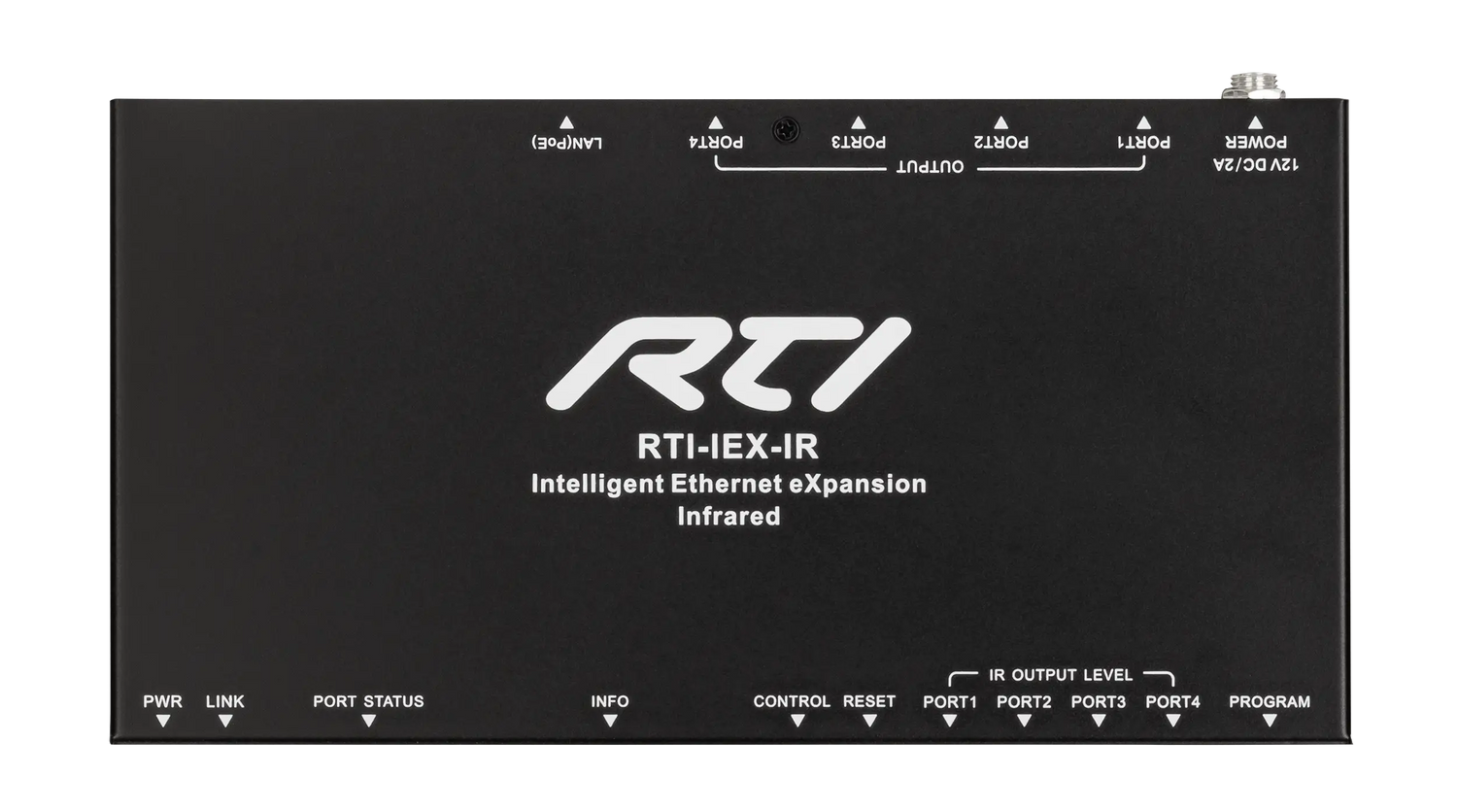

RTI-IEX-IR IEX-IR Intelligent Ethernet Expansion

Login for pricing

MSRP: $228.00

Description

RTI replacement for PCM-4

Intelligent Ethernet Expansion with four infrared ports for control, the IEX-IR extends control directly from the processor. Flexible, adaptable, compact, and versatile, the IEX-IR solves the solution of control exactly where you need it. An additional benefit is it is very easy to configure and program as the ports become addressable from the processor as IR connections.

Product Features
  • Infrared control exactly where it’s needed, being local to the device
  • Compact size to allow easy mounting in difficult to reach areas and create minimal environmental disruption
  • Convenient display to visually indicate key data such as IP and MAC address
  • Provides expansion I/O additional assignable IR ports to the control processor expanding it’s I/O capabilities
  • Web page to give easy access to network information, firmware upgrade capability, and system operations

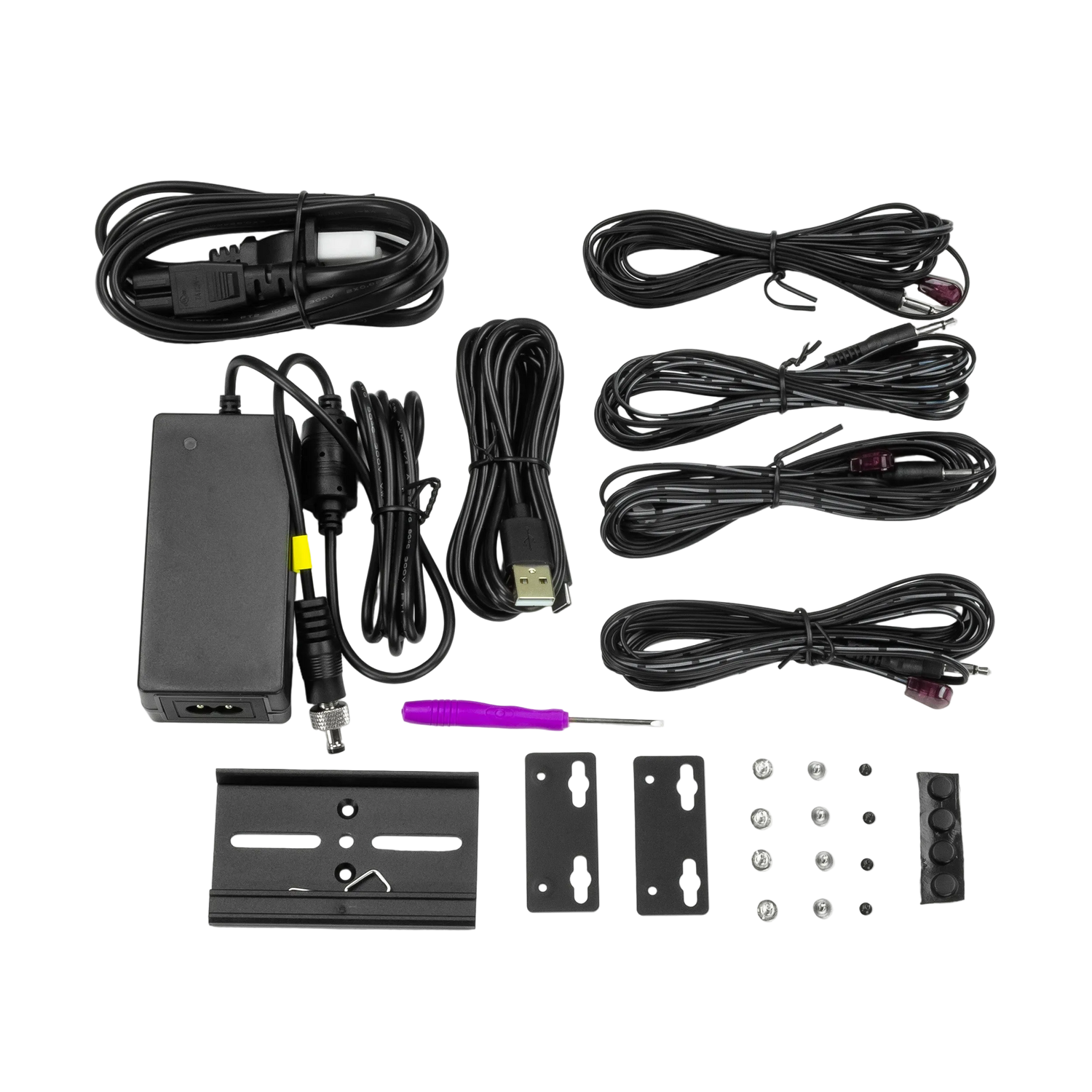

In the Box
  • 12V 2.0A Power Supply
  • USB A to C
  • 4 x IR Emitters
  • 2 x mounting brackets
  • 4 x screws for the mounting brackets
  • DIN rail mounting plate
  • 4 x screws for the mounting plate
  • Small screwdriver for IR adjustment
Payment & Security
Your payment information is processed securely. We do not store credit card details nor have access to your credit card information.

WARNING: This product may expose you to chemicals which are known to the State of California to cause cancer, birth defects, or other reproductive harm. For more information, go to www.P65Warnings.ca.gov.
  • Height
    0.79 in
  • Width
    7.88 in
  • Weight
    1 lb
  • Depth
    4.05 in
