SM-11 HDMI 2.0 Signal Manager Audio Embedder & De-embedder & EDID Management

Can help to solve most HDMI EDID, HDCP, compatibility and handshaking issues

Supports full HDMI 2.0 specification 4K UHD video (4K @ 60Hz 4:4:4)

HDCP 2.2 compliant

Supports all industry standard video resolutions including VGA-WUXGA and 480i-4K

Supports pass-through of HDMI audio formats including Dolby TrueHD, Dolby Atmos, Dolby Digital Plus and DTS-HD Master

Can be configured to work as either a HDMI audio de-embedder or audio embedder

HDMI audio de-embedded to both analog L/R audio and coaxial digital outputs concurrently (analog audio supports 2ch PCM only)

Supports CEC bypass (Consumer Electronics Control)

Embed analog L/R 2ch audio input onto HDMI output

Extract audio with or without an actual display connected (SM11 acts as HDMI end-point)

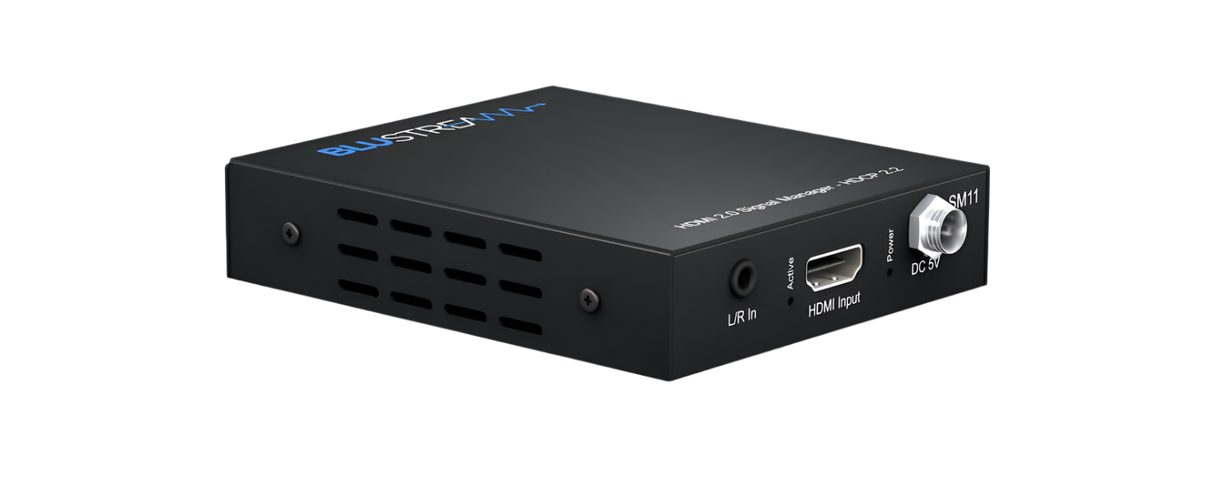

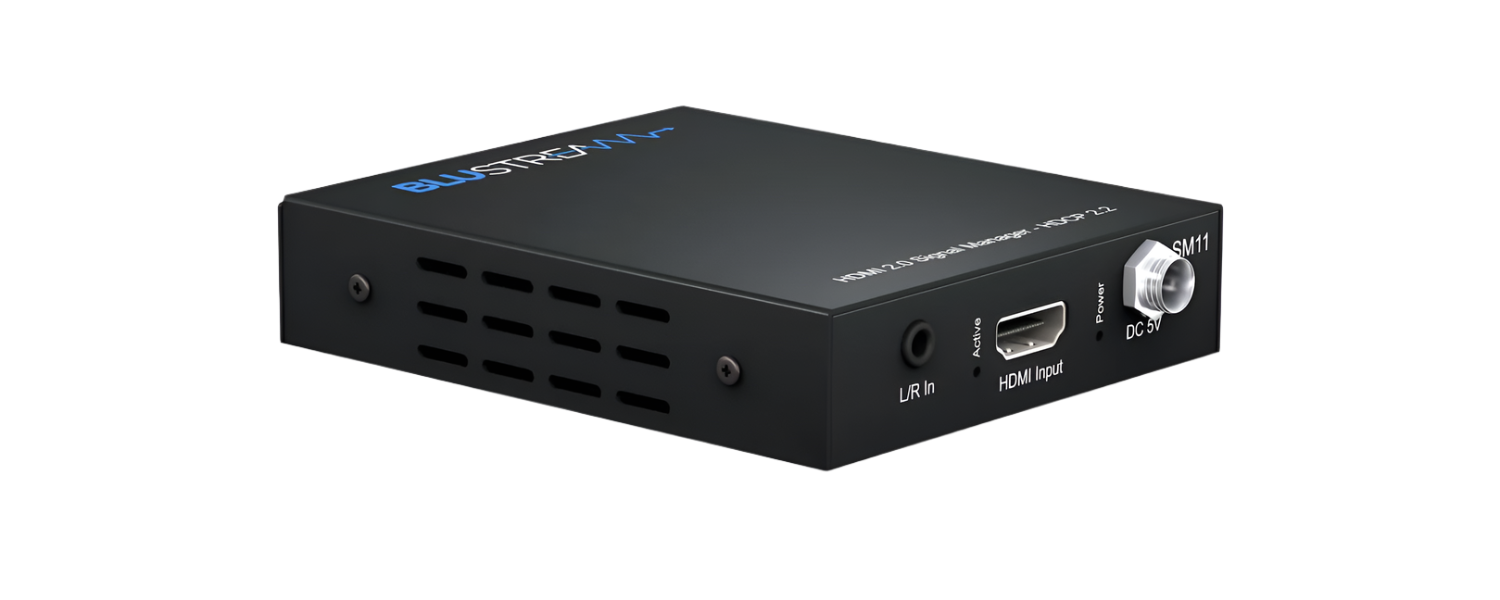

Audio Input Connectors: 1 x analog Left / Right audio (3.5mm stereo jack)

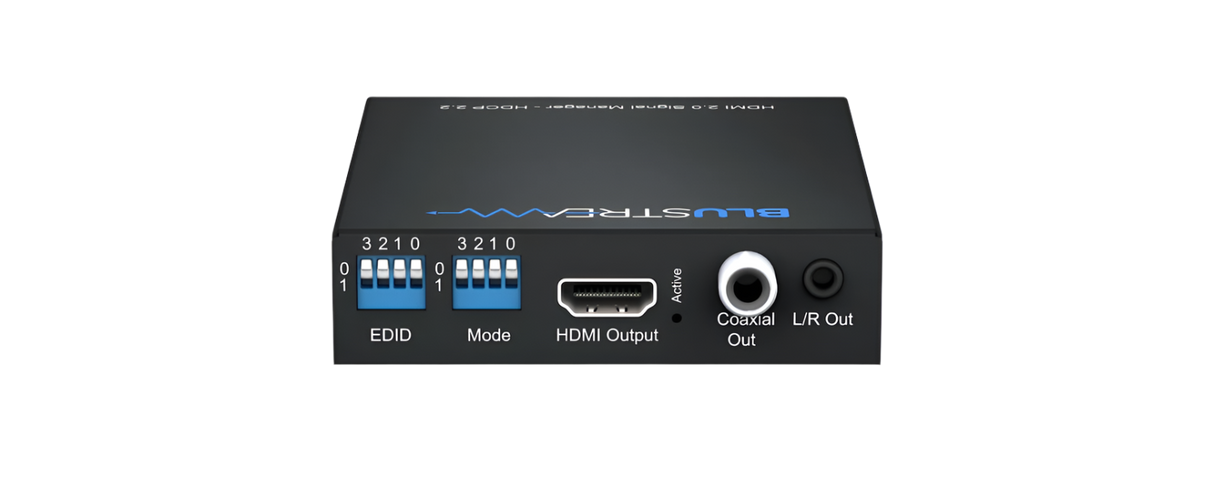

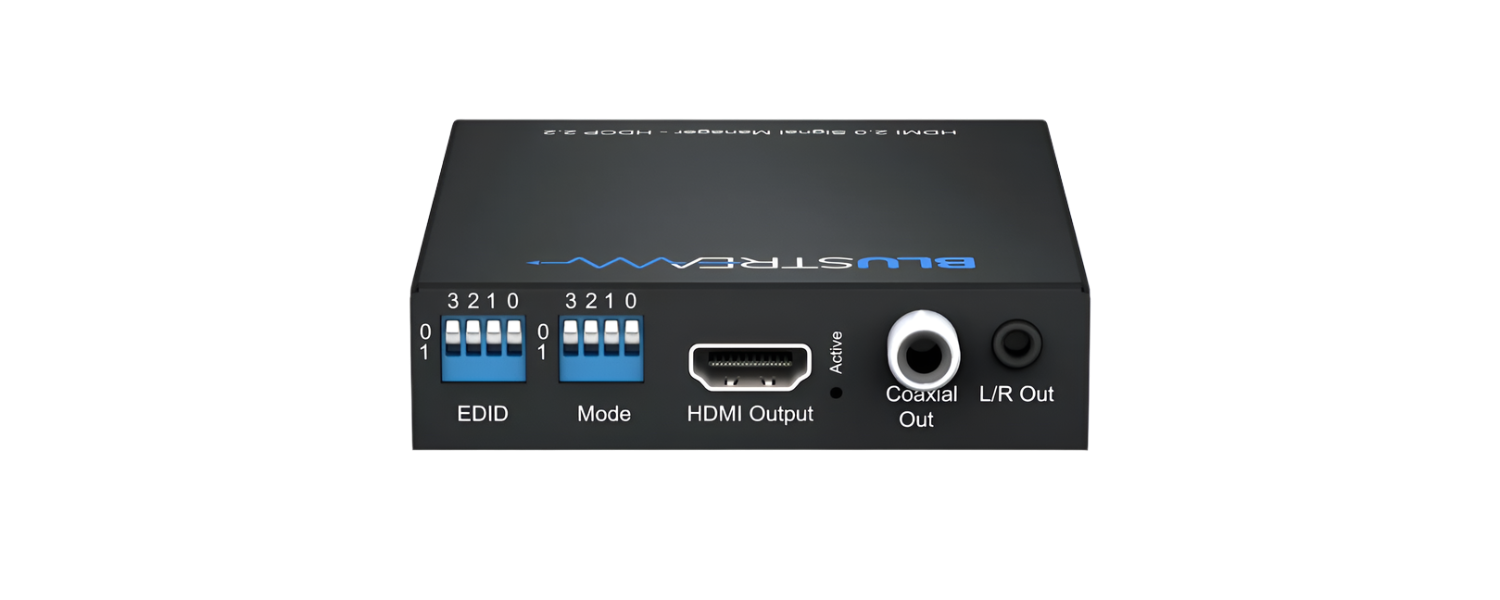

Audio Output Connectors: 1 x RCA (S/PDIF) & 1 x analog Left / Right audio (3.5mm stereo jack)

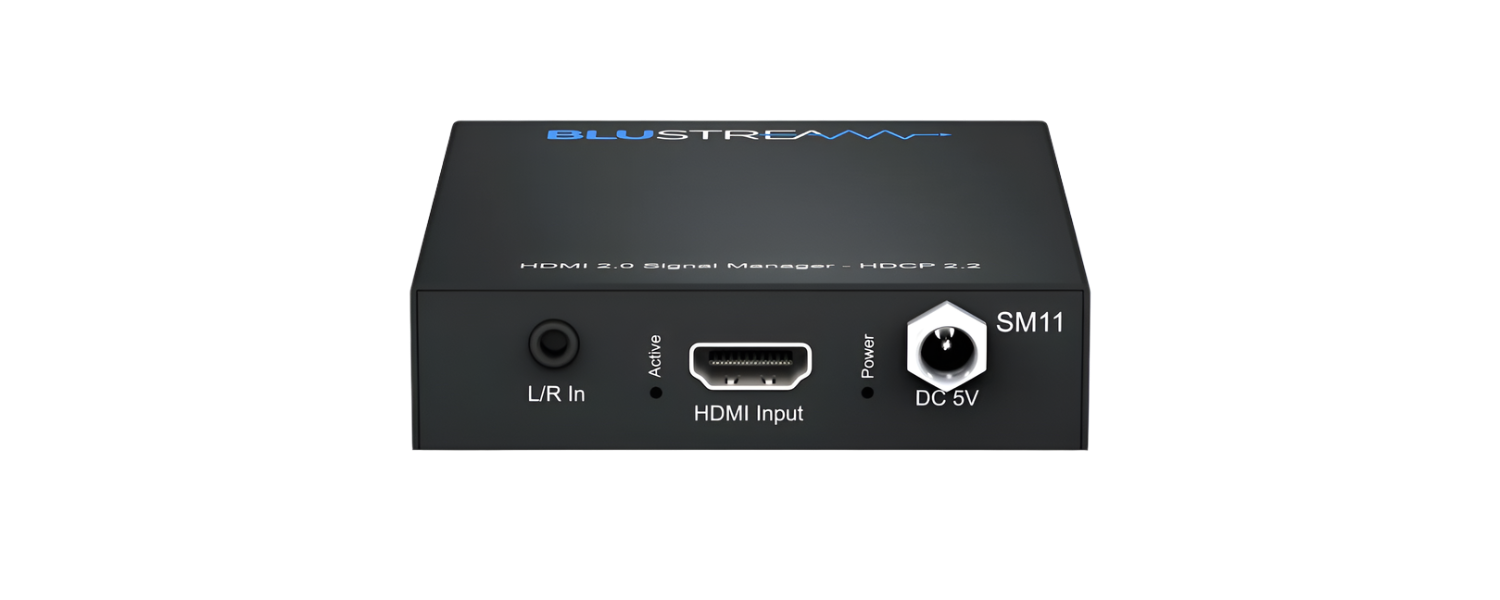

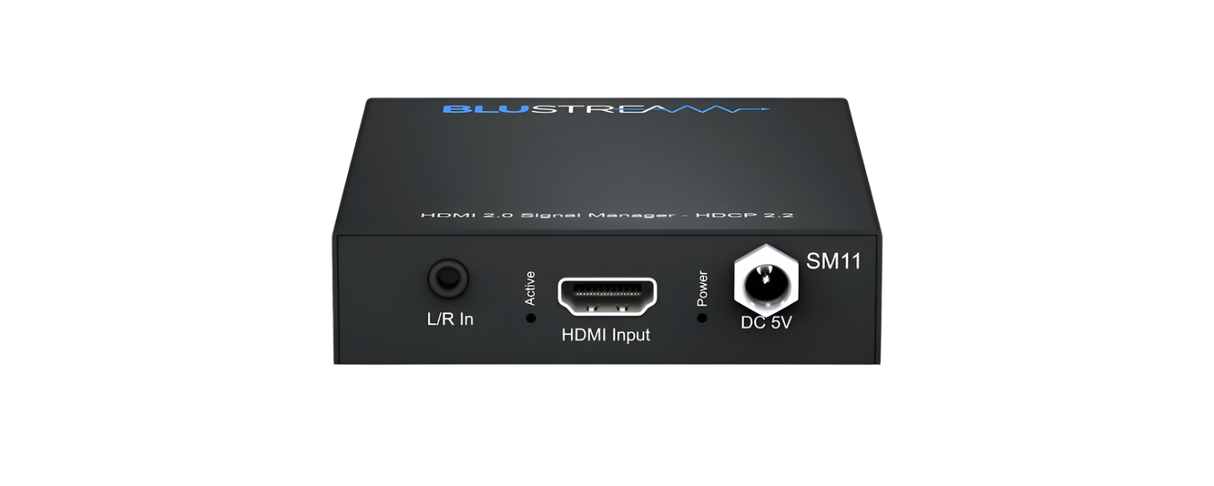

Video Input Connectors: 1 x HDMI Type A, 19-pin, female

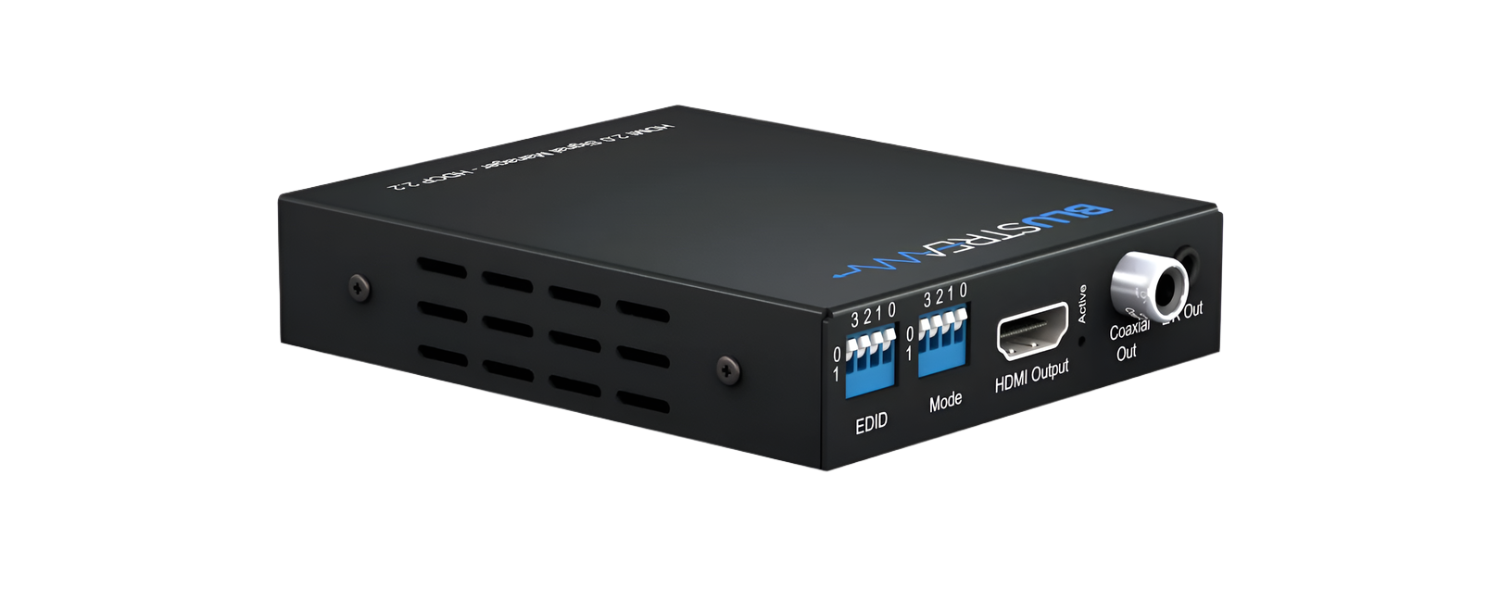

Video Output Connectors: 1 x HDMI Type A, 19-pin, female

Operating Temperature: 32°F to 104°F (0°C to 40°C)

Storage Temperature: -4°F to 140°F (-20°C to 60°C)

Power Supply: 5V/1A DC
