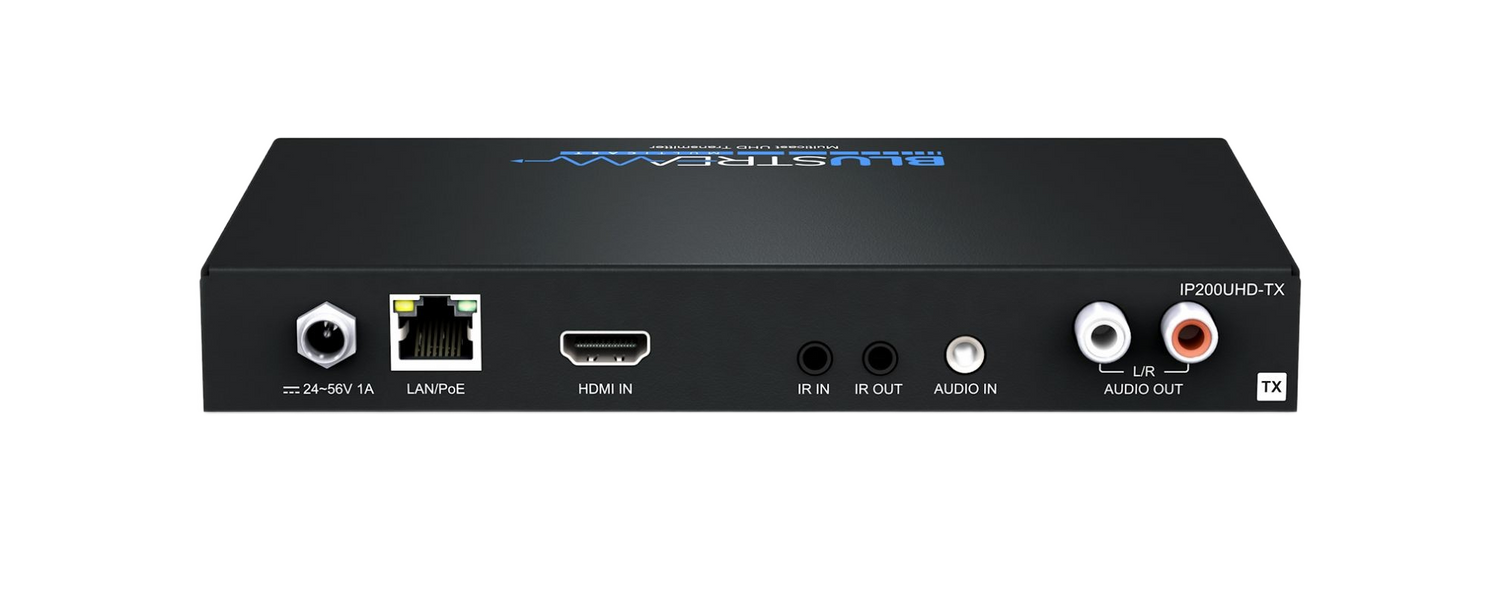

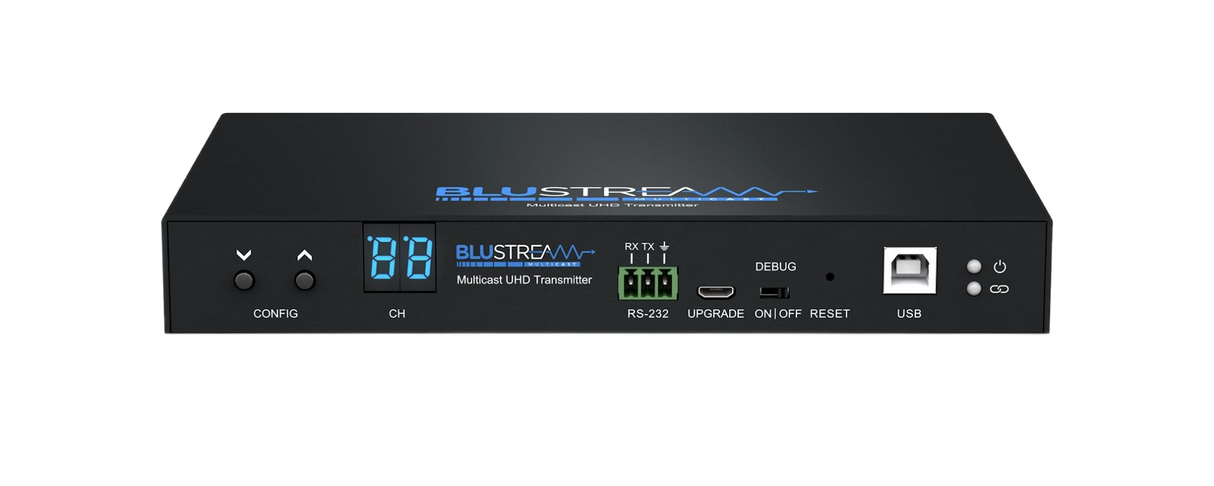

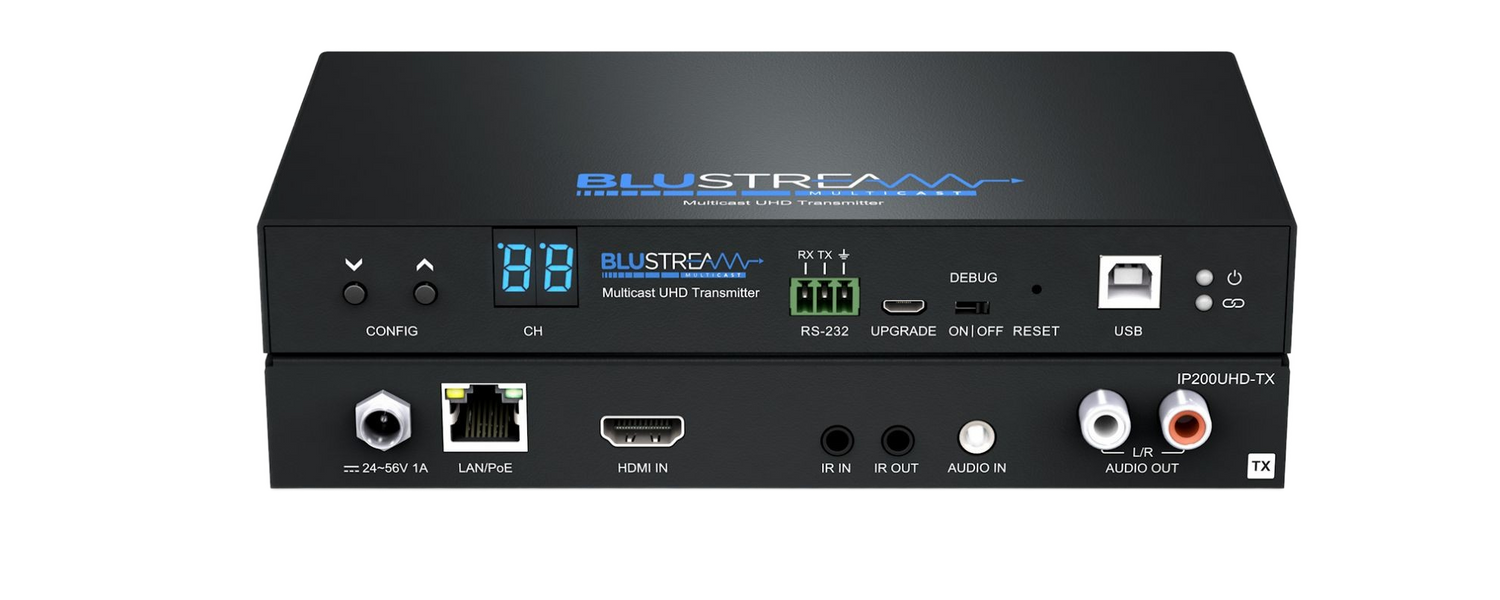

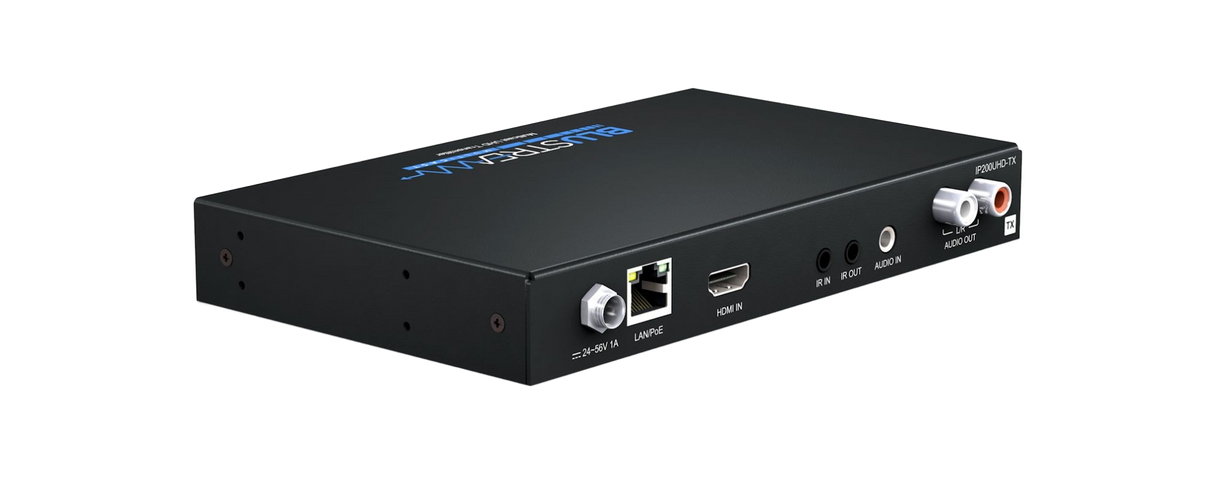

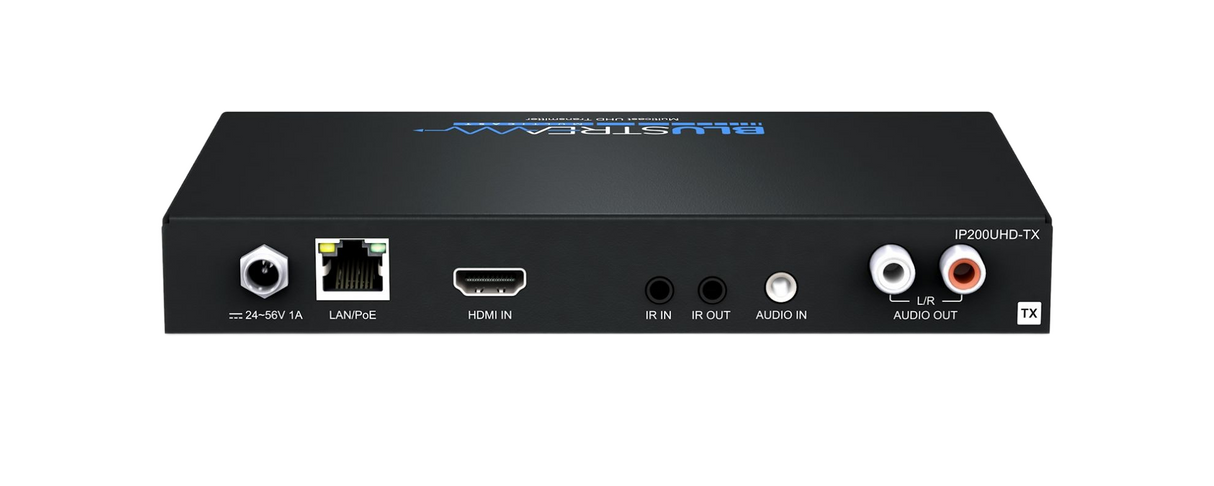

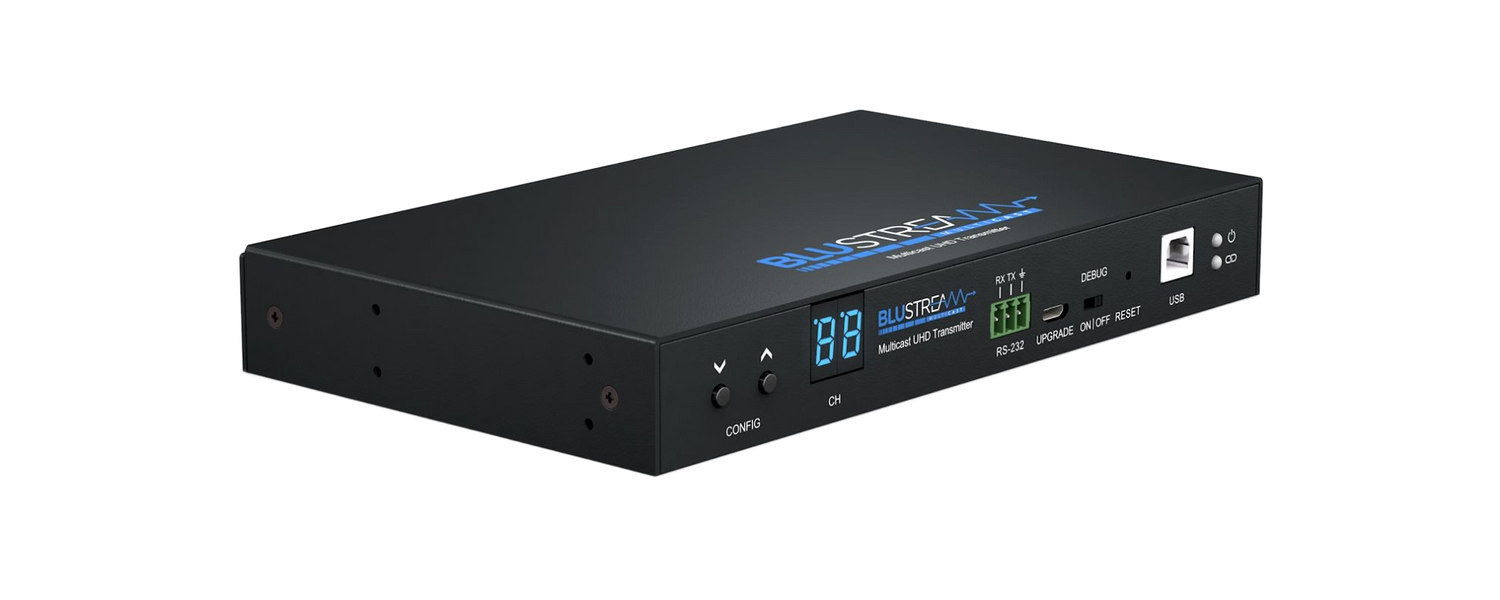

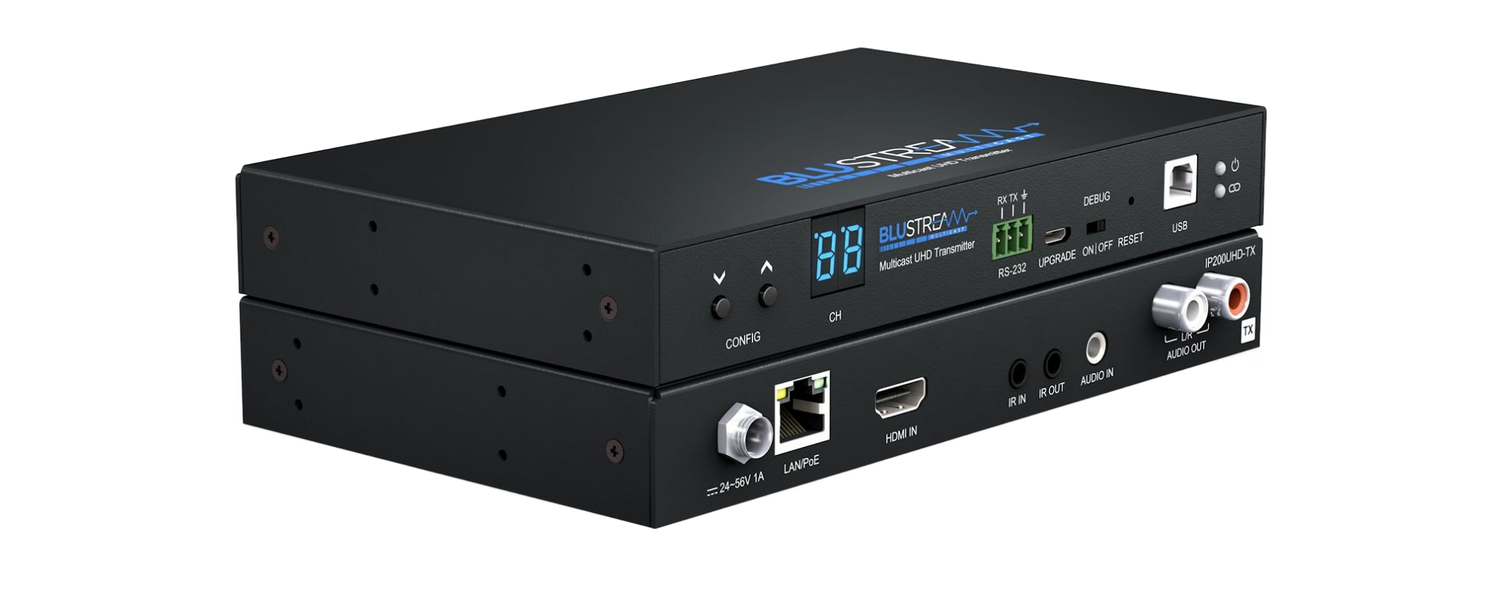

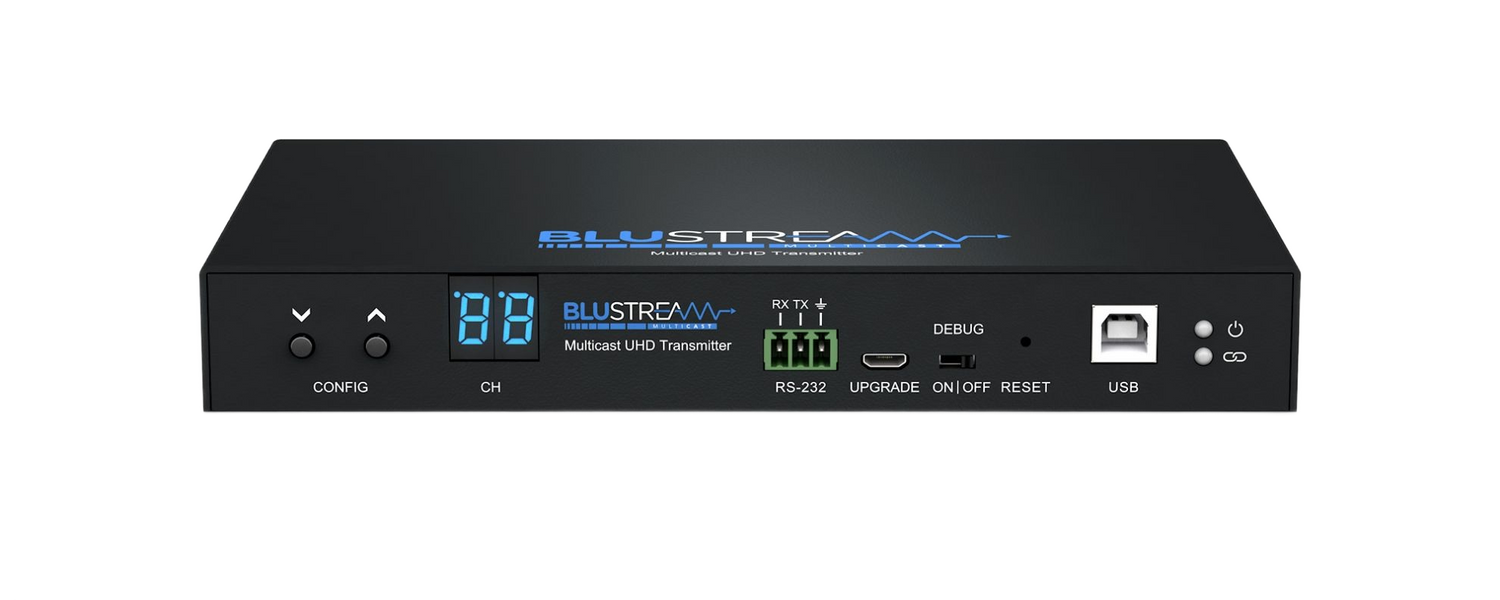

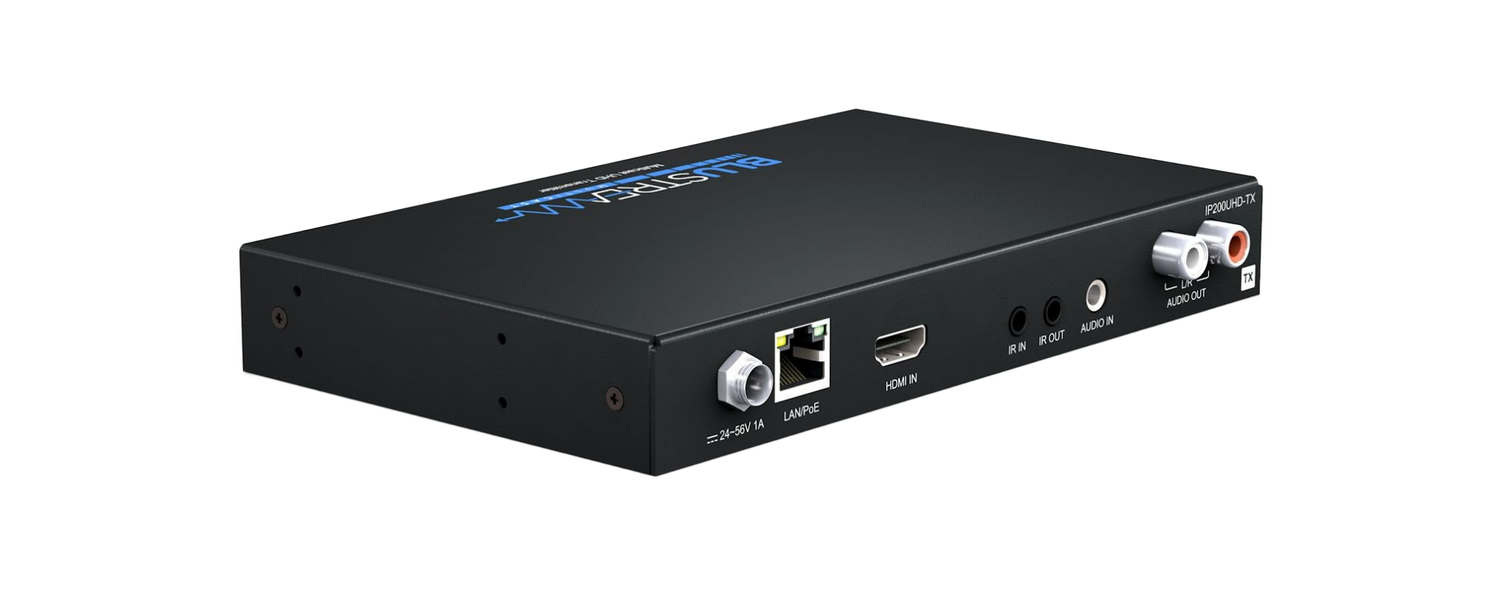

Blustream IP200UHD-TX HDMI over IP Transmitter 4k with POE & HDCP2.2

Video Input: 1 x HDMI Type A, female

Video Output: 1 x LAN RJ45 connector

Latency: 1 Frame (16-33ms depending on frame rate)

Audio Input: 1 x 3.5mm L/R Analogue audio

Audio Output Connectors: 2 x RCA L/R Analogue audio

Ethernet Port: 1 x LAN RJ45 connector

RS-232 Serial Port: 1 x 3-Pin Phoenix connector

USB / KVM Port: 1 x USB - Type B

IR Input: 1 x 3.5mm stereo jack

IR Output: 1 x 3.5mm mono jack

PoE draw: 6.0W (typical), 7.2W (max load)

Firmware Update: 1 x Micro-USB

Mounting Kit Included

Operating Temperature: 32°F to 104°F (0°C to 40°C)

Storage Temperature: -4°F to 140°F (-20°C to 60°C)

• Advanced UHD video over 1Gb Network
• Virtually unlimited system size
• Extends HDMI up to a distance of 100m over a single CAT cable
• Supports up to 4K HDR UHD video sources (3840 x 2160 @ 30Hz 4:4:4, 4096 x 2160 @ 24Hz 4:4:4, and 4K @ 60Hz 4:2:0)
• Supports all known HDMI audio formats including Dolby TrueHD, Dolby Digital Plus, and DTS-HD Master Audio transmission
• Advanced signal management for independent routing of IR, RS-232, USB/KVM*, audio and video
• PoE (Power over Ethernet) to power Blustream products from PoE switch
• HDCP2.2 compliant with advanced EDID management
• Analog L/R audio embedding
• Analog L/R audio breakout
• Local 24-56V power supply (should Ethernet switch not support PoE) - sold separately

Features 4 operational modes:

• Matrix distribution (requires 1Gb network switch)
• Video wall (requires 1Gb network switch)
• One-to-one HDMI extender (no network switch required)
• One-to-many HDMI extender (no network switch required)
