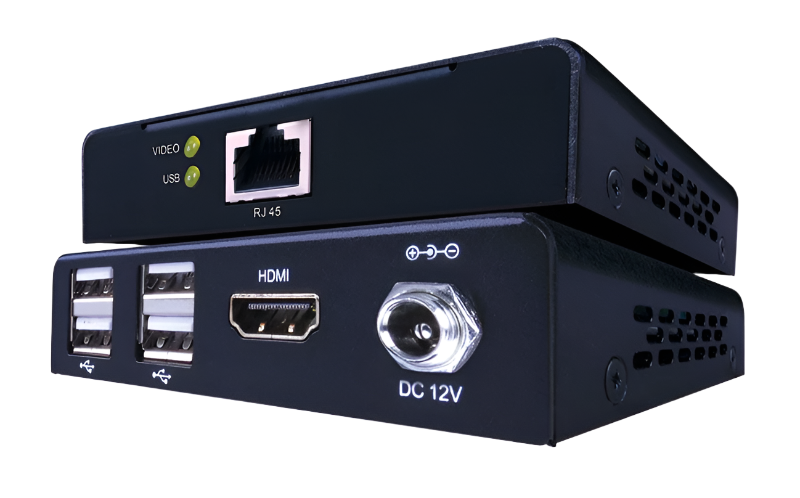

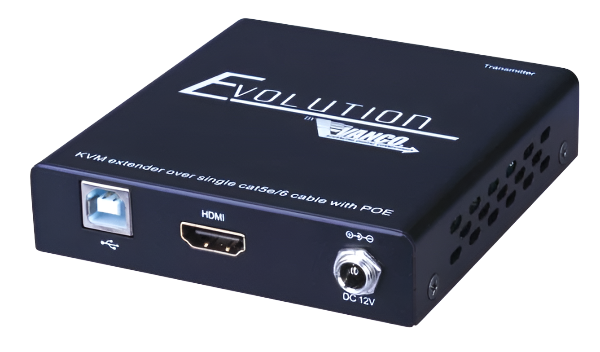

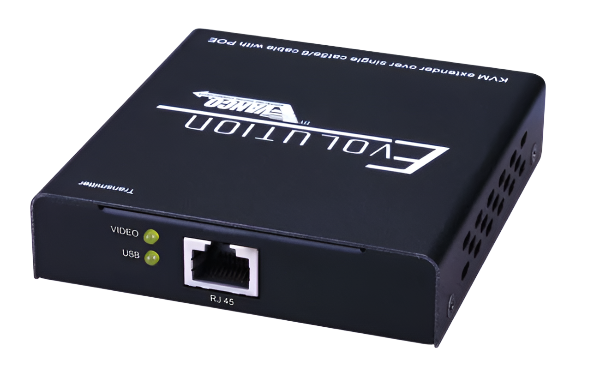

Evolution EVEXKVM1 Evolution HDMI® Extender with KVM and PoE

• Dimensions:  3.25 x 8 x 36"

• Transmits audio and video via HDMI as well as complete KVM (Keyboard- Video- Mouse) functionality via USB 2.0 ports over a single Cat5e/6 up to 164ft/50m with POE.
• Power Over Ethernet (PoE)- integrates power into the Cat5e/6 cable- requiring no power supply for either the Transmitting unit or Receiving unit (opposite of unit that is plugged in to power)
• Auto EDID management automatically adjusts to overcome compatibility issues
• Auto EQ distance for perfect transmission and reception of HDMI signals
• Supports up to 1920×1080 @ 60Hz resolutions
• Transmission Range: Extends HDMI signals up to 164ft/50m over a single Cat5e or Cat6 cable
• Extends USB 2.0 high speed at 480Mbps to 164ft/50m

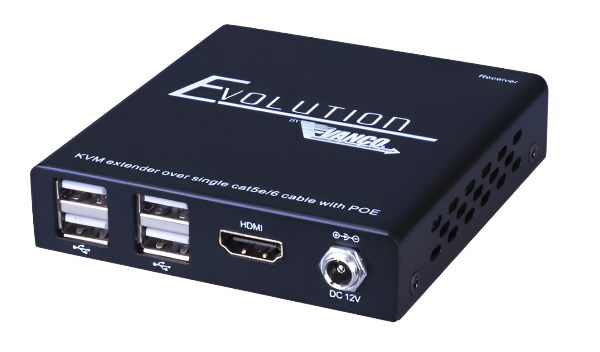

• RX unit provides 4 USB 2.0 high speed ports at display end
• USB ports allow for charging of connected USB devices (please use properly certified and licensed cabling with utilizing the charging feature)
• RX integrated with Hi-Fi USB audio card- supports analog passive earphone and microphone access
• VESA DDC and hot swap technology (HPD)
• Compatible HDMI 1.3/DVI 1.0
• HDCP 1.4

Download Spec Sheet
