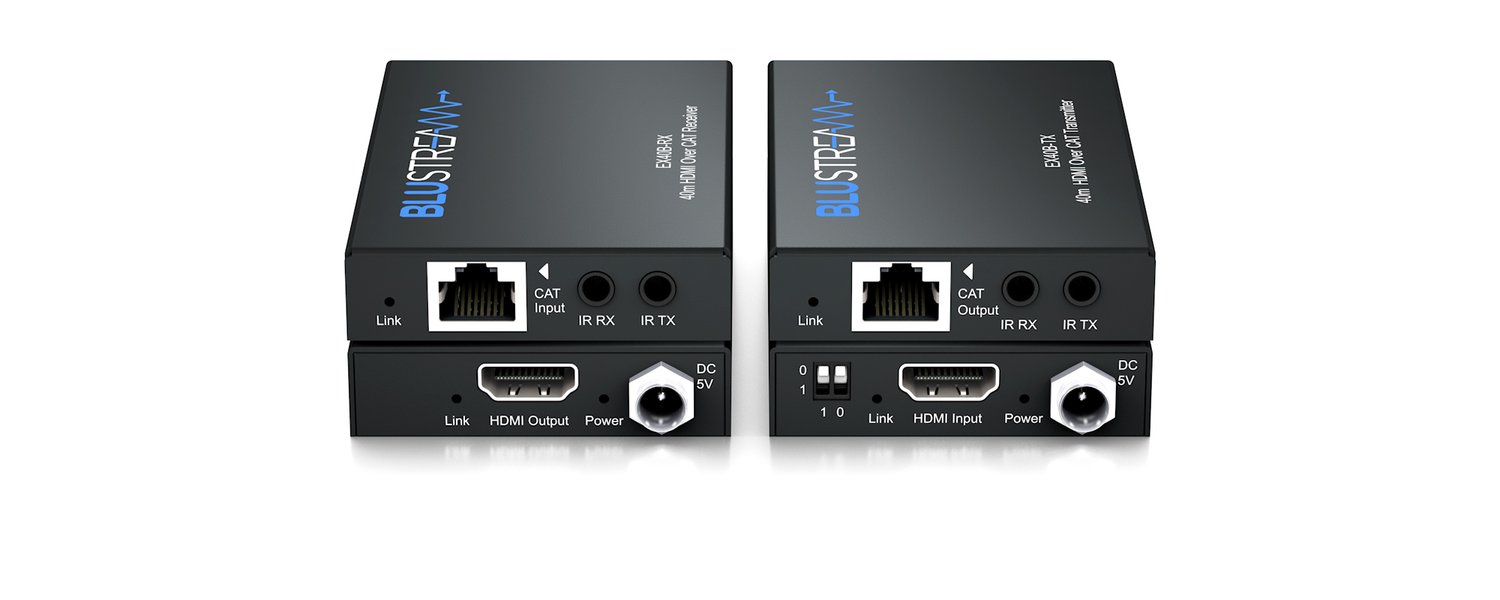

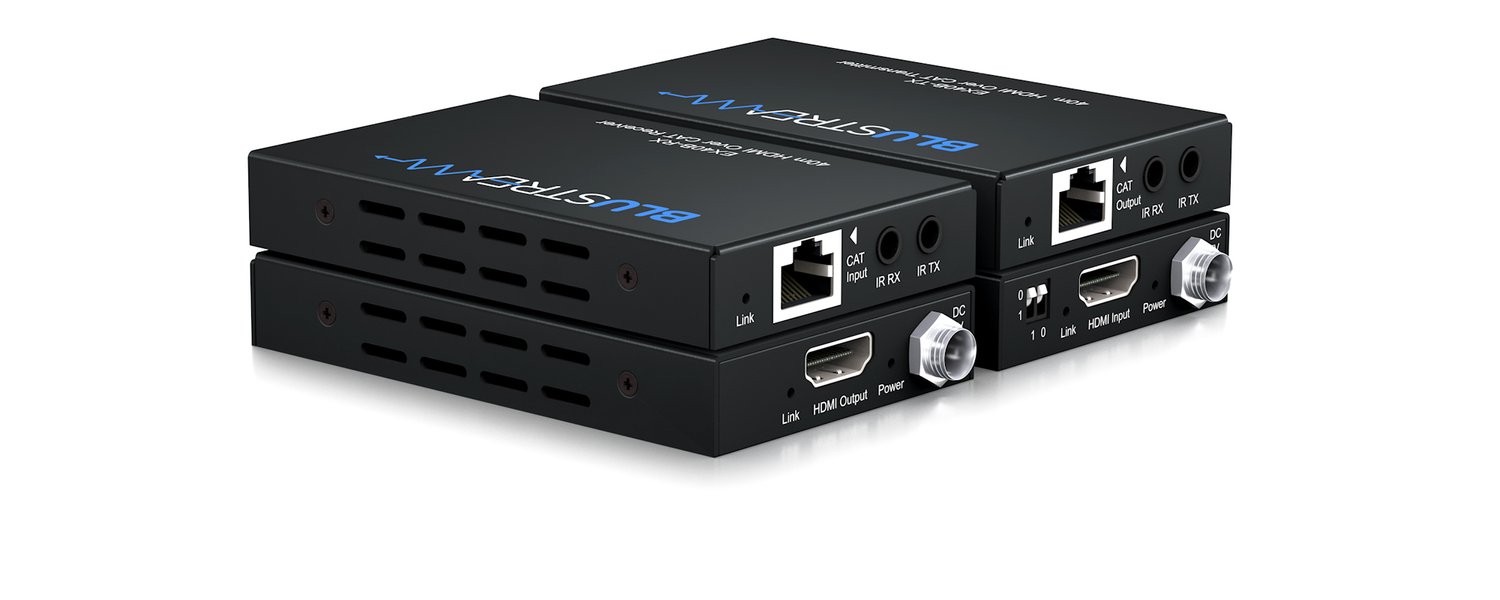

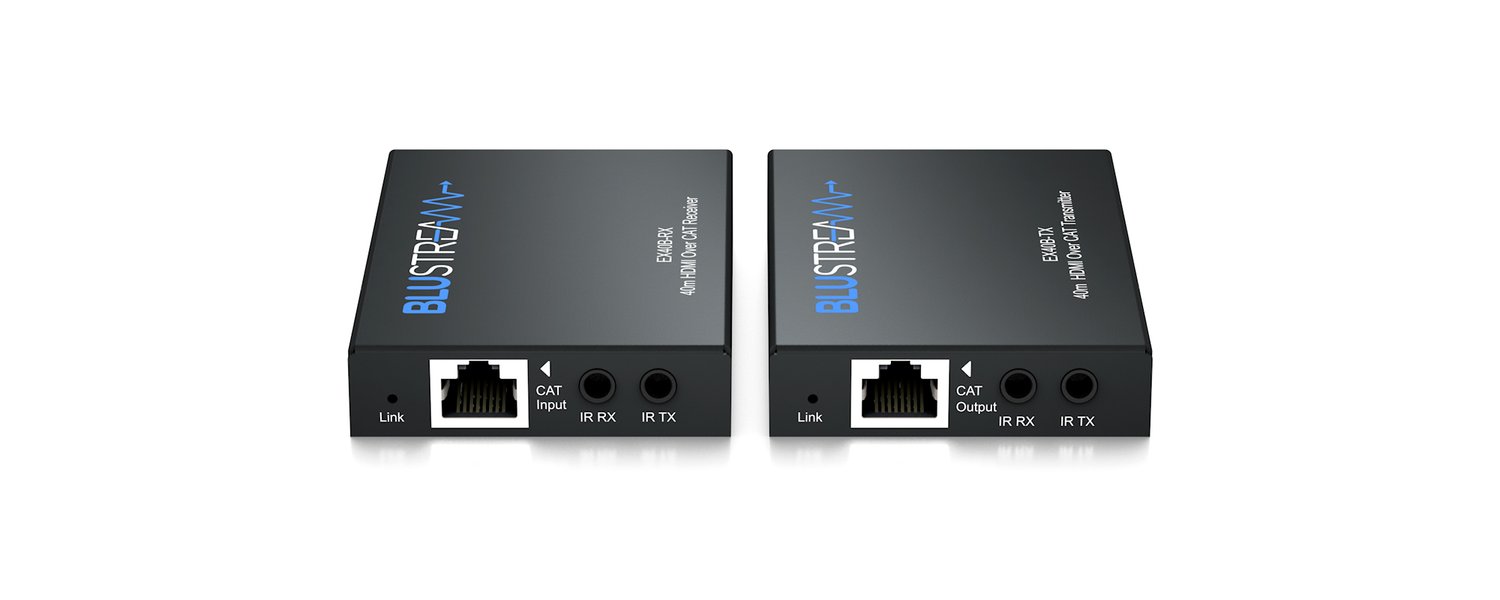

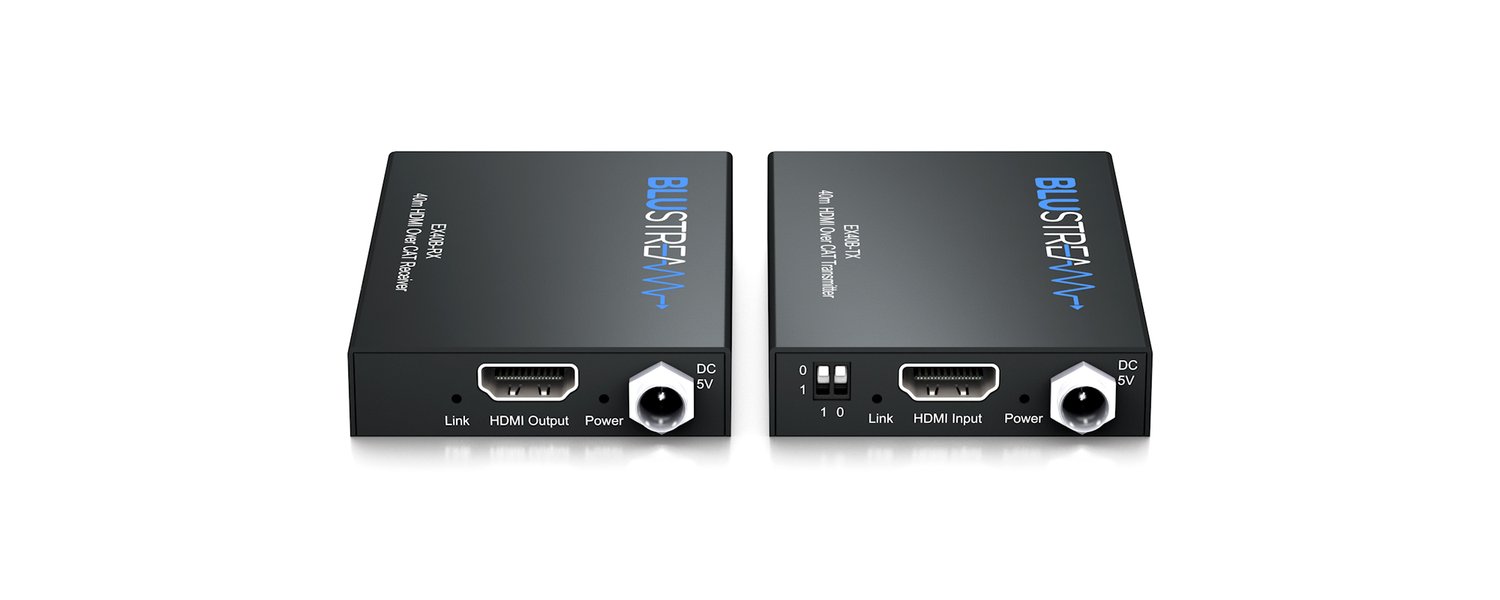

EX40BKIT HDMI Extender Set - 40m @ 1080p and Bi-directional IR

• Extends HDMI up to distances of 40m over a single CAT cable (1080i up to 50m)
• Supports video resolutions 480i-1080p* (*8-bit color support only)
• Supports bi-directional IR from input and output locations
• Supports LPCM 7.1ch, Dolby TrueHD, Dolby Digital Plus and DTS-HD Master Audio transmission
• Supports full 3D signal display
• Supplied with Blustream IR receiver and emitter
• Requires local power at both transmitter and receiver
• EDID management
• HDCP 1.4 compliant
• Video Input:
• EX40B-TX: 1 x HDMI Type A, 19-pin, female
• EX40B-RX: 1 x RJ45
• Video Output:
• EX40B-TX: 1 x RJ45
• EX40B-RX: 1 x HDMI Type A, 19-pin, female
• IR Input: 1 x 3.5mm stereo jack
• IR Output: 1 x 3.5mm mono jack
• Power Supply: 5V/1A DC, screw type connector, one per balun required
• Mounting Kit Included

Dimensions:  2.28 x .59 x 3.78"
