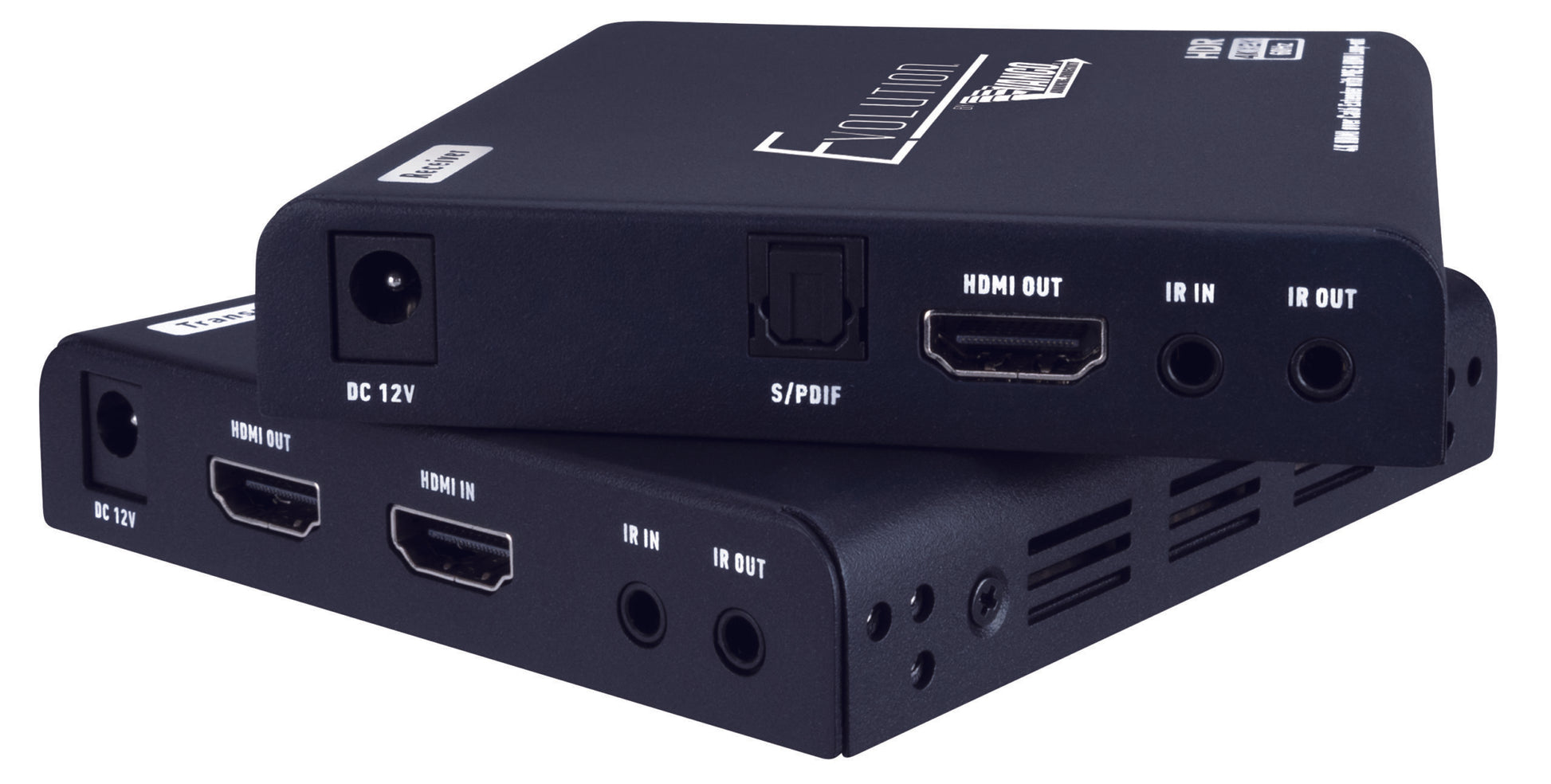

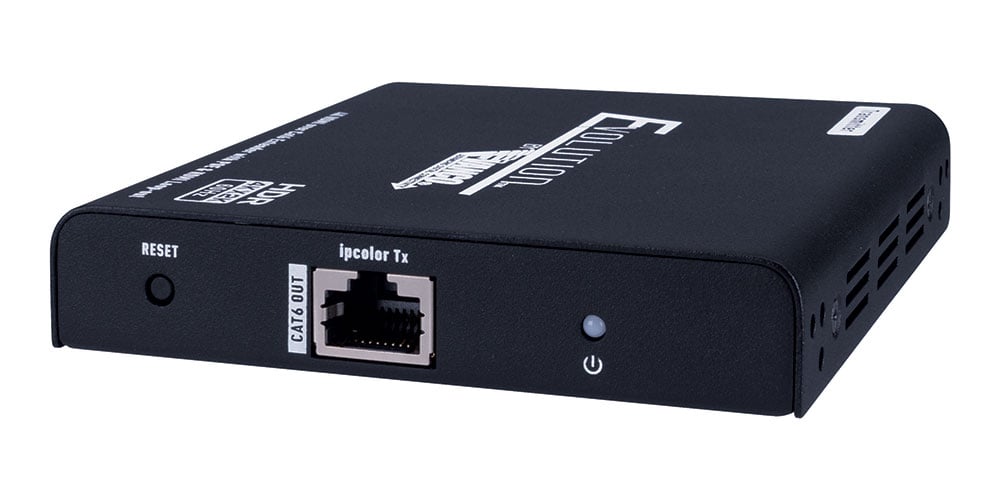

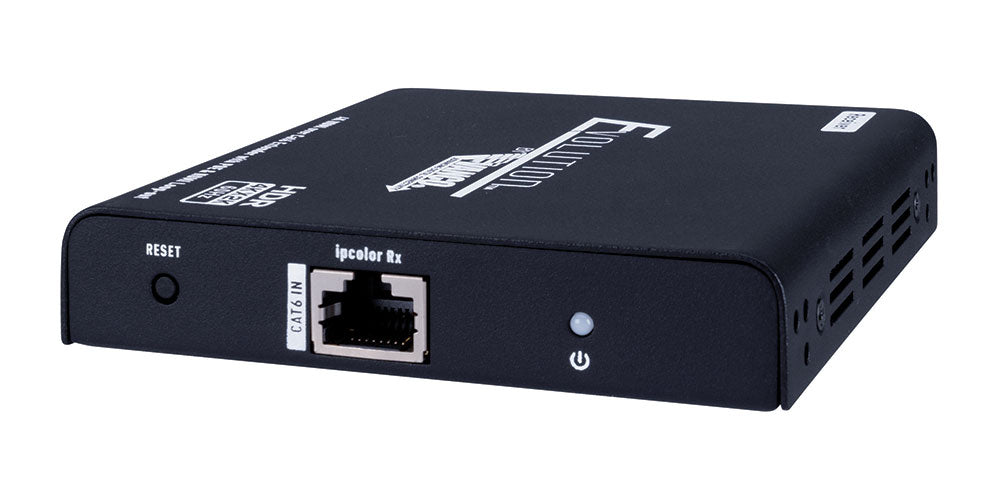

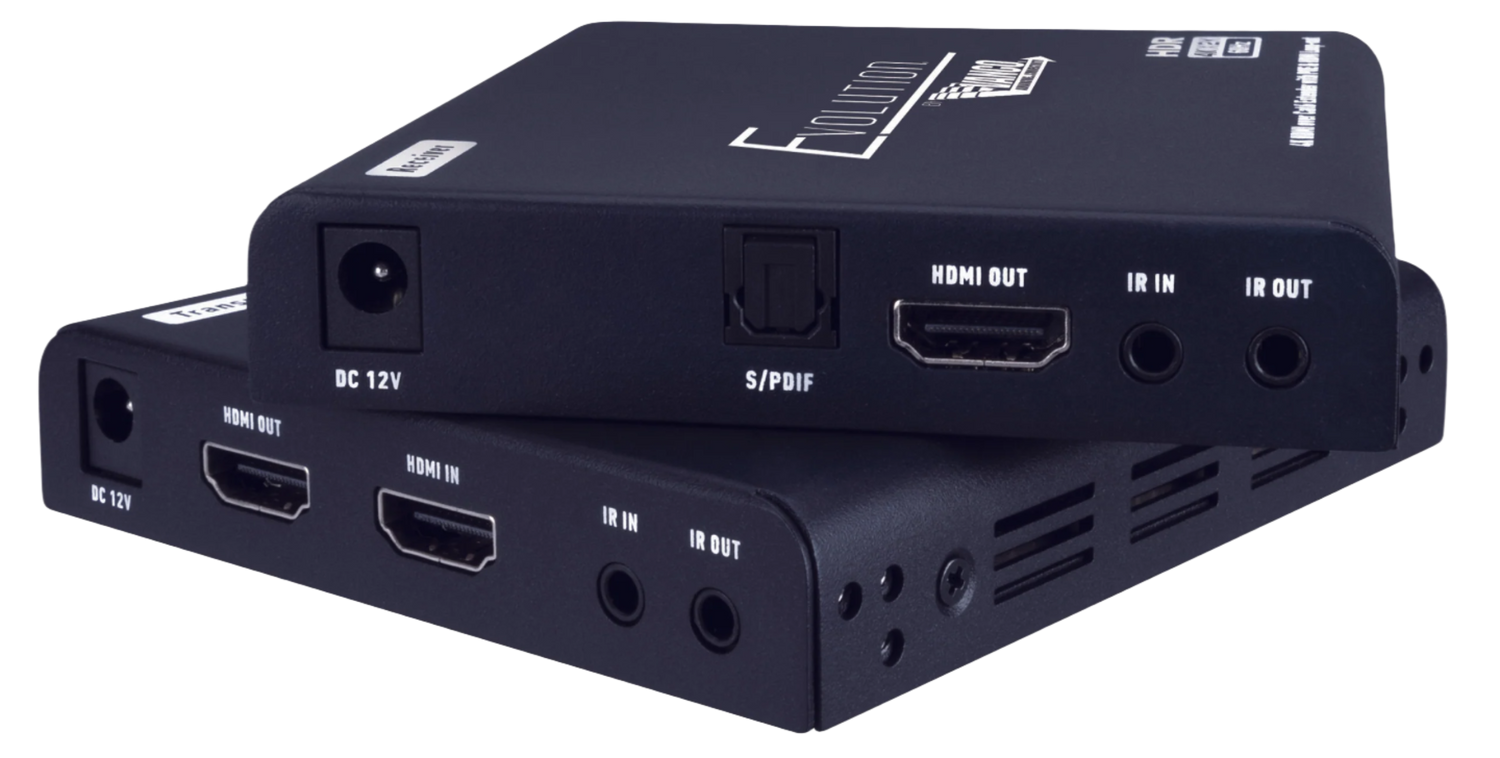

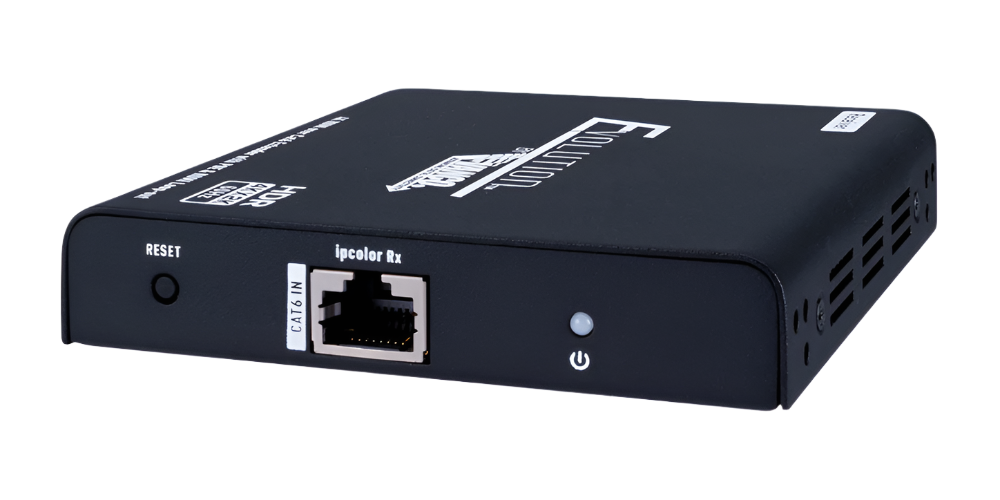

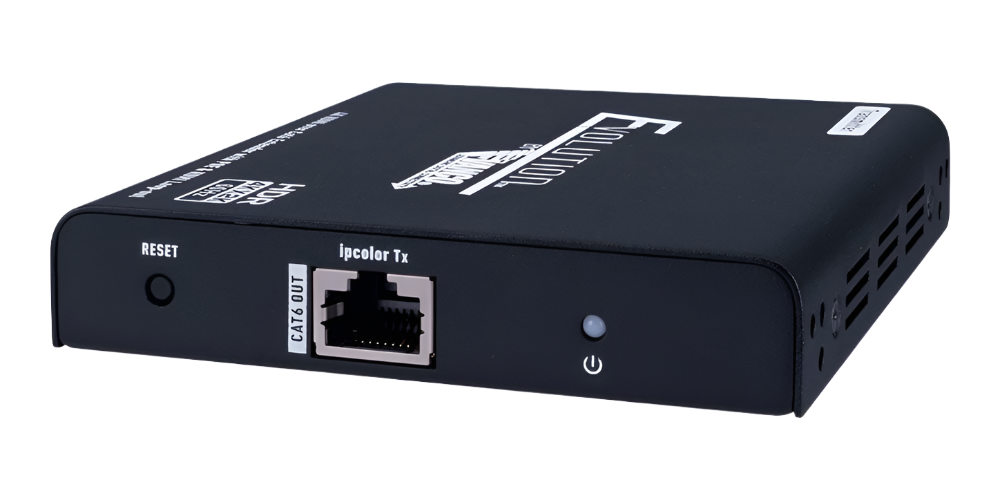

Evolution EVEX4K70 HDMI Extender 4K 70m w/ Loop Out Digital Optical Breakout' Bi-Directional IR' PoC
Evolution EVEX4K70 HDMI Extender 4K 70m w/ Loop Out Digital Optical Breakout' Bi-Directional IR' PoC
Login for Pricing
MSRP: $555.99Evolution | SKU:Evolution EVEX4K70
ITEM: 0002-1975
Couldn't load pickup availability
Features
Features
- Allows HDMI audio/video signals to be transmitted using a single Cat6/6A/7 Cable
- Extends 4K@60Hz, 4:4:4, and HDR10 up to 230ft/70m and 1080p up to 330ft/100m
- Features bi-directional Power over Ethernet (PoE) technology which transmits power over Cat6, allowing the transmitter and receiver to be powered off of a single power supply
- Supports multiple audio formats such as (Dolby TrueHD 7.1CH/Dolby Digital 5.1CH)
- HDCP 1.4/2.2 compliant
- Dynamic EDID for compatibility and plug and play operation
- HDMI loop-out for local monitoring or use with other HDMI distribution products
- Digital optical audio breakout for audio extraction
- Supports bi-directional IR (20~60KHz) for source or display control
- Slim and compact design
Specs
Specs
- Dimensions: 4.2 x 3.9 x 1”
