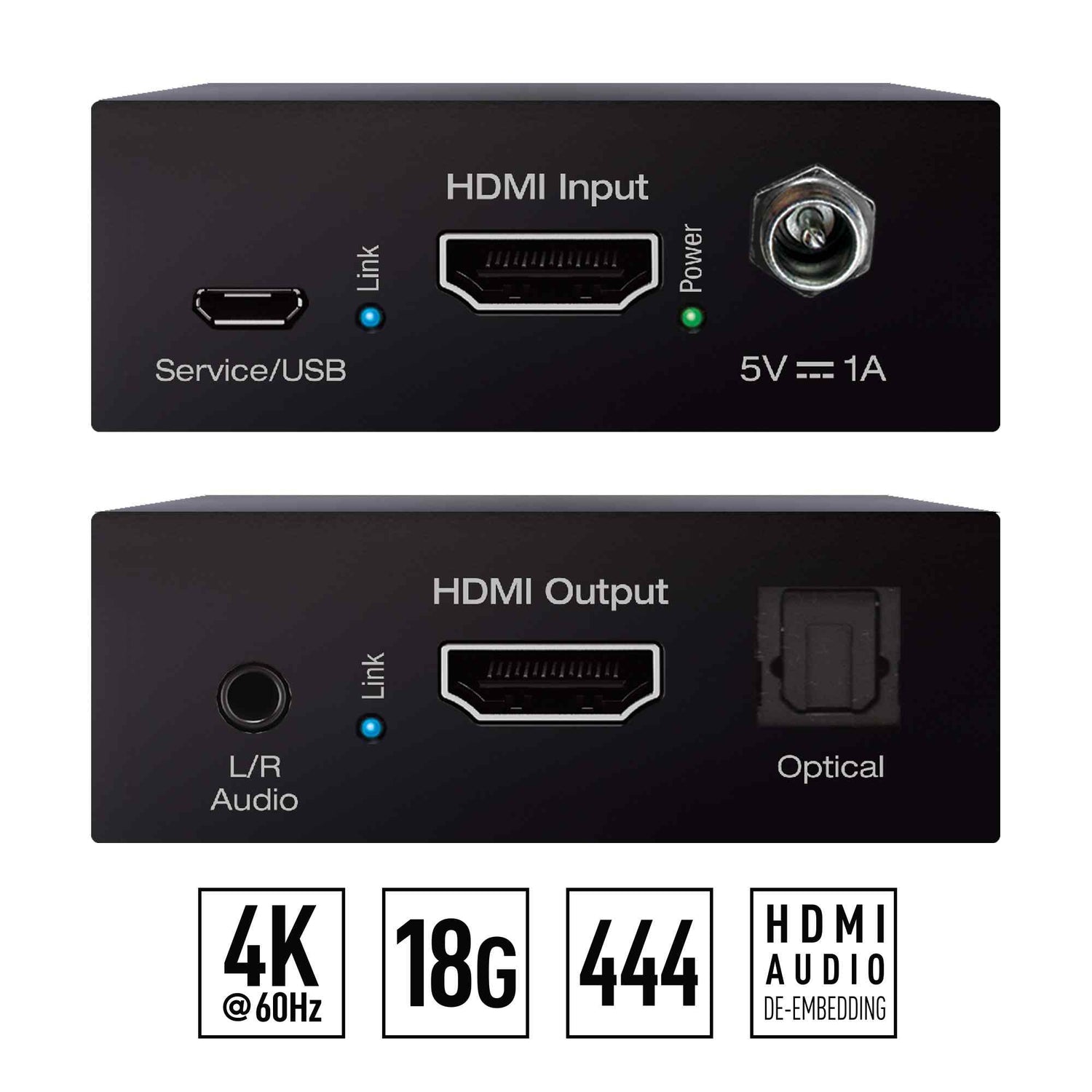

KD-FIX418A-2 HDMI Connectivity Fixer with Audio De-Embedding and Down-convert

• HDMI Correction: Resolves common HDMI integration obstacles related to Hot Plug Detection, EDID handshaking, HDCP authentication, and bandwidth

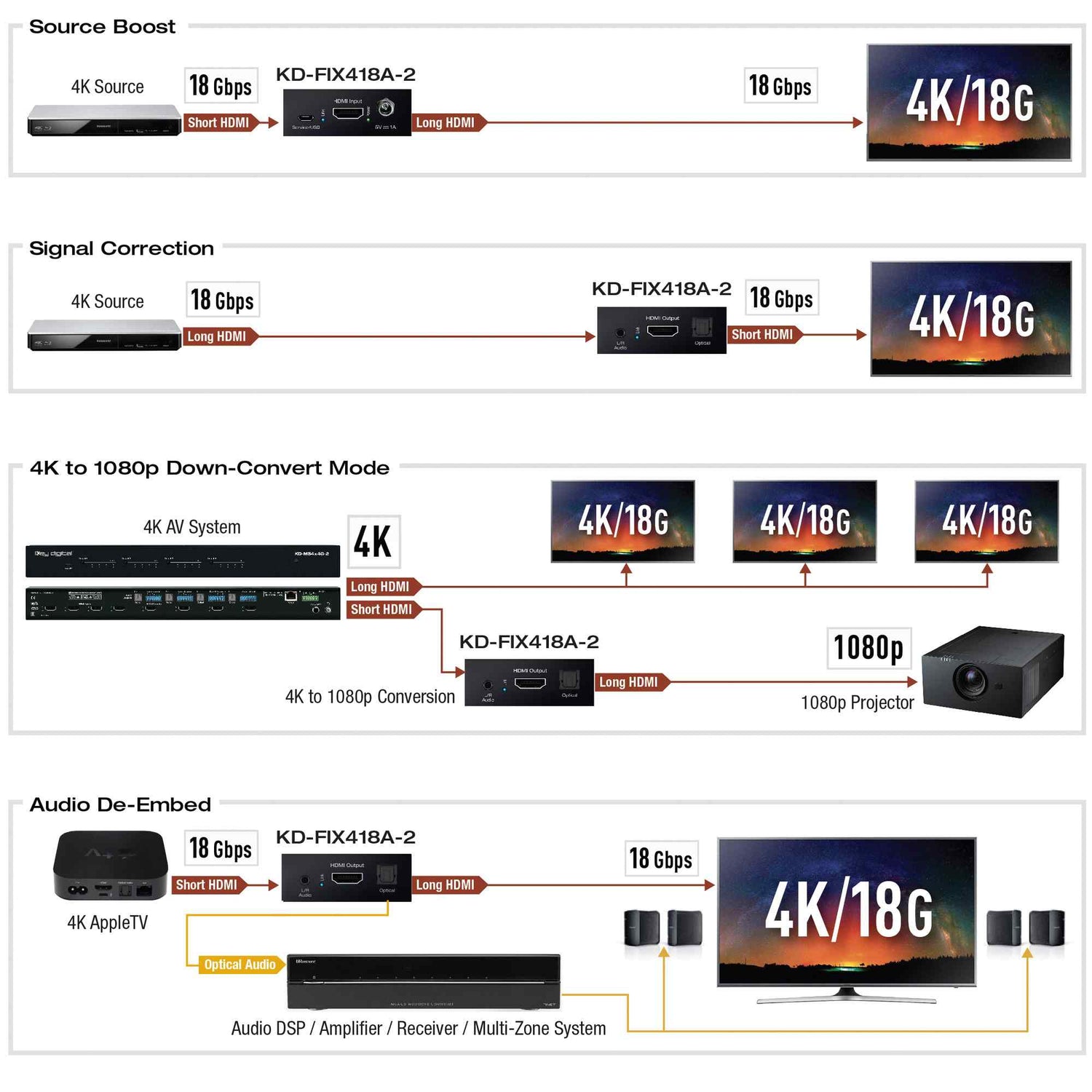

• Audio De-embedding: HDMI input audio is de-embedded on an analog 3.5mm stereo and digital optical connector

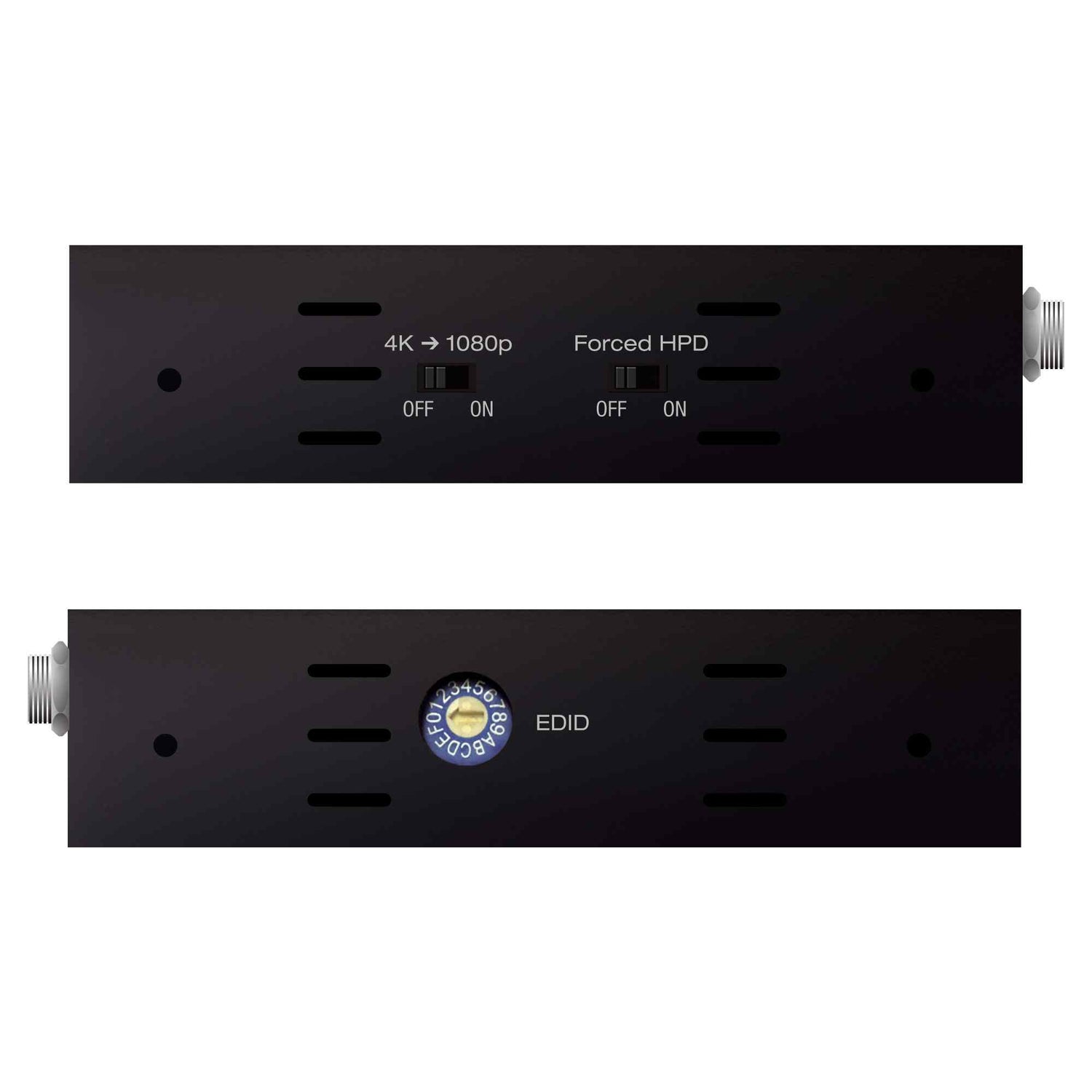

• 4K to 1080p Down Convert: When enabled, resolution conversion is applied to individual outputs(s) based on EDID from the connected display

• Digital Audio Format Support: DTS-HD Master Audio™, DTS:X®, Dolby® TrueHD, Dolby Atmos®

• ARC Pass-thru: From connected ARC supported display to connected ARC supported HDMI source

• CEC Pass-thru: From connected display to selected HDMI source
• Ultra HD/4K: Supports up to 4096x2160 or 3840x2160 24/25/30/60hz at 4:4:4 (signals up to 18Gbps bandwidth)

• HDCP Licensing: Fully licensed and compatible with HDCP 2.2

• HDR10 and Dolby Vision: More life-like images through a greater range of luminance levels

• Resolution Support: Supports all SD, HD, and VESA (VGA, SVGA, XGA, WXGA, SXGA, UXGA) up to 4096x2160p

• Deep Color Support: Up to UHD/4K 30Hz 4:4:4/12 bits or 60Hz 4:4:4/8 bit

• Full Buffer System™: Manages TMDS re-clocking / signal re-generation, HDCP authentication to source & display, Hot Plug management, and EDID control handshake

• EDID Management: Internal library with 15 internal EDID handshakes including 4K with HDR in addition to native EDID data copied from the output/display

Power Supply
