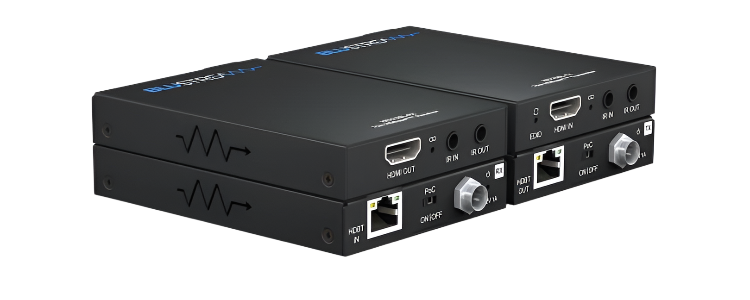

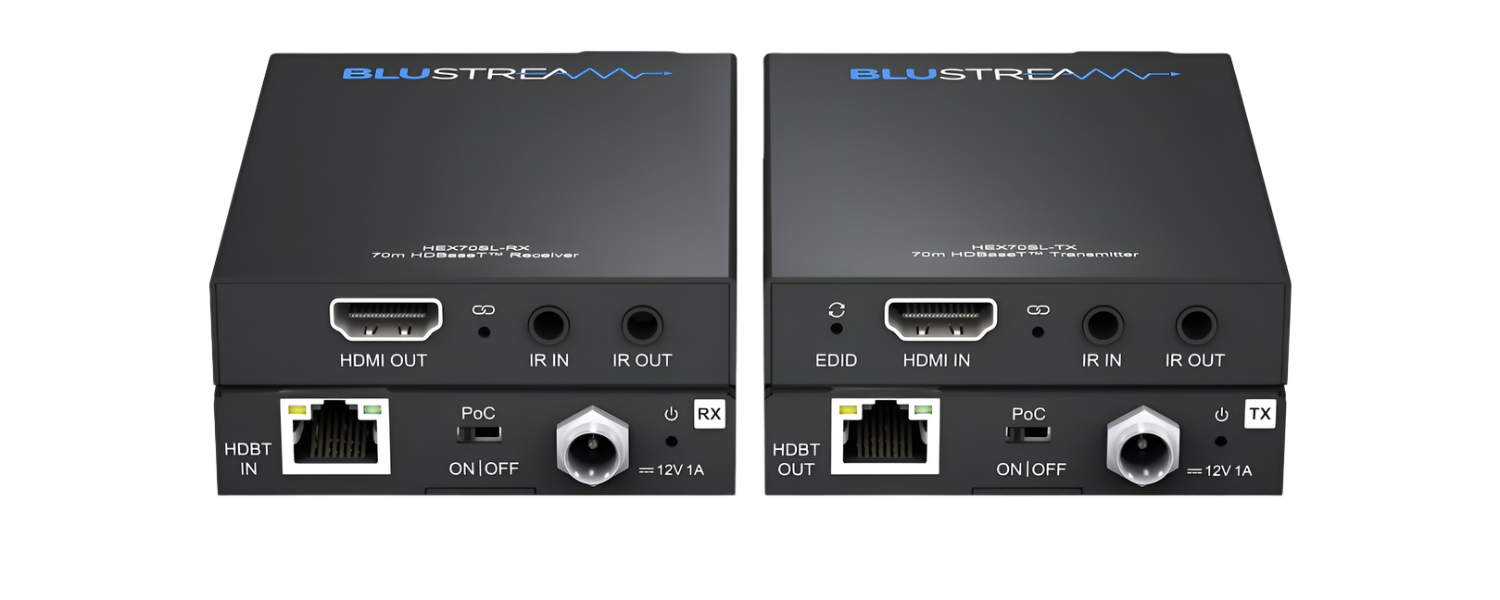

HEX70SL-KIT 4K HDBaseT™ Extender Slimline

• Advanced HDBaseT™ technology offering uncompressed video and audio with zero latency
• Enhanced slimline chassis
• Extends HDMI 1080p up to a distance of 70m over a single CAT cable
• Supports 4K UHD video up to 40m (3840 x 2160 @ 30Hz 4:4:4, 4096 x 2160 @ 24Hz 4:4:4, and 4K @ 60Hz 4:2:0)
• Supports all industry standard video resolutions including VGA-WUXGA and 480i-4K
• Supports all known HDMI audio formats including Dolby TrueHD, Dolby Atmos, Dolby Digital Plus and DTS-HD Master Audio transmission
• Bi-directional IR pass-through
• Supplied with Blustream IR receiver and emitter
• Supports Bi-directional PoC to power extenders from either transmitter or receiver end
• HDCP 2.2 compliant with Smart EDID management

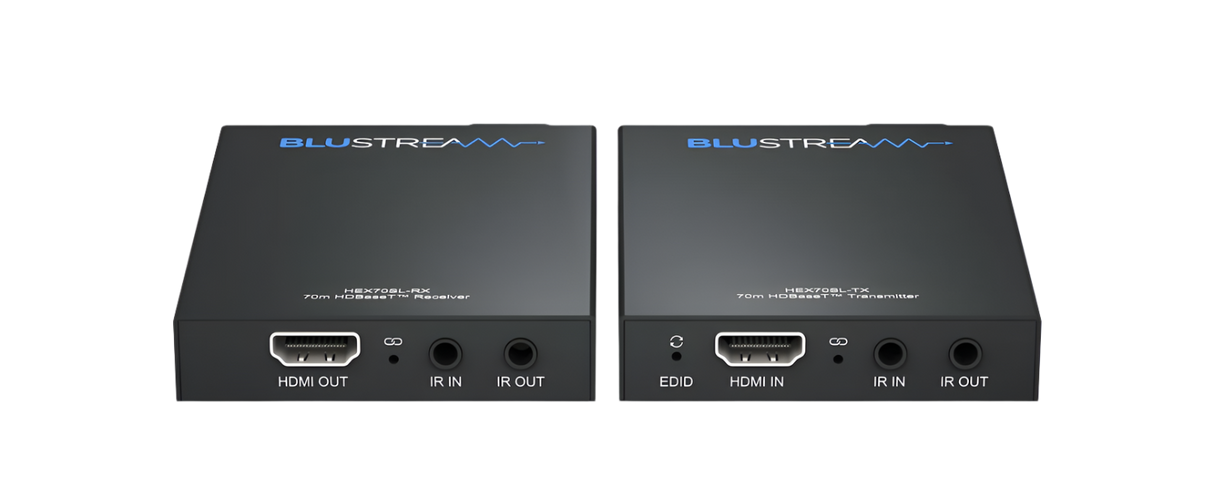

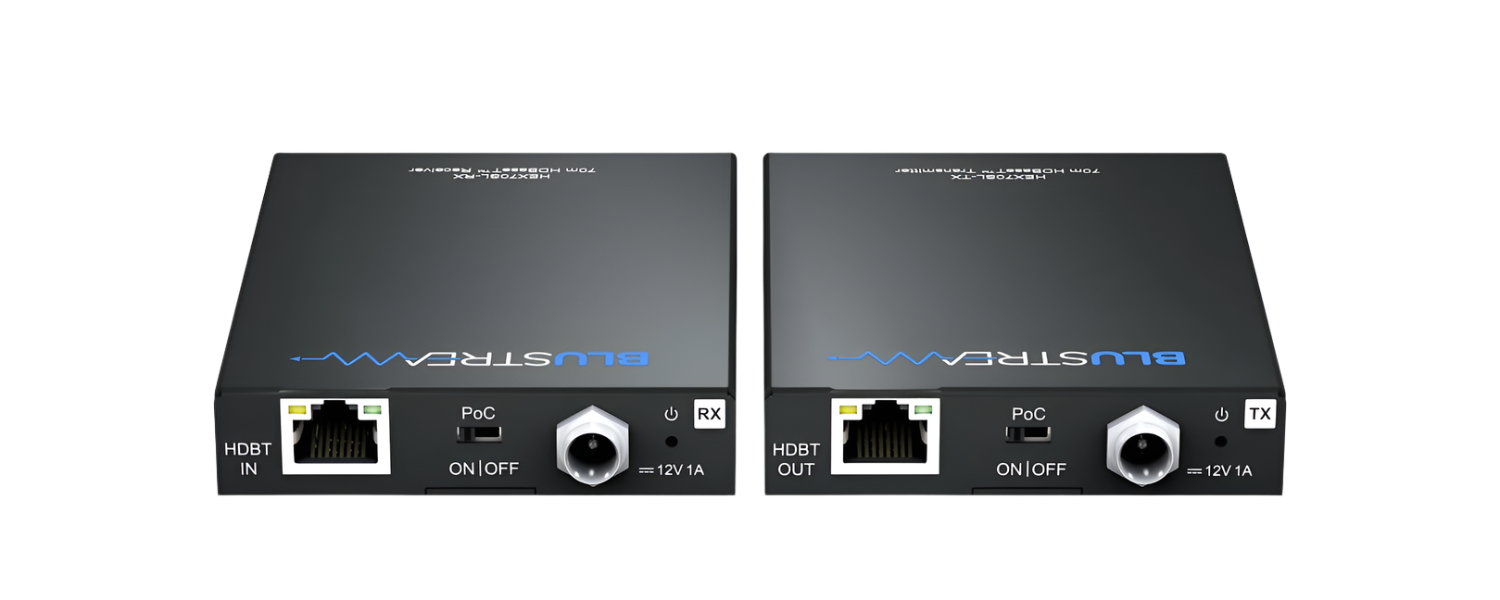

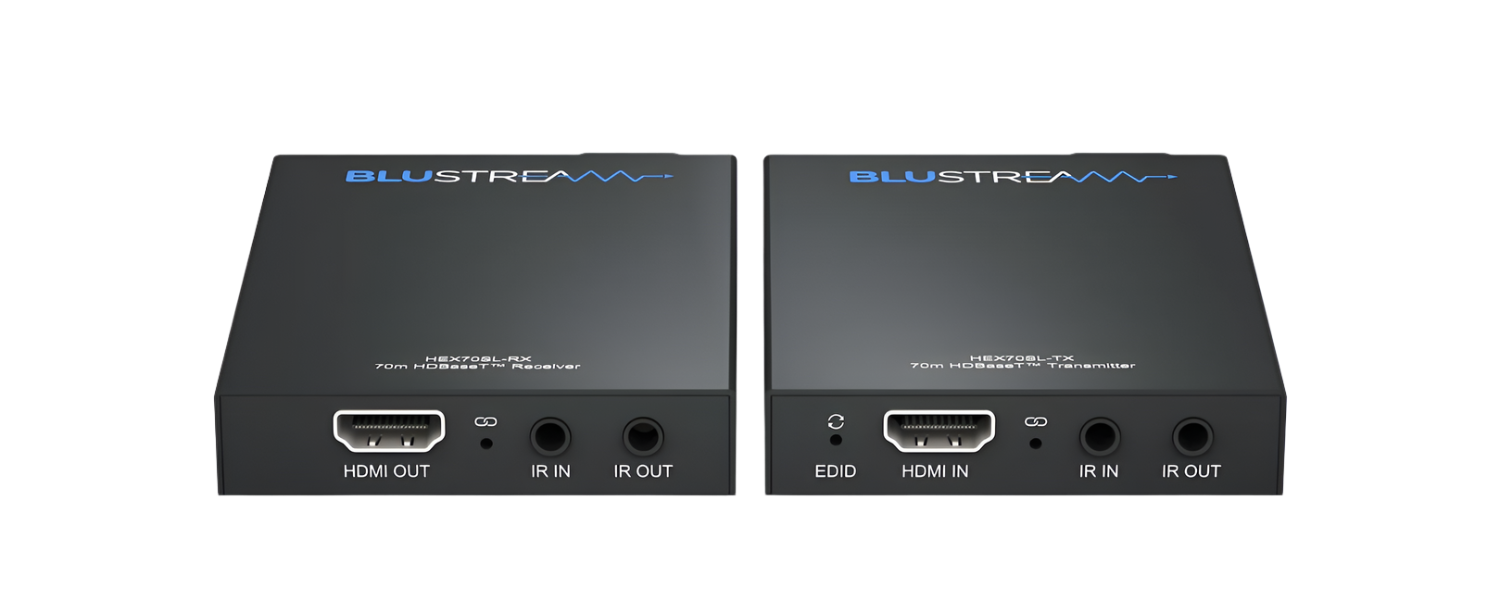

HEX70SL-TX:

• Video Input Connectors: 1 x HDMI Type A, 19-pin, female
• Video Output Connectors: 1 x HDBaseT™ RJ45 connector
• IR Input Ports: 1 x 3.5mm stereo jack
• IR Output Ports: 1 x 3.5mm mono jack
• EDID: Pin hole button

HEX70SL-RX:

• Video Input Connectors: 1 x HDBaseT™ RJ45 connector
• Video Output Connectors: 1 x HDMI Type A, 19-pin, female
• IR Input Ports: 1 x 3.5mm stereo jack
• IR Output Ports: 1 x 3.5mm mono jack

1 x HEX70SL-TX
1 x HEX70SL-RX
1 x 12V/1A DC Power Supply
1 x IR Emitter
1 x IR Receiver
2 x Mounting Kits
1 x Quick Reference Guide
