Blustream  |  SKU: HEX18G-KIT | Item No. 0104-0218

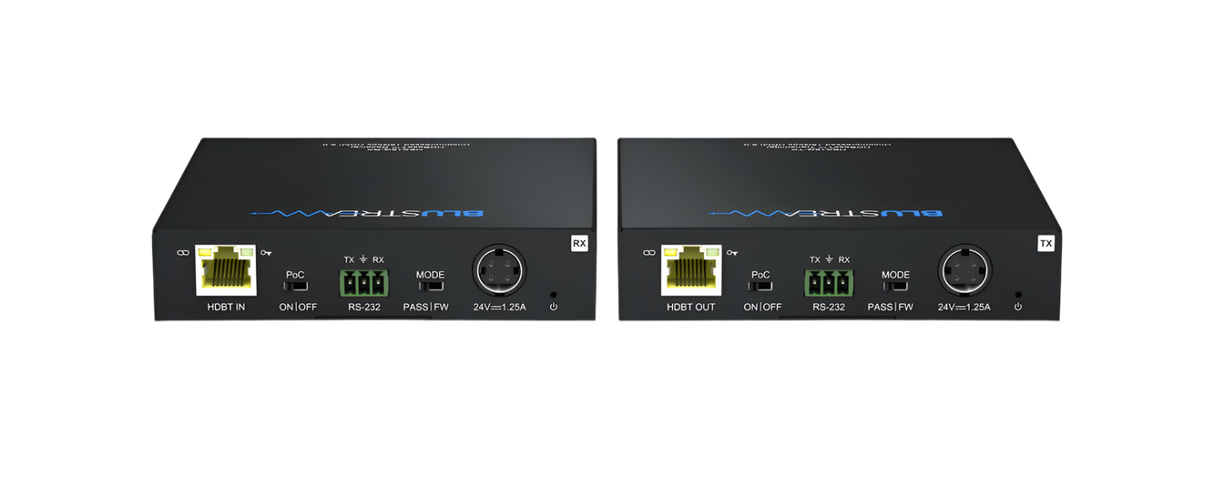

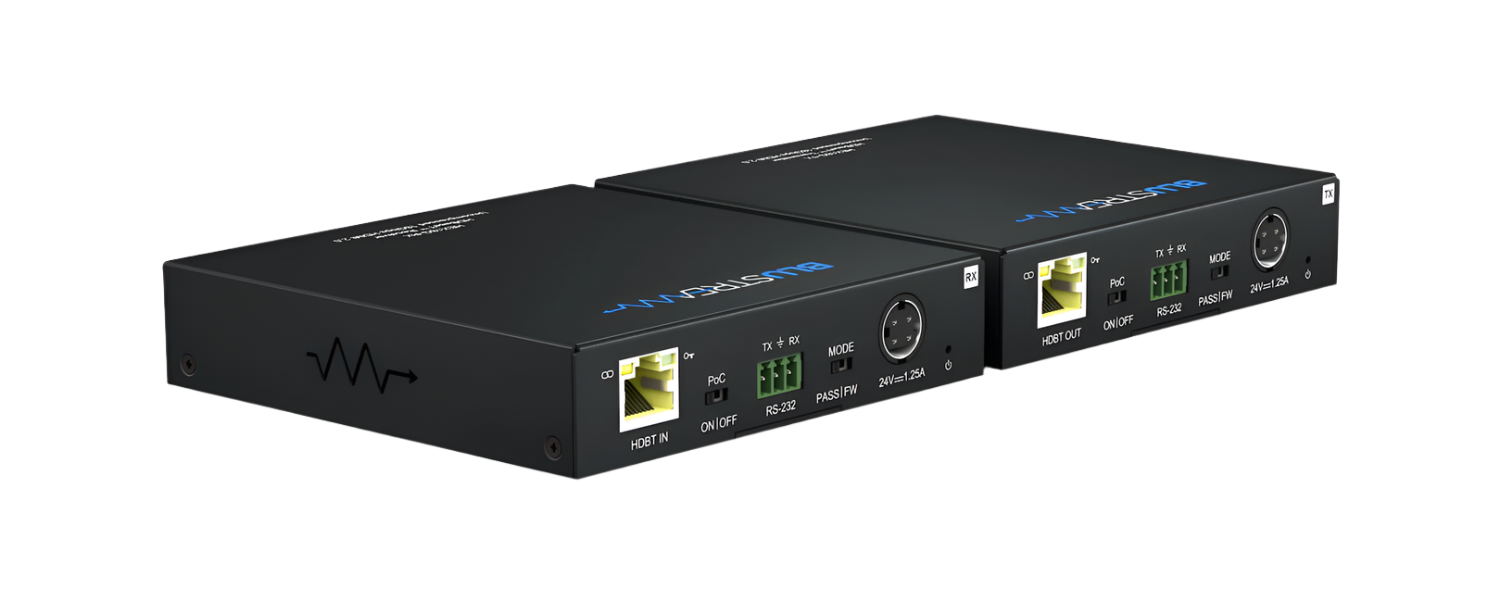

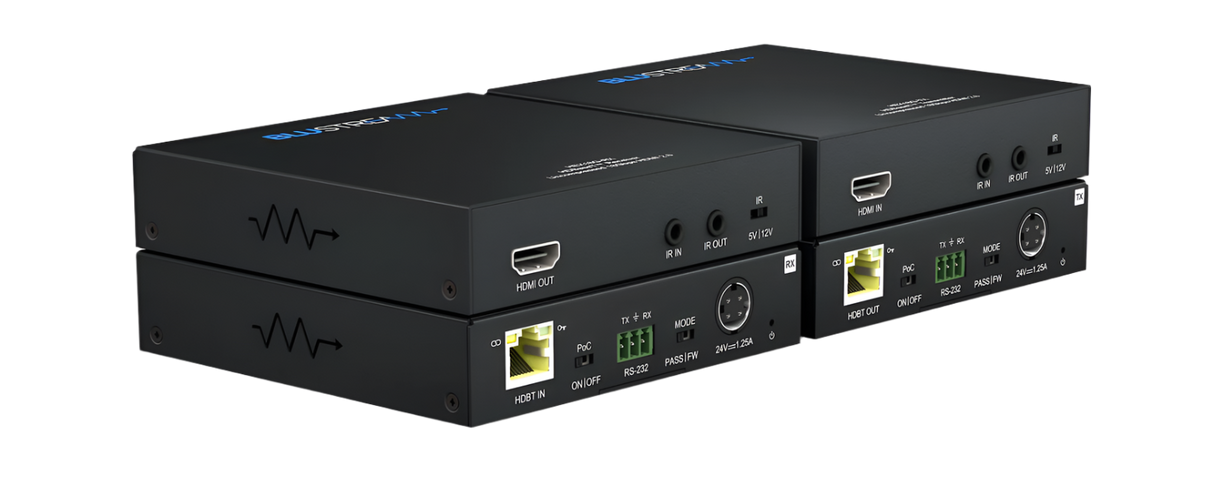

HEX18G-KIT HDBaseT™ Extender Set Supporting Uncompressed HDMI 2.0 4K 60Hz 4:4:4 up to 100m (1080p up to 150m) B

Login for pricing

MSRP: $917.00
On order

Product Features

  • Advanced uncompressed, unconverted, HDMI over HDBaseT™ technology offering distribution of bit for bit 4K HDMI video and audio over a single CAT6A cable
  • Supports HDMI 2.0 18Gbps specification including 4K 60Hz 4:4:4 UHD video
  • Supports uncompressed distribution of the latest HDR resolutions including HDR10/10+ and Dolby Vision
  • Supports HDMI video distribution up to 100m*
  • Supports all industry standard video resolutions including VGA-WUXGA and 480i-4K
  • HDMI re-clocking on the HDBaseT™ Receiver to help solve HDMI HDCP, compatibility and handshaking issues
  • Supports all known HDMI audio formats including Dolby Atmos, Dolby TrueHD, Dolby Digital Plus and DTS-HD Master Audio transmission
  • Bi-directional IR & RS-232 pass through
  • Supplied with Blustream IR receiver and emitter
  • Bi-directional PoC (Power over Cable) to power extenders from either transmitter or receiver end
  • Support for HDCP 2.3, HDCP 2.2 and HDCP 1.4
  • *Transmission distance is subject to video format, cable type and installation environment. It is recommended to use a minimum of CAT6A cabling

Specifications

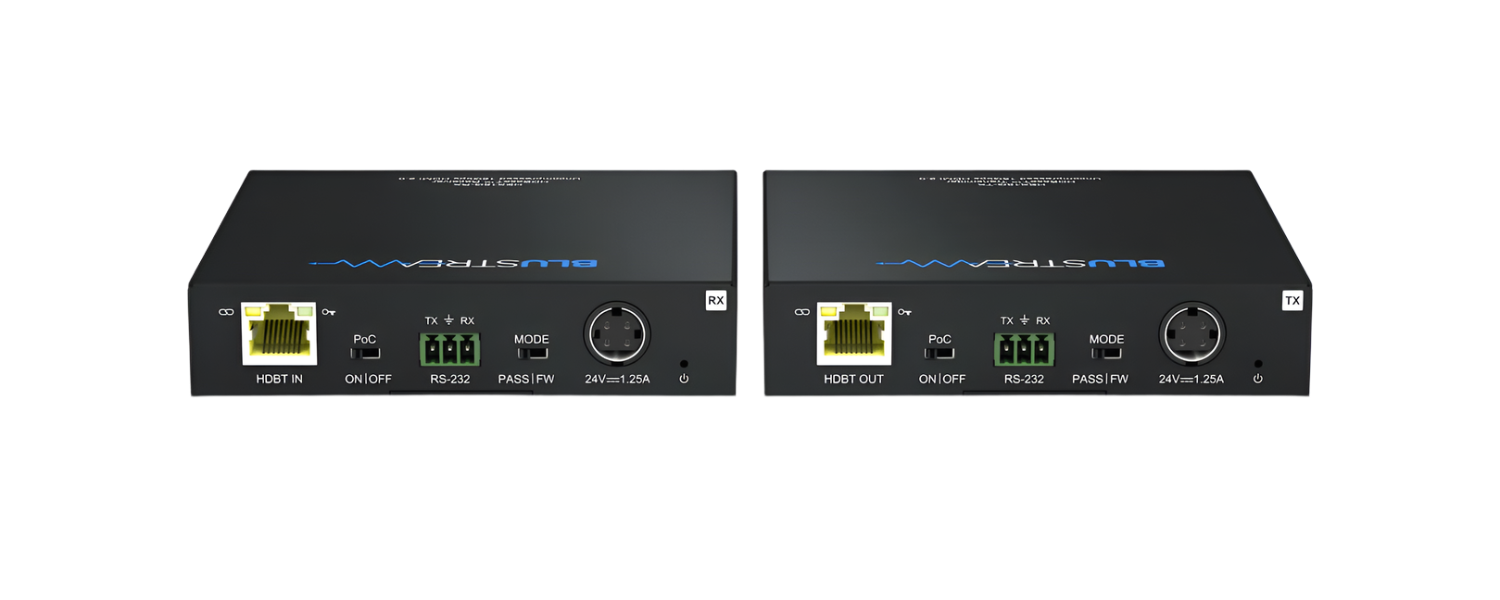

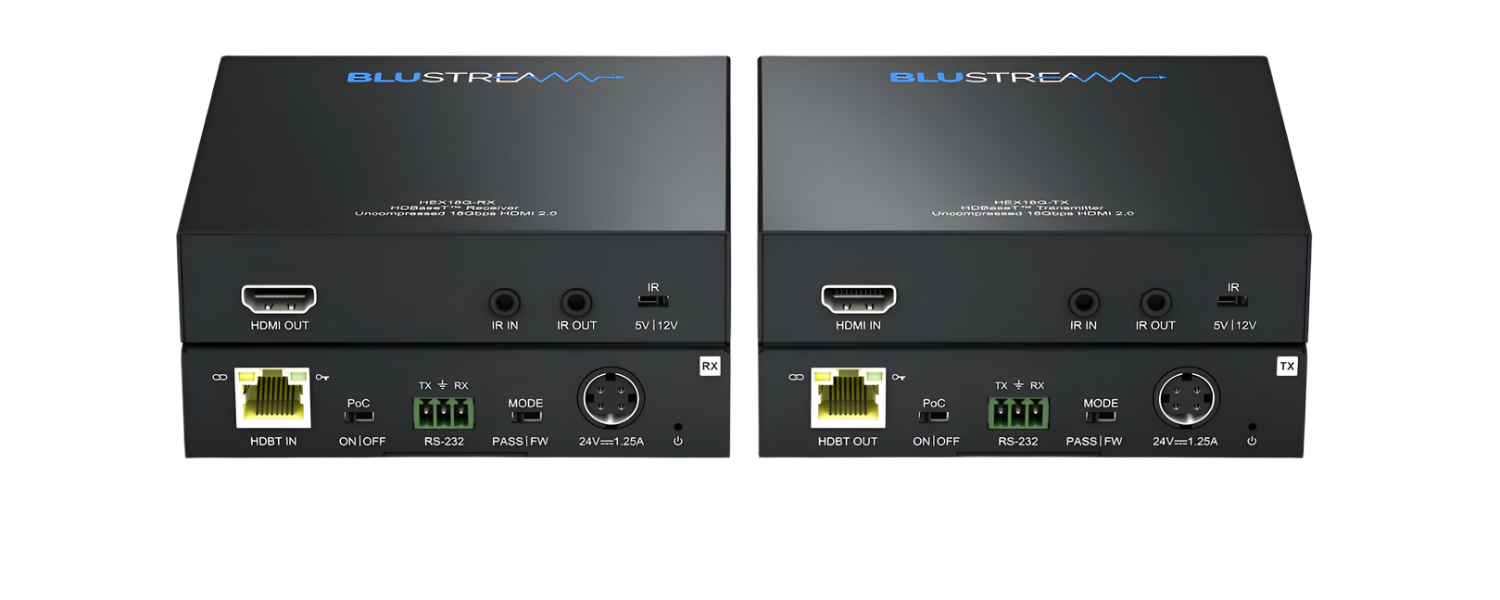

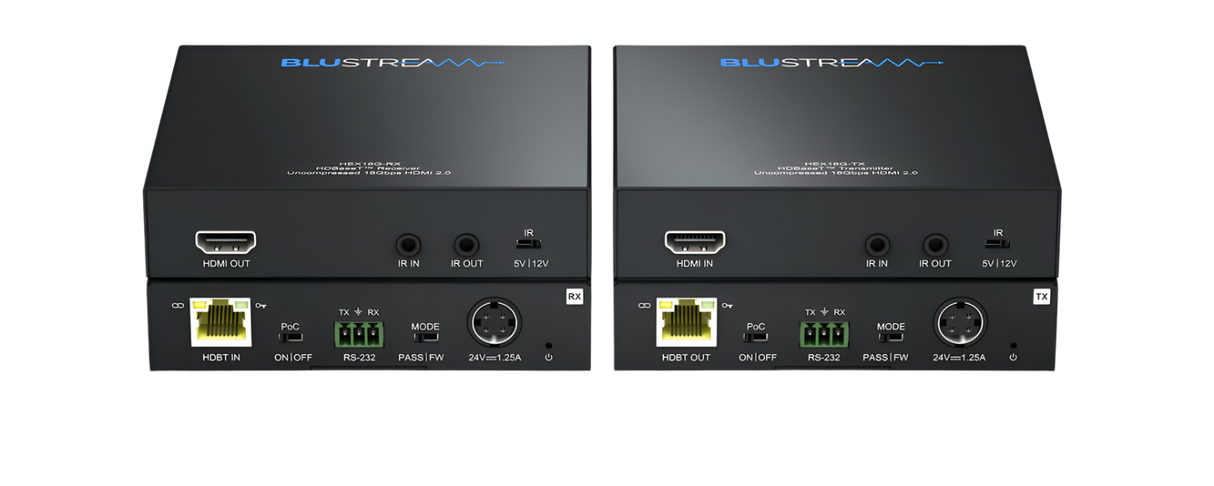

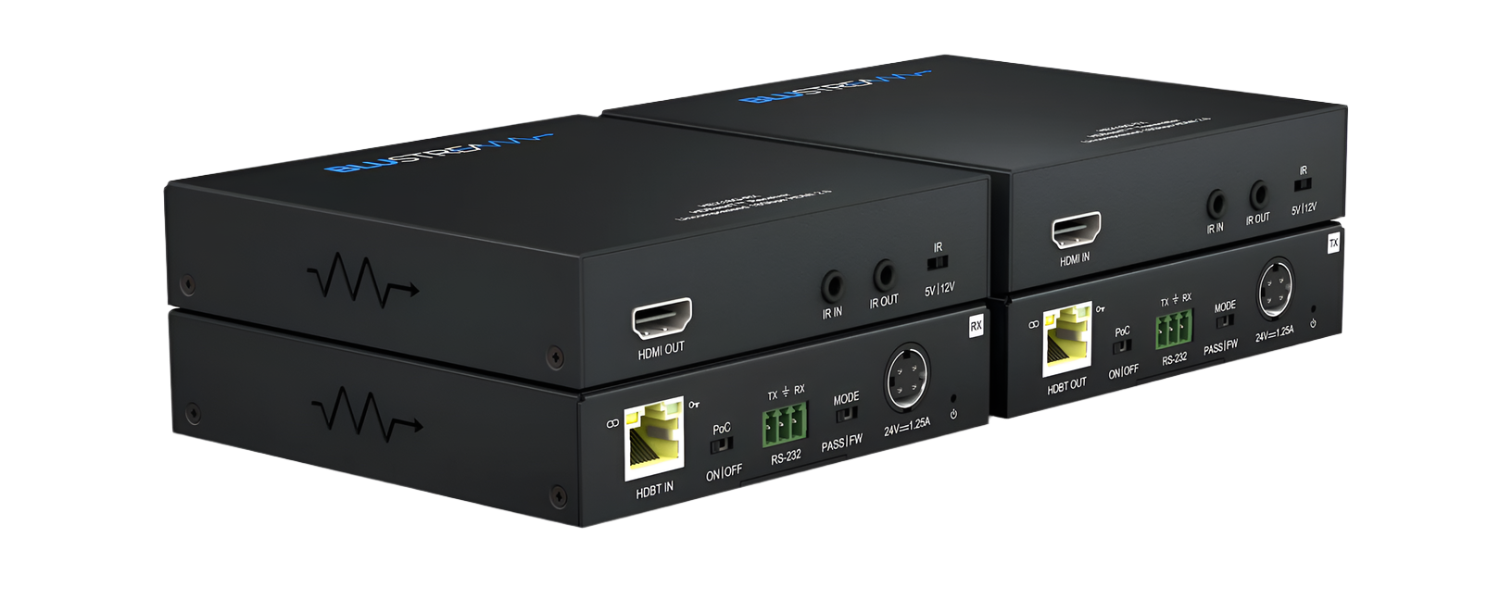

HEX18G-TX

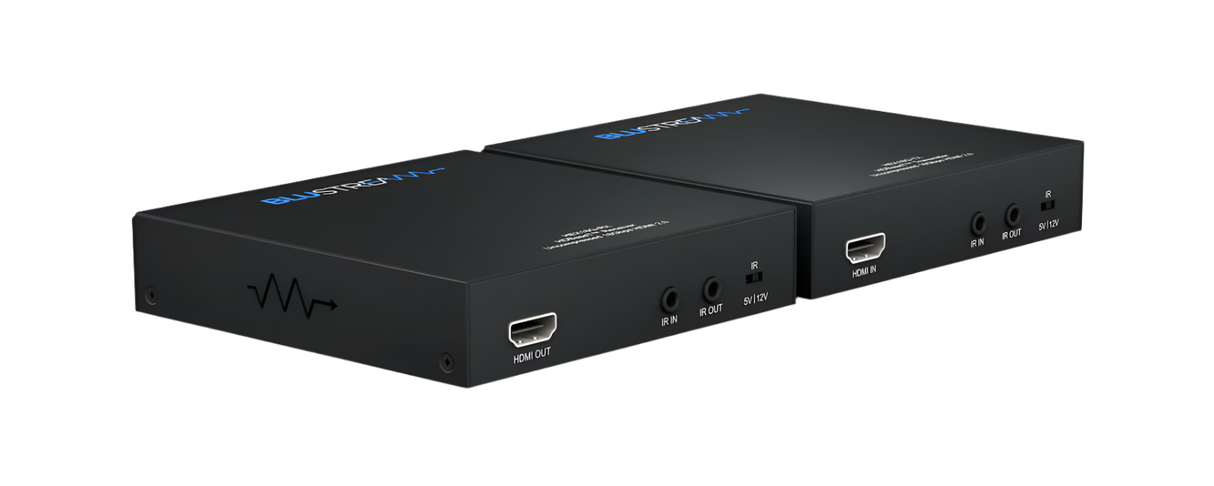

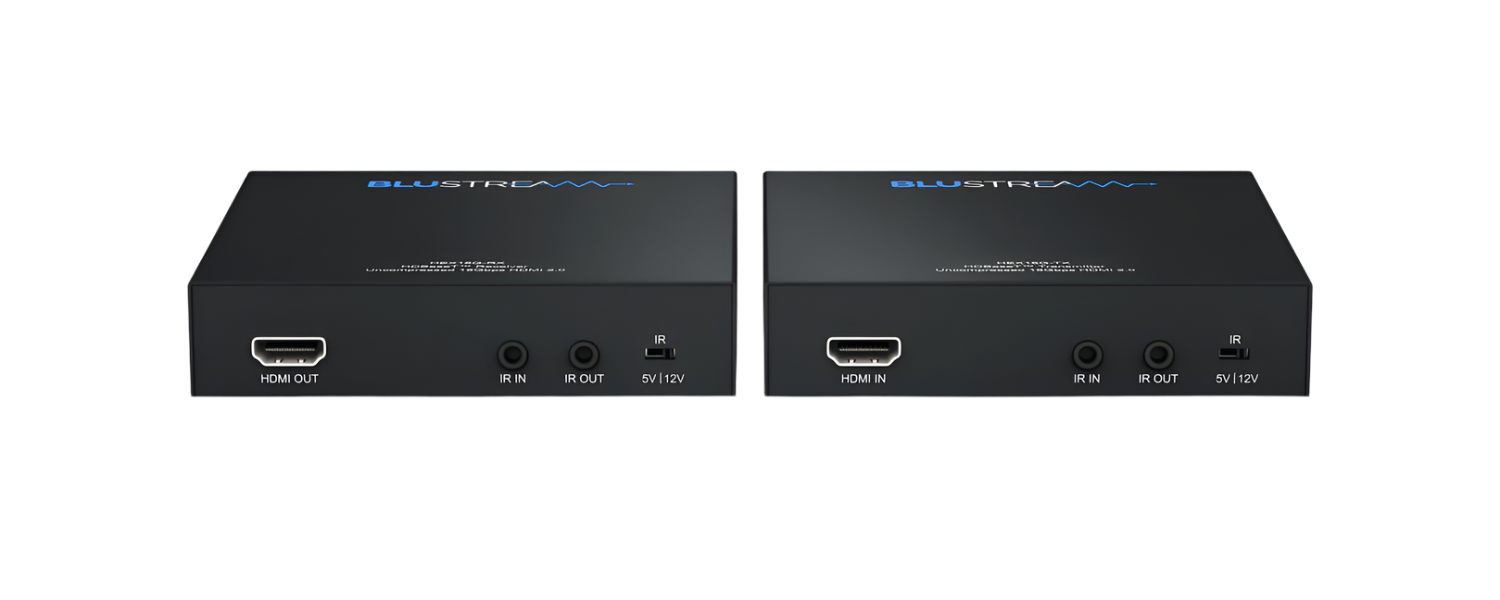

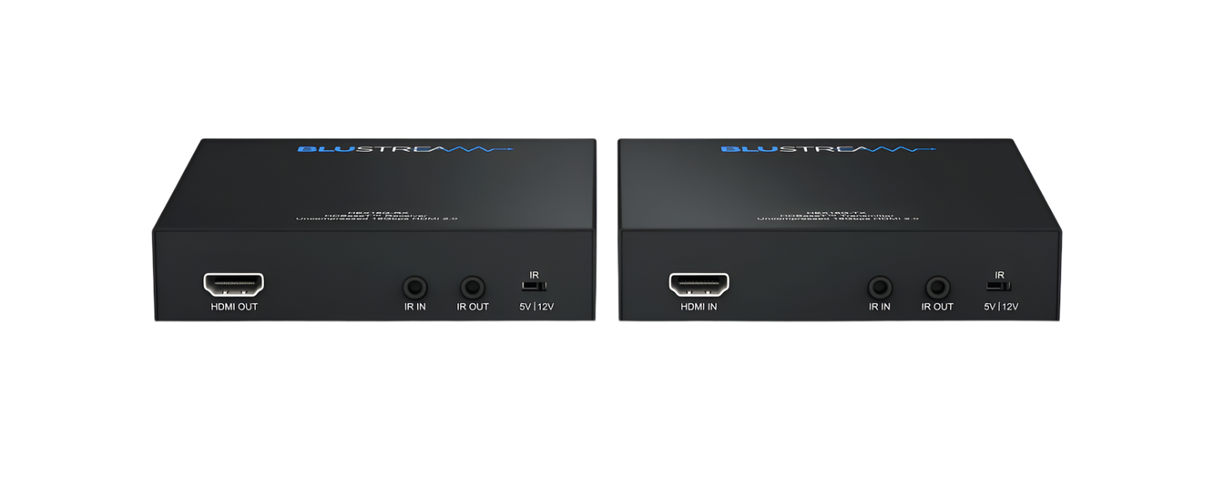

  • Video Input Connectors: 1x HDMI Type A, female

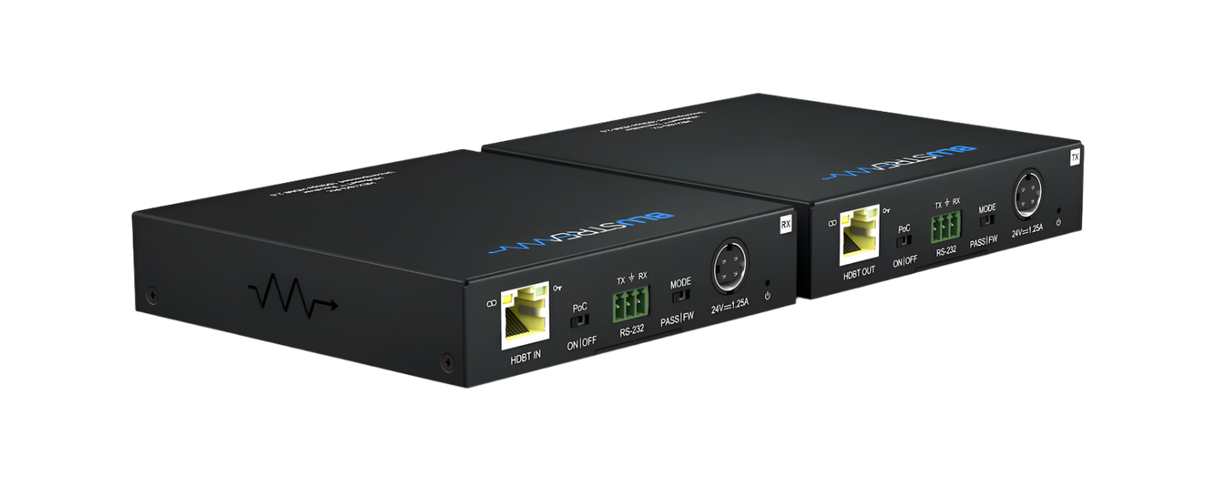

  • Video Output Connectors: 1x HDBaseT™ RJ45 connector
  • IR Input ports: 1x 3.5mm stereo jack
  • IR Output ports: 1x 3.5mm mono jack
  • RS-232 serial port: 1x 3-pin Phoenix connector
  • Power Supply: 1x 24V/1.25A DC

HEX18G-RX

  • Video Input Connectors: 1x HDBaseT™ RJ45 connector
  • Video Output Connectors: 1x HDMI Type A, female
  • IR Input ports: 1x 3.5mm stereo jack
  • IR Output ports: 1x 3.5mm mono jack
  • RS-232 serial port: 1x 3-pin Phoenix connector
  • Power Supply: 1x 24V/1.25A DC

Related Files

Payment & Security
Your payment information is processed securely. We do not store credit card details nor have access to your credit card information.

The HEX18G-KIT extender set is an industry leading uncompressed, unconverted HDMI 2.0 4K 60Hz 4:4:4 HDCP 2.3/2.2 solution utilizing the latest in HDBaseT™ technology.

The HEX18G-KIT supports uncompressed distribution of the latest HDR resolutions including HDR10/10+ and Dolby Vision resulting in the ultimate in picture quality for your critical viewing areas.

The HEX18G-KIT supports bi-directional IR, RS-232 and PoC up to lengths of 100m over a single CAT6A cable.
