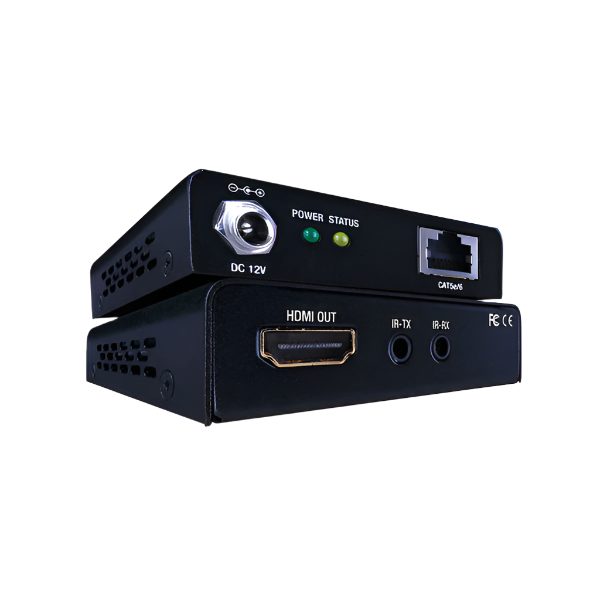

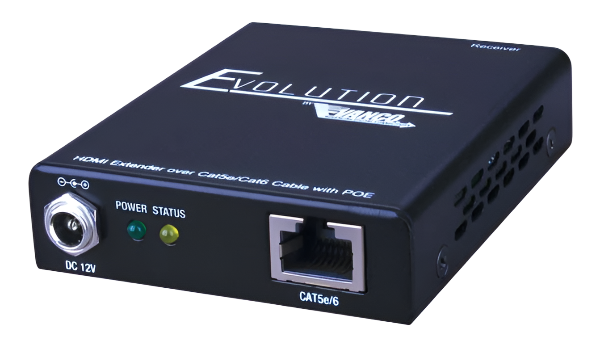

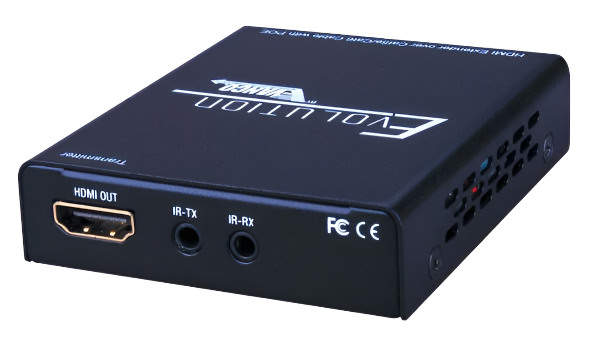

Evolution EVEX2006 Ultra Slim HDMI over Single CAT5e/CAT6 Extender with PoE

• Allows HDMI audio/video signals to be transmitted using a single Cat5e or Cat6 Cable
• Features Power over Ethernet (PoE) Technology which transmits power over Cat5e/Cat6- allowing the transmitter and receiver to be powered off of a single power supply
• Slim and compact design
• Wide band Bi-directional IR system allowing for control of source or display (IR accessories included)
• Wideband IR signal from 20KHz to 60KHz
• Transmission Range: Extends HDMI transmission up to 50m (164ft) from the HDMI source at Full HD 1080p 24-bit color and 3D
• Features Auto EDID and EQ Management for plug and play installation
• Works with HDMI and HDCP compliant devices
• HDCP 2.0 compliant
• Pure uncompressed 7.1ch digital audio
• Supports DTS-HD and Dolby TrueHD high bit rate audio
• Allows cascading to create a larger distribution system
• Fully compatible with any Evolution by Vanco product
• Patent No. 9,710,038 B1

**Tech Support Tips: Please install as a complete set. Due to necessary changes to the product over time, do not mix with other EVEX2006 units or other products within the same family (EVSP1013, EVSP1017, EVRX2006, EVWP2006, EVWP2006TX/RX) to ensure compatibility and functionality. Recommended to be used with a permanent source, or non-rotating source. For any rotating source such as a conference room type setup, it is recommended to use an HDBaseT extender

• Dimensions: 2.7” (68.58mm) W x .7” (17.78mm) H x 3.25” (82.55mm) D

Download Spec Sheet

View Vanco Extender Comparison Chart

Video
