DynaCord  |  SKU: MXE5 | Item: 0102-1204

DynaCord DSP MXE5 Matrix Mix Engine 24 x 24 Channels

Login for pricing
MSRP: $3853.00
On Order

Product Features

  • Matrix size: 24 x 24
  • Sampling rate: 48 kHz /96 kHz
  • Dante in/out: 24/24
  • Analog inputs: 12 mic/line
  • Analog outputs: 8
  • Max. input/output level: + 22 dBu
  • Signal to noise ratio (inputs/outputs): > 118 dB
  • Signal processing: 32/40-bit floating point
  • THD+N: < 0.002 %
  • Latency (analog in/out, 48 kHz / 96 kHz): < 0.45 ms / < 0.22 ms
  • Control ports: 8 GPIO

Specifications

  • Dimensions:  19.01 x 1.71 x 18.54" (1RU)
  • Weight:  13.2 lbs

Related Files

Download Spec Sheet

WARNING: This product my expose you to chemicals which are known to the State of California to cause cancer, birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov

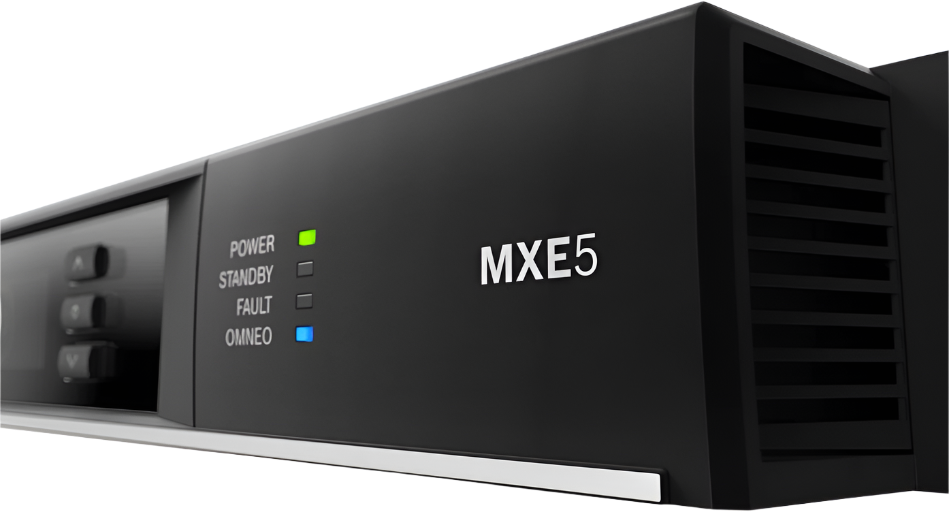

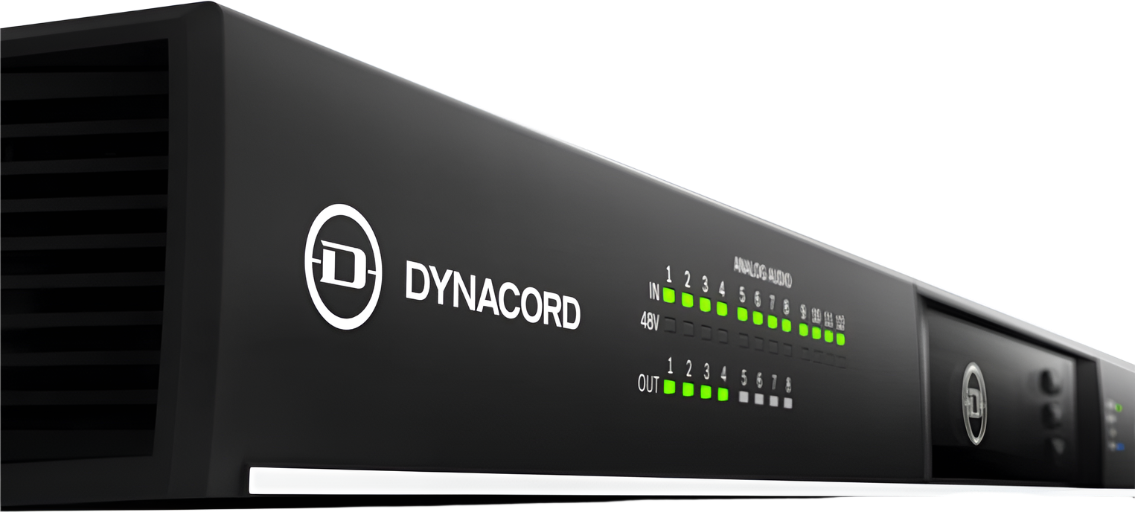

The MXE5 is the first member of the MXE matrix mix engine series. The 24 x 24 cross point performance audio matrix offers both routing and mixing functionalities, with 12 analog mic/line inputs and eight-line outputs. At the same time, the MXE5 serves as a communications hub for all IP-based peripherals and provides comprehensive supervision of all system-wide commands.
