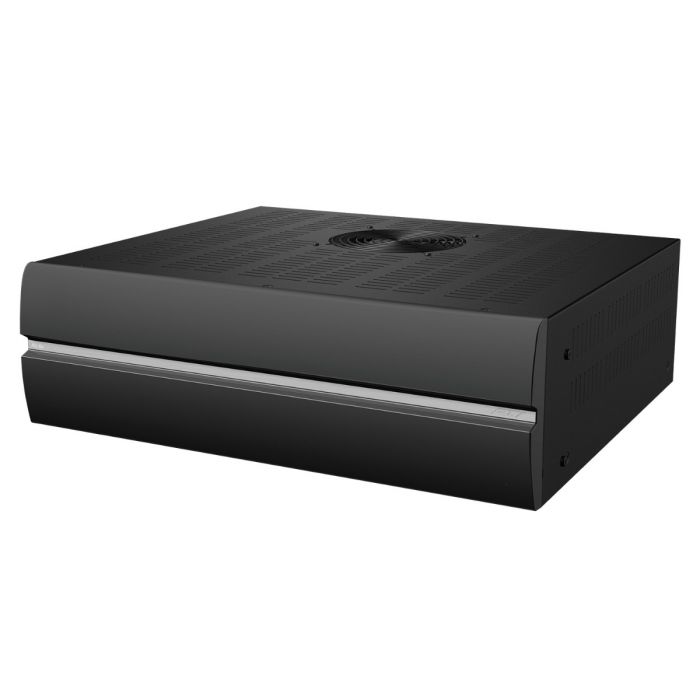

AD-8x Distributed Audio System Amplified Eight Zone Eight Source

• Special Order Item

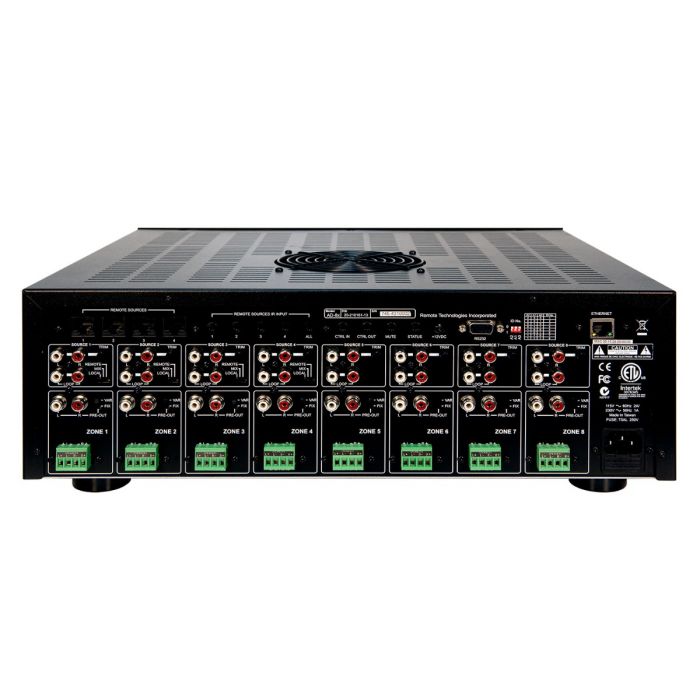

• Eight analog stereo audio output zones with fixed and variable pre-outs.
• Eight analog audio source inputs with independent trim level adjustment.
• Integrated 16 channel amplifier utilizes Cool Power® technology.
• Provides 25 watts per channel in each zone.
• Distribute eight audio source inputs to eight zones, expandable to 64 zones by stacking additional AD-8x units.
• Ethernet support and a web interface allows the AD-8x output zones to be tested during installation via a web browser on a smartphone, tablet or PC.
• Web interface allows zones to be configured into groups, allowing them to be controlled as a single zone.
• Controlled via IR, and two-way control with feedback via RS-232 and IP when installed with RTI control systems.
• Accessory wall plate (RSP-1) allows remote source equipment to be connected and controlled remotely over a Cat-5 cable.
• RSO-1 digital to analog converter (sold separately) provides audio input for digital audio sources.
• Controlled via IR, and two-way control with feedback via RS-232 and IP when installed with RTI control systems.
• Optional phone and doorbell mute function

AD-8x, power cord, rack ears (2) with screws, Phoenix 4-position speaker terminal blocks (8), feet with screws(4)
