Blustream  |  SKU: IP50HD-TX | Item No. 0104-0242

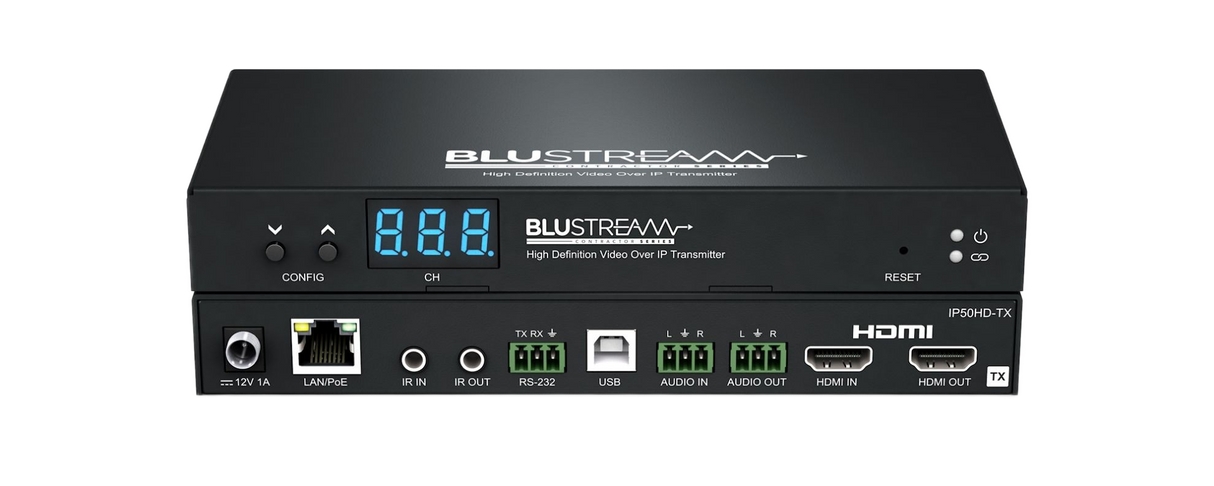

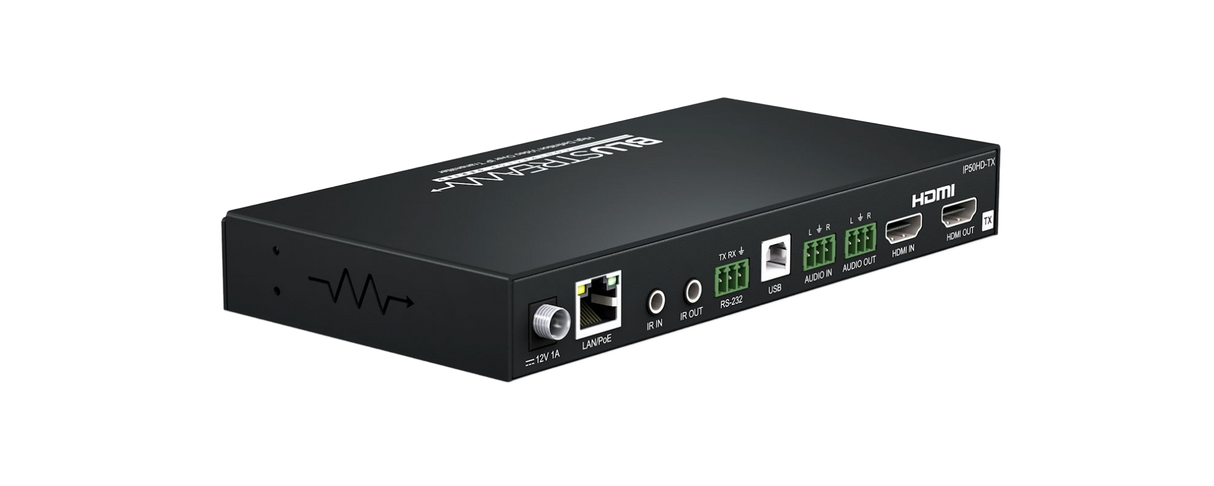

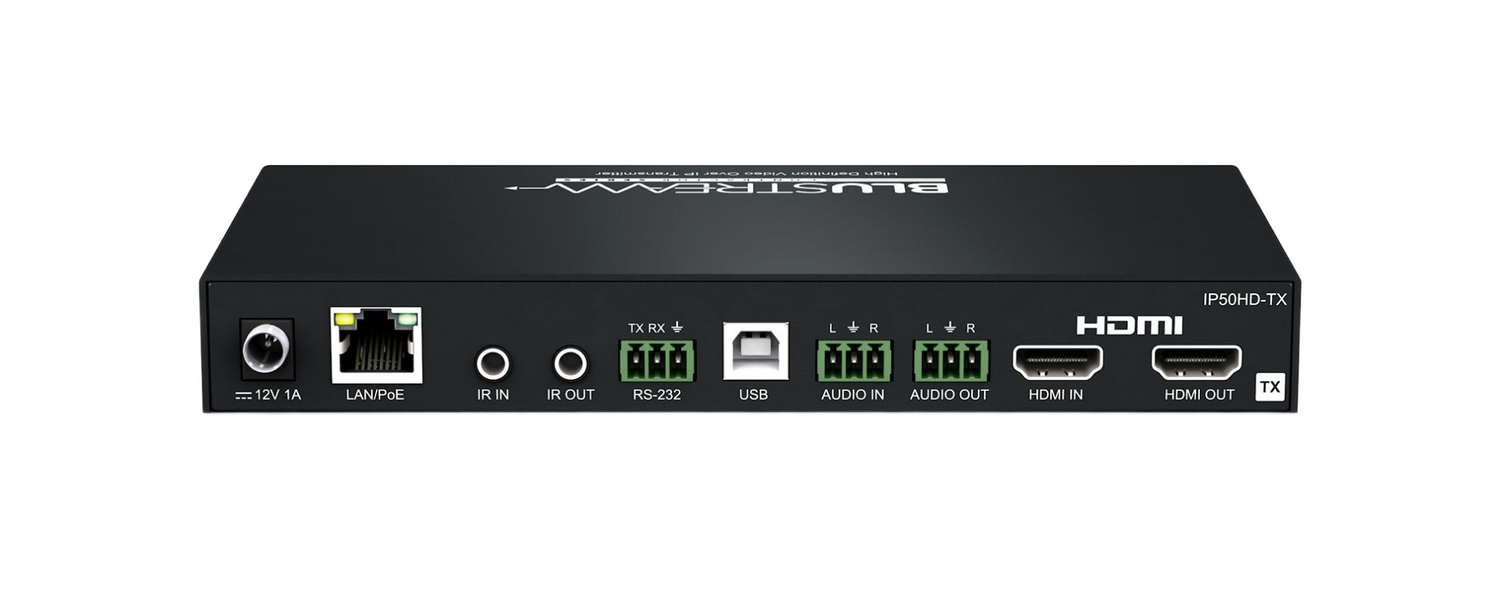

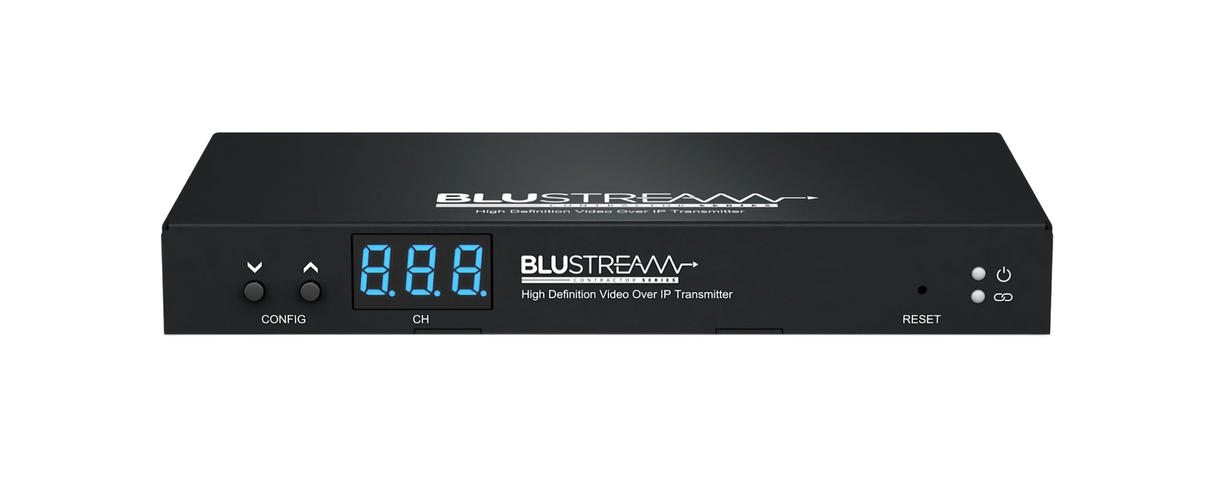

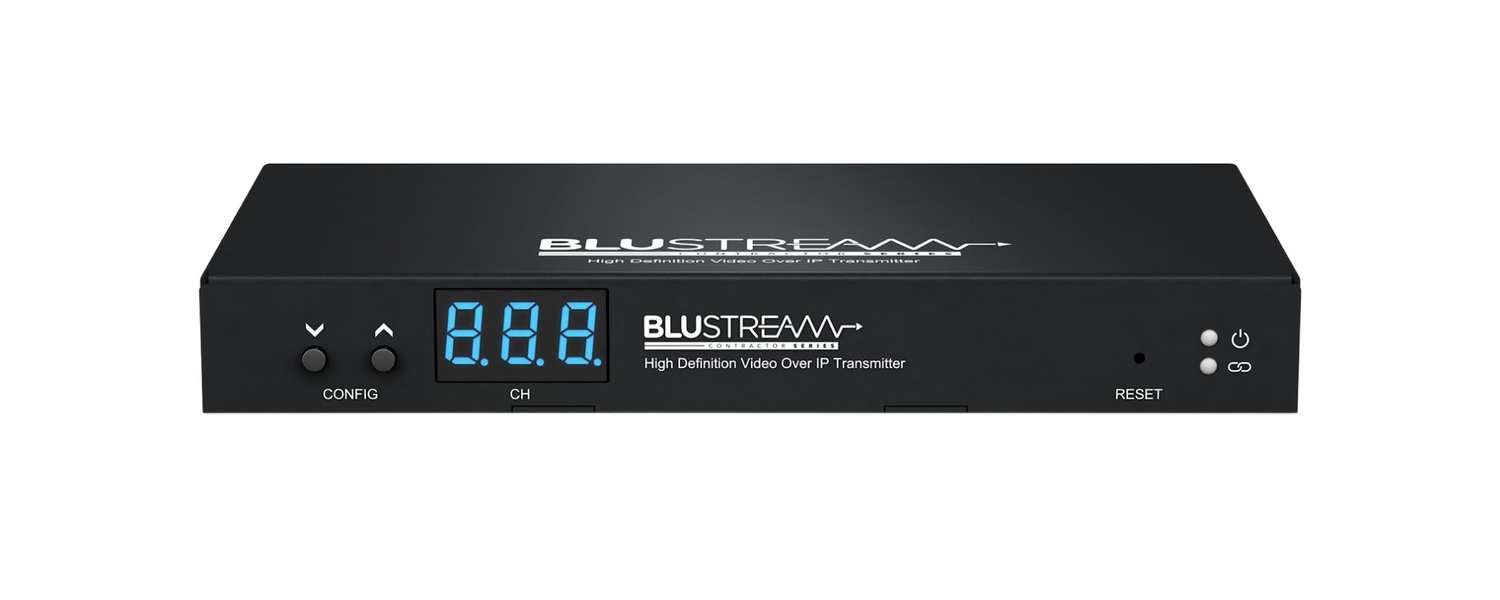

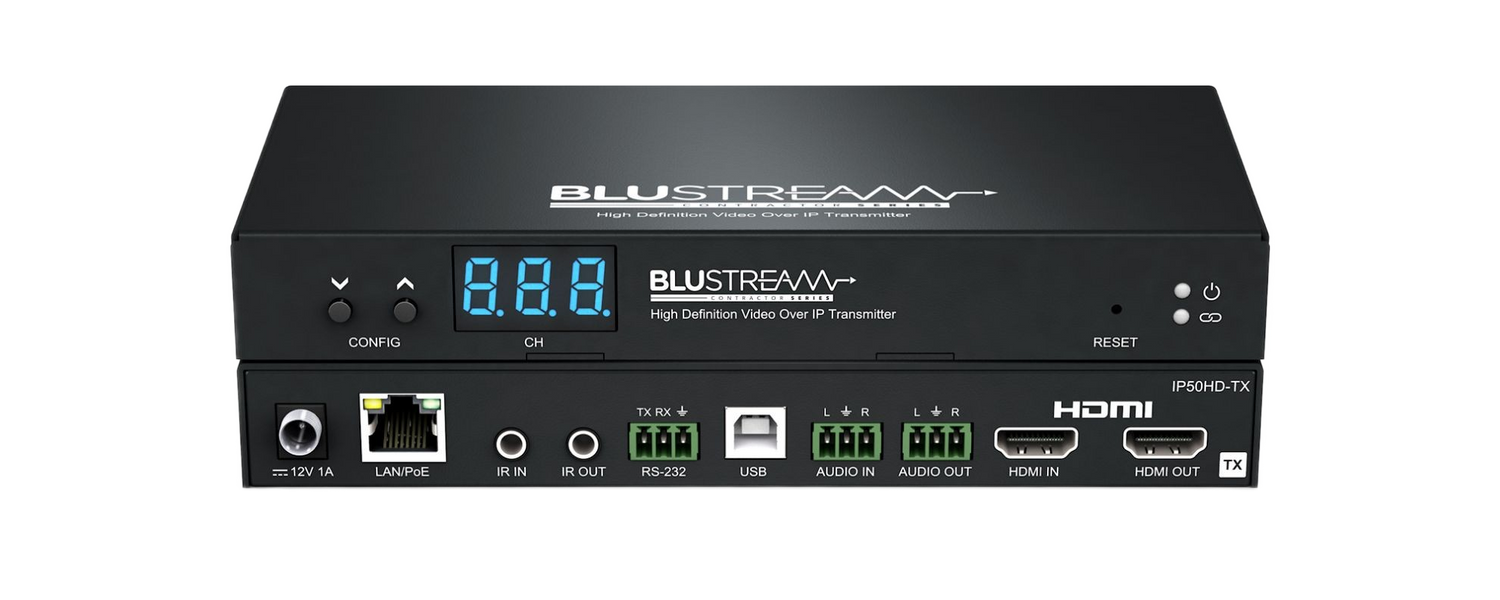

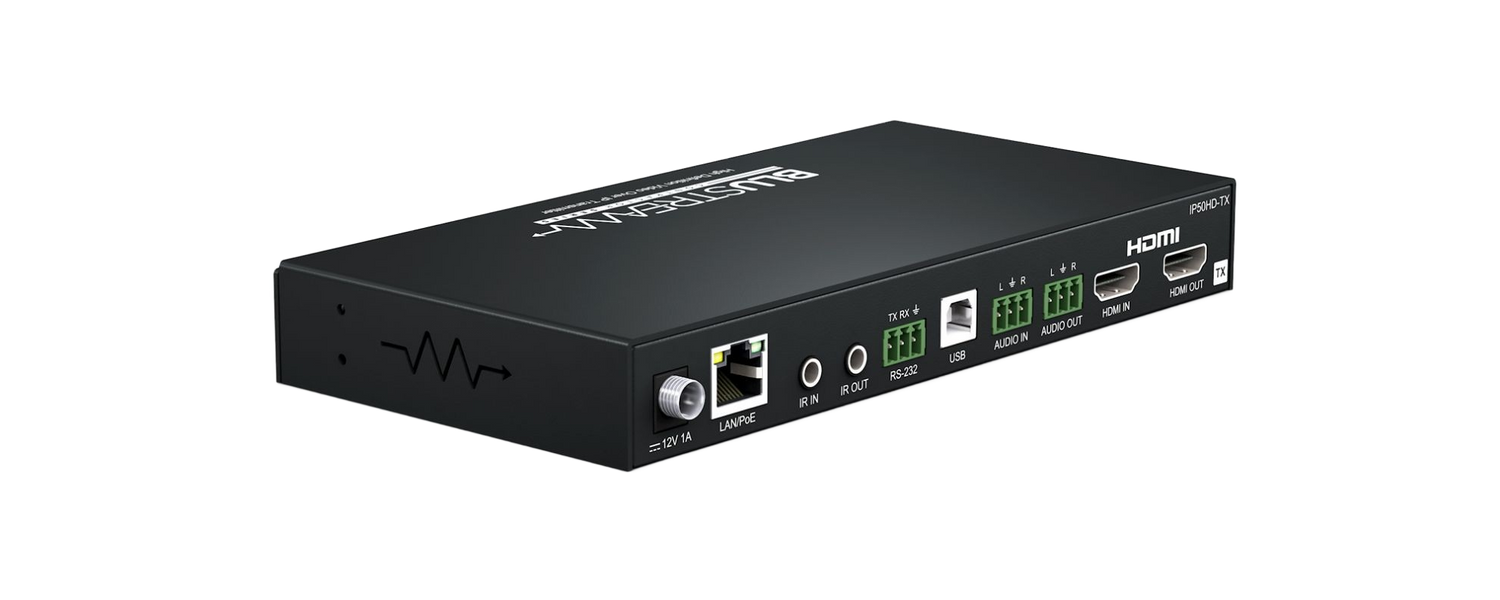

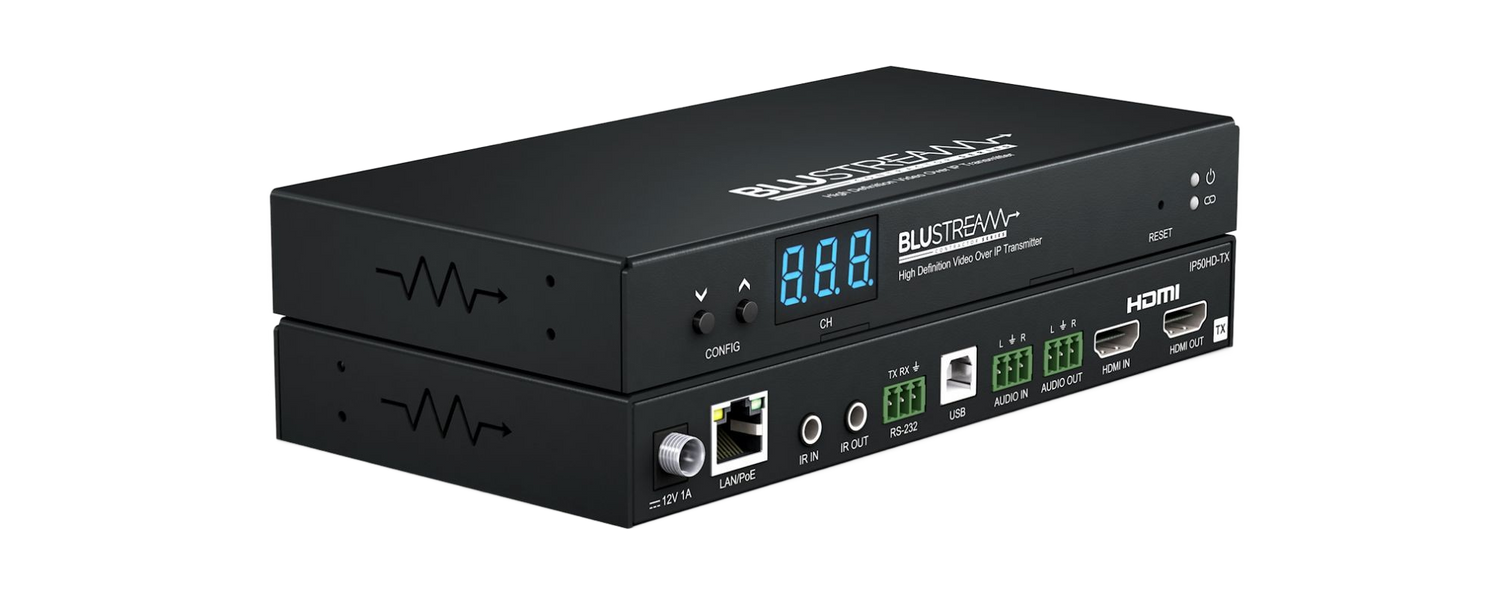

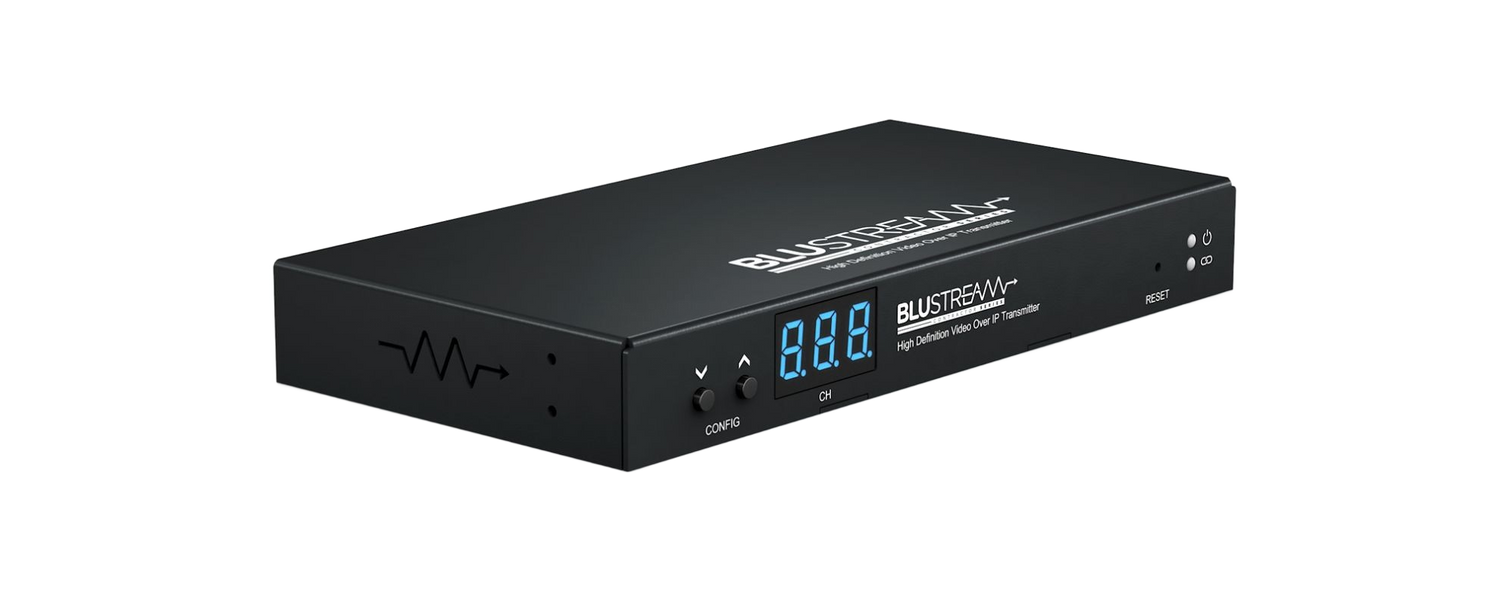

IP50HD-TX Contractor Series HD Video Transmitter over 100Mbps Network

Login for pricing

MSRP: $625.00

Description

Contractor Series HD Video Transmitter over 100Mbps Network, HDMI Loop-Out, Bi-directional IR, RS-232 & USB/KVM, PoE, Analog Audio Embedding and Analog Audio Breakout

The IP50HD-TX is an industry leading 1080p HDMI transmitter that uses H.265 compression technology to deliver HDMI, Bi-directional IR, RS-232 & USB/KVM up to lengths of 100m over standard network architecture.

The transmitter includes a HDMI loop-out for cascading to multiple devices and can be powered via PoE from the network switch or locally should the switch not support PoE. With multiple configuration options available the Multicast HD solution is ideal for both commercial and residential installations.

Product Features
  • Advanced HD video, control and KVM over network infrastructure
  • Extends HDMI up to a distance of 100m over a single CAT cable
  • Supports unicast transmission over unmanaged networks
  • Supports multicast transmission for large managed networks
  • Supports up to 1080p 60Hz
  • Features 1 x HDMI loop-out for integrating local displays or cascading to multiple devices
  • Supports PCM 2.0 channel audio
  • Advanced signal management for independent routing of IR, RS-232, USB/KVM and video/audio
  • PoE (Power over Ethernet) to power Blustream products from PoE switch
  • HDCP 1.4 compliant with advanced EDID management
  • Analog L/R audio embedding and audio breakout
  • Local 12V 1A power supply should Ethernet switch not support PoE (not included)
  • Features 2 operational modes:

    - Matrix distribution (requires 100Mbps network switch)

    - One-to-one HDMI extender (no network switch required)

    *Compatible IP Controllers (with appropriate firmware change): ACM200, ACM210
  • Operating Temperature: 32°F to 104°F (0°C to 40°C)
  • Storage Temperature: -4°F to 140°F (-20°C to 60°C)

In the Box

1 x IP50HD-TX
1 x IR Receiver
1 x IR Emitter
1 x Mounting Kit
4 x Rubber Feet
