Blustream  |  SKU: CMX88CS-V2 | Item No. 0210-0463

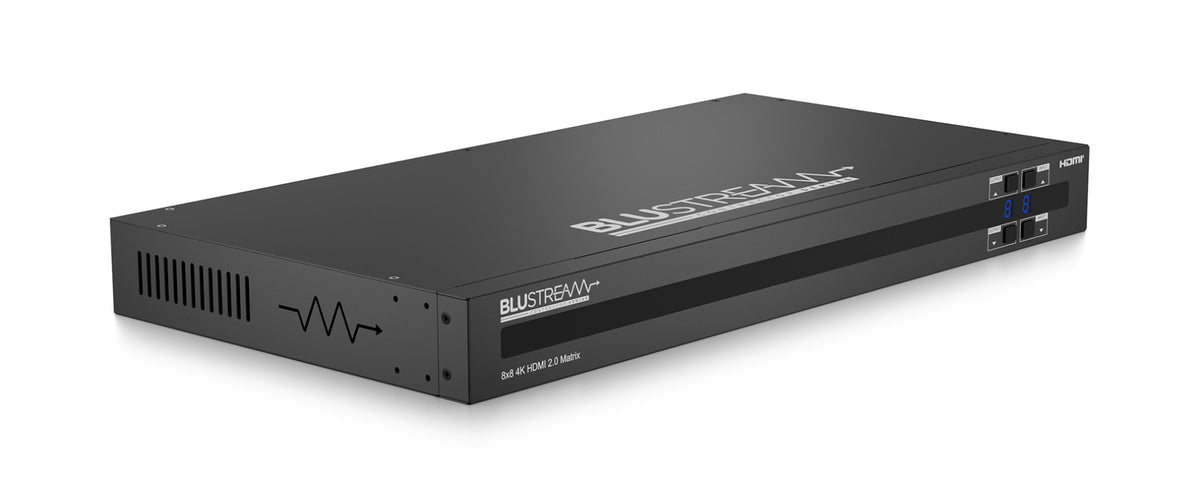

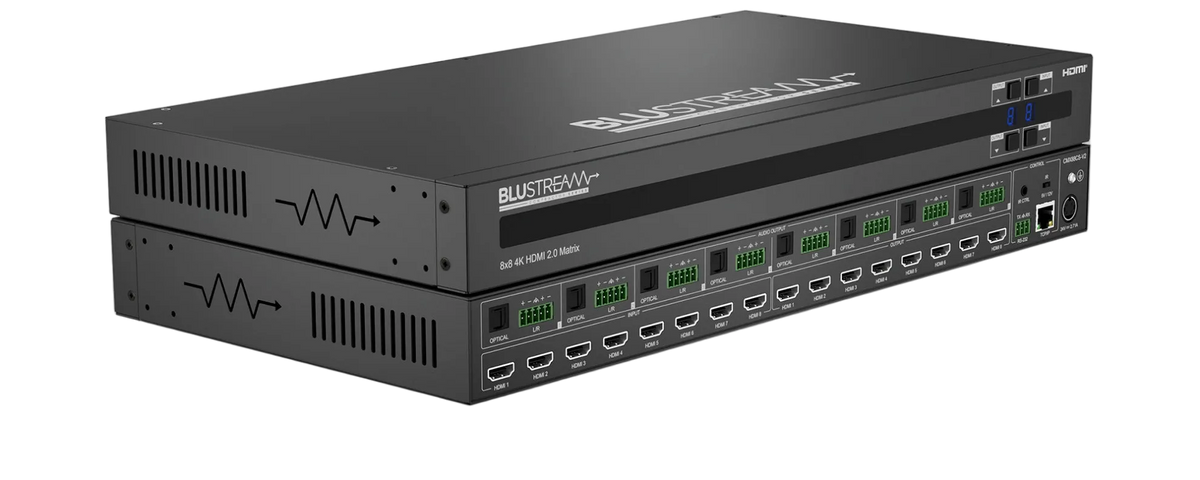

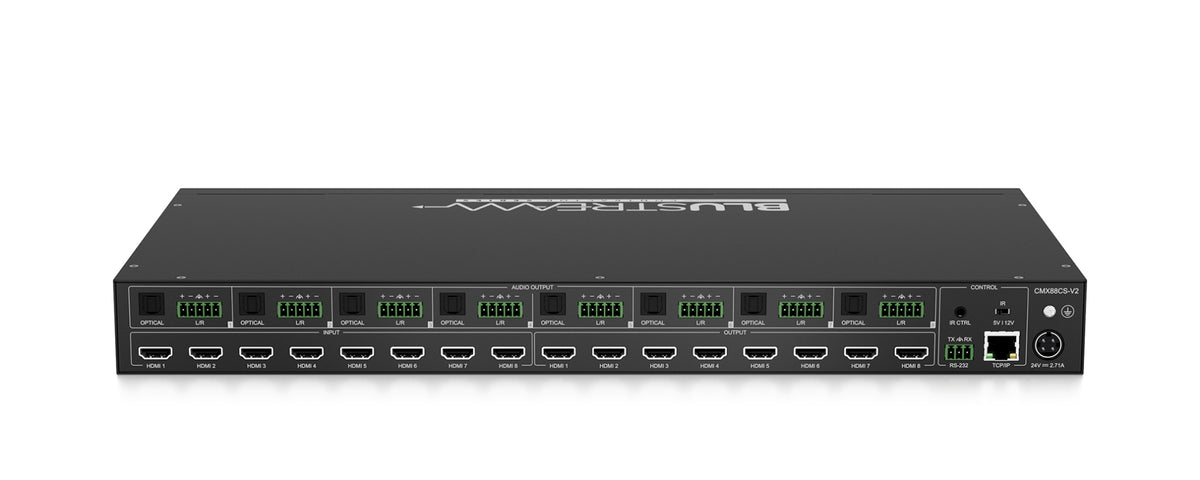

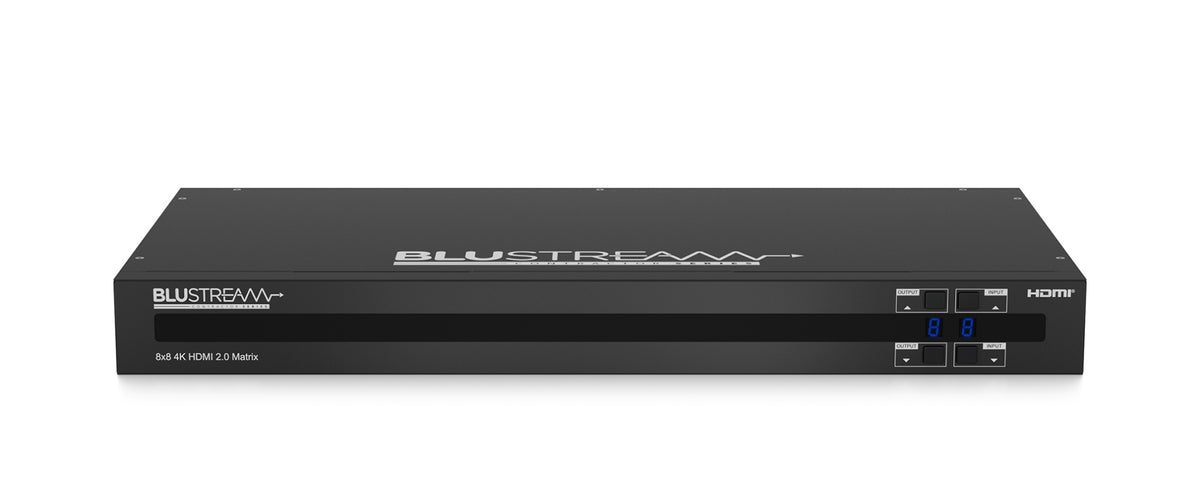

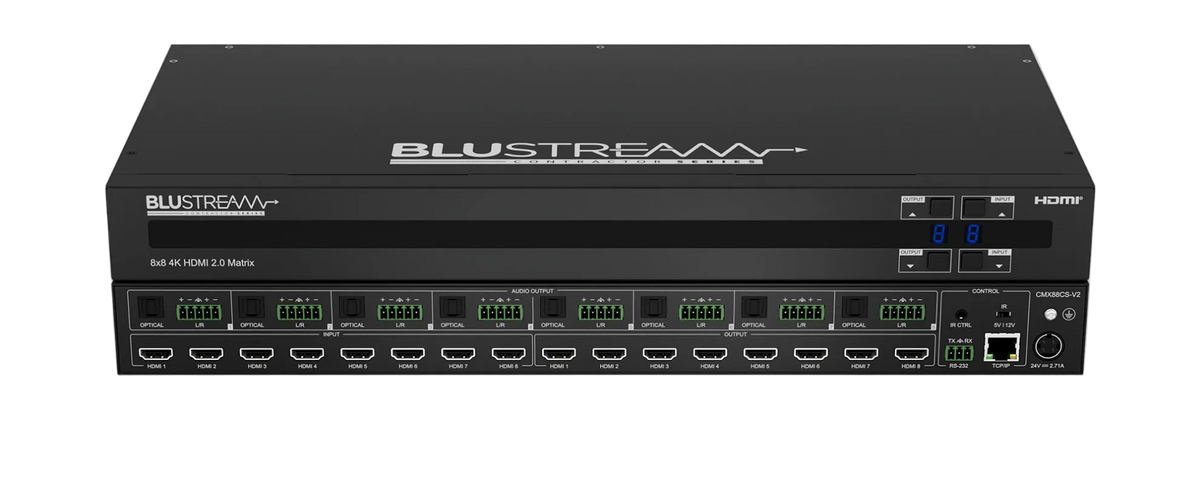

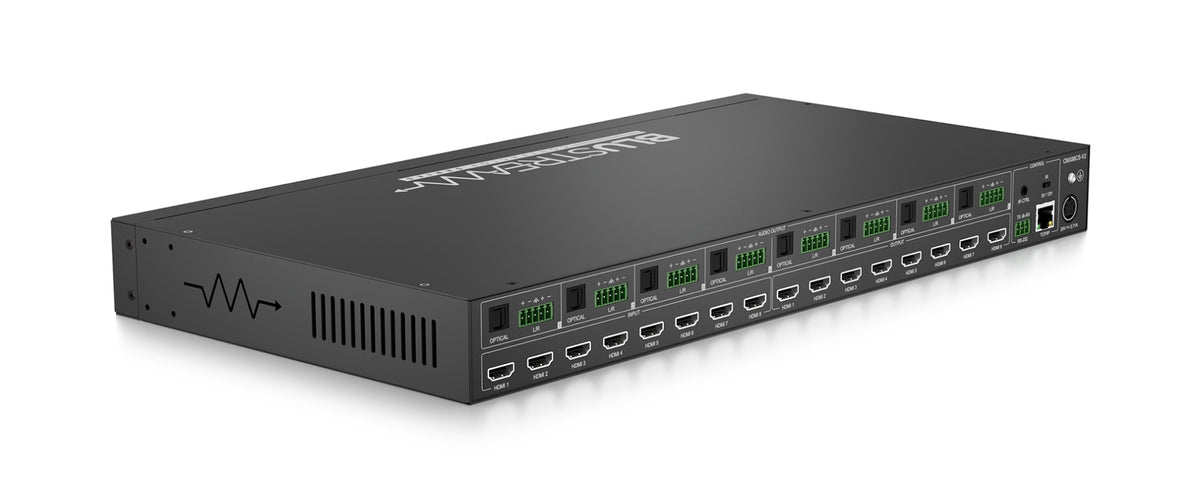

CMX88CS-V2 Contractor 8x8 4K 18Gbps HDMI 2.0 Matrix with Optical & Analogue Audio Breakout, EDID Management and

Login for pricing

MSRP: $4000.00

Description

The Contractor Series CMX88CS-V2 4K 4x4 HDMI Matrix delivers outstanding performance and exceptional value for the Pro and Custom installation markets.

Supporting HDMI 2.0 and HDCP 2.2, the CMX44CS-V2 enables seamless distribution of up to eight HDMI 2.0 sources across eight independent displays, providing complete flexibility to route any source to any screen within a true matrix configuration.

Product Features
  • Features 8 x HDMI inputs which can be independently routed to 8 x HDMI outputs
  • Supports HDMI 2.0 18Gbps specification including HDR
  • Supports up to 4K UHD 60Hz 4:4:4
  • Video down-conversion on outputs allowing a display only capable of supporting lower video resolutions (4K 60Hz 4:2:0 or 1080p) to receive 4K 60Hz 4:4:4 video content while still showing maximum original 4K UHD resolution on remaining video outputs
  • Supports all industry standard video resolutions including VGA-WUXGA and 480i-4K
  • Supports bitstream passthrough of multichannel surround sound including object-based audio formats in line with HDMI specifications
  • HDMI zone audio breakout to balanced/unbalanced analogue L/R audio and optical digital outputs concurrently
  • Control via front panel, IR, RS-232, TCP/IP and web GUI
  • Independent IR routing capabilities
  • Supplied with Blustream 5V IR receivers and emitters
  • 3rd party drivers available for major control brands
  • Advanced EDID management
  • HDCP 2.2 compliant
  • 1U design for 19" rack mount integration; mounting kit included

In the Box
  • 1 x CMX88CS-V2
  • 1 x 24V 2.71A DC power supply
  • 1 x Remote control
  • 8 x IRE1 - IR emitter (5V)
  • 9 x IRR - IR receiver (5V)
  • 1 x Rack mounting kit
  • 1 x Quick Reference Card

Payment & Security
Your payment information is processed securely. We do not store credit card details nor have access to your credit card information.

WARNING: This product may expose you to chemicals which are known to the State of California to cause cancer, birth defects, or other reproductive harm. For more information, go to www.P65Warnings.ca.gov.
  • Height
    1.73 in
  • Width
    17.2 in
  • Depth
    8.9 in
