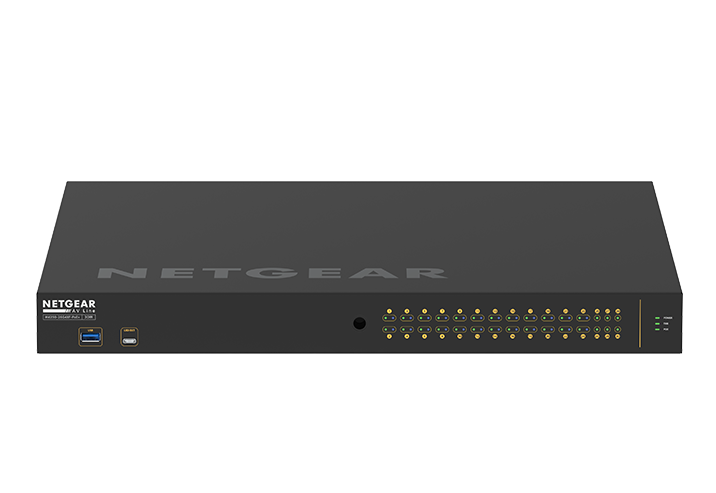

Netgear GSM4230PX-100NAS M4250-26G4XF-PoE+ AV Line Managed Switch

Netgear GSM4230PX-100NAS M4250-26G4XF-PoE+ AV Line Managed Switch

Login for Pricing

MSRP: $2714.27

Netgear | SKU:Netgear GSM4230PX-100NAS

ITEM: 0157-0173

The NETGEAR M4250 Switch Series introduces the AV Line, developed and engineered for audio/video professionals with dedicated service and support. M4250 has been built from the ground up for the growing AV over IP market, combining years of networking expertise in AV with M4300 and M4500 series with best practices from leading experts in the professional AV market. AV codecs generally use 1Gbps or 10Gbps per stream and the AV Line of M4250 targets the widespread 1Gbps codecs.

PoE+, Ultra90 PoE++ and rear-facing ports ensure a clean integration in AV racks. M4250 switches come pre-configured for standard audio and video signals. When requirements are more specific, an AV user interface offers customization with port-based profiles. For audio Dante, Q-SYS and AES67 profiles are available, as well as an AVB profile requiring an AVB license sold separately. For video the M4250 offers profiles for NVX, SVSI, Q-SYS, NDI, Dante etc. as well as audio/ video/control mixed profiles. When multiple switches, NETGEAR IGMP Plus™ brings automation for you to just connect them together, or with M4300 and M4500 switches.



Features

  • Primary Port Speed: 1 Gigabit
  • Number of Ports: 30 (24x 1G PoE+, 2x 1G, 4x SFP+)
  • PoE Ports / Budget: 24 PoE+ (30W/port), 480W Budget
  • IGMP Support: Enhanced (NETGEAR IGMP Plus™)
  • Jumbo Frame Support: Yes, up to 12kb
  • AVB Support: Yes. Electronic license required; activation key sent via email (AVB4230PX-10000S)
  • Acoustics: Fanless or 42dB@25ºC
  • TBD Power Consumption: With PoE: 614W/2096.2Btu/hr
  • Without PoE: 46.8W/159.78Btu/hr
  • Standby without any port connection: 33.9W/115.73Btu/hr

Specs

  • Dimensions:  17.32 x 15.74 x 1.69"
  • Weight:          12.02 lbs
