RTI  |  SKU: AD-1616 | Item No. 0104-0355

AD-1616 Audio Distribution 16x16 DSP Matrix

Login for pricing

MSRP: $2545.95

Description

The AD-1616 is a DSP Matrix for distribution of sixteen audio sources to sixteen zones. For projects that need more zones, up to four AD-1616 chassis can be combined to deliver 64 audio zones.

Always update to the latest firmware. Download here.

Product Features

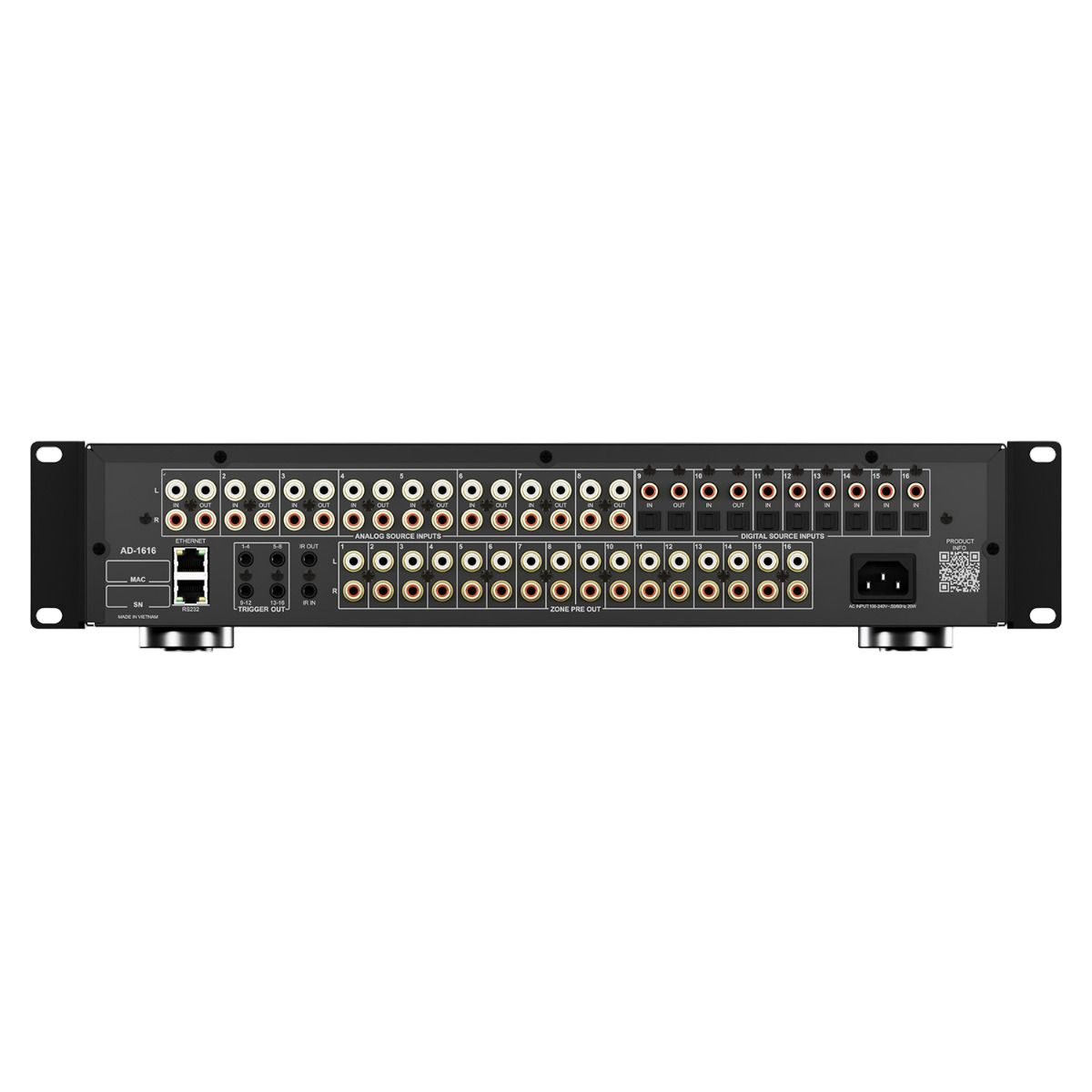

  • Sixteen audio sources inputs with eight analog inputs and eight digital inputs.
  • Sixteen preamp stereo audio output zones to integrate external power amplifiers or subwoofers. Preamp outputs require external amplification via RTI CP-16i or third-party audio amplifier.
  • Distribute sixteen audio source inputs to sixteen zones, expandable to 64 zones by stacking up to three AD-1616 units.
  • Fine-tune acoustic characteristics for each zone with a comprehensive set of DSP controls such as 5-band parametric EQ as well as mixing and auto-ducking features.

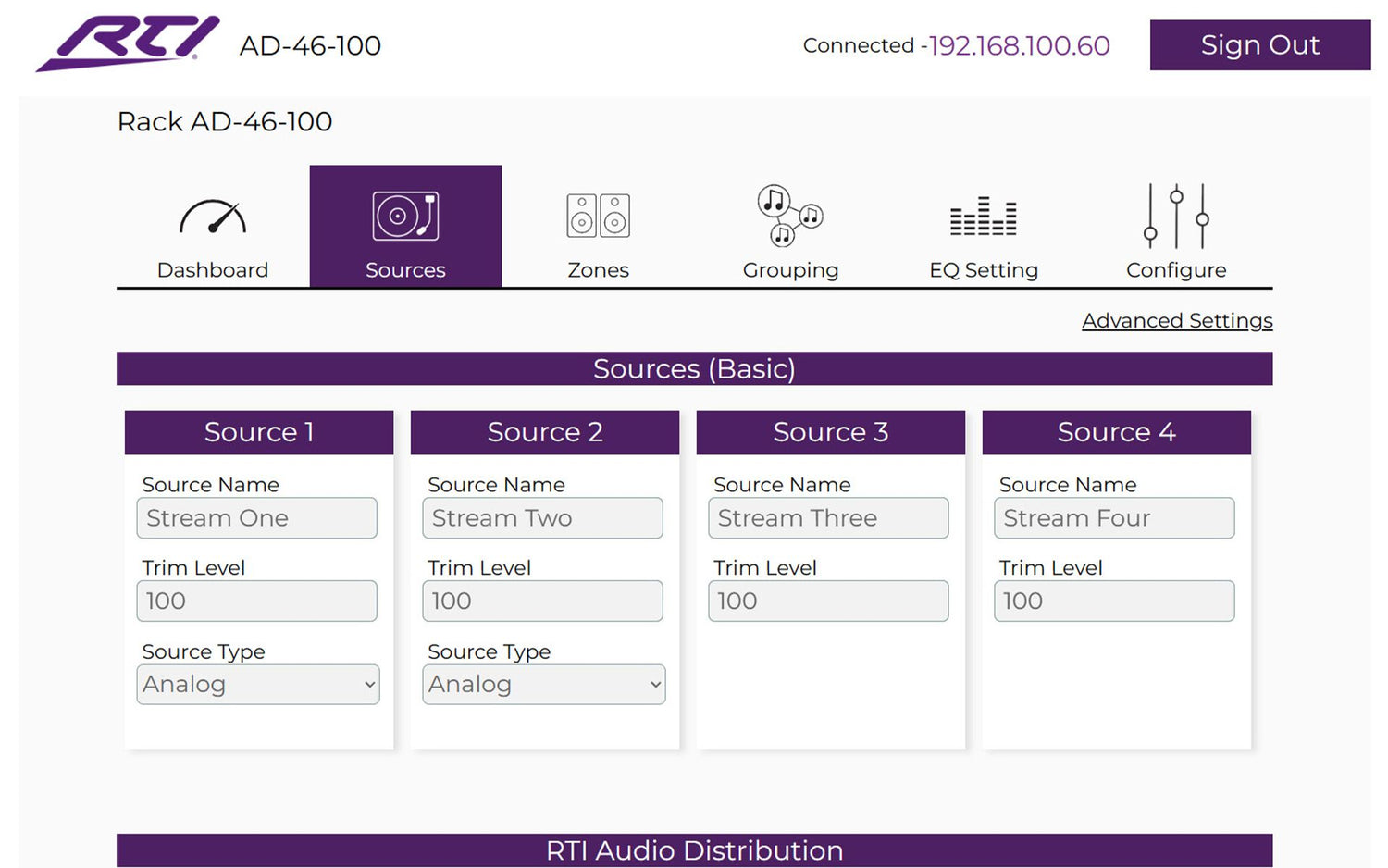

  • Configure and optimize DSP and matrix settings directly within Integration Designer or with the intuitive web user interface.
  • Controlled via IR, and two-way control with feedback via RS-232 and IP when installed with RTI or 3rd party control systems.

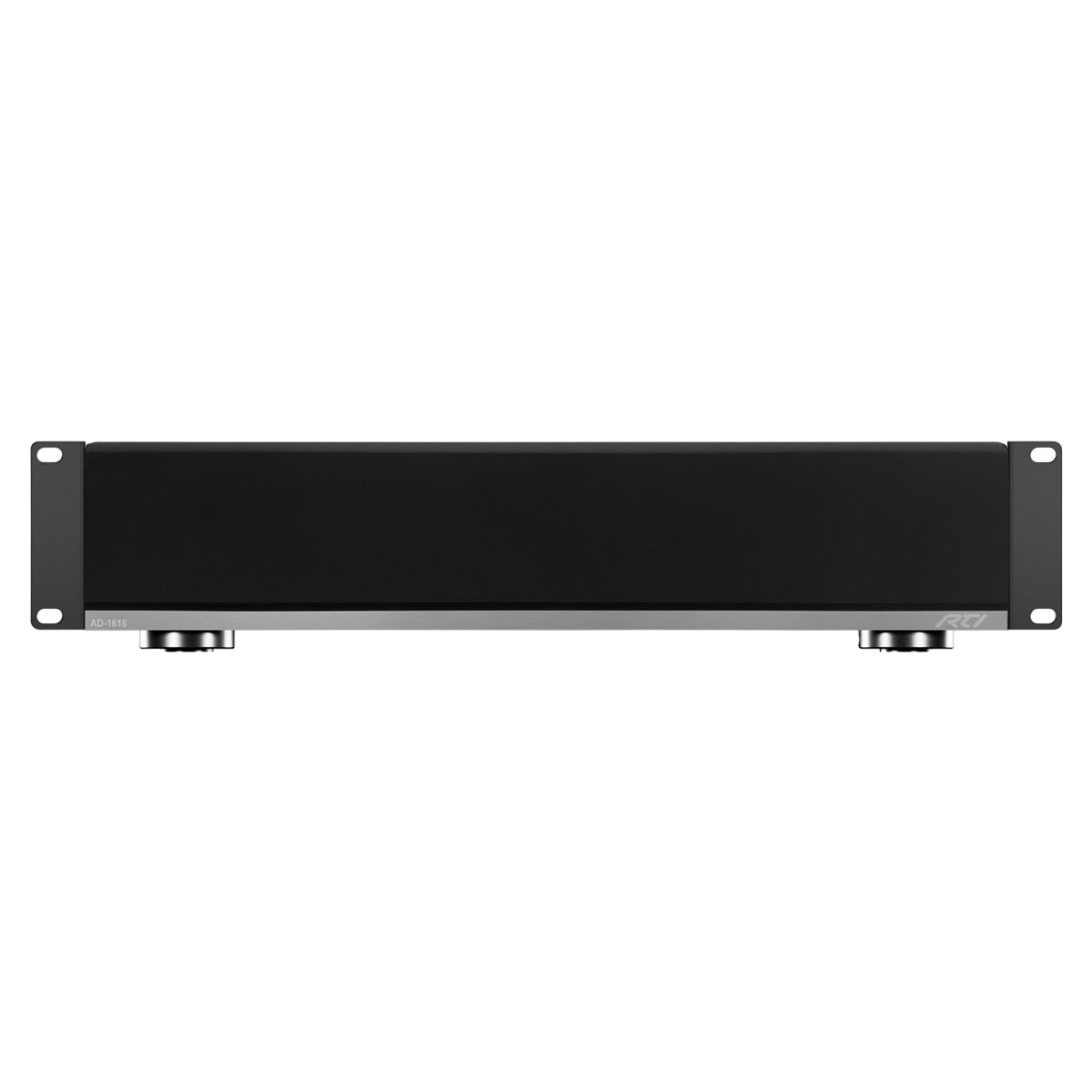

  • Rack mount or free-standing installation with included rack ears and removable feet.
  • Click here for more information

In the Box
  • AD-1616
  • Power cord
  • Rack ears (2) with screws
  • 4-pin Phoenix connectors (8)
  • Feet with screws (4)
Payment & Security
Your payment information is processed securely. We do not store credit card details nor have access to your credit card information.
  • Length
    17.2in
  • Height
    3.5 in
  • Width
    16.4 in
  • Weight
    18.12 lb
