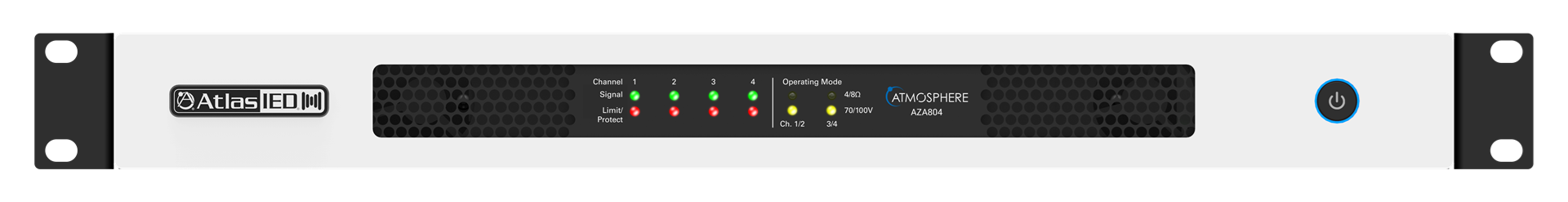

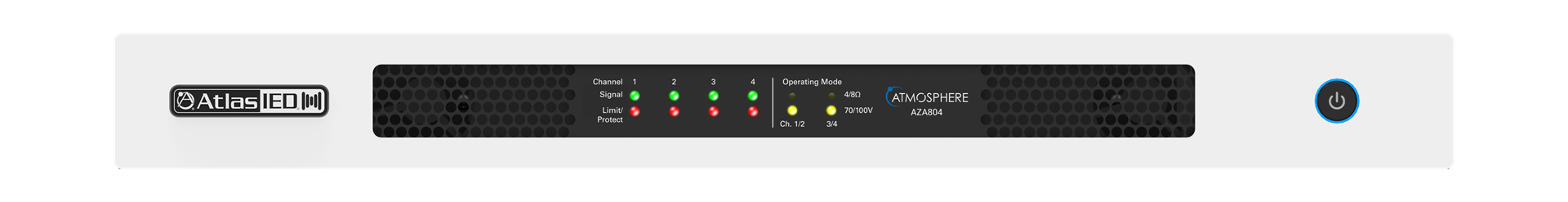

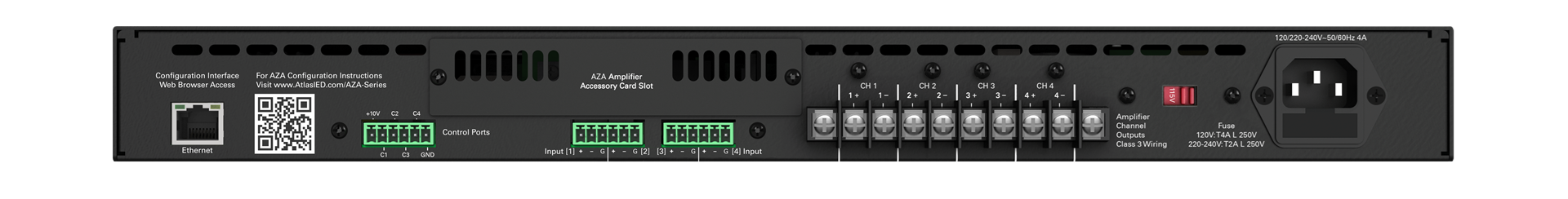

Atlas IED Atmosphere™ AZA804 800-Watt (4 X 200) Networkable 4-Channel Power Amplifier

Atlas IED Atmosphere™ AZA804 800-Watt (4 X 200) Networkable 4-Channel Power Amplifier

Login for Pricing

MSRP: $1901.99

Atlas IED | SKU:Atlas IED AZA804

ITEM: 0050-1647

The AtlasIED Atmosphere AZA804 four-channel amplifier is designed to interface with the Atmosphere family of products, such as the AZM series of processors. The AZA amplifiers can be configured in pairs to deliver up to 100W per channel into both low and high impedance speaker loads (4Ω/8Ω/70V/100V).

The AZA804 is ready to use out of the box in four-channel, 70V mode, with no additional configuration or network connectivity required, making them easily paired for use with AtlasIED Atmosphere signal processors.

Features

  • 4 Amplified Channels
  • AZA804 Configuration Power Levels
  • 4 x 200-Watt 70V (Factory Default)
  • 4 x 200-Watt 100V
  • 4 x 150-Watt @ 8Ω
  • 4 x 100-Watt @ 4Ω
  • 2 x 200-Watt 70V/100V & 2 x 150-Watt @ 8Ω
  • 2 x 200-Watt 70V/100V & 2 x 100-Watt @ 4Ω
  • Integrates with Atmosphere AZM Zone Master
  • Energy Efficient
  • Convection Cool / Fan Assist
  • Accepts Low Z & Hi Z Loads
  • Onboard Web UI for Remote Monitoring of Status & Levels
  • Front Panel Power Switch Disable
  • APD - Auto Power Down with Audio Sense Turn On
  • Dante™ Optional Accessory Card Slot

Specs

  • Dimensions:  19" x 15.5" x 1.75"
  • Weight: 13 lbs
