Antennas Direct  |  SKU: JUICE4 | Item No. 0228-0001

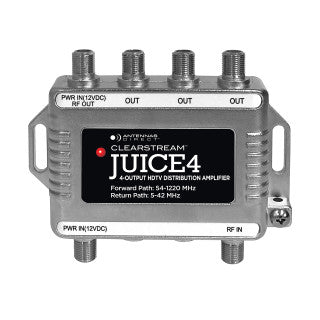

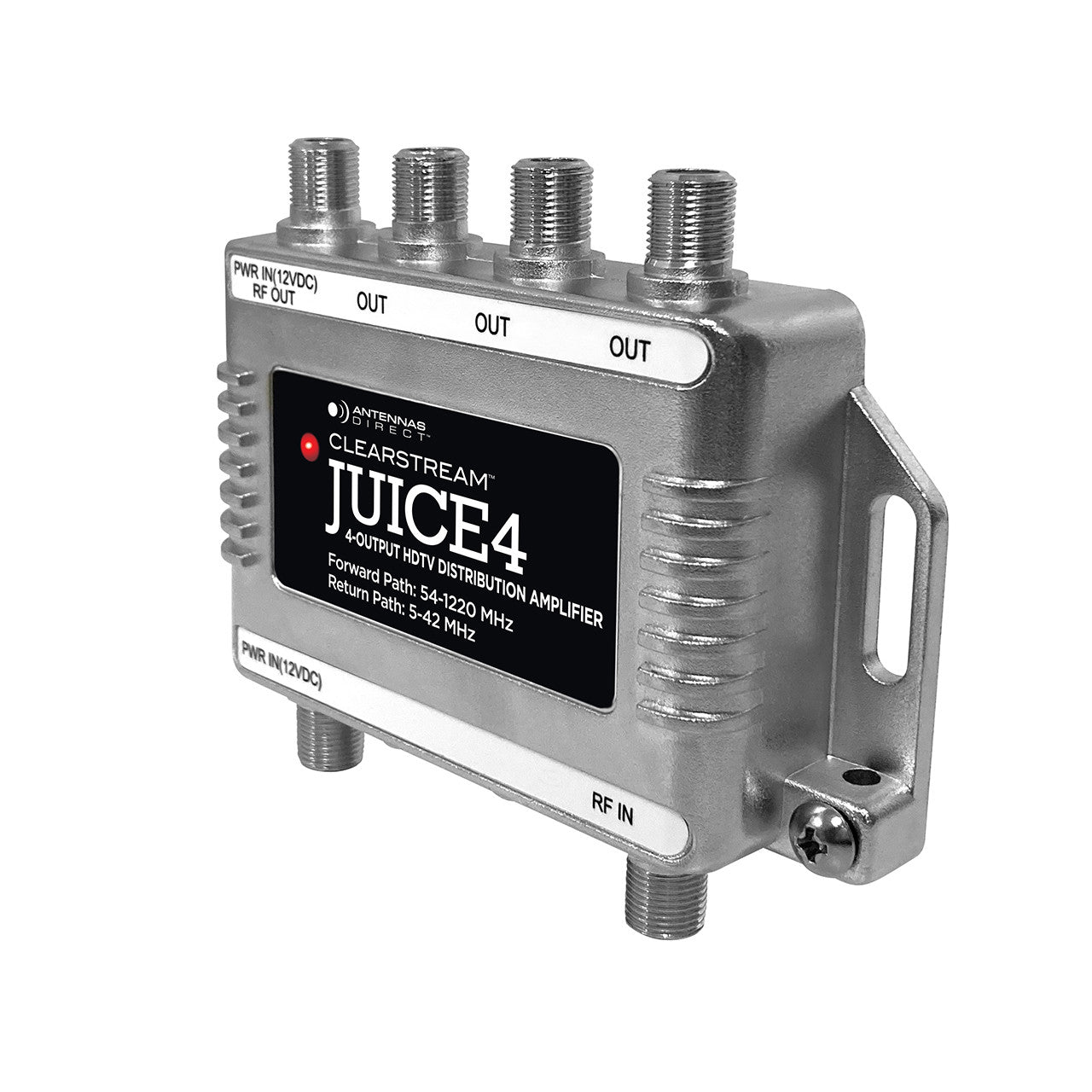

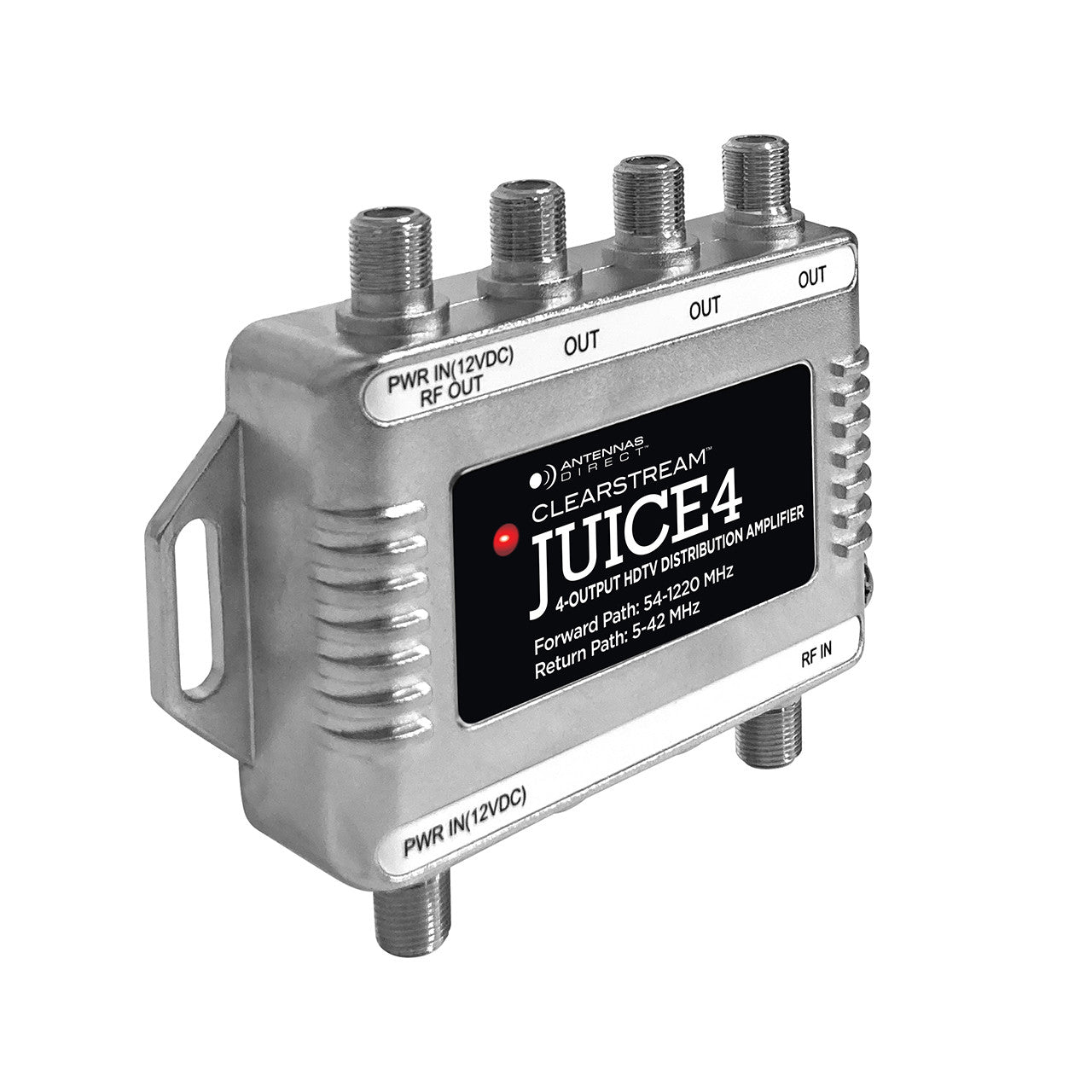

JUICE4 4 Output TV / CATV Distribution Amplifier 8.5dB per port Waterproof

Login for pricing

MSRP: $99.95

Description

ClearStream JUICE4 amplifier boosts the TV signal from your indoor or outdoor TV antenna or CATV system and distributes that signal to as many as four TVs. Distributing signal to multiple TVs and using 50 ft. or more of coaxial cable can result in some signal loss. The JUICE4 helps overcome these signal challenges by strengthening the signal coming in from the TV antenna’s coaxial cable for clear, consistent reception and picture quality. This 4-output distribution amplifier is designed to be used in homes and professional settings in urban, suburban, and rural areas. Operating frequency extends to 1.2 GHz to accommodate CATV and cable broadband applications. Precision machine-sealed zinc diecast housing protects against dust and water droplets and provides shielding from electrostatic discharge, with excellent surge protection on all ports.

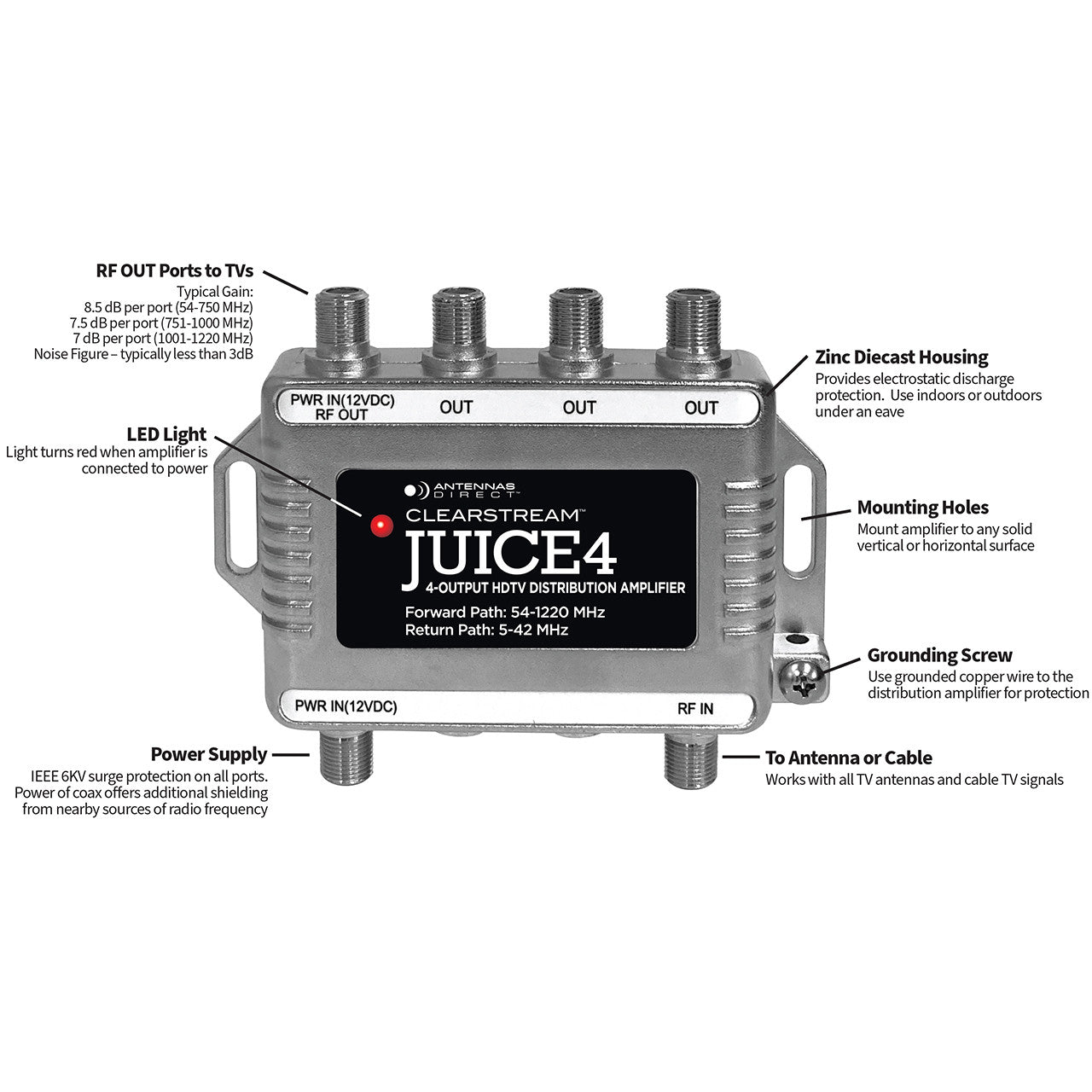

  • Four Output Ports – Split your antenna’s signal to 4 TVs. Boost signal strength for TV reception throughout the home.
  • Compatible with HDTV, CATV, analog, and digital distribution applications.
  • Precision machine-sealed housing provides protection against dust ingress and water splashes.
  • Excellent surge protection on all ports.
  • Zinc die cast housing provides shielding from electrostatic discharge.
  • Compact size for indoor use. Can be used outdoors under an eave.
  • Compatible with ATSC 3.0, NEXTGEN TV, 4K 8K UHD broadcast signals.

Product Features
  • Compatibility: Indoor / Outdoor antenna installations
  • Forward Frequency Range: 54 - 1220 MHz
  • Return Path Frequency Range: 5 - 42 MHz
  • Gain: 8.5 dB per port (54-750 MHz); 7.5 dB per port (751-1000 MHz); 7 dB per port (1001-1220 MHz)
  • Noise Figure: Typically less than 3 dB
  • Isolation: 22 dB (5-42 MHz); 22 dB (54-860 MHz); 20 dB (861-1220 MHz)
  • Max Output Level (rated output level): 7 dBmV @rated input
  • Max Input Level (rated input level): 10 dBmV, 77 channels
  • Insertion Loss: 7.8 dB typical return path
  • Operating Temperature: -40 °C to +60 °C
  • Connector: 75 Ohm F-type
  • Power Supply Output: 12V DC, 300 mA
  • Weight: 8.8 oz.
  • Color: Silver
  • Regulatory Compliance: FCC-15B

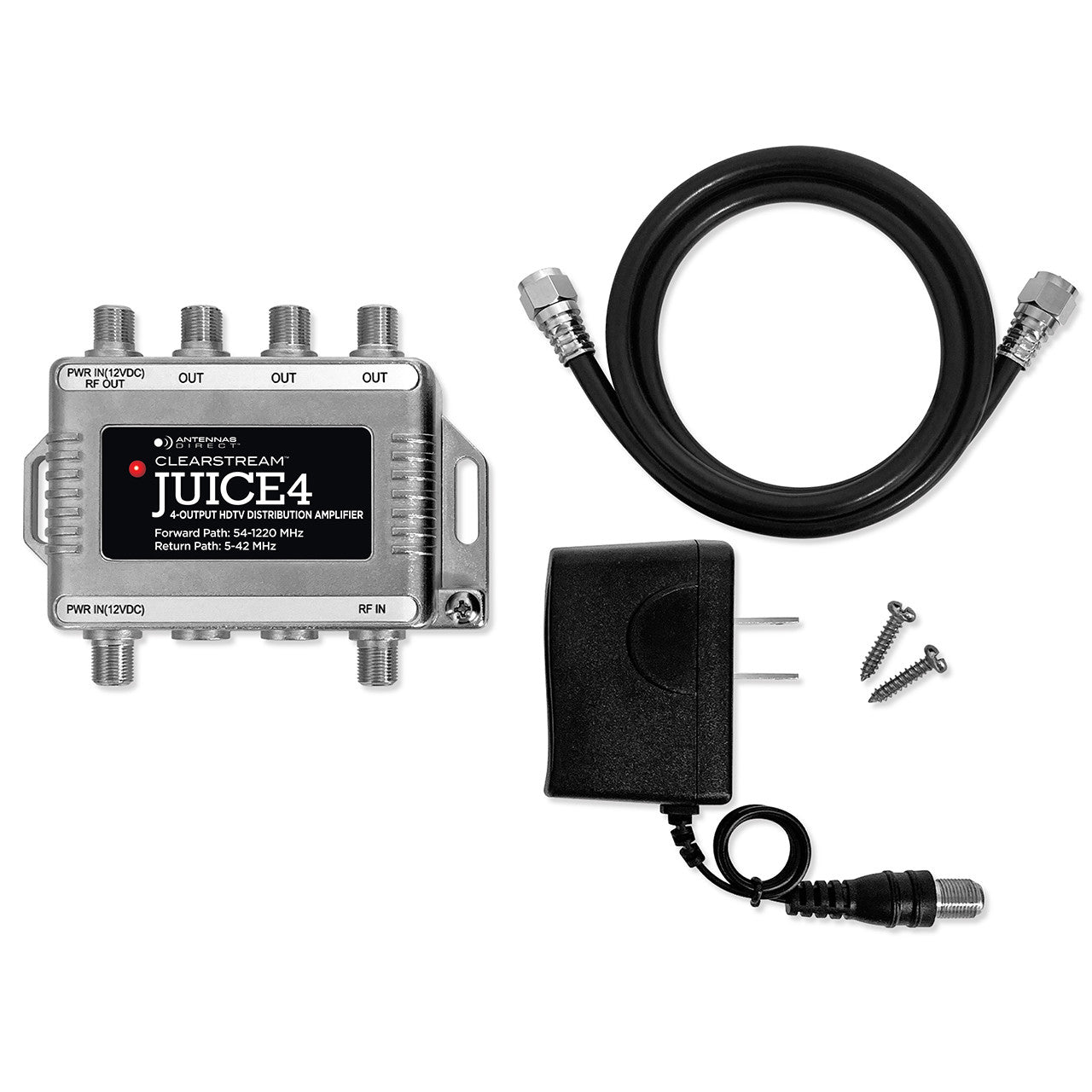

  • Includes: 12V DC Power adapter, 40" High-performance coaxial cable, 2 Wall screws, 1 Grounding screw, Instructions
