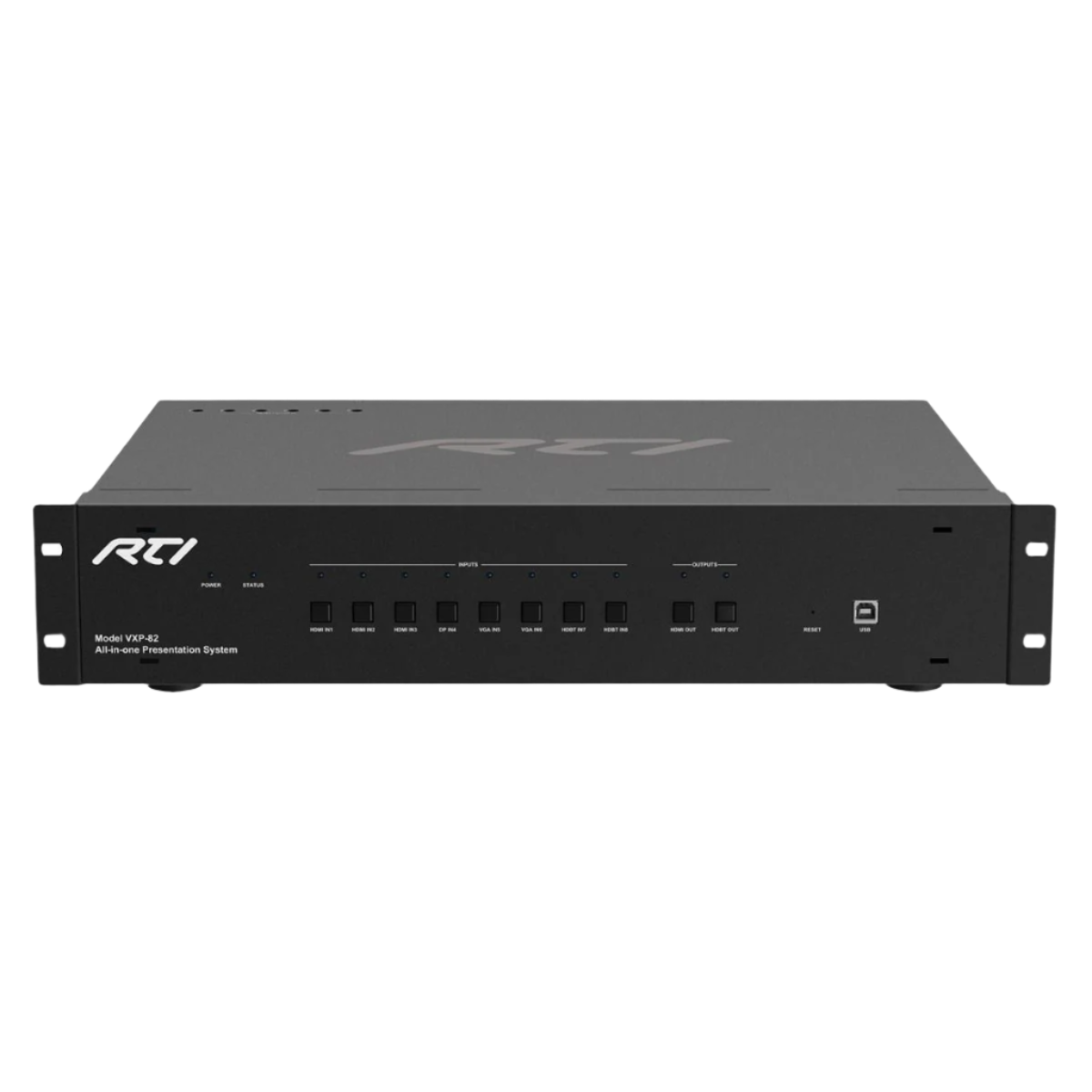

VXP-82 8x2 All-In-One Presentation Switcher with Built-In Processor

• 8x2 4K All-in-One Scaling Presentation Matrix Switcher.
• Support for HDCP 2.2 and HDMI 2.0.
• Built-in scaler supports up to 4K@60Hz 4:4:4 8bit video output.
• HDBaseT inputs/output using VXP-R/VXP-T Extenders:
  Cat-5 cable: 4K@60Hz 4:2:0 8bit signal up to 90m/300ft, 1080p@60Hz 4:4:4 8bit signal up to 100m/330ft
  Cat-6/6a/7 cable: 4K@60Hz 4:2:0 8bit signal up to 100m/330ft, 1080p@60Hz 4:4:4 8bit signal up to 100m/330ft.
• VXP-R/VXP-T HDBaseT Extenders support PoH (Power over HDBaseT) in addition to Ethernet, IR and RS-232 pass-through.*
• Bi-directional KVM functionality for HDMI or HDBaseT outputs - Ideal for presentation settings.*
• Supports de-embedded audio of HDMI and HDBaseT outputs, set independently to output any mixed result.
• Control via front panel, built-in processor, and Web UI.
• Built-in control processor with 128Mb of non-volatile flash memory.

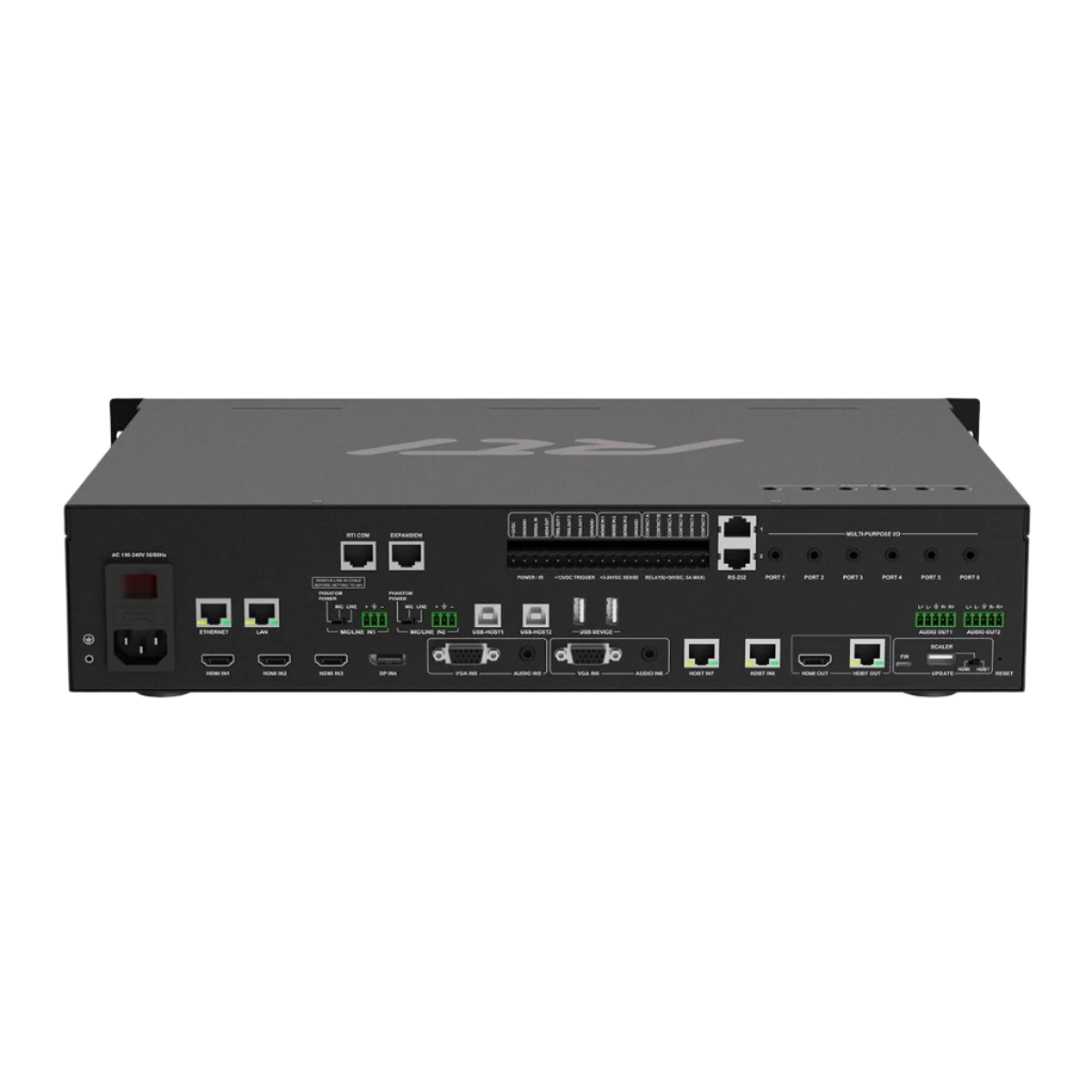

• Control of external devices via six routable IR ports, two RS-232 ports, three relays, three voltage triggers, and three voltage sense inputs.
• Support for RTI wired and wireless controllers (remote controls require RTI RM-433 433MHz or ZM-24 2.4GHz Zigbee antennas).
• Support for RTiPanel App control.
• Flexible installation options with tabletop or rack-mount design.

* NOTE: Support for PoH, IR/RS-232/Ethernet pass-through and KVM functionality over HDBaseT require VXP-R and VXP-T Extenders.
