Blustream  |  SKU: HEX18GARC-KIT | Item No. 0210-0217

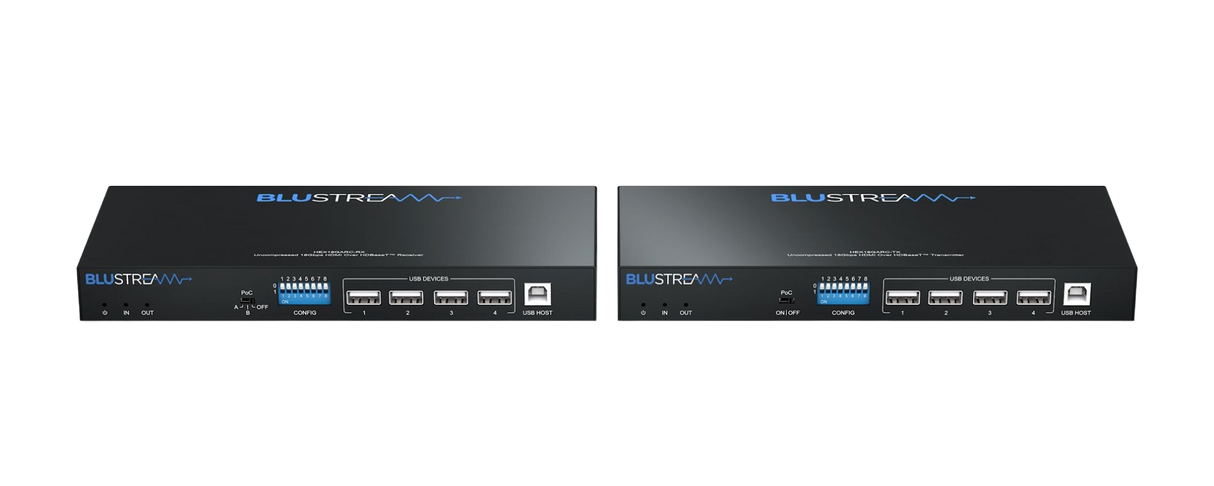

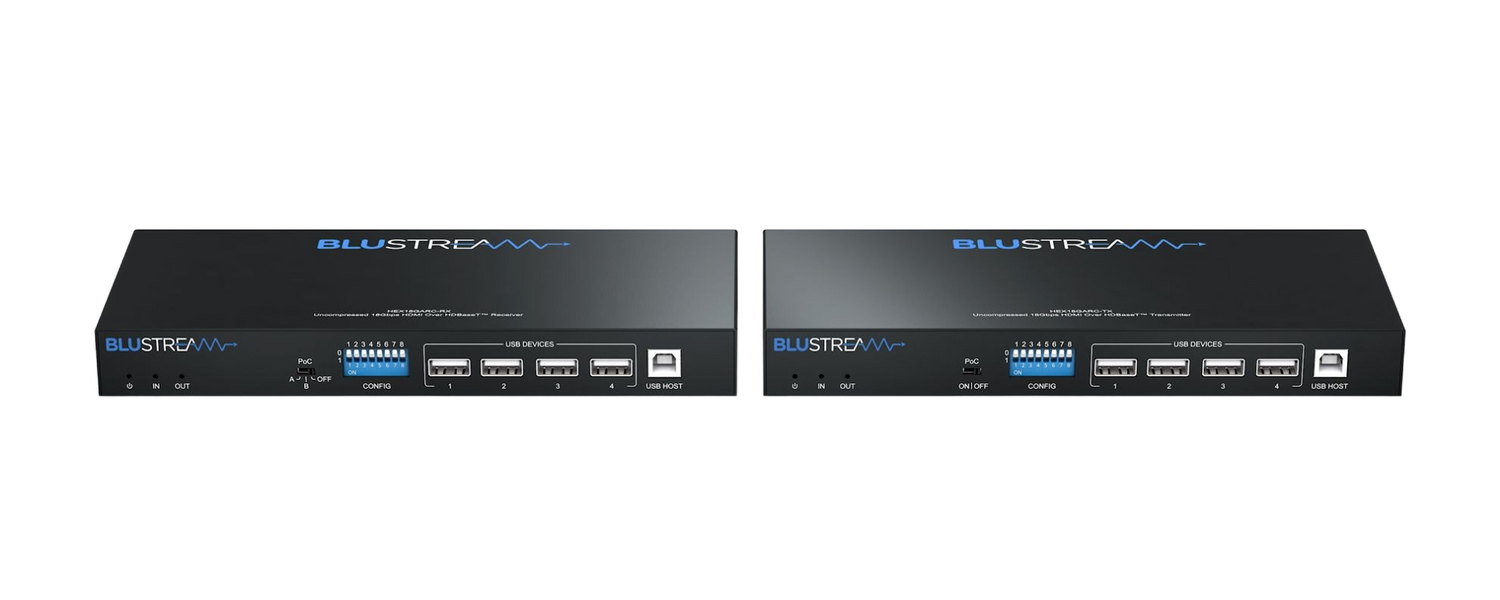

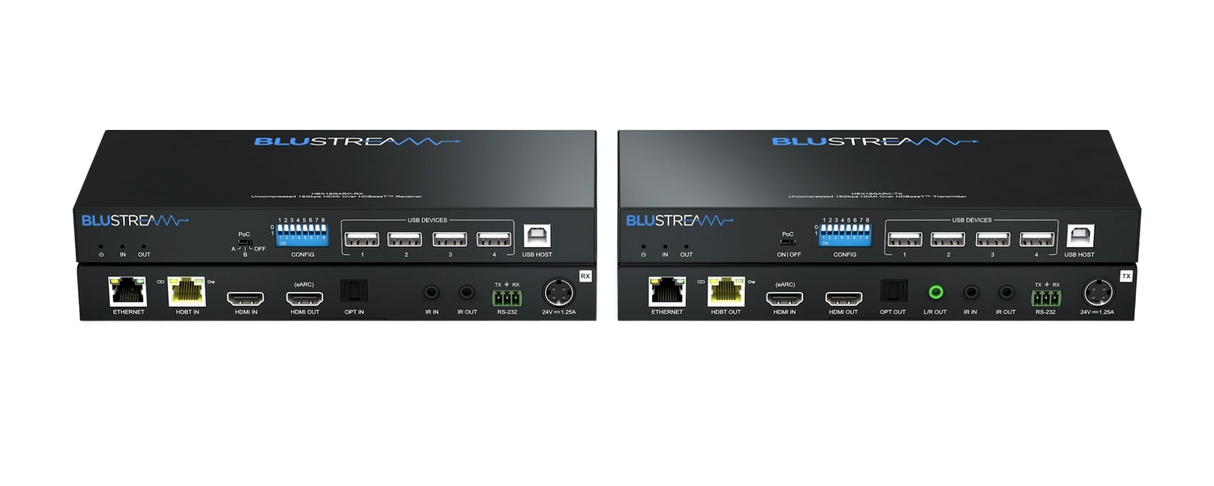

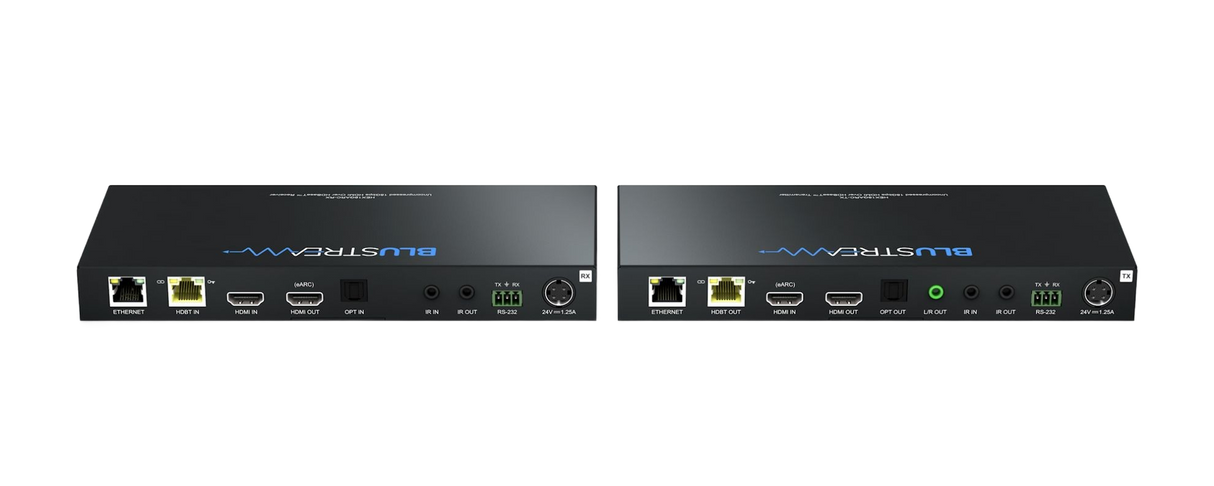

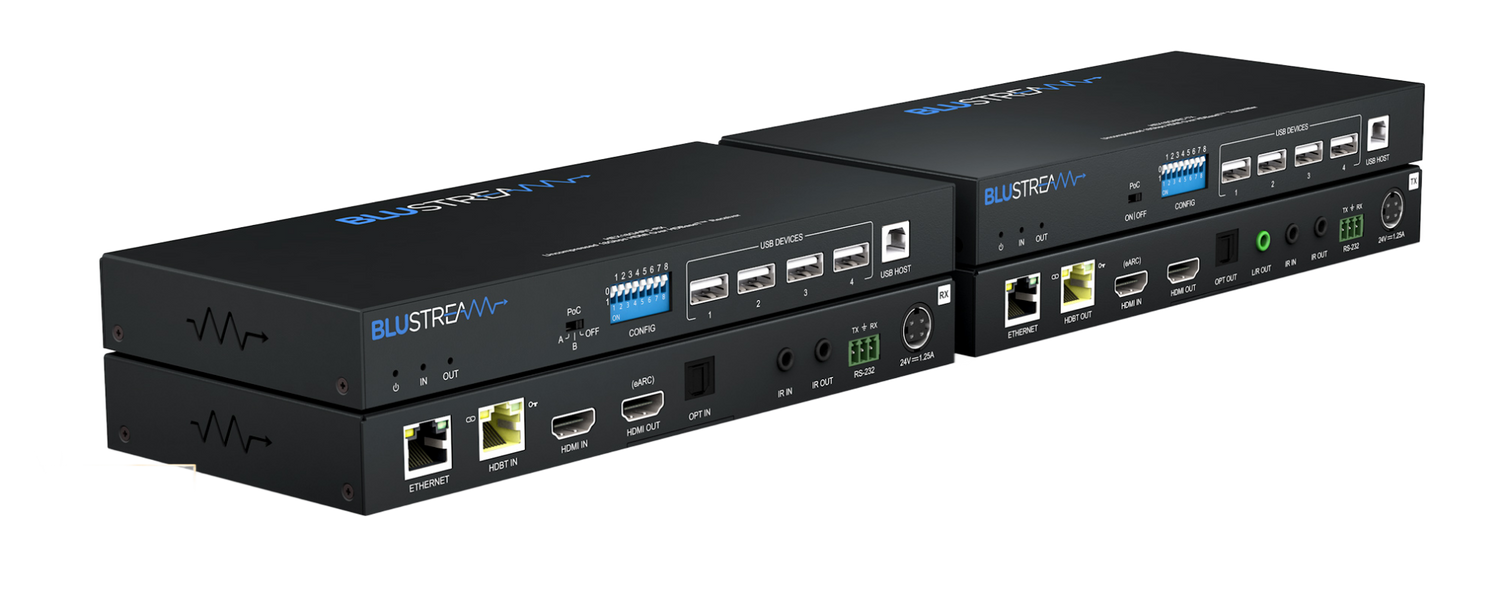

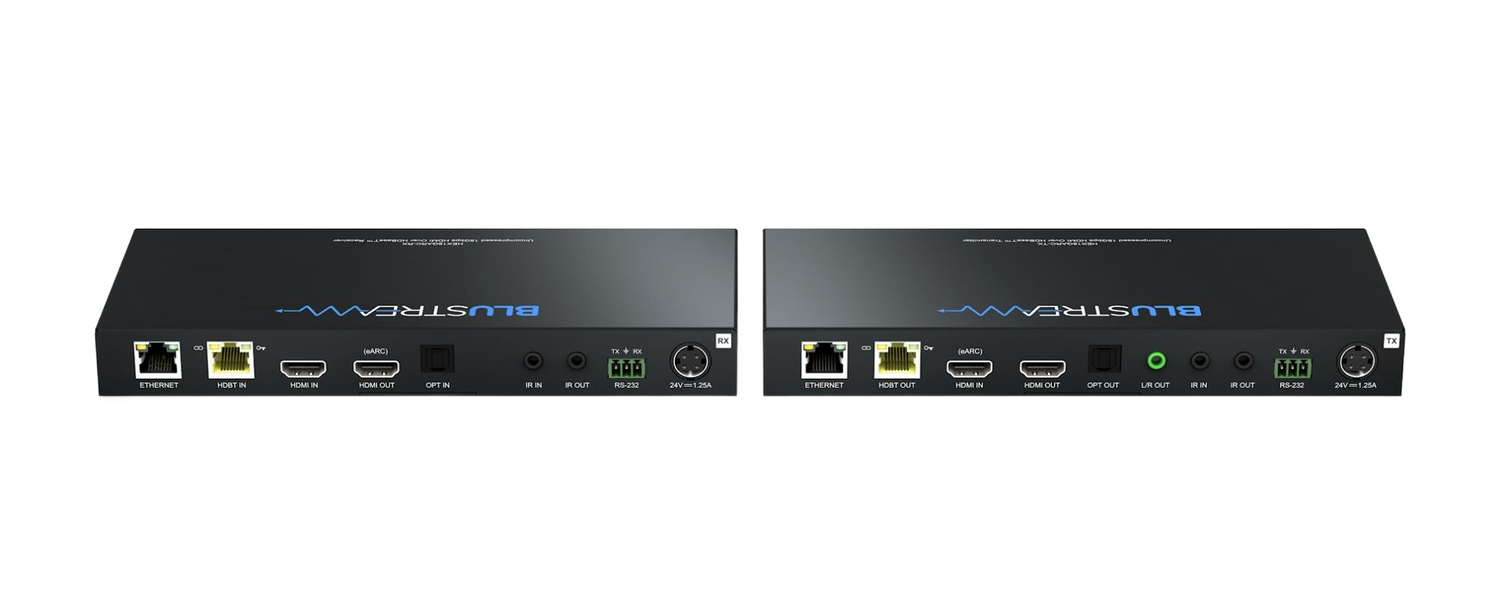

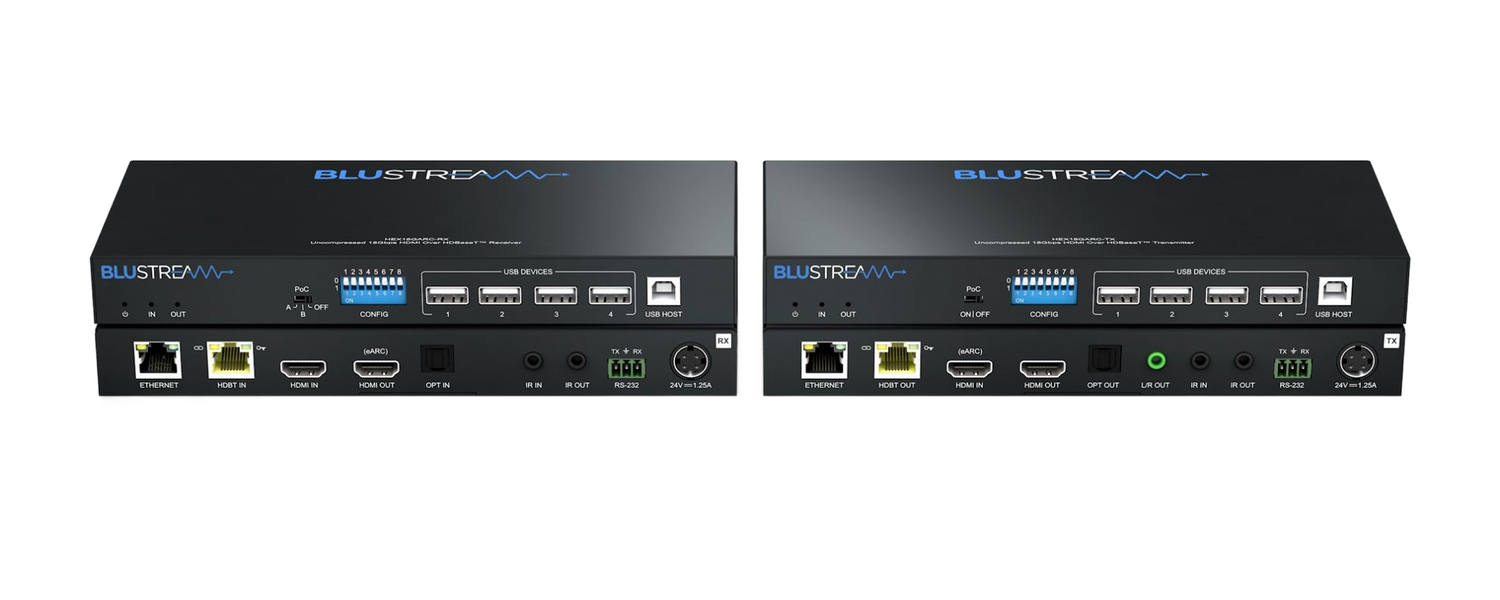

HEX18GARC-KIT Advanced Hdbaset Extender Set Supporting Uncompressed HDMI 2.0 4k 60hz 4:4:4 Up To 100m

MSRP: $1643.95

Description

The HEX18GARC-KIT extender set is an industry leading uncompressed, unconverted HDMI 2.0 4K 60Hz 4:4:4 HDCP 2.3/2.2 solution utilizing the latest in HDBaseT™ technology.

The HEX18GARC-KIT supports uncompressed distribution of the latest HDR resolutions including HDR10/10+ resulting in the ultimate in picture quality for your critical viewing areas.

Product Features

  • HDBaseT spec 3.0 offers the first true solution for uncompressed and unconverted, bit-exact distribution of HDMI2.0 signals up to 18Gbps (4K 60Hz 4:4:4) over CAT6A cabling up to 100m
  • Supports uncompressed distribution of the latest HDR resolutions including HDR10/10+ and Dolby Vision
  • Supports HDMI video distribution up to 100m*
  • Features 1x HDMI loop-out on HEX18GARC-TX for integrating local displays or cascading to multiple devices
  • Supports all industry standard video resolutions including VGA-WUXGA and 480i-4K
  • HDMI re-clocking on the HDBaseT™ Receiver to help solve HDMI HDCP, compatibility, and handshaking issues
  • Supports eARC (Enhanced Audio Return Channel) from display via HDMI, and standard ARC from HDMI and Optical (S/PDIF) digital inputs
  • Supports audio return to HDMI (eARC compatible), optical digital, and analog L/R audio outputs (analog output supports 2ch PCM only)
  • Supports all known HDMI audio formats including Dolby Atmos, Dolby TrueHD, Dolby Digital Plus, and DTS-HD Master Audio transmissions
  • Features USB2.0 for KVM with speeds of up to 350Mbps
  • Bi-directional Ethernet (1Gb), IR, & RS-232 pass through
  • Supplied with Blustream IR receiver and emitter
  • Bi-directional PoC (Power over Cable) to power extenders from either transmitter or receiver end
  • Support for HDCP 2.3, HDCP 2.2 and HDCP 1.4

    *Transmission distance is subject to video format, cable type and installation environment. It is recommended to use a minimum of CAT6A cabling

In the Box

1 x HEX18GARC-TX Transmitter
1 x HEX18GARC-RX Receiver
1 x 24V/1.25A DC power supply
1 x USB-A to USB-B cable
1 x IRE1 receiver
1 x IRR emitter
4 x Mounting brackets
1 x Quick Reference Guide

Payment & Security
Your payment information is processed securely. We do not store credit card details nor have access to your credit card information.

WARNING: This product may expose you to chemicals which are known to the State of California to cause cancer, birth defects, or other reproductive harm. For more information, go to www.P65Warnings.ca.gov.
  • Height
    0.98 in
  • Width
    8.66 in
  • Depth
    3.94 in
