Blustream  |  SKU: ACM210 | Item No. 0210-0314

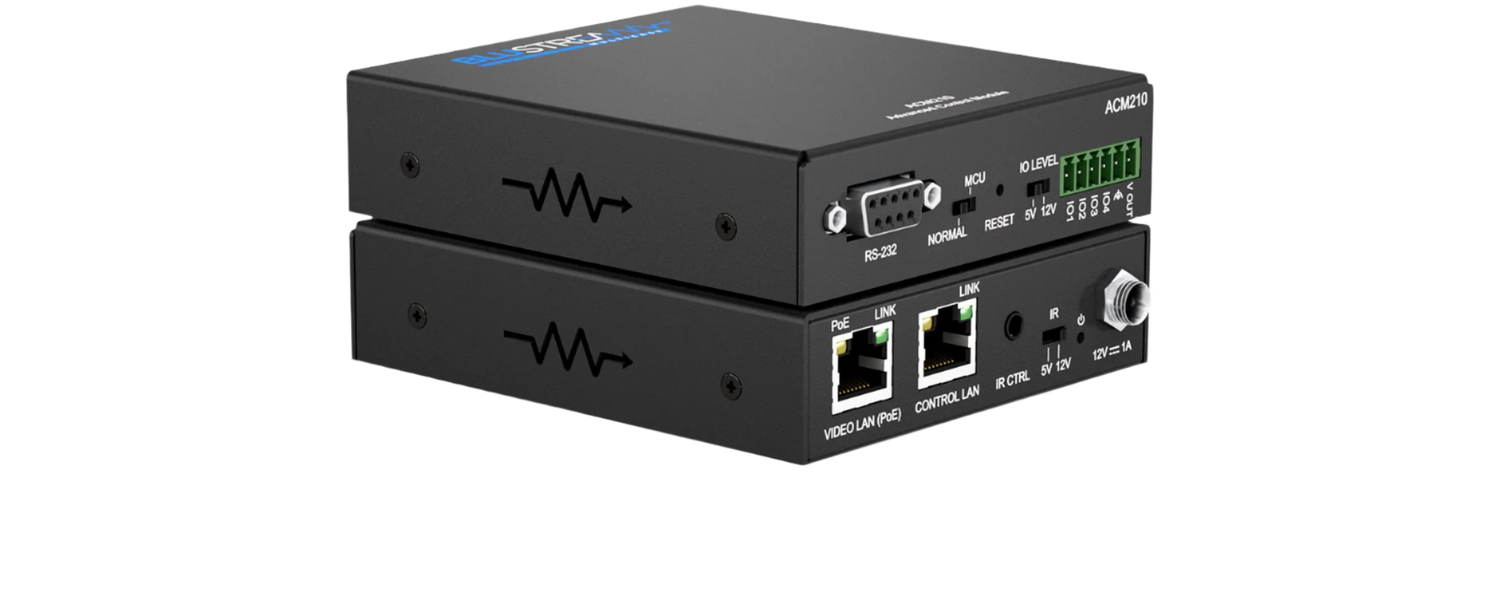

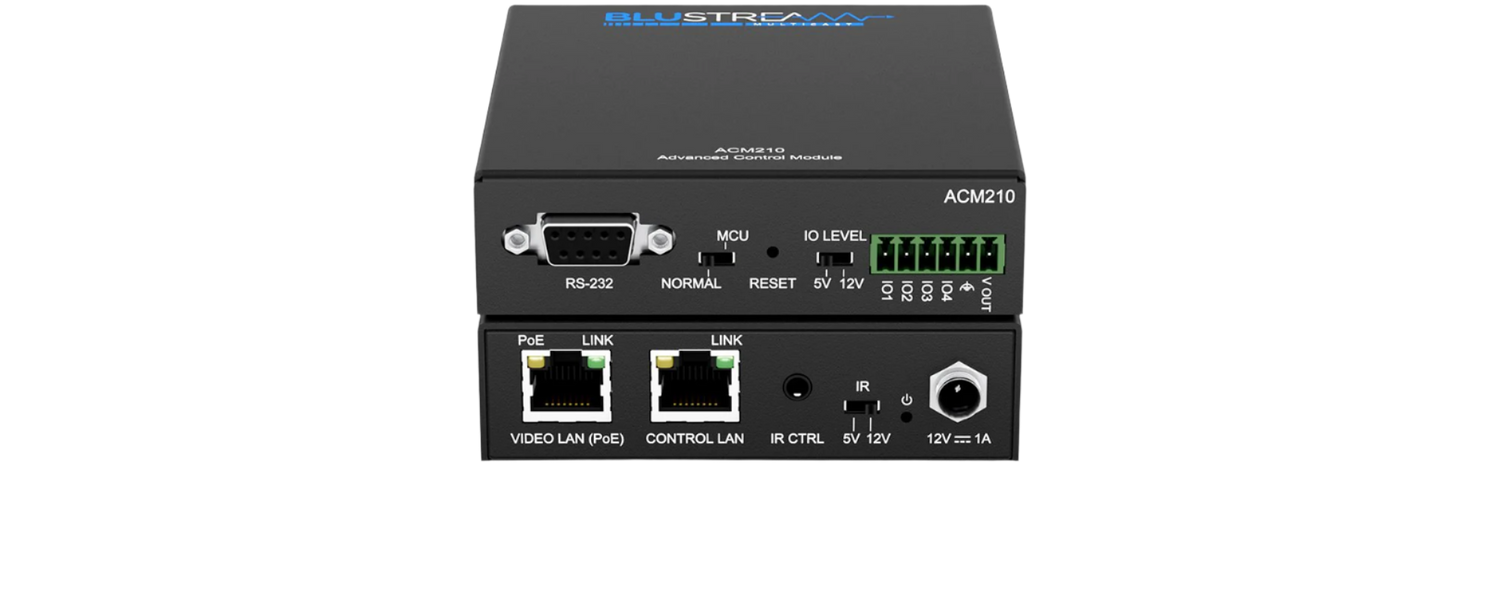

ACM210 Advanced Control Module Gen 2 for IP50/200/250/300/350 TX and RX

Login for pricing

MSRP: $733.95

Description

The ACM210 Advanced Control Module allows for advanced third party control of our IP300UHD and IP350UHD Multicast systems using TCP/IP, RS-232 and IR.

Product Features
  • Web interface module for configuration and control of IP300UHD and IP350UHD Blustream Multicast systems
  • Intuitive 'drag & drop' source selection with video preview feature for active monitoring of system status
  • Advanced signal management for independent routing of IR, RS-232, USB / KVM, audio and video
  • Auto system configuration
  • 2 x RJ45 LAN connections to bridge existing network to Multicast video distribution network, resulting in:- Better system performance as network traffic is separated- No advanced network setup required- Independent IP address per LAN connection- Allows simplified TCP/IP control of Multicast system
  • RS-232 integration for control of Multicast system
  • IR integration for control of Multicast system
  • PoE (Power over Ethernet) to power Blustream product from PoE switch
  • Local 12V power supply (optional) should Ethernet switch not support PoE
  • Support for iOS and Android App control
  • 3rd Party drivers available for major control brands

In the Box

1 x ACM210
1 x IR Control Cable - 3.5mm to 3.5mm Cable
1 x 6-pin Phoenix Connector
1 x Mounting Kit

Payment & Security
Your payment information is processed securely. We do not store credit card details nor have access to your credit card information.

WARNING: This product may expose you to chemicals which are known to the State of California to cause cancer, birth defects, or other reproductive harm. For more information, go to www.P65Warnings.ca.gov.
  • Height
    1.02 in
  • Width
    3.77 in
  • Weight
    0 lb
  • Depth
    4.33 in
