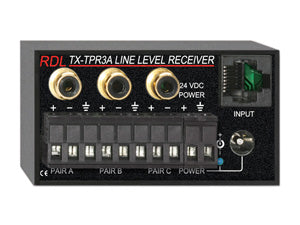

RDL TX-TPR3A Active Three-Pair Receiver Twisted Pair Format-A Balanced Line Outputs

RDL TX-TPR3A Active Three-Pair Receiver Twisted Pair Format-A Balanced Line Outputs

Login for Pricing

MSRP: $252.97

RDL | SKU:RDL TX-TPR3A

ITEM: 0165-0909

The TX-TPR3A is a three-pair audio receiving module compatible with RDL Format-A twisted pair products. Three outputs are provided corresponding to the three signal pairs A, B and C. The audio signal received on each pair of the RJ45 INPUT jack feeds the corresponding -10 dBV unbalanced RCA phono jack output and the +4 dBu balanced detachable terminal block output. A studio-quality buffer amplifier feeds the outputs at the correct operating level.



Features

  • Three -10 dBV Unbalanced or +4 dBu Balanced Outputs
  • Phono Jack and Detachable Terminal Block Outputs
  • Audio Outputs for All Three Pairs (A, B and C)
  • Utilizes All Three Format-A Pairs
  • Powered Locally or Remotely through RJ45 Jack
  • Local Power Feeds all Modules Connected to INPUT
  • Wiring Fault Protection by Automatic Resetting Fuse
  • Local Power Input on Terminal Block or dc Power Jack
  • Blue LED Indicates Module is Powered
  • Studio-Quality Precision Active Balanced Circuitry

Specs

  • Dimensions:  3.17 x 1.76 x 2.06"
