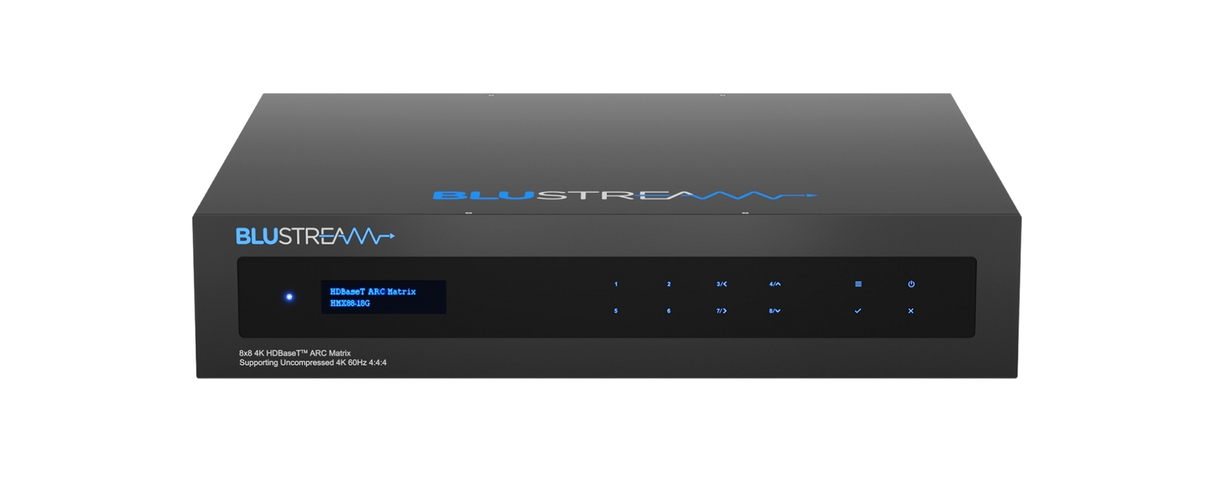

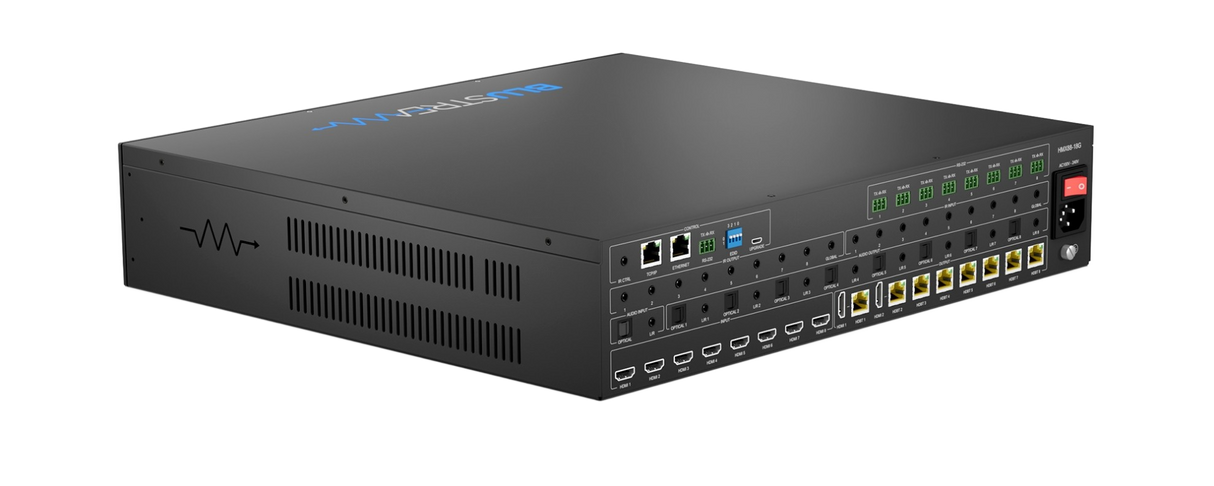

HMX88-18G 8x8 Uncompressed Hdbaset™ 3.0 Av Matrix With Arc

• Advanced uncompressed, unconverted, HDMI over HDBaseT3™ technology offering distribution of bit-for-bit 4K HDMI video and audio over a single CAT6A cable
• Features 8 x HDMI inputs which can be independently routed to 8 x HDBaseT™ outputs
• Outputs 1 & 2 feature simultaneous HDMI and HDBaseT™ outputs
• Supports distribution of uncompressed HDMI2.0 18Gbps specification including 4K 60Hz 4:4:4 UHD video up to 100m*
• Supports distribution of the latest HDR resolutions including HDR10/10+
• 26x8 Audio Matrix independently controllable from video. Audio source inputs include:
  - 8 x audio breakout from HDMI source inputs
  - 8 x audio breakout from zone outputs
  - 8 x audio return from zone outputs*
  - 1 x Optical and 1x Analogue audio input
• Supports bitstream passthrough of multichannel surround sound including object-based audio formats in line with HDMI specifications
• Integrated Ethernet switch (LAN Serving) when used with Blustream RX18G receiver (1Gb maximum)
• Web interface module for control and configuration of the Matrix
• Supports bi-directional IR and RS-232 on all HDBaseT™ outputs
• Control via front panel, IR, iOS / Android App, RS-232 and TCP/IP
• Supports PoC (Power over Cable) to power compatible HDBaseT™ receivers
• Advanced EDID management and HDCP 2.3 compliant

* Transmission distance is subject to video format, cable type and installation environment.

* The HDBaseT3™ specification is based on using CAT6A F/UTP infrastructure or better. The use of CAT5e is not supported and CAT6 is not recommended due to potential bandwidth and performance issues.

** ARC feature supports HDMI ARC or Optical ARC. Compatible with RX18G receivers only

1 x HMX88-18G
1 x Rack mounting kit
1 x Remote control
8 x IR emitters
9 x IR receivers
1 x Serial Cable - DB9 to 3-pin phoenix connector
1 x IR Control Cable - 3.5mm-3.5mm Cable IEC Power Cable(s)
1 x Quick Reference Guide
