Atlas IED FAPSUB 8" Tuned Ported In-Ceiling Subwoofer with 60-Watt 70V/100V Transformer

Atlas IED FAPSUB 8" Tuned Ported In-Ceiling Subwoofer with 60-Watt 70V/100V Transformer

Login for Pricing

MSRP: $348.99

Atlas IED FAPSUB-1

ITEM: 0050-0707

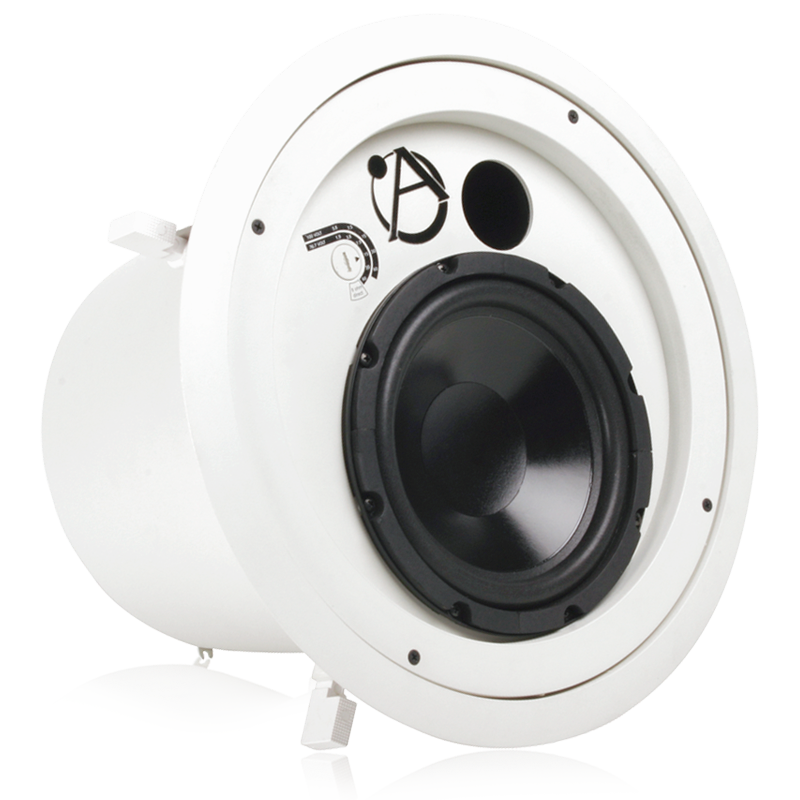

The FAPSUB-1 adds impressive low frequency response to any full range distributed system. The FAPSUB-1 consists of a highly efficient 8", 8 ohm subwoofer designed and built by AtlasIED to work optimality in the FAPSUB-1 enclosure system. A highly efficient, 3-pole filtering network eliminates unwanted high frequencies from the woofer and provides bass response down to 45Hz (±10dB).

Features

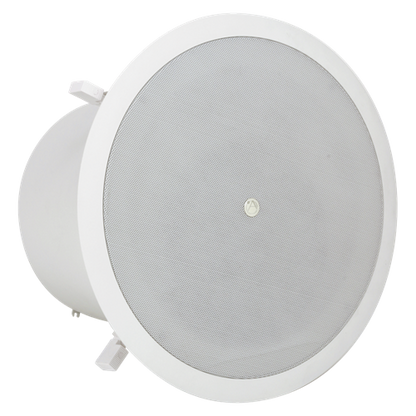

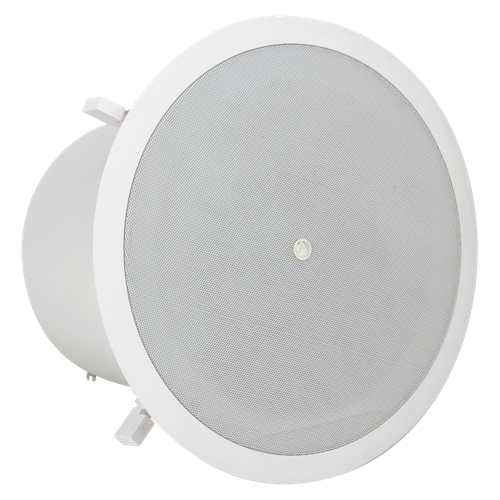

Attractive Grille and Bezel Matches Aesthetics of Other Atlas Sound FAP Series

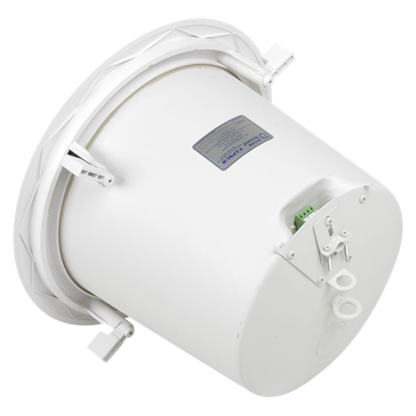

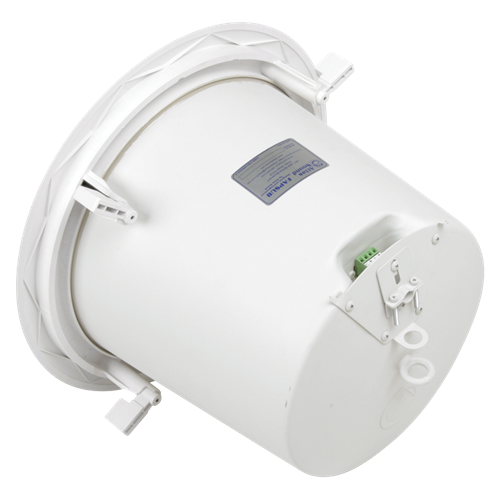

Detachable, Phoenix Style, Locking, Four-Pole Connector Provides for Easy Daisy Chain Wiring

Easy Installation in Drop Tile or Sheetrock Ceilings via C-ring/V-rail Tile Bridge and "Dog Leg" Mounting System (Included)

Front Mounted Tap Selector Switch for Easy System Tuning Adjustments Includes Transformer Bypass Setting for 8 ohm Direct Coupled Operation

High-Efficiency, Passive Crossover Network Eliminates the Need for Dedicated Amplifier and/or Active Crossover

Low Crossover Point Greatly Reduces Localization (Ability of Listener to Identify the Subwoofer Location)

Uniquely Designed, "Easy Access" Input Panel Design Allows for "Thru" Conduit Runs Using Flexible or Rigid Conduit

Paintable

Specs

  • Diameter:  15 ¾"
  • Height: 12 ¾"
  • Cutout: 14"
