Blustream  |  SKU: PWR8VDC | Item No. 0210-0399

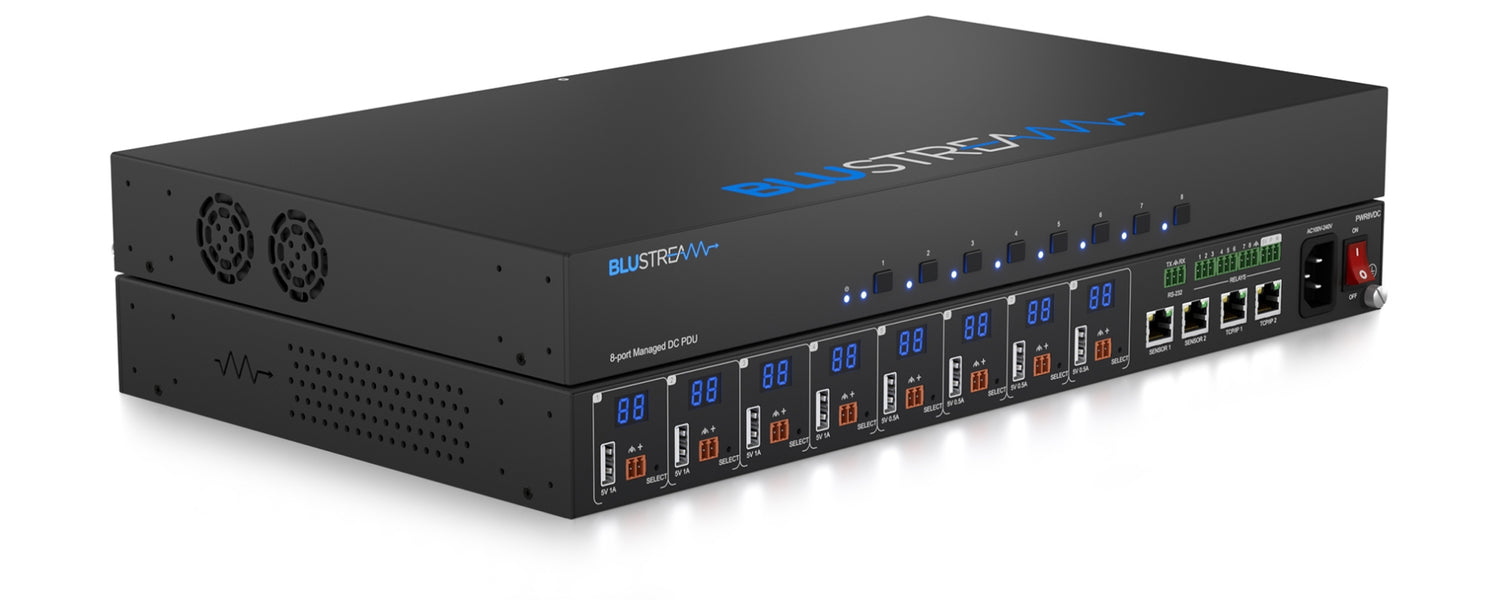

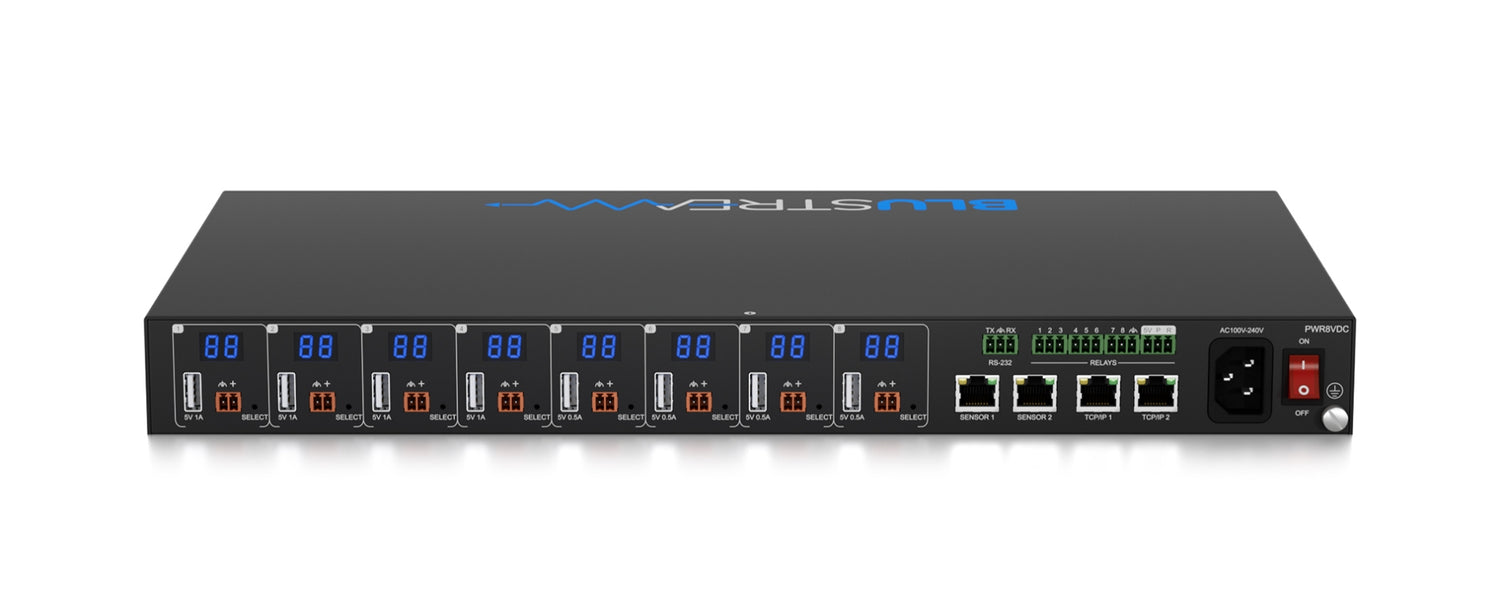

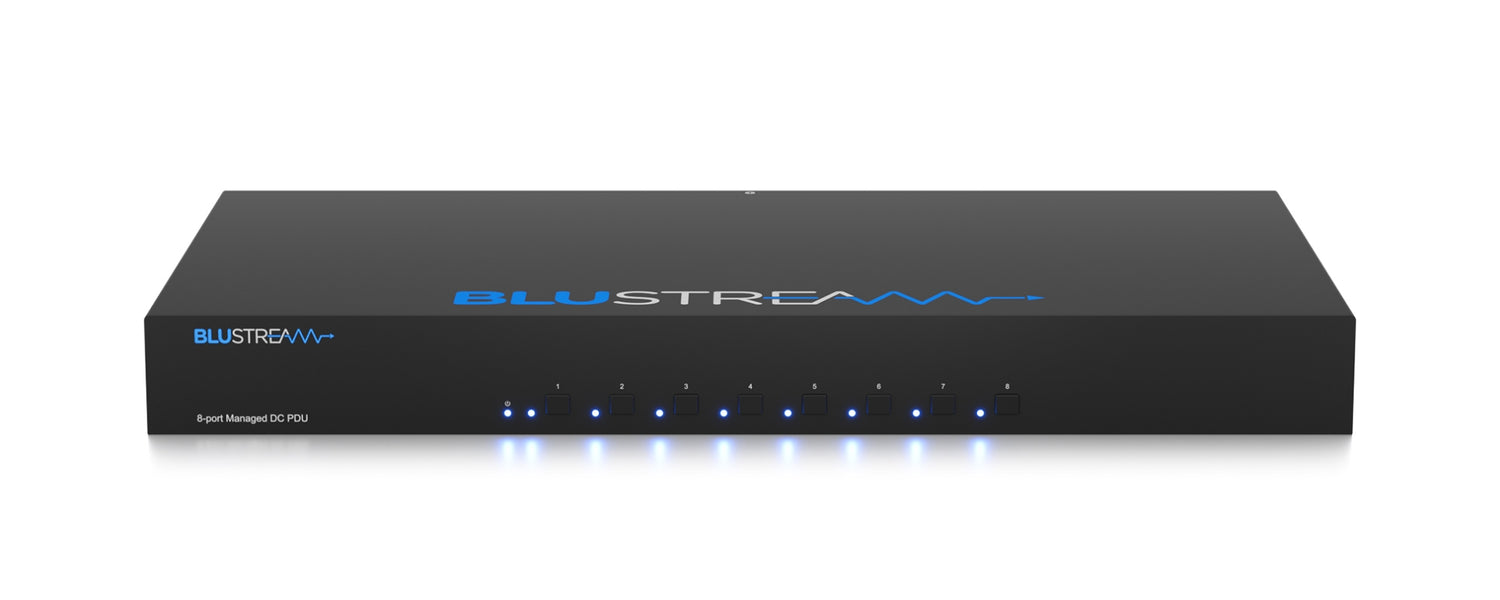

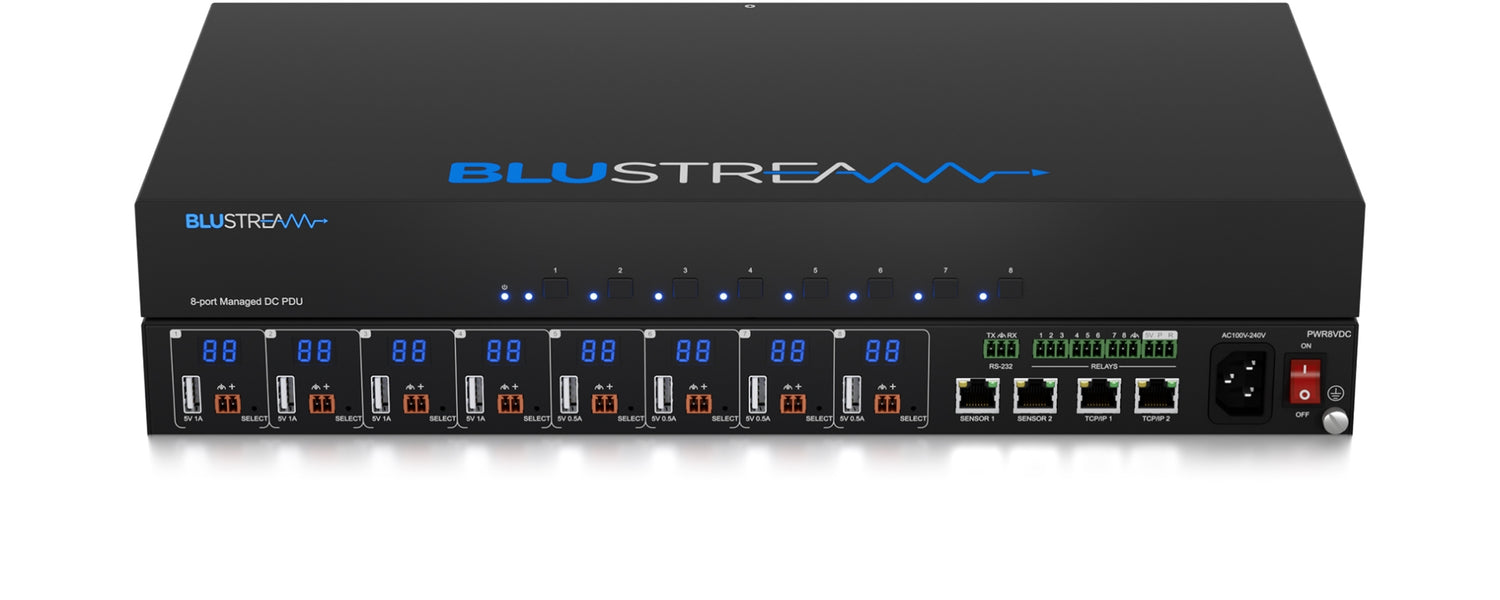

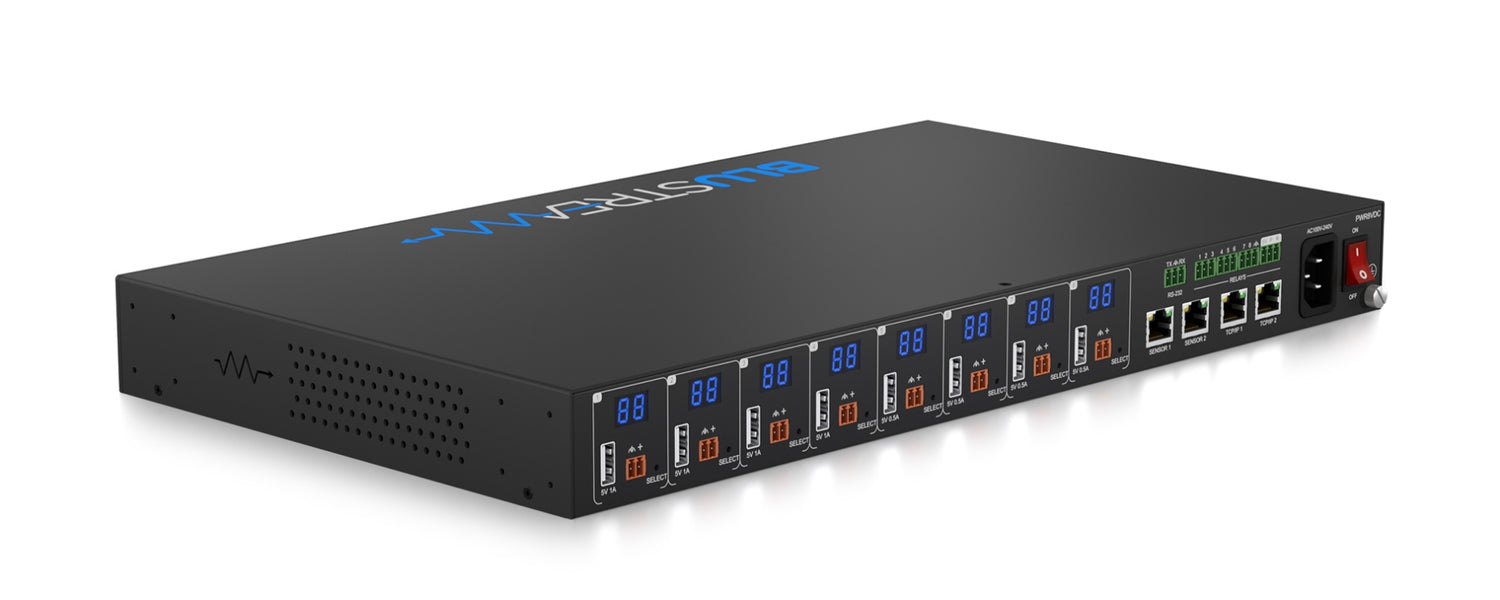

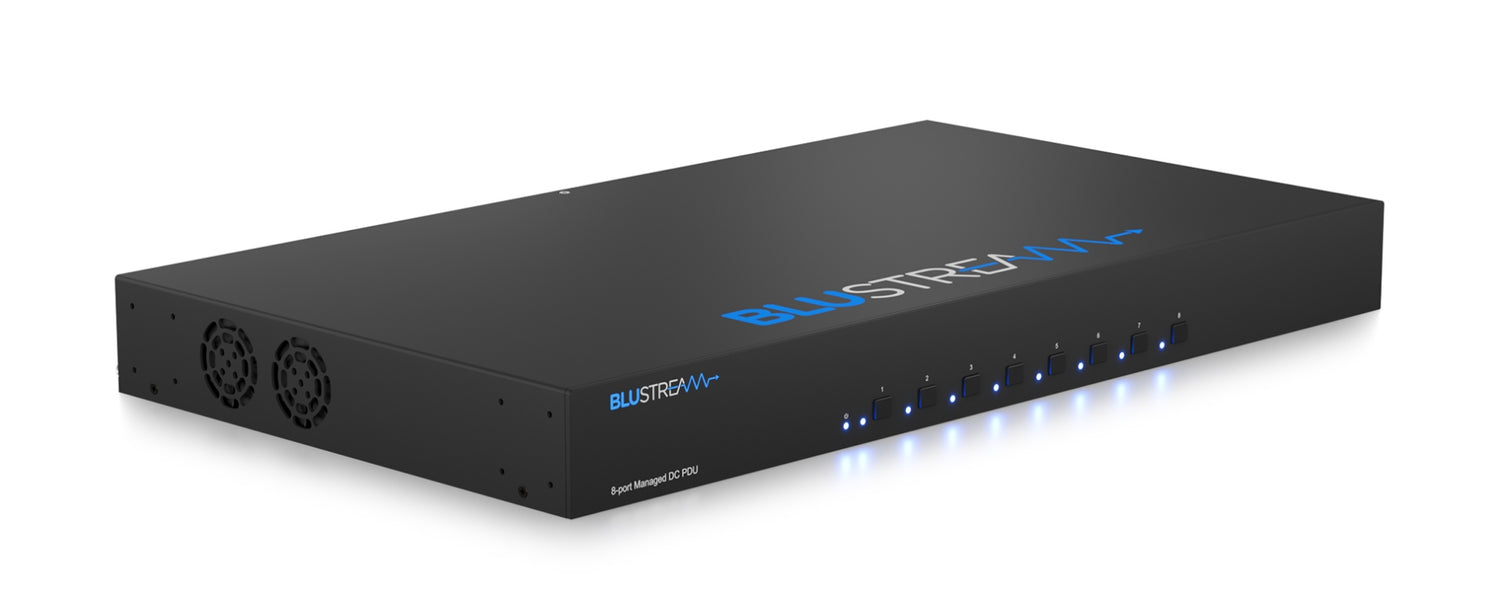

PWR8VDC 8 Port Managed Low Voltage PDU

Login for pricing

MSRP: $1525.95

Description

The PWR8VDC is an outlet-level metered and switched smart PDU. The unit features 1 x IEC C14 inlet for power, and 8 x variable voltage output outlets for controlled supply to low-power consumption devices.

Product Features
  • Single C14 IEC inlet with 8x independently configurable voltage 2-pin phoenix connector outlets
  • Products supports 110-250V AC power input at up to 10A
  • Independently configurable multi-voltage outputs selectable between 5V (at 6A), 9V or 12V (at 2.5A), 18V or 24V (at 1.25A), supporting up to 30W power per outlet
  • 8 x managed USB-A ports for powering 3rd party devices (ports 1-4 for 5V at 1A, ports 5-8 for 5V at 500mA)
  • Monitoring and metering of Voltage, Current, Power, and Energy Consumption
  • Overload protection and interference filtering
  • Advanced power management features including 24/7 scheduling, and power on/off sequencing
  • Multi-format sensor ports for integration to 3rd party control sensors including temperature, humidity, air pressure, security etc
  • Control via IP, RS-232, front panel buttons, or relays
  • Dual IP network ports providing uninterrupted network service / access with SSL connectivity
  • Relays for automated switching of inlet, and individual power outlets
  • Provides remote monitoring with password authentication through web-GUI
  • Support for multiple network and IoT protocols
  • 1U design for 19" rack mount integration - rack mounting kit included

In the Box

1 x PWR8VDC
1 x Serial cable - DB9 to 3 pin Phoenix connector
4 x 3 pin 3.5mm Phoenix connector
1 x 19" Rack Mounting kit
4 x Mounting feet
1 x Quick Reference Card
IEC Power Cable(s)

Payment & Security
Your payment information is processed securely. We do not store credit card details nor have access to your credit card information.

WARNING: This product may expose you to chemicals which are known to the State of California to cause cancer, birth defects, or other reproductive harm. For more information, go to www.P65Warnings.ca.gov.
  • Height
    1.73 in
  • Width
    17.2 in
  • Depth
    8.85 in
