Tannoy  |  SKU: OCV8-BK | Item No. 0189-0162

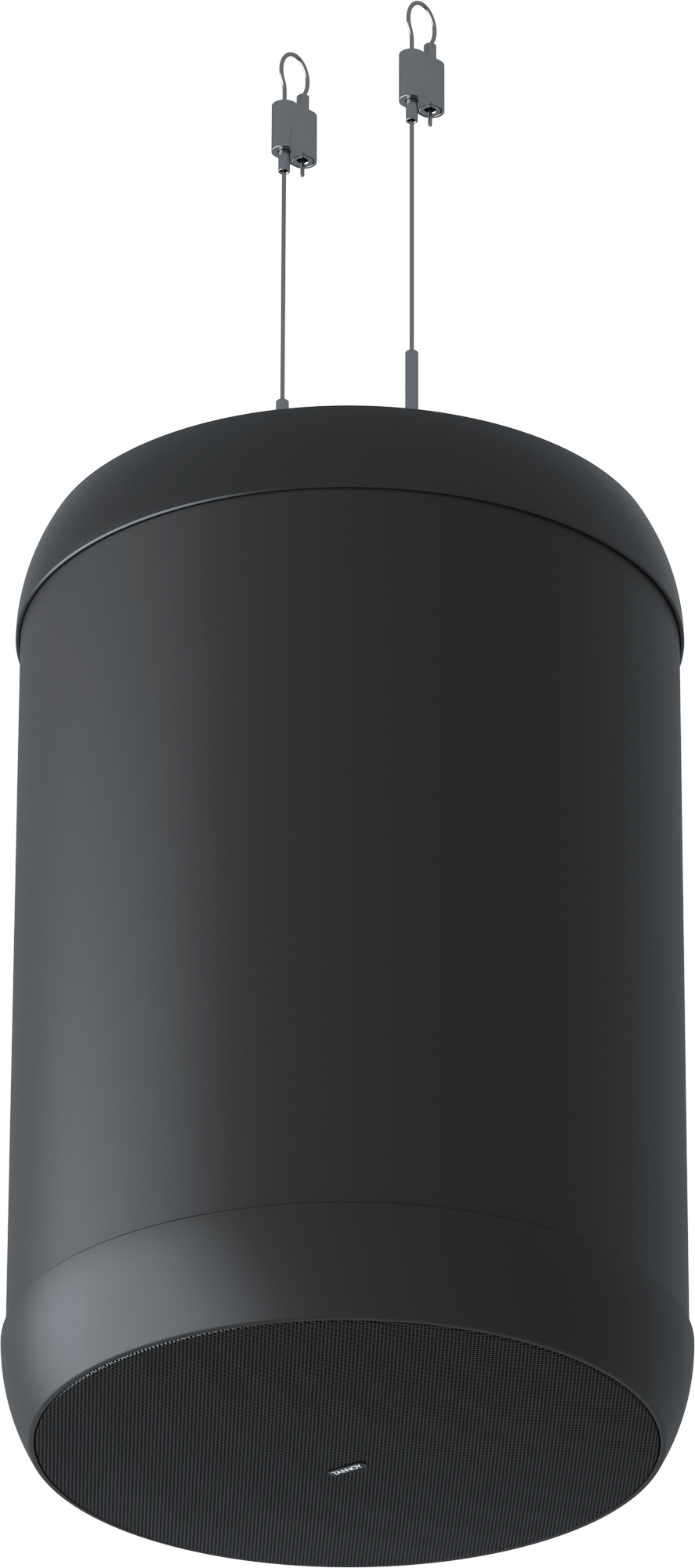

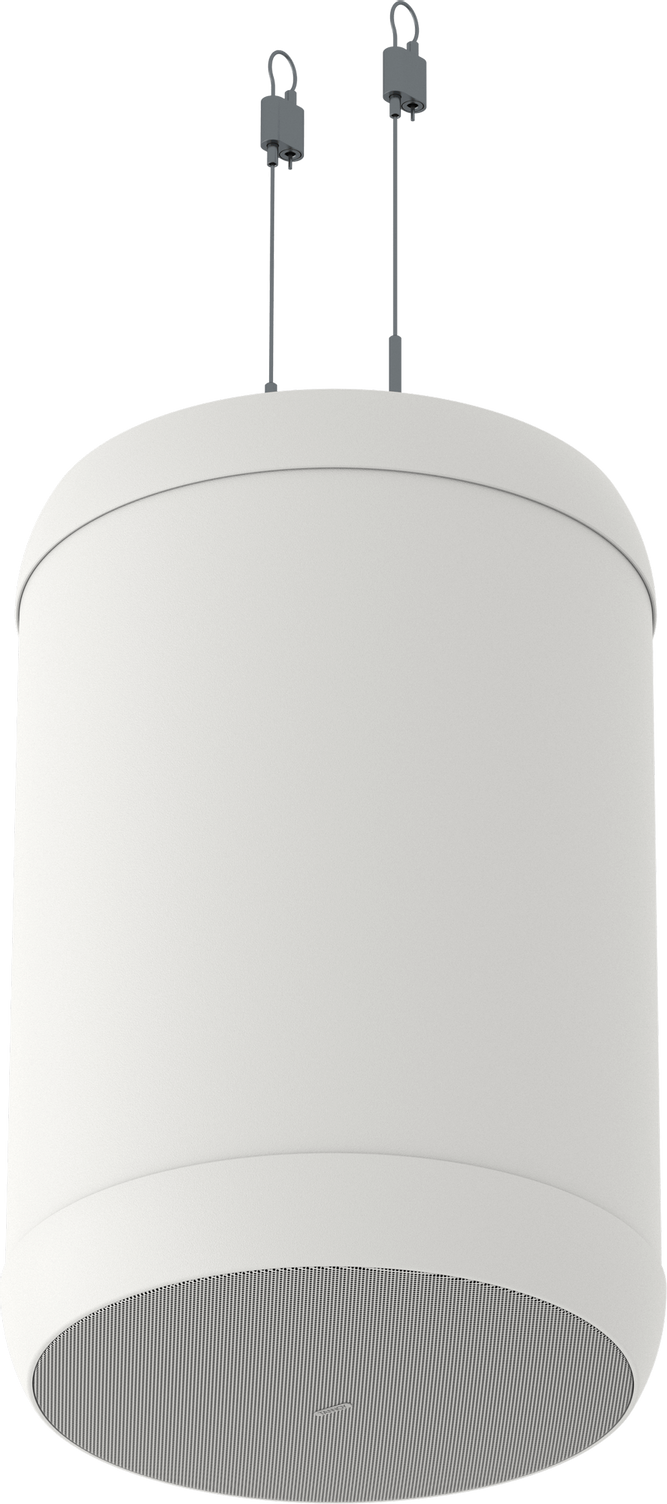

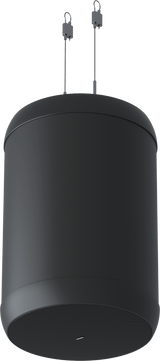

OCV 8" Coaxial Pendant Loudspeaker For Installation Applications (Each)

Login for pricing

MSRP: $409.00
Color: Black
Size

Description

The OCV 8 is a 280-Watt high sensitivity pendant loudspeaker that delivers wide and consistent broadband directivity with enhanced intelligibility – plus the linear response of our legendary studio monitors.

Product Features
  • Coaxial full-range pendant loudspeaker for installation applications
  • 70 Watts continuous, 280 Watts peak power

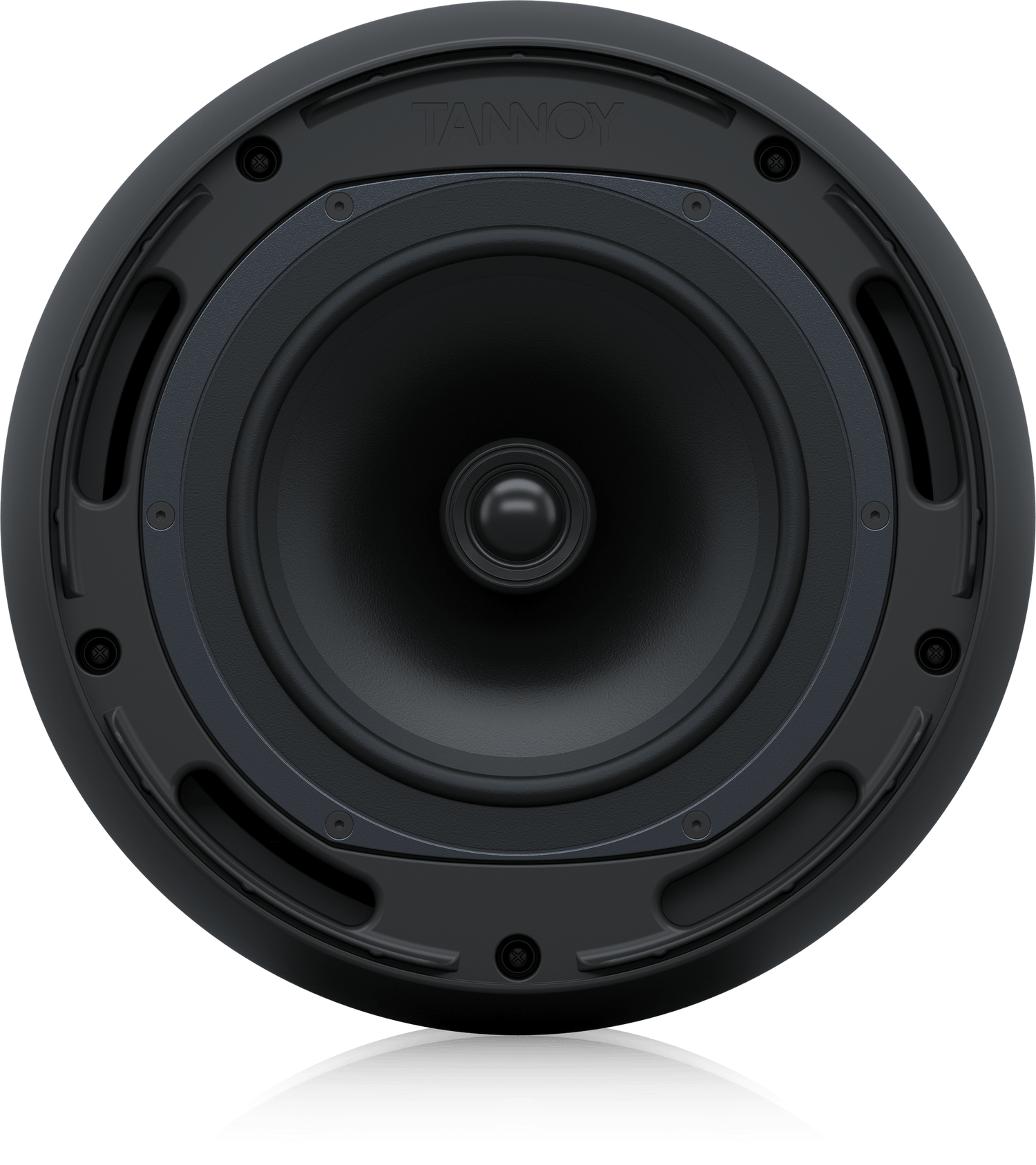

  • 8" mineral-loaded polypropylene driver with nitrile rubber surround for enhanced durability and long-term reliability
  • 1" ferrofluid cooled soft dome neodymium high-frequency driver
  • Wide constant directivity dispersion for optimum coverage
  • UL 1480 certified for general signalling systems
  • UV and weather resistant UL 94 V-0 ABS front with plated steel fire can enclosure

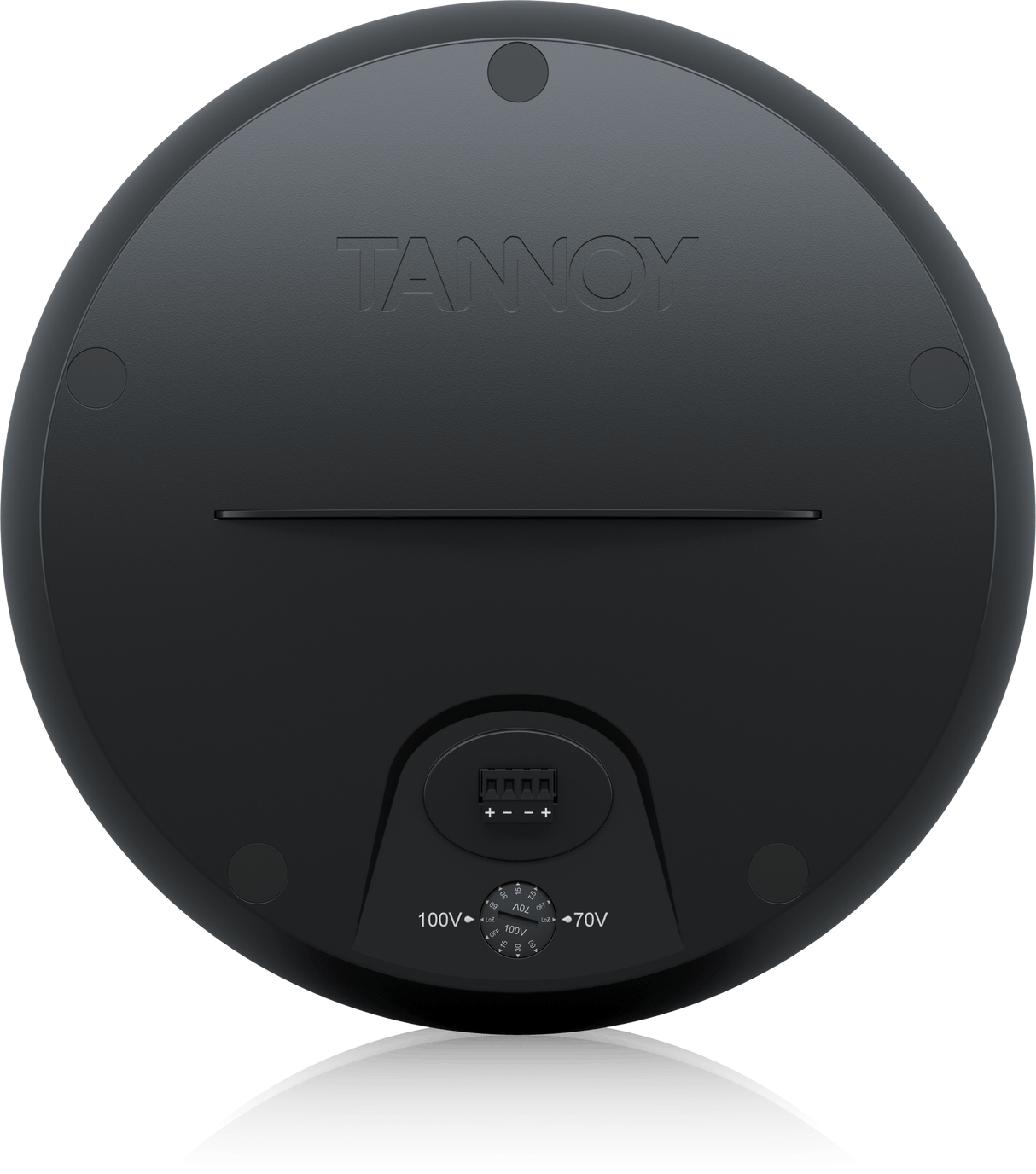

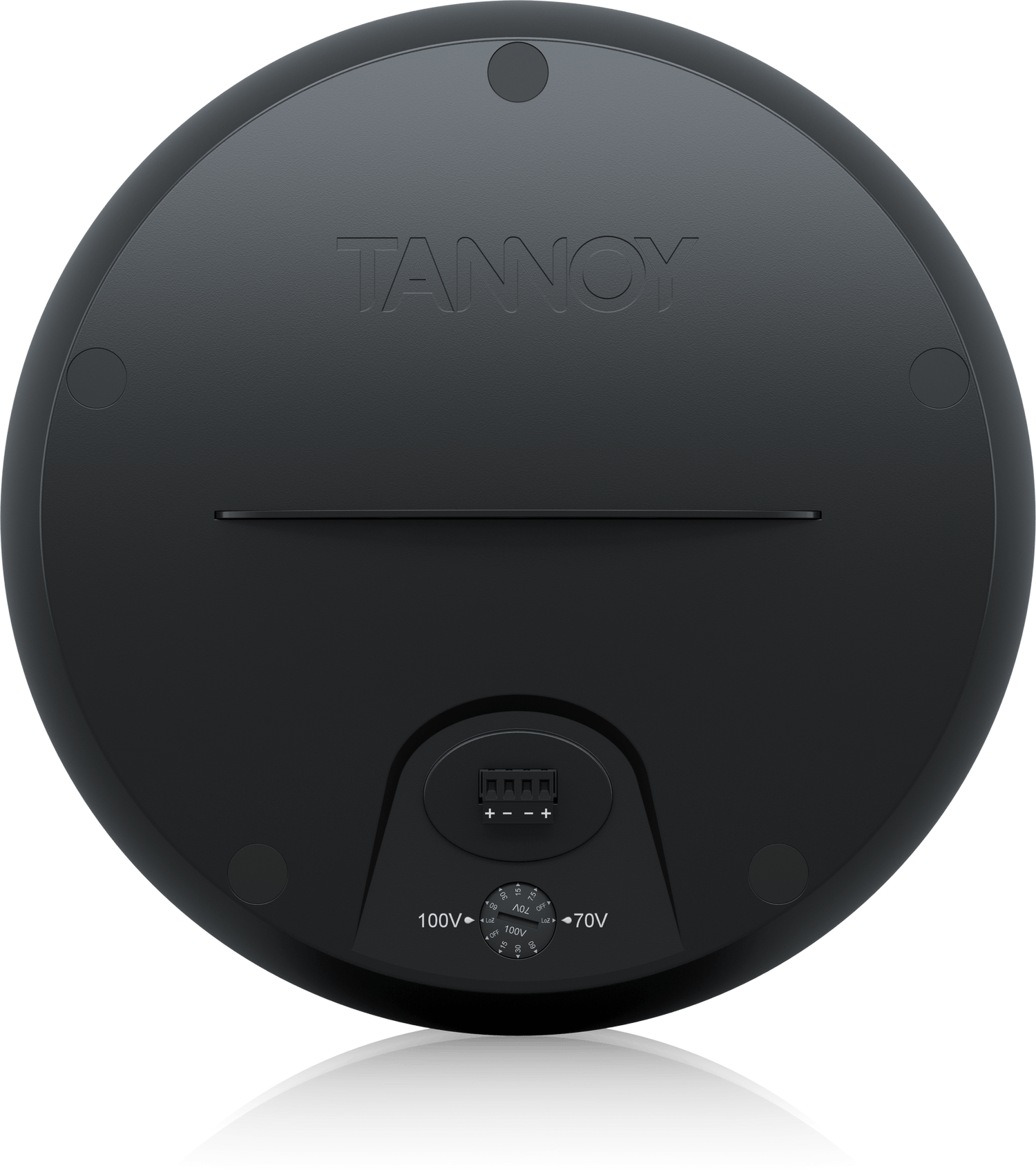

  • Multiple transformer taps for 70 V and 100 V line systems or 16 Ohm direct input
  • Low insertion loss 60 W line transformer with easily accessible tapping switch
  • Optimised for LAB GRUPPEN low impedance LUCIA amplifiers with up to 8 OCV series loudspeakers per channel
  • All components weather resistant to IP64 for outdoor use
  • Semi-matte black finish fits unobtrusively in any environment

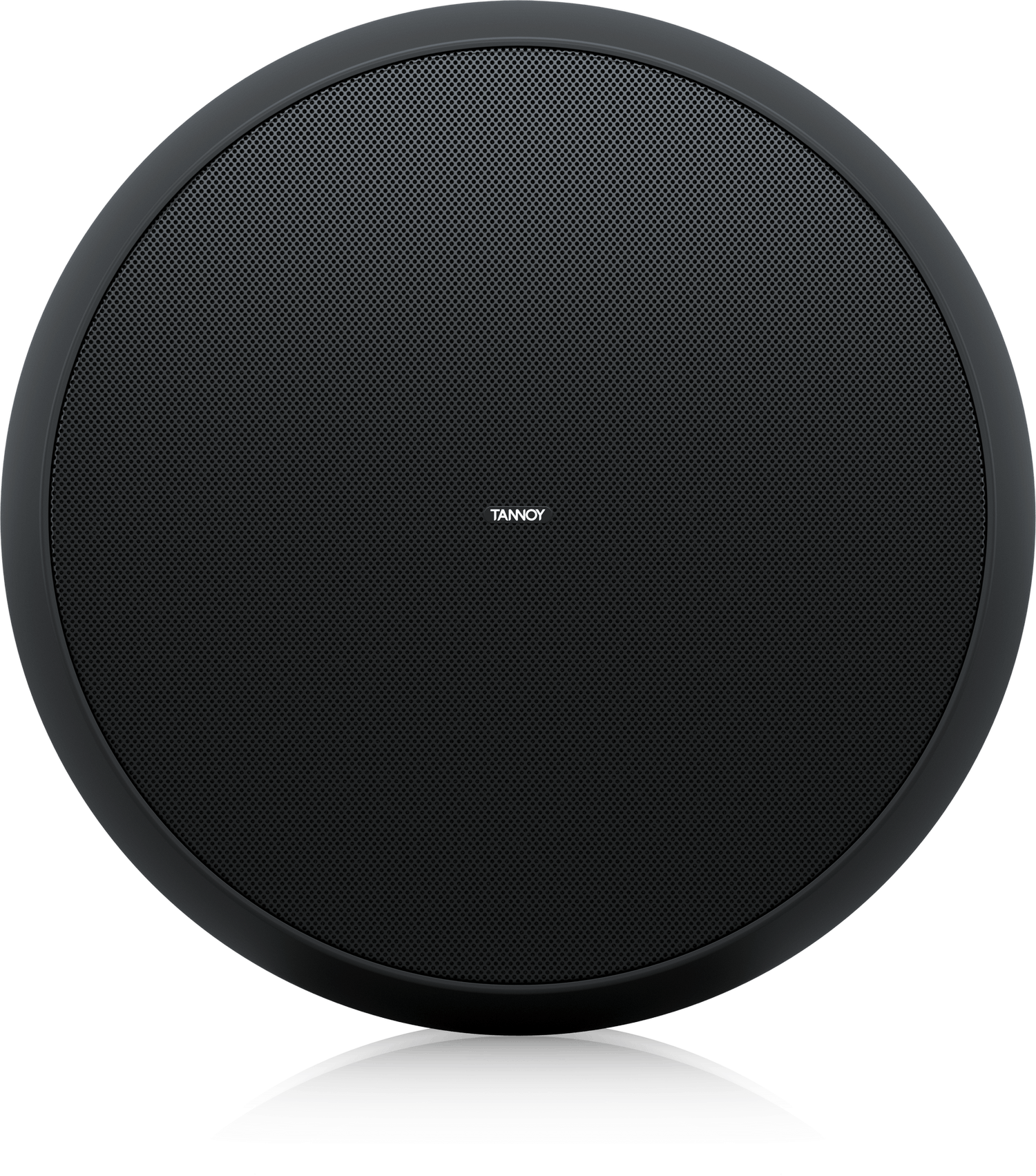

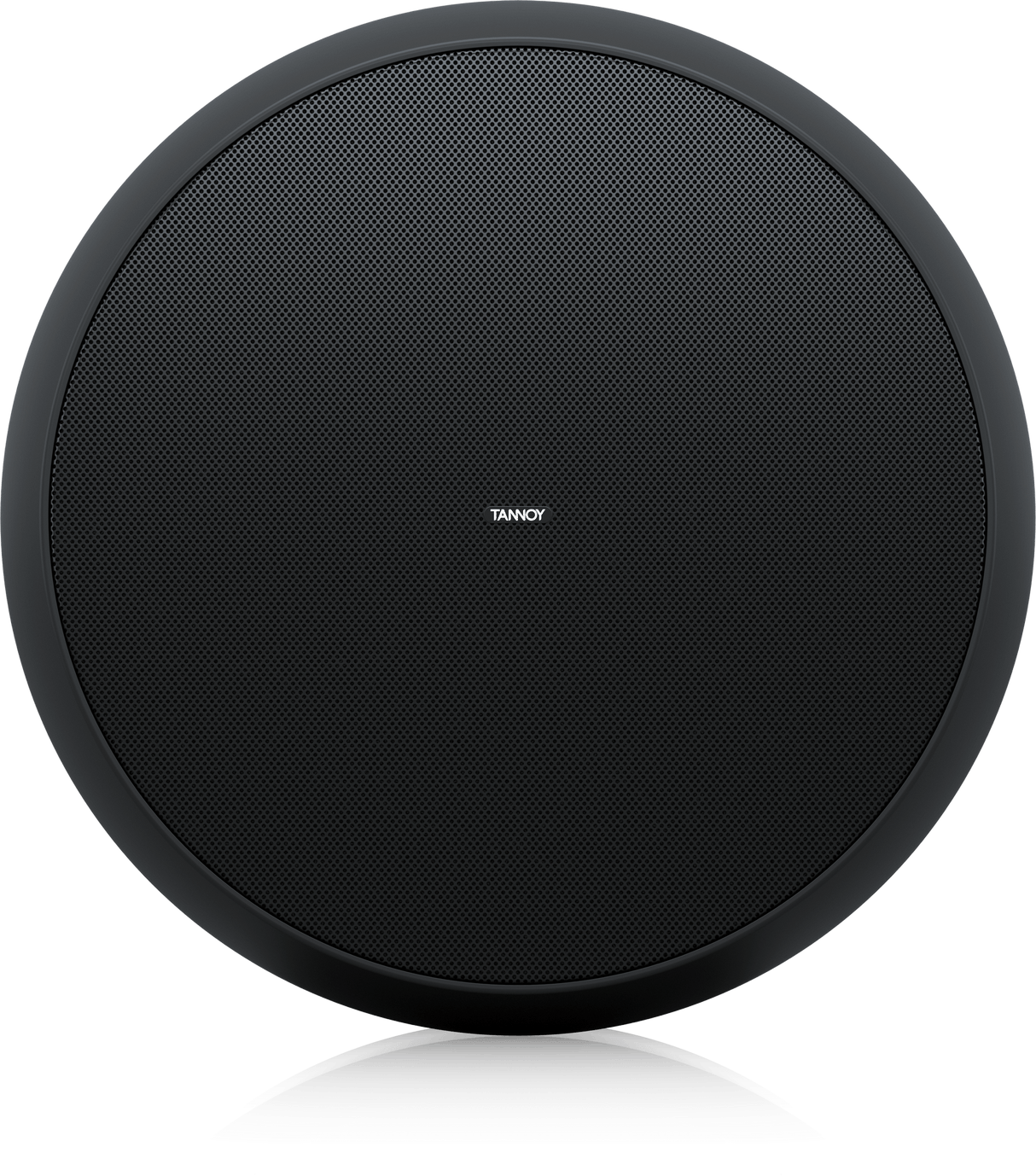

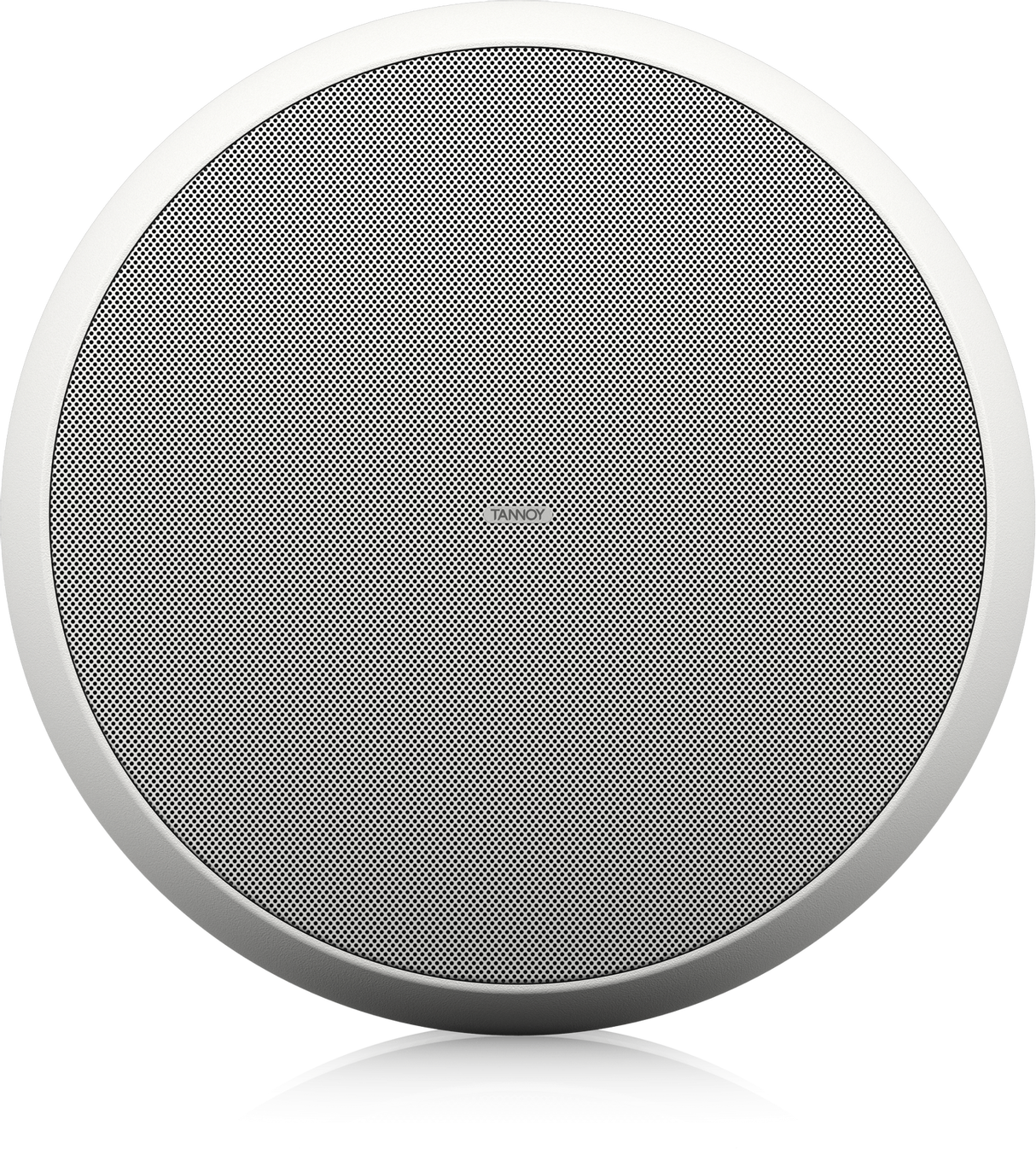

  • Powder-coated perforated steel mesh grille with dust protection

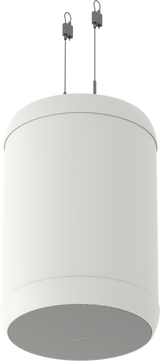

  • Quick and easy hanging system included for reduced installation time and cost
  • Weatherproof cable gland cover to protect Phoenix connectors and tap selector switch

In the Box
  • Cable clamps
  • 1 x hanging cable
  • 1 x safety cable
  • 1 x terminal weather boot
  • 1 x euroblock connector
  • 3/8" screwed rod adaptor
  • Cable ties
Payment & Security
Your payment information is processed securely. We do not store credit card details nor have access to your credit card information.

WARNING: This product may expose you to chemicals which are known to the State of California to cause cancer, birth defects, or other reproductive harm. For more information, go to www.P65Warnings.ca.gov.
  • Height
    11.89 in
  • Weight
    17.2 lb
  • Height
    11.89 in
  • Weight
    17.2 lb
