Key Digital  |  SKU: KD-WP8-3 | Item No. 0101-0172

KD-WP8-3 8 Button Web UI Programmable IP Control Wall Plate Keypad

MSRP: $425.00

Description

Q-SYS Integration

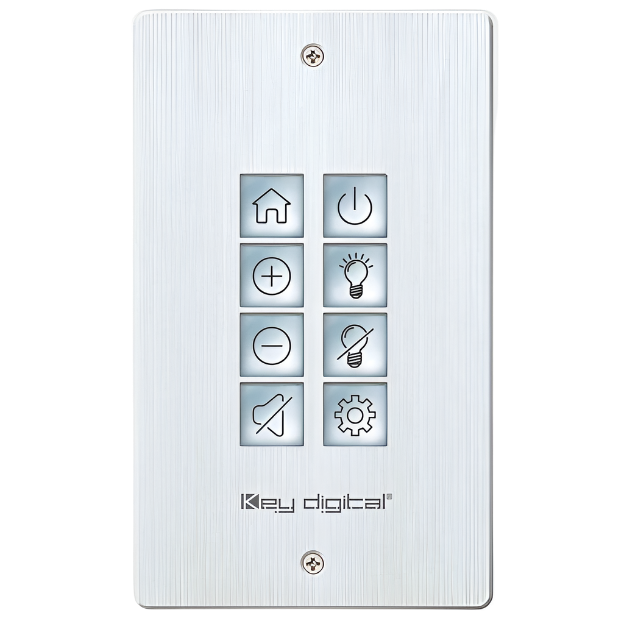

The Key Digital® KD-WP8-3 is an eight-button control keypad. It fits into a single-gang wall box and is PoE-powered.

It's easy to program the KD-WP8-3 via web GUI to send commands directly to IP-controlled devices over the network.

Additionally, it can also send commands to RS-232 and IR devices through the built-in control port.

Product Features

  • Q-SYS Integration: KD-WP8-3 integrates into the Q-SYS Ecosystem via a Certified Q-SYS plugin, verified by Q-SYS and now available for download through Q-SYS Designer Asset Manager
  • IP and RS-232 Command Strings: ASCII or HEX formats supported. Selectable RS-232 baud rate from 1,200 to 115,200 bps
  • IR Command Strings: Copy & paste Pronto Hex or Compass Control IR burst data
  • PoE Powered: Installs cleanly with PoE network switch or PoE injector (not included)
  • Single-Gang: Fits U.S. single-gang wall box. Brushed aluminum decora plate included
  • Ease of Programming: Web GUI walkthrough of network settings, project import & export, button configuration, event programming and virtual event keypad access
  • IP Controller: Natively sends TCP, UDP, and Telnet commands in ASCII or HEX format for controlling IP devices without any additional hardware needed

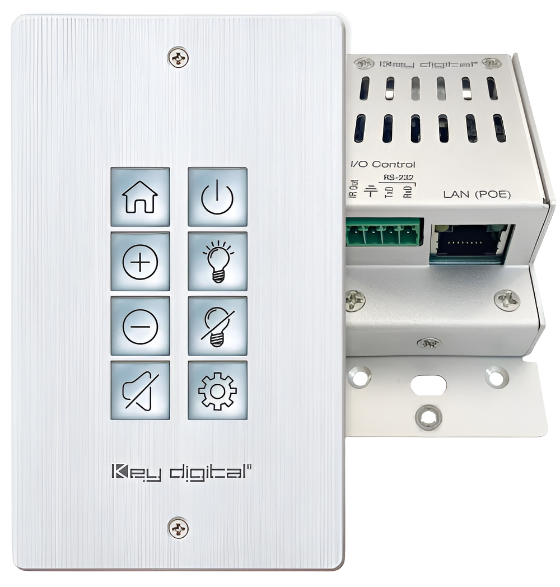

  • Built-In RS-232 and IR: One native RS-232 and IR port on 5-pin phoenix connector
  • IR, RS-232, and Relay Control: Add KD-CX800, KD-MC1000, or KD-IP822/922/1022 master controllers for control of additional IR, RS-232, or voltage relay devices
  • Multi-Controller Support: Integrate with any number of KD Master Controllers
  • Point-to-Point Support: Direct connect network cabling from KD-WP8 to PoE injector and Master Controller for installation without network setup hassle
  • Button LED Control: Adjustable unit LED brightness and programming support for any button's LED behavior
  • Variable Support: Up to 8 integer variables may be utilized to store values for sending in commands.
  • 160 Events Possible: Up to 10 commands on button press and release/repeat, for up to 20 events per button and 160 events total
  • Key Combo Security: Two-button press combo may be set to lock & unlock keypad
  • Virtual Keypads: Password protected web GUI with user-friendly minimal layout or Programmer-friendly layout with transmit & receive logs
  • KDMS™ Pro and KD-App Ready: Virtual keypad GUI options accessed by PC software and iOS app
  • Button Configuration: Red or blue LED backlighting, normal or toggle button types, press event, release event, hold for repeat, and hold for send options
  • Detachable Button Caps: 10 inner button caps, 10 outer button caps, and flathead mini screwdriver included
  • Icon Sheets: 175 transparent icons provided. Template available for custom printing
  • Open API: Simple two-way communication protocol for IP integration with control systems

In the Box

  • Qty 1: 6ft USB A to USB micro cable
  • Qty 1: Brushed aluminum decora plate
  • Qty 4: Decora and box mounting screws
  • Qty 10: Inner button caps
  • Qty 10: Outer button caps (clear)
  • Qty 1: Fleathead mini screwderiver
  • Qty 1 (set): Icon button sheets
  • Qty 1: IR emitter, 6ft
Payment & Security
Your payment information is processed securely. We do not store credit card details nor have access to your credit card information.
  • Length
    1.93 in
  • Height
    4.13 in
  • Width
    1.21 in
  • Weight
    0.5 lb
