QSC  |  SKU: AD-S8T-BK | Item No. 0113-0071

ADS8T 8" 2-Way Surface Speaker 70/100v 8ω Bypass 105° Each

MSRP: $680.00

Product Features

  • Sold and Priced as Each
  • 8" weather treated woofer; 1.4-inch compression driver
  • 105° conical DMT™ coverage
  • 60 watt low-saturation and low-loss 70/100V transformers with 8Ω bypass
  • Maximum peak SPL 119 dB (8Ω bypass)
  • Directivity Matched Transition® (DMT) ensures smooth, uniform frequency response over the coverage area
  • X-Mount™ system enables the loudspeaker to be easily installed and deployed at a variety of angles with no slippage over time
  • Optional Yoke mount and M10 Kit-C for additional installation versatility
  • Advanced Intrinsic Correction™ voicings available via Q-SYS™
  • Lightweight ABS enclosures offer long-term durability and lasting good looks
  • Sealed input panel cover and powder coated aluminum grilles for added weather resistance
  • Meets IEC60529 IP-54 for dust and splash resistance
  • Available in black (RAL 9011) or white (RAL 9010)
  • Complete EASE, CF2, CAD, and BIM information available online

Specifications

  • Dimensions:  17.3 × 10 × 9.9"
  • Weight:  24.1 lbs

Related Files

Download Spec Sheet

Payment & Security
Your payment information is processed securely. We do not store credit card details nor have access to your credit card information.

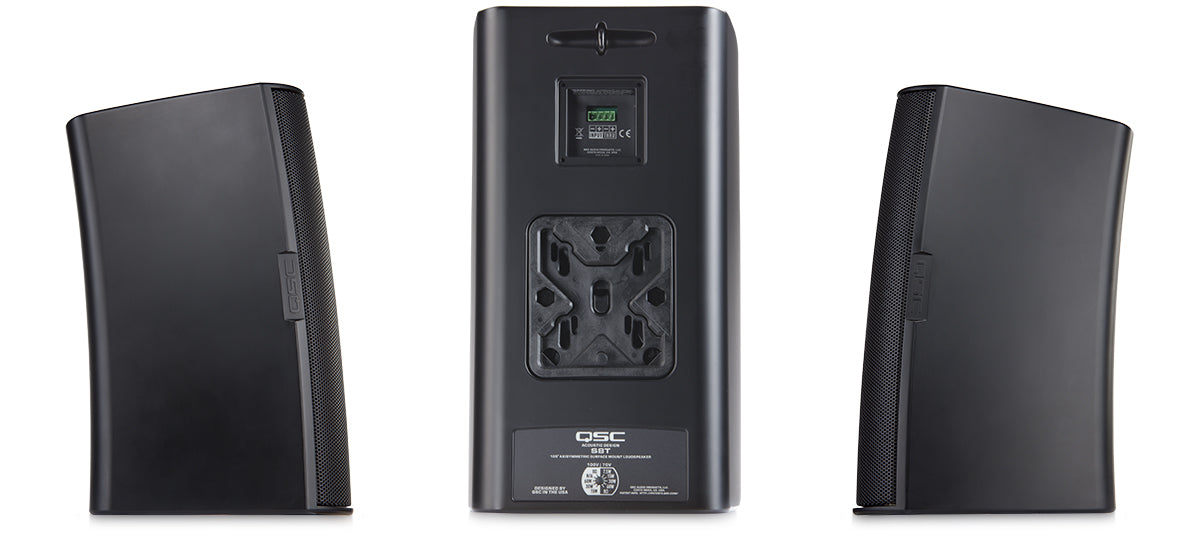

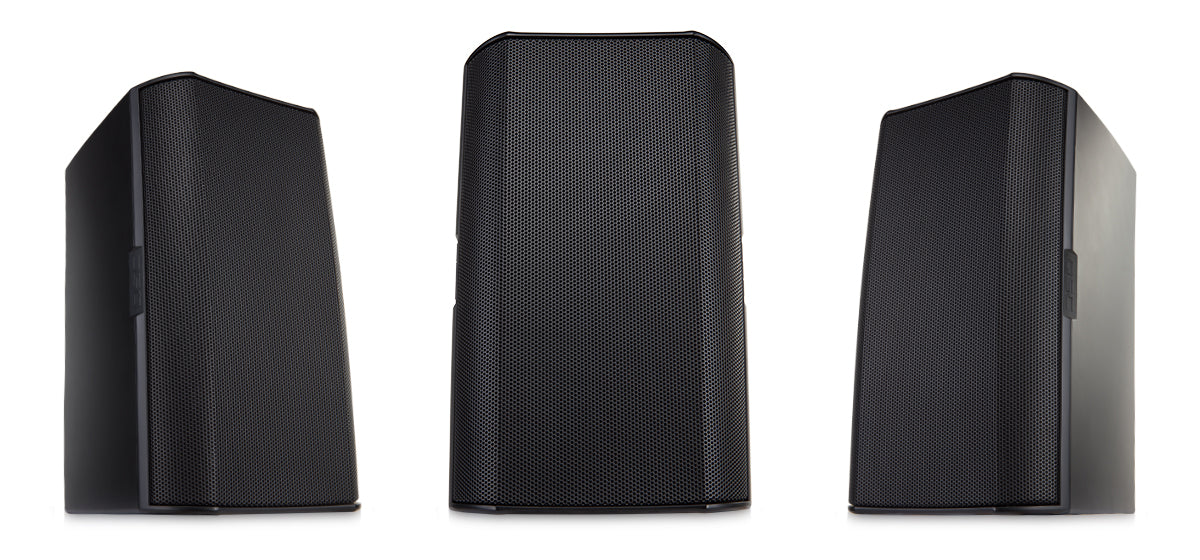

The QSC AcousticDesign™ AD-S8T is a surface mounted 70/100 V, 8" two-way loudspeaker system, ideally suited for a wide variety of foreground and background sound reinforcement applications. AcousticDesign™ series offers integrators a premium quality installed sound solution where performance, coverage, and aesthetics are paramount. Combined with unprecedented ease-of-installation and high weather resistance, the AcousticDesign™ series provides integrators a versatile and confident install solution.
