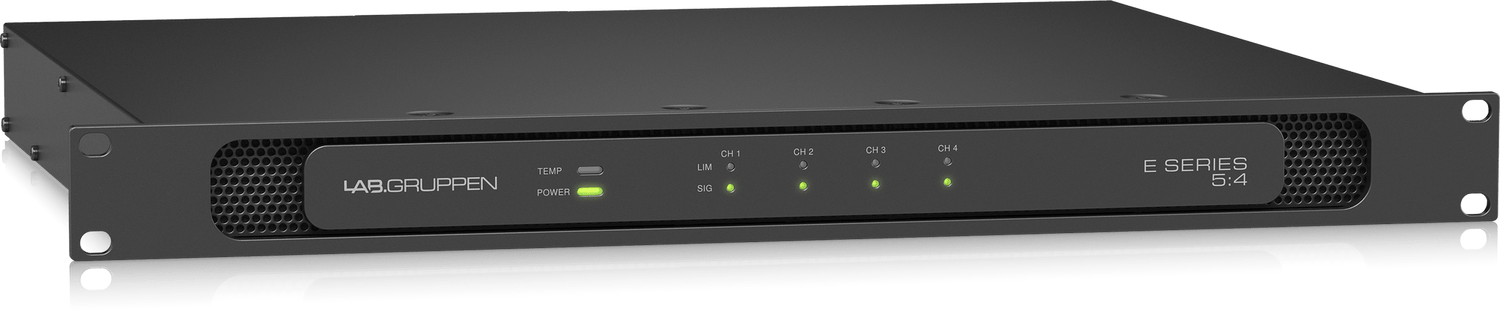

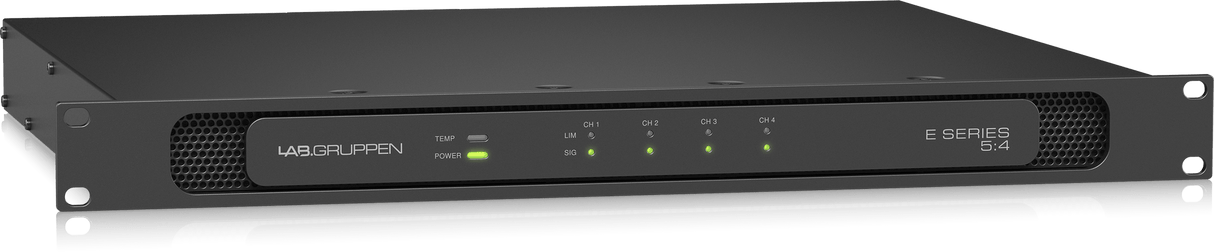

E5:4 500 W Amplifier with 4 Flexible Output-Channels

MSRP: $1599.00

Type

Special Buy Regular Price

Product variants

Description

Specifically designed for greater sustainability through “greener” commercial installations, E Series incorporates the latest advances in Lab.gruppen quality and durability into a complete line of compact (1U) and highly cost-effective.

Product Features

500 W amplifier carrying 4 flexible output channels in a high power density 1 rack unit form factor saves rack space and system cost
Energy efficient with Energy Star* certification for supreme green credentials and exceptionally low lifetime running costs
Flexible IntelliDrive permits delivering the 4 x 125 W at constant voltage 70 V or low impedance (2, 4, 8 and 16 Ohms) on any channel
Asymmetric channel loading allows mixing and matching loads with different impedances to maximize overall system efficiency and inventory utilization
High efficiency amplifier with low power consumption and minimized heat generation lowers demands on the installations' mains distribution and cooling systems
IDEEA outputs stage based on proprietary, state-of-the-art Class-D amplifier technology for superior performance
Comprehensive fail safe circuit protection ensures continued operation even under reduced operating conditions
Auto-standby and auto-power-on reduces power consumption to below 1 W in non-operating cycles
Rail Sense Limiter (RSL) greatly reduces signal clipping and ensures simple configuration for constant voltage and low impedance loads
Built in 50 Hz high pass filter selectable per channel available on rear panel switch

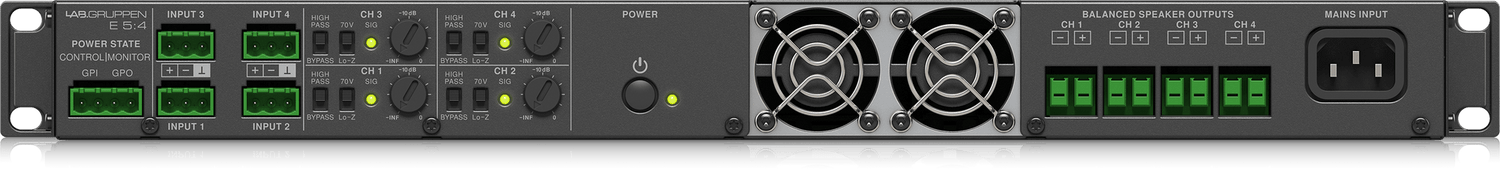

Per channel attenuation knob and signal LED on rear panel for simple commissioning
Efficient cooling with temperature-controlled fans with front to back airflow

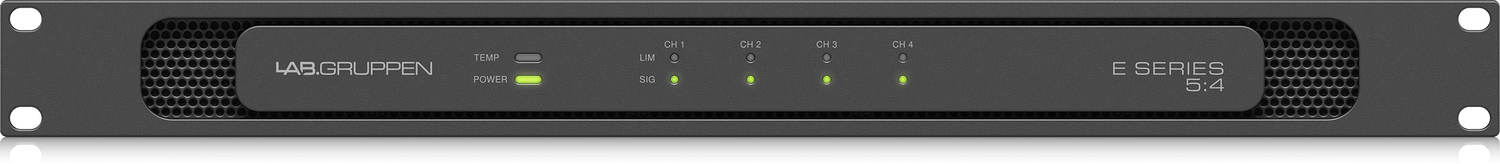

Aluminum front panel with power and temperature LEDs and per-channel signal and limit LEDs
GPIO connector with power control and indication for further system integration
Balanced high-quality analog inputs and amplifier outputs on detachable screw terminals

In the Box

Payment & Security

Your payment information is processed securely. We do not store credit card details nor have access to your credit card information.

Channels

Special Promo
Watts/Channel

500W
Features

70 Volt
Rack Mountable

Yes
Rack Size

1
Width

19 in
Height

1.7 in
Depth

15 in
Weight

13.2 lb

Channels

4 Channel
Watts/Channel

500W
Features

70 Volt
Rack Mountable

Yes
Rack Size

1
Width

19 in
Height

1.7 in
Depth

15 in
Weight

13.2 lb
