SoundTube  |  SKU: SM52-EZ-WX-BK | Item No. 0171-0516

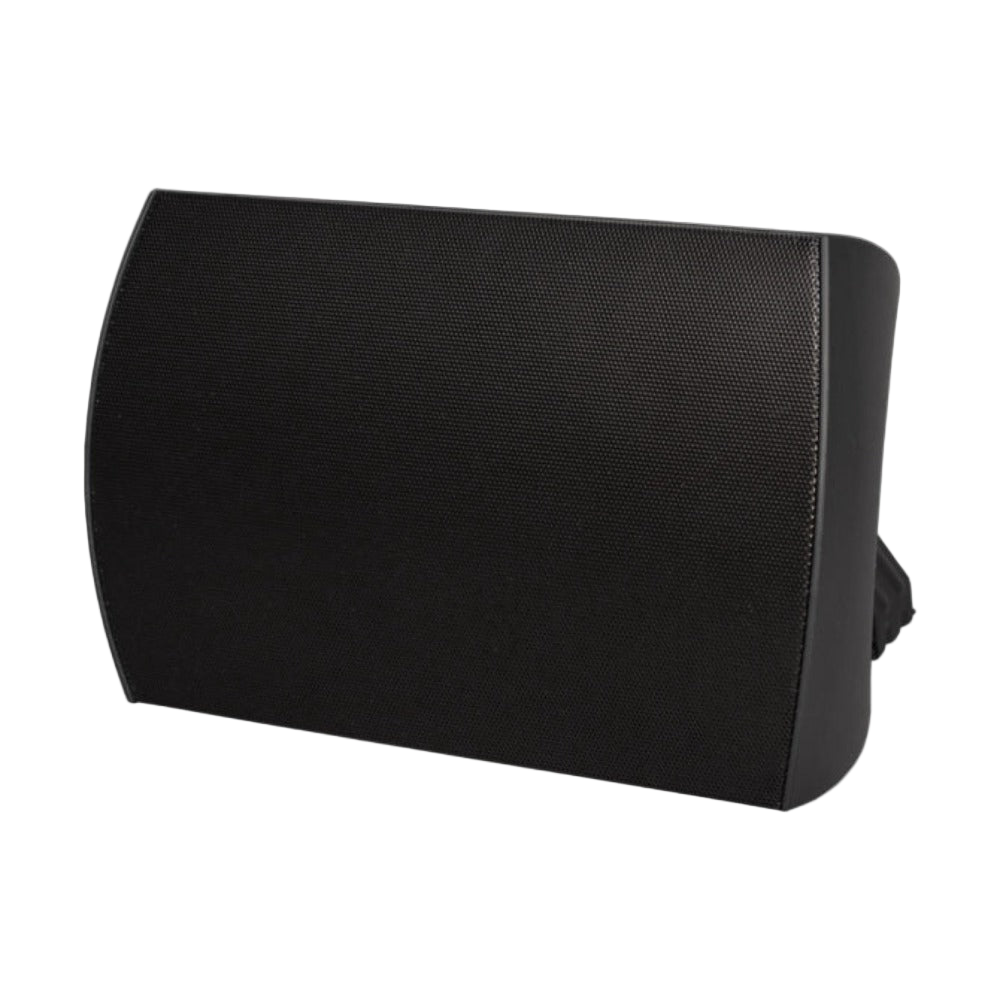

SM52EZWXBK 5.25" Extreme Weather Outdoor Surface Mount Speaker Black Each

Login for pricing

MSRP: $216.85

Product Features
  • Priced and Sold as Each
  • The SM52-EZ-WX is a cost-conscious, weather-resistant, surface-mount loudspeaker.
  • BroadBeam Ring™ technology for midrange clarity and ultra-wide off-axis performance up to 10 kHz for maximum coverage area per speaker
  • One 5.25” (133 mm) polypropylene woofer and one 1” (25.4 mm) soft dome tweeter.
  • Extreme weather resistance with IP65 ingress protection rating allows use in challenging outdoor conditions.
  • 83 dB average sensitivity offers high output capabilities and reduced amplification costs.
  • Easy access, six-position selectable tap switch for 25, 70.7, and 100 V applications with transformer bypass position.
  • Aluminum grille with powder-coat finish.
  • Vertical and horizontal mounting offer precision aiming for indoor and outdoor applications.
  • UL 1480A and EN54 approved.
  • High-quality black or white paint finish.
  • Included accessories: safety cable, wall-mount bracket, port plug, Allen wrench, and watertight strain-relief bushing.

*Note: If used indoors, remove the grille and take the plug out of the port for greater bass output. Port must remain plugged to maintain IP65 rating in outdoor use.

Specifications

Dimensions:  11.88 x 7.5 x 6.63"

Related Files

Download Spec Sheet

Payment & Security
Your payment information is processed securely. We do not store credit card details nor have access to your credit card information.

The SM52-EZ-WX is a cost-effective, high-efficiency surface-mount loudspeaker for distributed or 8 Ω applications. The SM52-EZ-WX is designed for extreme weather resistance is rated for high levels of protection against both water and dust. The SM52-EZ-WX incorporates a dedicated 5.25” polypropylene woofer and an offset 1” soft dome
tweeter with waveguide to deliver superb intelligibility for background to foreground music and messaging (up to 100 dB max. SPL)

The SM52-EZ-WX uses a 32 W low-insertion loss transformer and a six-position tap switch with a transformer bypass position. Mounting for the SM52- EZ-WX includes a pre-mountable U-bracket for fast, secure installation and easy division of labor.
