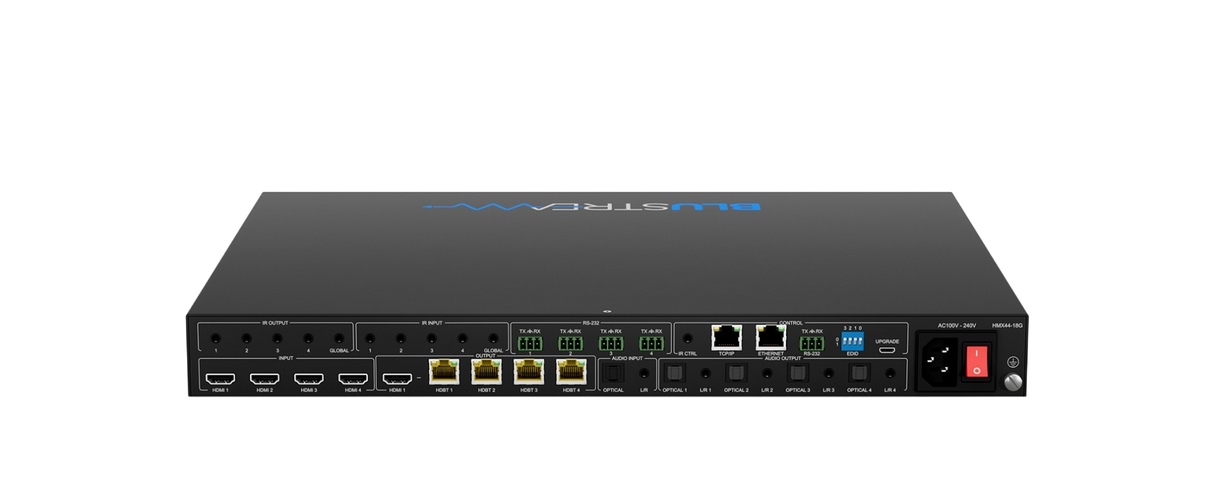

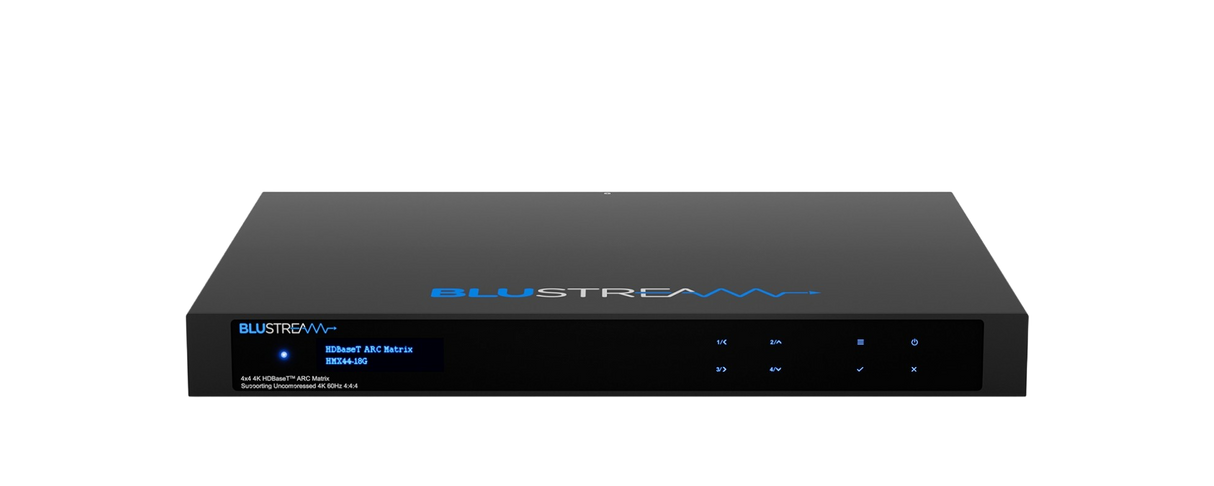

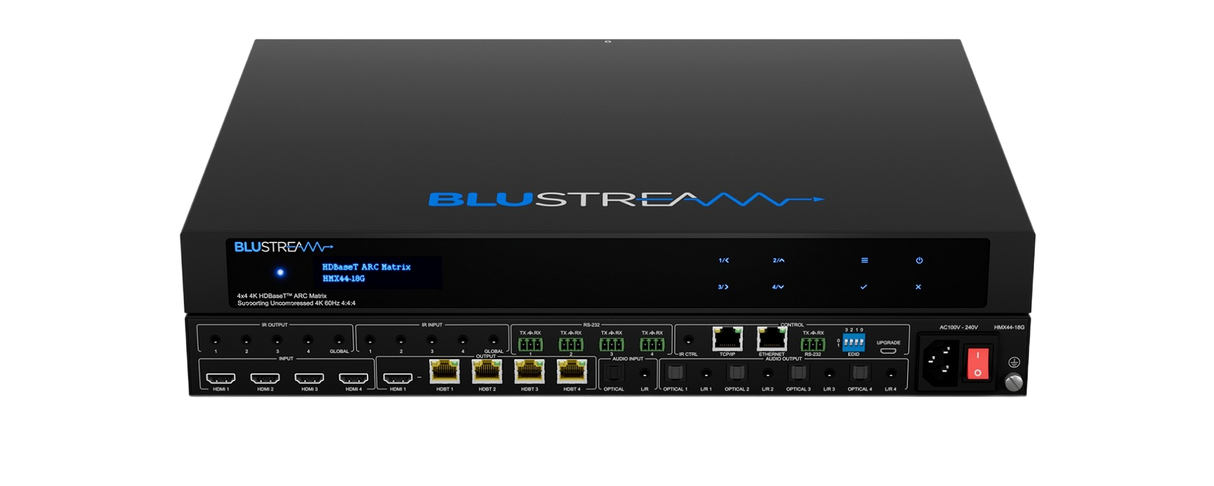

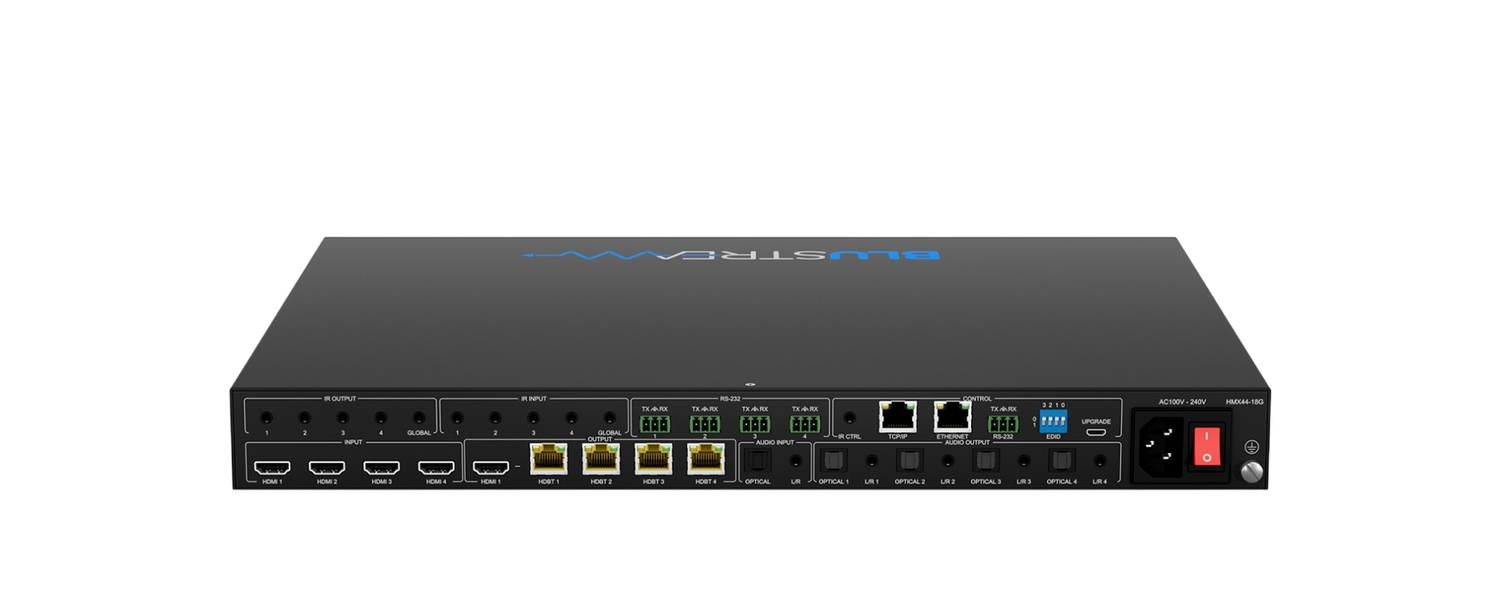

HMX44-18G-KIT 4x4 HDBaseT™ ARC Matrix Supporting Uncompressed 4K 60Hz 4:4:4

• Advanced uncompressed, unconverted, HDMI over HDBaseT3™ technology offering distribution of bit-for-bit 4K HDMI video and audio over a single CAT6A cable
• Features 4 x HDMI inputs which can be independently routed to 4 x HDBaseT™ outputs
• Output 1 features a simultaneous HDMI and HDBaseT™ output
• Supports distribution of uncompressed HDMI2.0 18Gbps specification including 4K 60Hz 4:4:4 UHD video up to 100m*
• Supports distribution of the latest HDR resolutions including HDR10/10+
• 14x4 Audio Matrix independently controllable from video. Audio source inputs include:
  - 4 x audio breakout from HDMI source inputs
  - 4 x audio breakout from zone outputs
  - 4 x audio return from zone outputs*
  - 1 x optical and 1x analogue audio input
• Supports bitstream passthrough of multichannel surround sound including object-based audio formats in line with HDMI specifications
• Integrated Ethernet switch (LAN Serving) when used with Blustream RX18G receiver (1Gb maximum)
• Web interface module for control and configuration of the Matrix
• Supports bi-directional IR and RS-232 on all HDBaseT™ outputs
• Control via front panel, IR, iOS / Android App, RS-232 and TCP/IP
• Supports PoC (Power over Cable) to power the supplied HDBaseT™ receivers
• Advanced EDID management and HDCP 2.3 compliant
• Supplied with 4 x RX18G HDBaseT™ Receivers


* Transmission distance is subject to video format, cable type and installation environment.

* The HDBaseT3 specification is based on using CAT6A F/UTP infrastructure or better. The use of CAT5e is not supported and CAT6 is not recommended due to potential bandwidth and performance issues.

** ARC feature supports HDMI ARC or Optical ARC. Compatible with RX18G receivers only

1 x HMX44-18G
4 x RX18G
1 x Rack mounting kit
1 x Remote control
4 x IR emitters
5 x IR receivers
1 x Serial Cable - DB9 to 3-pin phoenix connector
1 x IR Control Cable - 3.5mm-3.5mm Cable
IEC Power Cable(s)
1 x Quick Reference Guide
