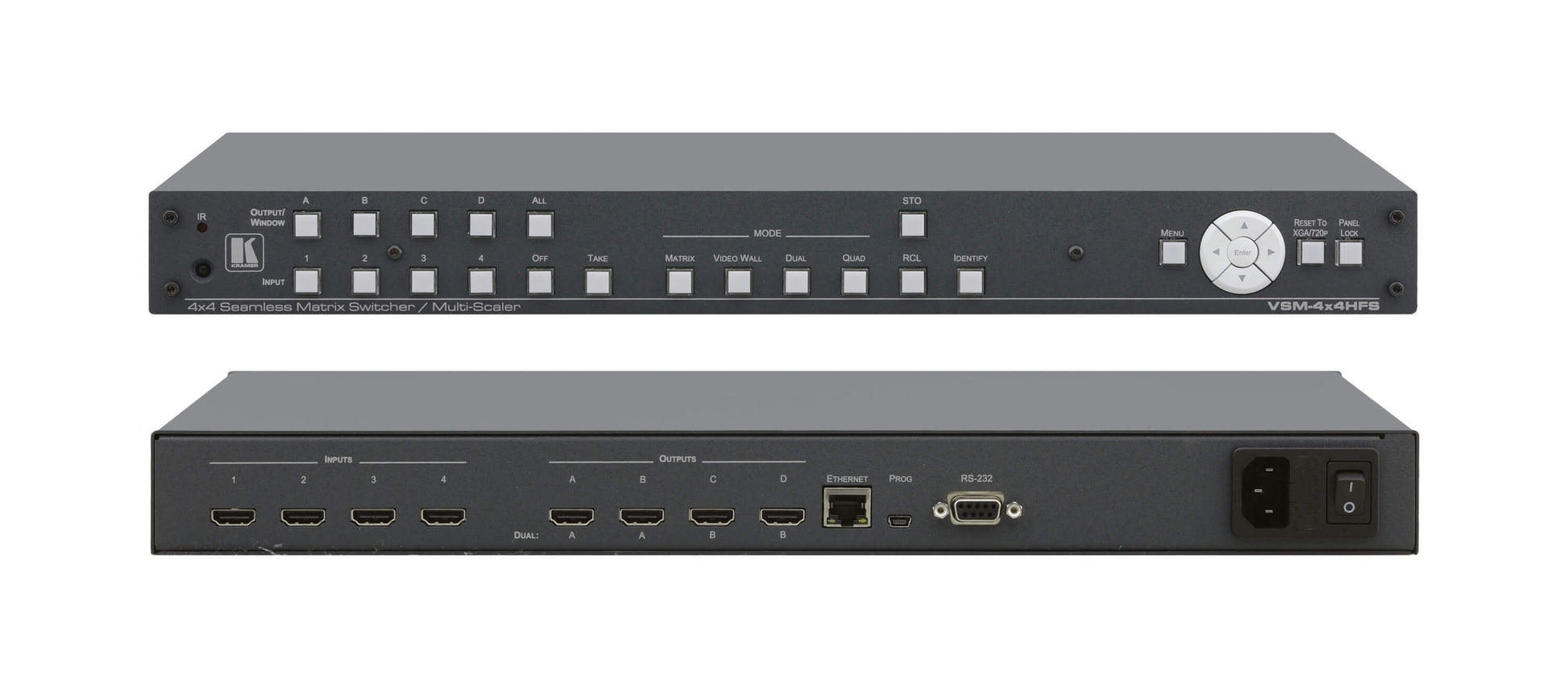

VSM4x4HFS 4x4 Seamless Matrix Switcher/Multi–Scaler

• Modes — Seamless matrix, video wall, dual display (PIP/P&P) and quad display
• Bezel Correction — In video wall mode
• Max Output Resolution — 1080p
• Built–in ProcAmp
• Control — IR, RS–232, Ethernet
• PixPerfect™ Scaling Technology — Kramer’s precision pixel mapping and high quality scaling technology.
• HDTV Compatible.
• HDCP Compliant.
• 4 HDMI Inputs and 4 Scaled HDMI Outputs.
• Selectable Operation Modes — Matrix switcher, video wall, dual display (PIP/P&P) and quad display.
• Seamless Switching — Frame–to–frame video cuts (zero transition time).
• Bezel Correction Options — In video wall mode.
• HDMI Support — Deep Color.
• Embedded Audio — Supports Dolby Digital Plus, Dolby TrueHD, DTS, DTS–HD®, LPCM 2CH/6CH/8CH, AC3.
• HDCP and EDID Settings per Port.
• Resolution — VGA to WUXGA and 480i to 1080p input, 480p to 1080p output.
• Multiple Output Aspect Ratios.
• Built–in ProcAmp — Color, hue, sharpness, noise, contrast and brightness.
• Flexible Control Options — Front panel buttons, IR remote control with OSD (On–Screen Display), RS–232, Ethernet with built–in Web browser.
• 4 Preset Memory Locations — Quick access to common IN–OUT configurations and non–volatile memory settings in each operation mode.
• Mini USB Connector — For upgrading firmware.

Power cord, rack "ears", IR remote control
