Key Digital  |  SKU: KD-IP1022DEC-II | Item No. 0101-0151

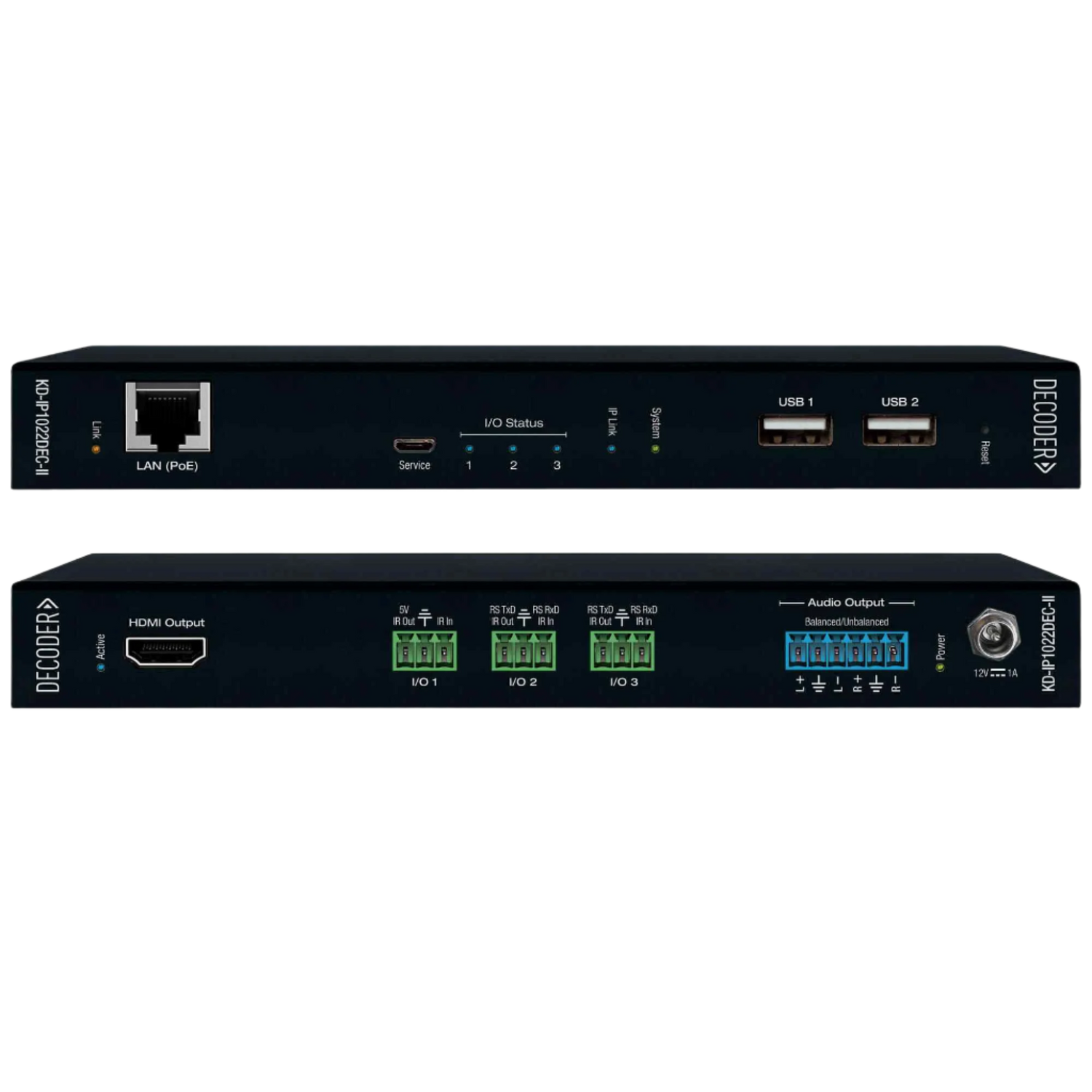

KD-IP1022DEC-II 4K AV Over IP System Decoder With Independent Av, Mosaic Video Wall

MSRP: $1060.00

Product Features

  • AV Over IP: Utilizes a managed gigabit network switch to enable HDMI video distribution, matrix switching, and signal extension
  • Video Wall Processing: Encoder + Decoder systems create video walls with up to 16x16, 256 total maximum displays
  • Mosaic Video Wall: Create decorative video walls using displays of varying sizes and positioning. Begin from templates of popular layouts or easily create fully custom layouts with graphical assistance using KDMS™ Pro software instead of terminal coding
  • Control: 3 multi-function ports may be used as Compass Control® Pro master controller, by IP control systems via KeyCode open API, to extend control signals, or as a third-party control interface,
  • Independent Switching: Video, Audio, and USB switching all independently routable routed for multi-layer systems
  • Key Digital® App Ready: Network scan & detect populates pre-built GUI including optional image preview, finger drag video wall management, source and display control of popular devices via IR
  • KDMS Pro Ready: PC software for unit & system setup and control UI with clean End-User mode option including optional image preview, mouse-drag video wall management, source and display control of popular devices via IR and PJ Link
  • HDMI Pass-through: Tx unit HDMI Pass-through to connect local monitor, HDMI Audio systems
  • Audio De-Embedding: Audio from the HDMI input is de-embedded through analog phoenix terminal to enable external audio connectivity with audio systems and amplifiers
  • Audio Pre-Amp: Volume, muting, 3-band EQ, and lip-sync delay controllable on audio de-embed port
  • USB 2.0: Routing follows AV source / display selection with maximum of 4 USB keyboard or mouse devices simultaneously routed to a single host computer / encoder. 1.5Mbps maximum bandwidth. Webcams not supported. For non-keyboard & mouse device inquires, please contact Technical Support before purchase
  • 4K/Ultra HD Resolution: Support for 4096x2160 or 3840x2160 24/25/30Hz at 4:4:4/8 Bit (10.2Gbps max bandwidth)
  • 4K Down-scale: Incoming 4K resolution can be down-converted to 1080p or 720p at each decoder, enabling monitors to display content at optimal resolution at all times
  • Signal Extension: Up to 330 ft. / 100 m @ 4K 24/25/30(4:4:4) out of network switch or point-to-point
  • Power over Ethernet: Does not require power supply when integrated with compatible PoE network switch
  • Redundant Power Connection: Added reliability for non-PoE integration
  • HDCP 2.2: Compliancy up to HDCP 2.2 and backward compliant
  • Data Stream Bandwidth: ≤ 850Mbps at 4K, ≤ 250Mbps at 1080K, ≤ 125Mbps at 720p / 1080i
  • Latency: <40ms at 4K. Less at lower resolution
  • Installation: Use KD-SMS16 to cleanly install up to twelve ENC/DEC units in rack
  • RS-232/TCP-IP Control Mode: Provides control of unit as well as connectivity status
  • Surround Audio: Support for Dolby® TrueHD, Dolby® Digital Plus, Dolby Atmos®, and DTS-HD Master Audio™
  • Control System Support: Controllable by all IR, RS-232 & TCP/IP supported control systems via open API

In the Box

Related Files

Payment & Security
Your payment information is processed securely. We do not store credit card details nor have access to your credit card information.
Key Digital’s 4K AV over IP system may be scaled to fit any installation need. Add an Encoder per video source or Decoder per video display and use a verified network switch as the central point of this HDMI AV routing and distribution system. The Key Digital 4K AV over IP system is completely integrated, with Encoder and Decoder product options including video wall, mosaic video wall, independent audio and video routing, control, audio pre-amp, app-ready user interface capabilities, and more.
